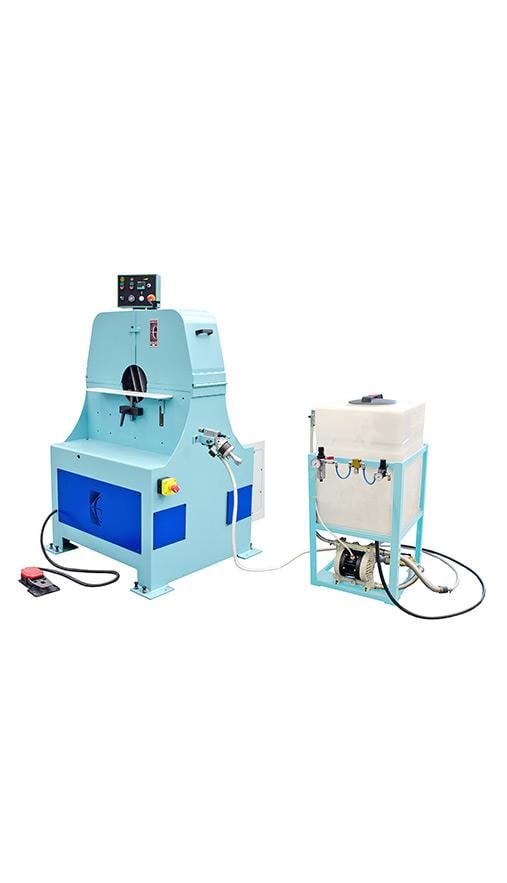

Orbital polishing machine type LPC 500 mirror has been designed, like the other two smaller versions, for straight and bent tube mirror polishing up to maximum diameter 203 mm.; this unit is equipped with liquid polishing paste dispenser and with inverter device for polishing belts speed adjustment.
By using standard abrasive belts this unit is also suitable for tube grinding and surface preparation to further mirror polishing.
D = 10–203 mm (8" max)
R min. = 225 mm
S = 1500 mm L = 90 mm
2,2 kW 11 kW
Weight: 475 kg
H = 145 cm P = 205 cm L = 120 cm
ADN automatic self centering feed system for straight tubes with 4+4 rollers (Not for taper parts) with adjustable feed trough inverter
ADN automatic self centering feed system for straight tubes with 4+4 rollers (Not for taper parts) with adjustable feed trough inverter (Hinged, for manual feed processing)
ALT SELFCENTERING automatic feed for straight and cylindrical TAPER PARTS and adjustable feed with inverter
AVU "UNIVERSAL" feed for both straight and bent parts with adjustable speed through inverter
AN foot pedal equipment for a easier workpiece insert betwenn the abrasive belts
AN/A equipment for automatic opening and close of the abrasive belts through photoeye and PLC
Abrasive belts speed adjustable (10–30 mt/sec) with inverter and digital display with mt/sec real values
Touch-Screen controls panel for working cycles programming, feed rate adjustment
