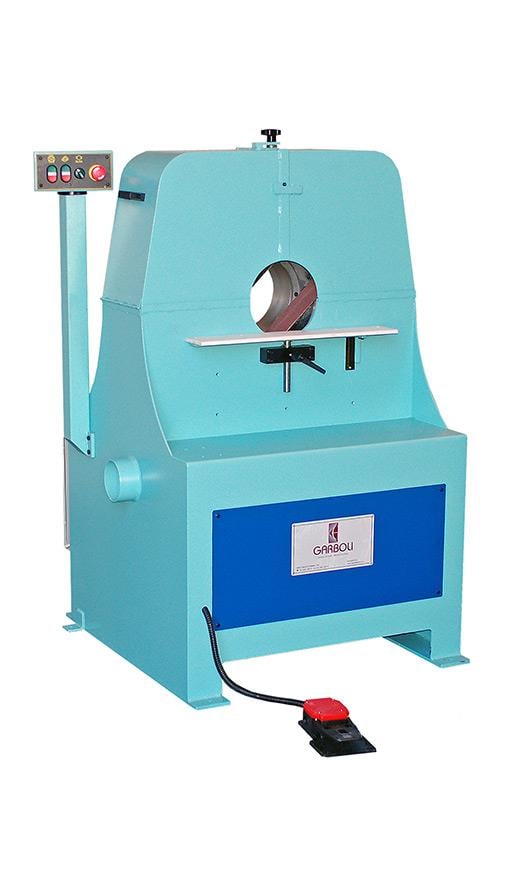

Orbital pipe polisher with abrasive belts type LPC500 enables tube grinding, polishing and satin finishing on straight and bent tubes, as well as surface finishing on round, oval, elliptical and irregular section bent and straight parts made of stainless steel, steel, aluminum, brass and other types of metals up to diameter 203 mm.
This machine can be delivered complete with several special equipment on request and it is featured by a dry grinding system that using 2 opposite abrasive belts size 1500x90 mm. That enables a high productivity even in case of big size tube grinding
ADN automatic self centering feed system for straight tubes with 4+4 rollers (Not for taper parts) with adjustable feed trough inverter
ADN automatic self centering feed system for straight tubes with 4+4 rollers (Not for taper parts) with adjustable feed trough inverter (Hinged, for manual feed processing)
ALT SELFCENTERING automatic feed for straight and cylindrical TAPER PARTS and adjustable feed with inverter
AVU "UNIVERSAL" feed for both straight and bent parts with adjustable speed through inverter
AN foot pedal equipment for a easier workpiece insert betwenn the abrasive belts
AN/A equipment for automatic opening and close of the abrasive belts through photoeye and PLC
Abrasive belts speed adjustable (10–30 mt/sec) with inverter and digital display with mt/sec real values
Controls panel with digital display for belts speed and feed system speed adjusting.
Touch-Screen controls panel for working cycles programming, feed rate adjustment
D = 10–203 mm (8" max)
R min. = 225 mm
S = 1500 mm L = 90 mm
Disc = 2,2 kW Belts = 7,5 kW
Weight: 455 kg
H = 145 cm P = 115 cm L = 120 cm
