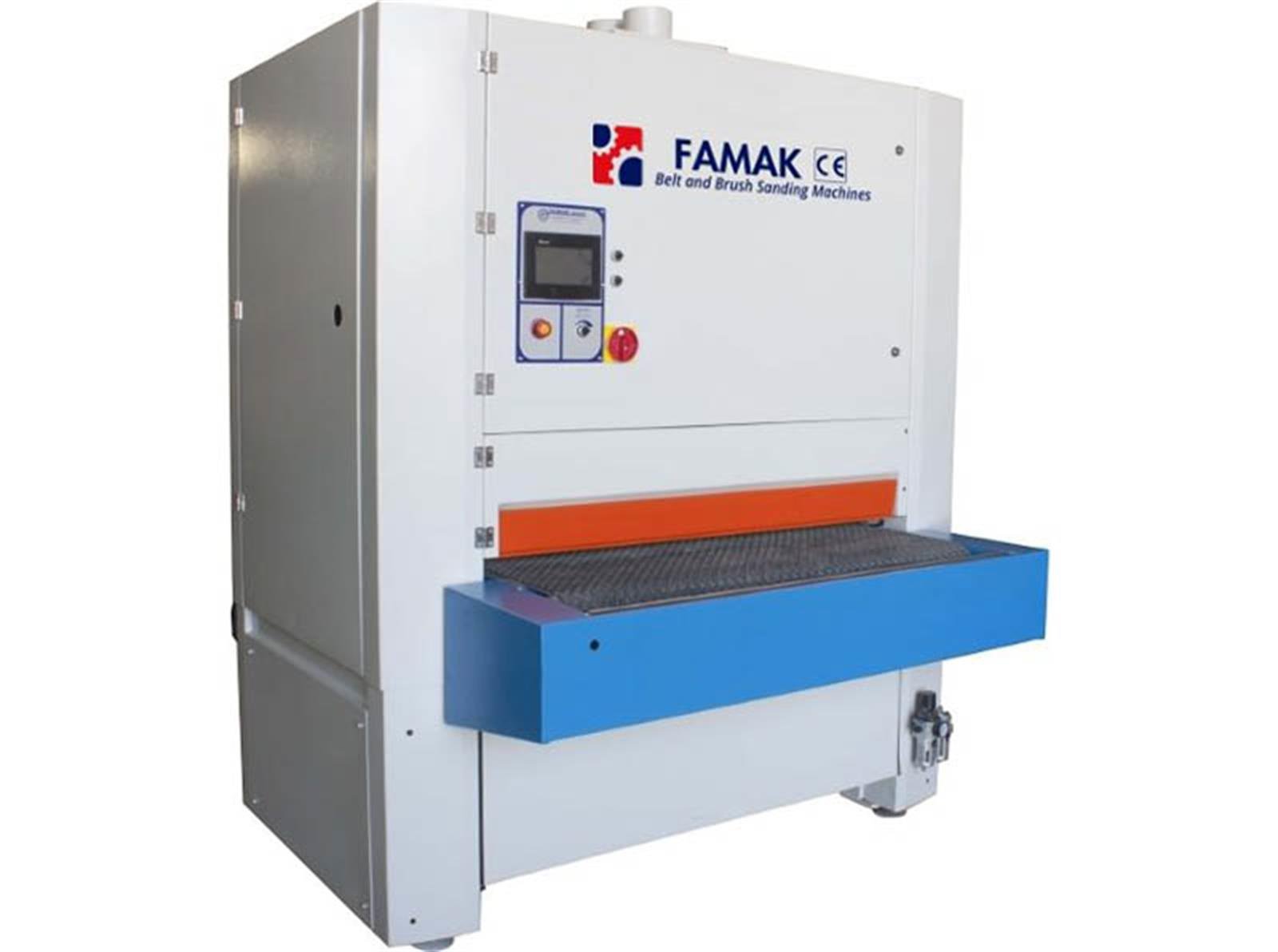

Famak 1350 RKP Wood Caliber And Surface Sanding Machine (Famak Wood Caliber And Surface Sanding Machine)

• Capacity to process 1350mm width and 3 – 120mm thickness,
• Desired surface quality in one go with its 2-unit structure
• Front unit calibrated, rear unit piano printed combi,
• It does not cause bottoming and peeling on products coated with piano prints.
• Possibility to use caliber or piano with the KP unit
• 3 – 15 m/min. adjustable feed rate,
• wear resistant conveyor belt,
• With 2620mm long sanding length, product sanding up to 1000 meters,

• Ø180mm Steel drum,
• Rubber coated drum D=180 mm 30, 45, 60, 90 Sh.
• Vacuum suction table system (required for sanding materials thinner than 3mm.)
• Brush cleaning system at the exit

*The table is movable: The thickness adjustment according to the material to be processed in the machine is made by moving the conveyor belt up / down.

*Body moving: While the machine conveyor is fixed in this system, the thickness adjustments are provided by the body movement. It is offered optionally.

**3 - 120 : Vacuum must be added to the conveyor system for parts with thicknesses less than 3 mm. It is offered optionally.
