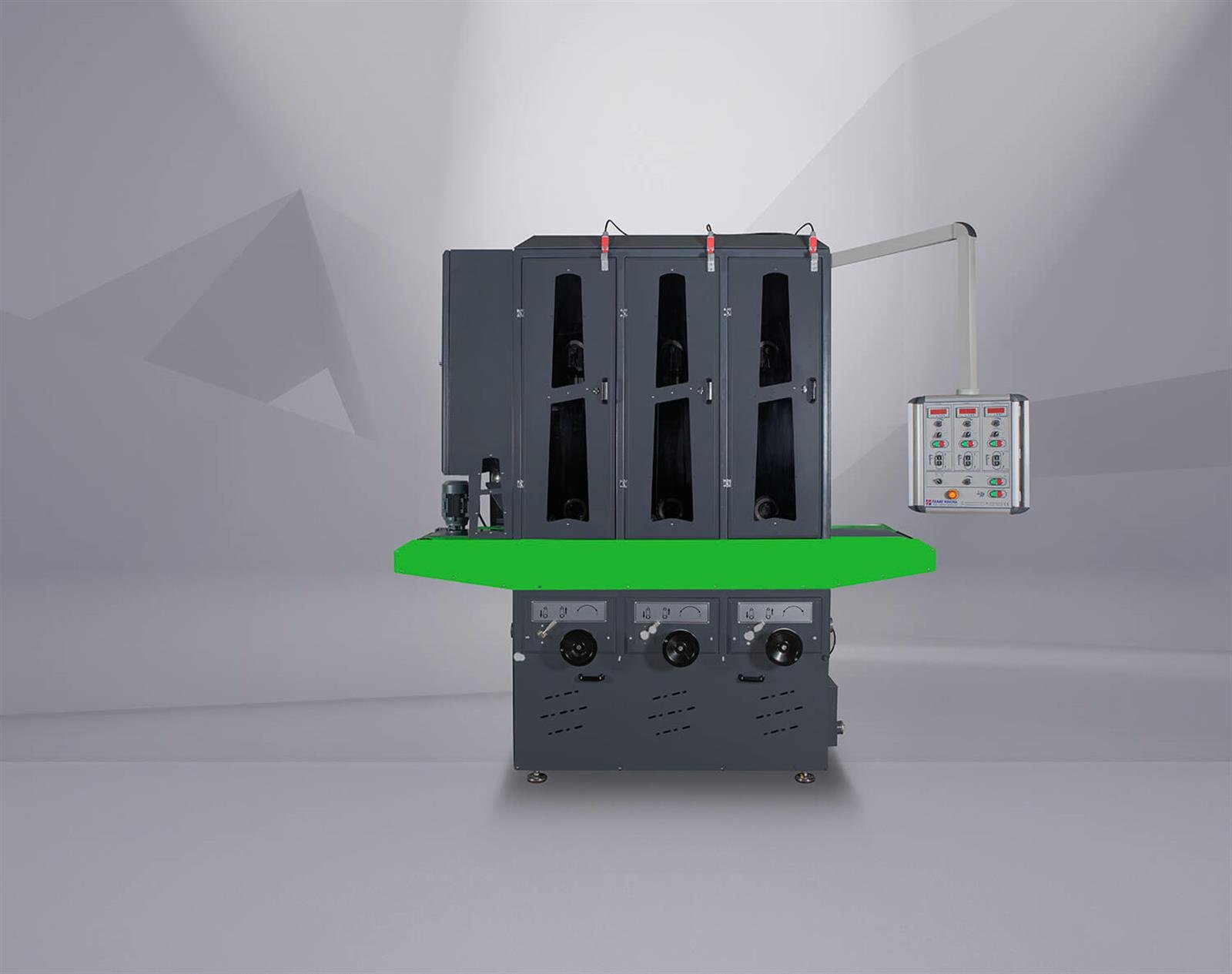

Famak DYZ 300 RRR S Metal Sanding Machine (Famak DYZ 300 RRR S Metal Sanding Machine)

Brand : Famak

Stock Amount : 0

Est. Delivery Time60-75 Days After Order

Shipment Place Turkiye

Payment Terms% 30 T/T On Order Confirmation, % 70 T/T Before Shipment

Made InTurkey

Min. Order Qty.1 Pcs.

Warranty1 Year

Örnek Açıklama Yazısı (Bu alan HTML içerikleri de kabul etmektedir)

Finishing Machines

Metal Sanding Machines

Working Wide mm	0 - 300
Working thickness mm	0,8 - 300
Control panel	Analog Panel
Conveyor system features	Feed speed adjustable 0,5 – 8 m/min, ability to move forward or backward abrasion resistant conveyor belt
Weight kg	2250
*Dimensions WLH*	1200 * 2500 * 2500
Electrical cabinet	Siemens, Schineder
Motor Invertors	Mitsubishi

* CE; European standard safety norms in compliance with 2006/42/EC - 2014/30/EC
* Standard Voltage 400V - 50 Hz – 3P

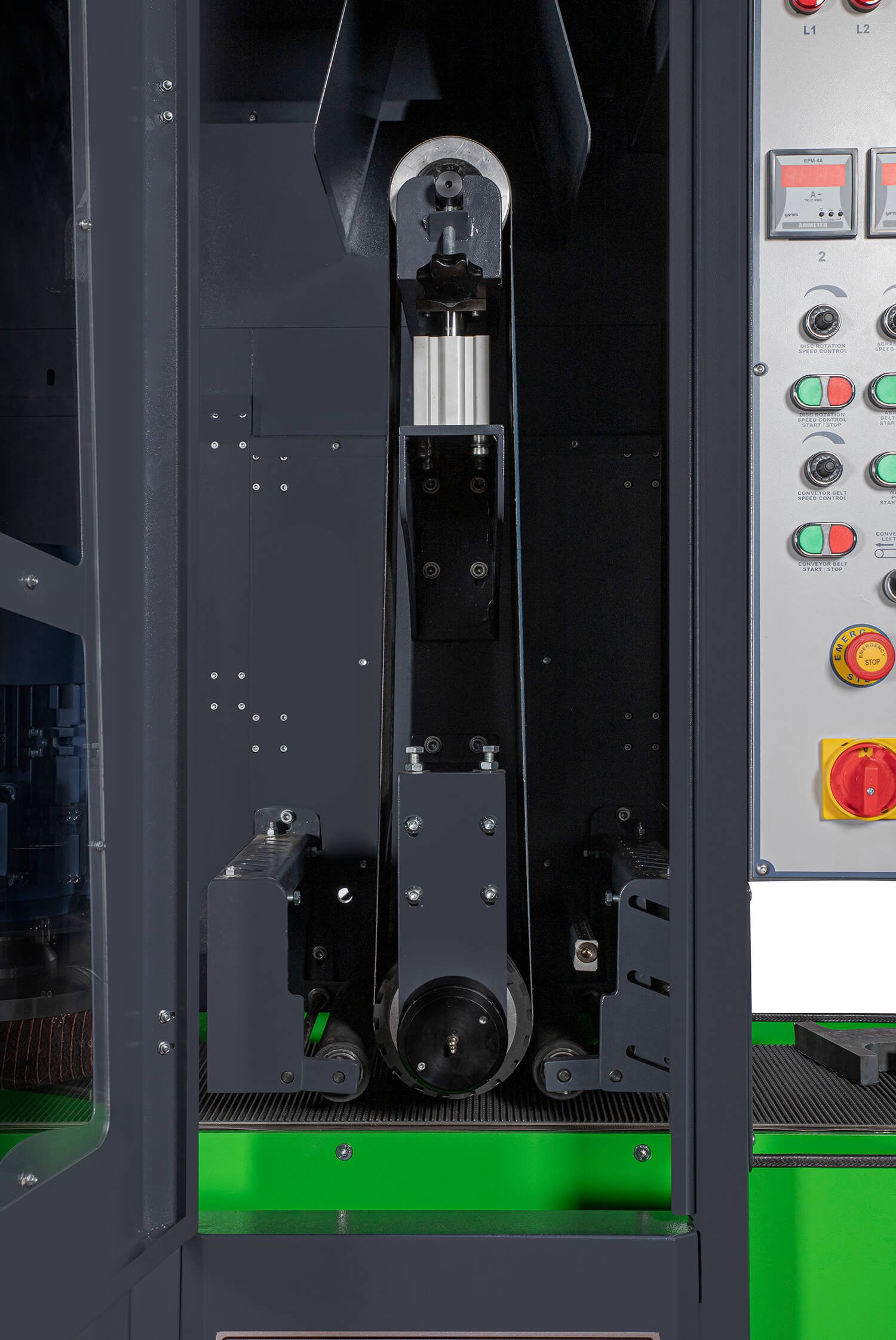

Unit 1
Unit type	Roller Unit
Ünite features	Ø150 mm, Rubber –coated, 50-55 shore Roller
Abrasive belt dimension mm	2000 * 300
Abrasive belt cutting speed m/s	3 to 15 INVERTER controlled variable Speed
Motor power kW	5,5

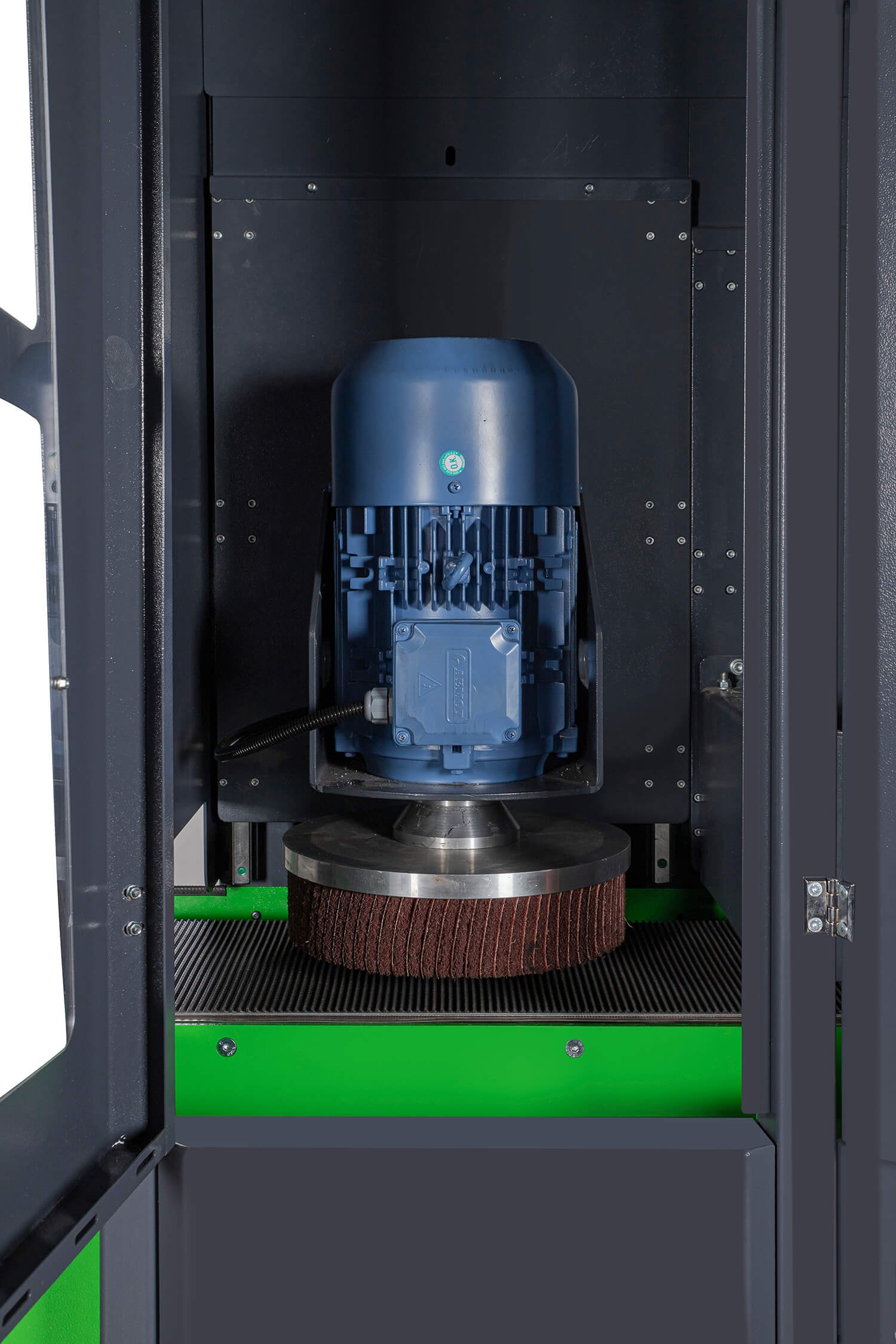

Unit 2
Unit type	Disc Unit
Unit features	Ø310 mm, Extractable orbital discs – *M12(Clockwise)
Number of discs adet	1
Discs diameter mm	Ø310
Tool changing device	By screw
Stroke adjustment up and down for disc pressure	Manual control by hand wheel
Discs rotating speed rpm	250 to 1.250 INVERTER controlled variable Speed
Motor power kW	2,2
Standard discs details	Ø310mm Scotch Brite + Abrasive(Combi disks)
