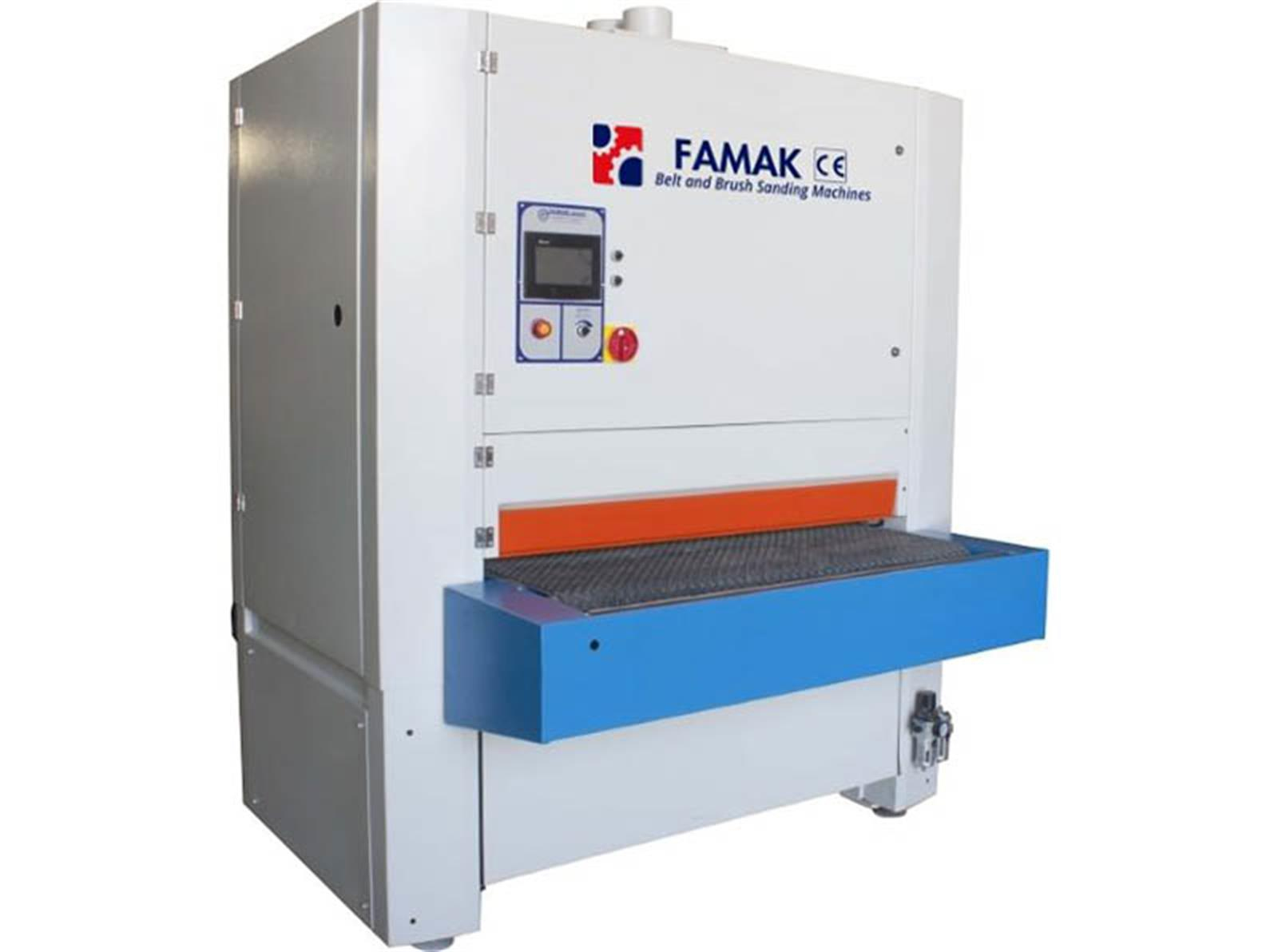

Famak 1350 KPKPCR Wood Caliber And Surface Sanding Machine (Famak 1350 KPKPCR Wood )

Brand : Famak

Price : 0,00 EURO(Vat included)

Stock Amount : 0

Note: The prices shown here are retail sales prices. SPECIAL DISCOUNT MAY APPLY FOR BULK PURCHASES . Additionally, discounted prices offered to dealers may differ.

Import duties, customs charges, and value-added taxes for products originating outside of Turkey are not included in the listed prices. This is applicable to customers purchasing from within Turkey.

The prices mentioned here do not include door-to-door delivery. Buyers purchasing from other countries are responsible for customs duties and any other taxes applicable under their local commercial laws.

For orders under 13,000 Euros, if the product value is below this, the total order value must either reach 13,000 Euros or a 150 Euro customs fee will be added to your final invoice value.

Ask For Offer

Add to Favorites

Add to My Wish List

Compare

Notify me when the price goes down

Notify me when it is in stock

Artır Azalt

Est. Delivery Time60-75 Days After Order

Shipment Place Turkiye

Payment Terms% 30 T/T On Order Confirmation, % 70 T/T Before Shipment

Made InTurkey

Min. Order Qty.1 Pcs.

Warranty1 Year

Sanding Polishing Machines

Wood Caliber and Surface Sanding Machine

Capacity to process 1350mm width and 3 – 120mm thickness,
Desired surface quality in one go with its 3-unit structure
Front unit calibrated, rear unit piano printed combi,
It does not cause bottoming and peeling on products coated with piano prints.
Possibility of using caliber or piano with the CR unit
Possibility to use caliber or piano with the KP unit
3 – 15 m/min. adjustable feed rate,
wear resistant conveyor belt,
With 2620mm long sanding length, product sanding up to 1000 meters,

Ø180mm Steel drum,
Rubber coated drum D=180 mm 30, 45, 60, 90 Sh.
Vacuum suction table system (required for sanding materials thinner than 3mm.)
Brush cleaning system at the exit

Model		1350 KP.KP.CR.
Machine Name		1350 mm Caliber Sanding Machine with Piano, Piano and Cross Unit Calibrated Sanding Machine
Machine Working Width	(mm)	0 – 1350
Material Processing Thickness	(mm)	3 – 120
Sandpaper Sizes	(mm)	(2x) 1350*2620
Conveyor System Features		Speed-adjustable system, Abrasion-resistant conveyor belt, *table moving
Unit 1 Features
Unit Type	(mm)	Piano Printed Combi Unit
Number of Piano Prints		22
Front Drum Diameter and Feature	(mm)	Ø150, rubber coated front drum, Rubber hardness 65-70 sor
Motor Power	(kW)	15
Sanding Cutting Speed	(m/s)	18
Engine Braking System		Yes
Unit 2 Features
Unit Type	(mm)	Piano Printed Combi Unit
Number of Piano Prints		22
Front Drum Diameter and Feature	(mm)	Ø150, rubber coated front drum, Rubber hardness 65-70 sor
Motor Power	(kW)	15
Sanding Cutting Speed	(m/s)	18
Engine Braking System		Yes
Unit 3 Features
Ünite tipi	(mm)	Piano Printed Cross Unit
Piyano baskı adedi		22
Ünite Genişliği	(mm)	150
Motor gücü	(kW)	11
Zımpara kesme hızı	(m/s)	18
Elektrik panosu		Siemens / Mitsubishi
Makina rengi		Ral 7035 - 5010
Ünitelerde osilasyon		Yes
Kapak emniyet şalteri		Yes
Motor koruma ünitesi		Yes

*The table is movable: The thickness adjustment is made by moving the conveyor belt up / down according to the material to be processed in the machine.

*Body moving: While the machine conveyor is fixed in this system, the thickness adjustments are provided by the body movement. It is offered optionally.

**3 - 120 : Vacuum must be added to the conveyor system for parts with thicknesses less than 3 mm. It is offered optionally.
