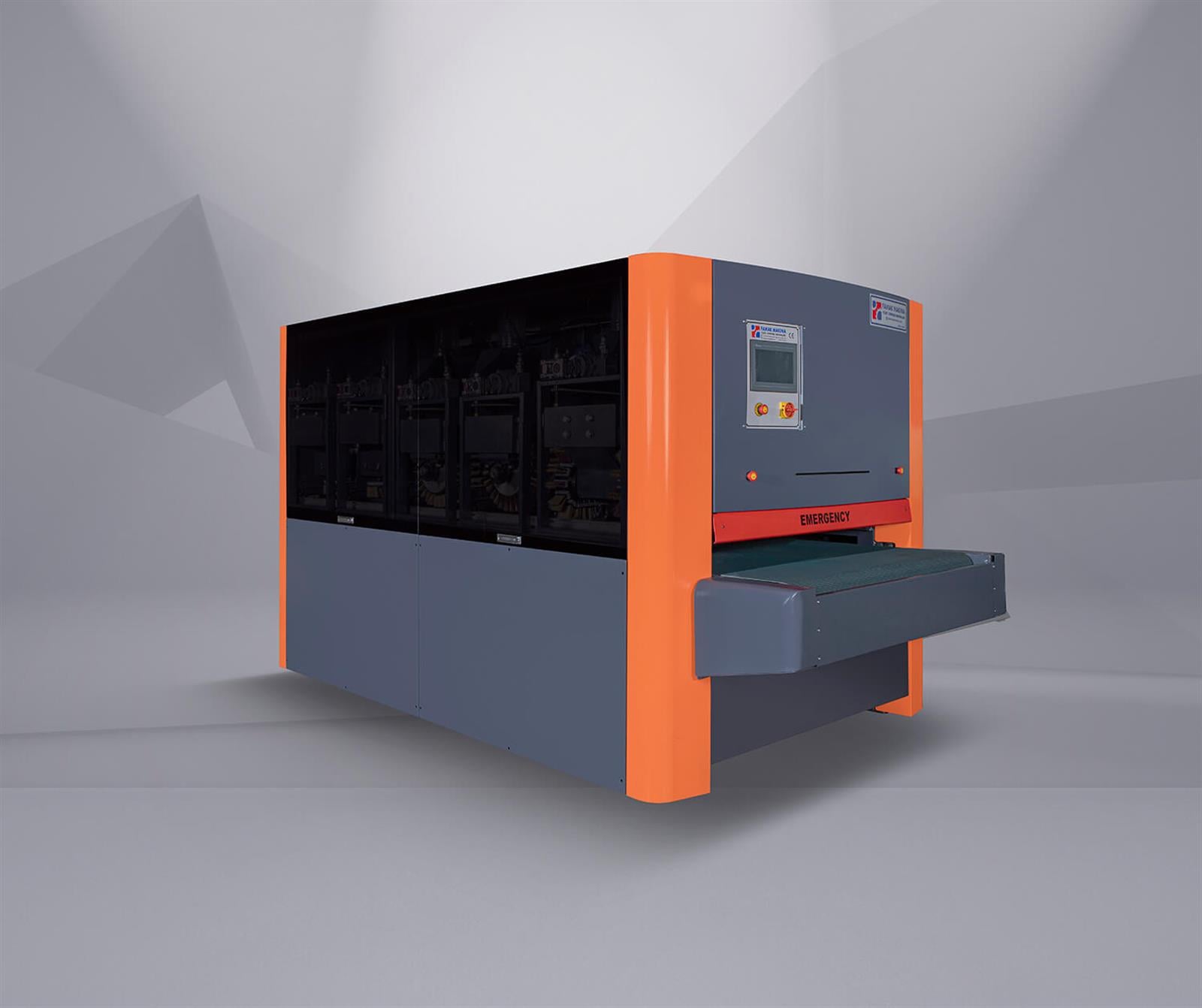

Famak 1350 FZ 5 UNİT Wood Flexible Sanding Machine (Famak 1350 FZ 5 UNİT Wood Flexible Sanding Machine)

Brand : Famak

Price : 0,00 EURO(Vat included)

Stock Amount : 0

Note: The prices shown here are retail sales prices. SPECIAL DISCOUNT MAY APPLY FOR BULK PURCHASES . Additionally, discounted prices offered to dealers may differ.

Import duties, customs charges, and value-added taxes for products originating outside of Turkey are not included in the listed prices. This is applicable to customers purchasing from within Turkey.

The prices mentioned here do not include door-to-door delivery. Buyers purchasing from other countries are responsible for customs duties and any other taxes applicable under their local commercial laws.

For orders under 13,000 Euros, if the product value is below this, the total order value must either reach 13,000 Euros or a 150 Euro customs fee will be added to your final invoice value.

Ask For Offer

Add to Favorites

Add to My Wish List

Compare

Notify me when the price goes down

Notify me when it is in stock

Artır Azalt

Est. Delivery Time60-75 Days After Order

Shipment Place Turkiye

Payment Terms% 30 T/T On Order Confirmation, % 70 T/T Before Shipment

Made InTurkey

Min. Order Qty.1 Pcs.

Warranty1 Year

Sanding Polishing Machines

5 Unit Wood Flexible Sanding Machine

It is used for deburring after CNC milling, filling sanding, 3D wood parts sanding, door and window sanding and surface roughness.

It is a precision and general purpose machine, ideal for medium and large capacity operations.

1 cross-brush sanding unit,
2 drum flexible brush units,
2 orbital oscillating disc flexible brush units,
Independent speed control in units,
Independent thickness adjustment,
3 – 12 m/min. material feed rate,
Total 18 kW engine power,

Working wide mm	0 - 1350
Working Thickness mm	2 - 120
Control Panel	PLC Touch Screen
Conveyor System Features	Adjustable feed speed 3 – 12m/min
Weight kg	3800
*Dimensions WLH*	2000 * 4200 * 2100
Electrical Cabinet	Siemens, Schineder, Delta
Motor Invertors	Mitsubishi

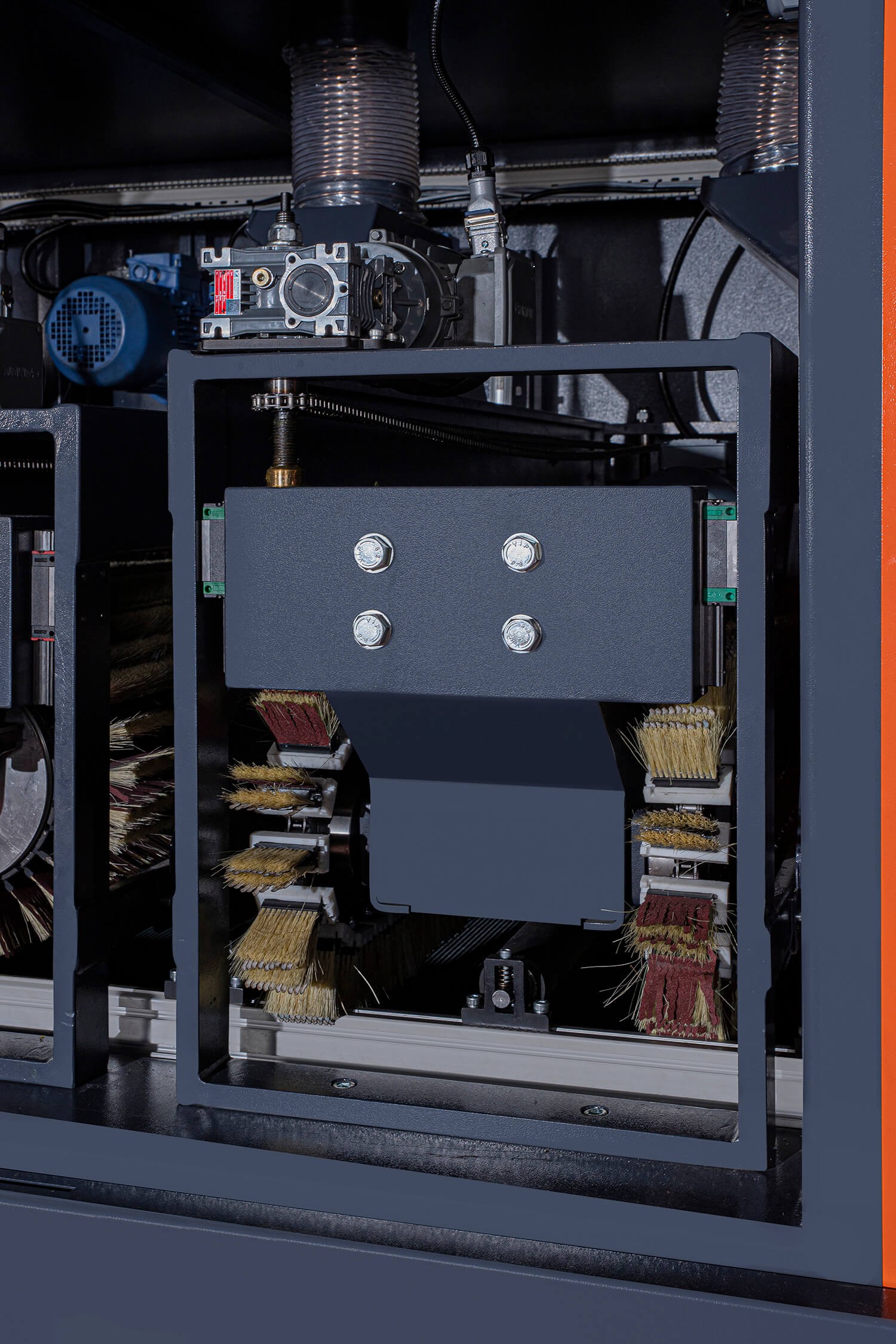

Unit 1
Ünite type	Lateral sanding brush
Working speed	Speed adjustment
Abrasive brush size mm	70 * 70
Stroke adjustment up and down for abrasive pressure	Motorized control by Touch Panel
Abrasive grit	Natural wood:120 MDF:220

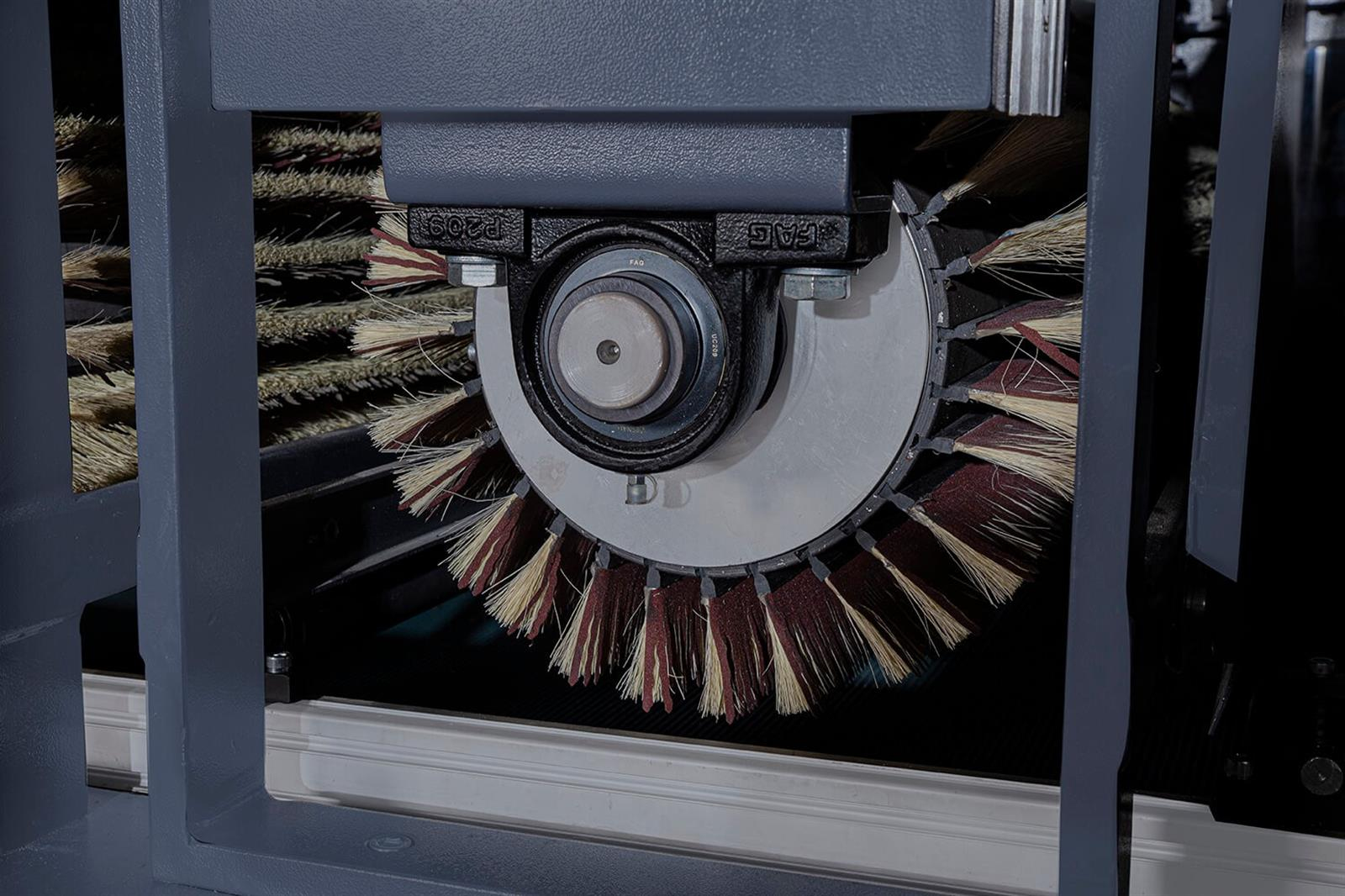

Unit 2
Unit type	Ø350 mm brush roller
Working speed	Speed adjustment
Oscilatte function	Left - Right - Left
Abrasive brush size mm	60 * 1400
Stroke adjustment up and down for abrasive pressure	Motorized control by Touch Panel
Abrasive grit	Natural wood:180 MDF:320
Drum sander makes the smooth surface by vertical grinding in the feed direction. Easy change of sanding strips.

Unit 3
Unit type	Ø350 mm brush roller
Working speed	Speed adjustment
Oscilatte function	Left - Right - Left
Abrasive brush size mm	60 * 1400
Stroke adjustment up and down for abrasive pressure	Motorized control by Touch Panel
Abrasive grit	Natural wood:180 MDF:320
Drum sander makes the smooth surface by vertical grinding in the reverse feed direction. Easy change of sanding strips.

Unit 4
Unit type	Ø150 mm disc unit
Working speed	Speed adjustment
Oscilatte function	Orbital
Each disk has 8 abrasive brush
Abrasive brush size mm	50 * 60 (128 pcs)
Number of disk	8 + 8
Stroke adjustment up and down for abrasive pressure	Motorized control by Touch Panel
Abrasive grit	Natural wood:280 MDF:400
The orbital rotating sanding disks are made in vertical and horizontal directions. Provide good sanding for flat or irregular surface. Easy change of sanding strips.

Unit 5
Unit type	Ø150 mm disc unit
Working speed	Speed adjustment
Oscilatte function	Orbital
Each disk has 8 abrasive brush
Abrasive brush size mm	50 * 60 (128 pcs)
Number of disk	8 + 8
Stroke adjustment up and down for abrasive pressure	Motorized control by Touch Panel
Abrasive grit	Natural wood:280 MDF:400
The orbital rotating sanding disks are made in vertical and horizontal directions. Provide good sanding for flat or irregular surface. Easy change of sanding strips.
