Deburring is removing burr and sharp edges of metal parts with abrsive units. The burrs are tiny pieces of metal that are stuck to the surface of the sheet metal or metal parts, mostly around the cut edges. These are caused laser, water jet, punched, or plasma cutting.
Famak, manufactures deburring machines for sheet metal to efficient optimal manufacturing. The deburring tool that is used in the machines is the abrasive belt. Each belt has its own grit size, which is required for different types of burrs and alloys. A finer grit is recommended for softer alloys, whereas a rougher grit is best for alloys like steel.
Deburring can be combined with edge breaking and finishing operations. The machine will then not only remove burrs, but also apply a perfect surface finish. Famak offers standard and tailor-made machines that can deburr sheet metal products.
Model

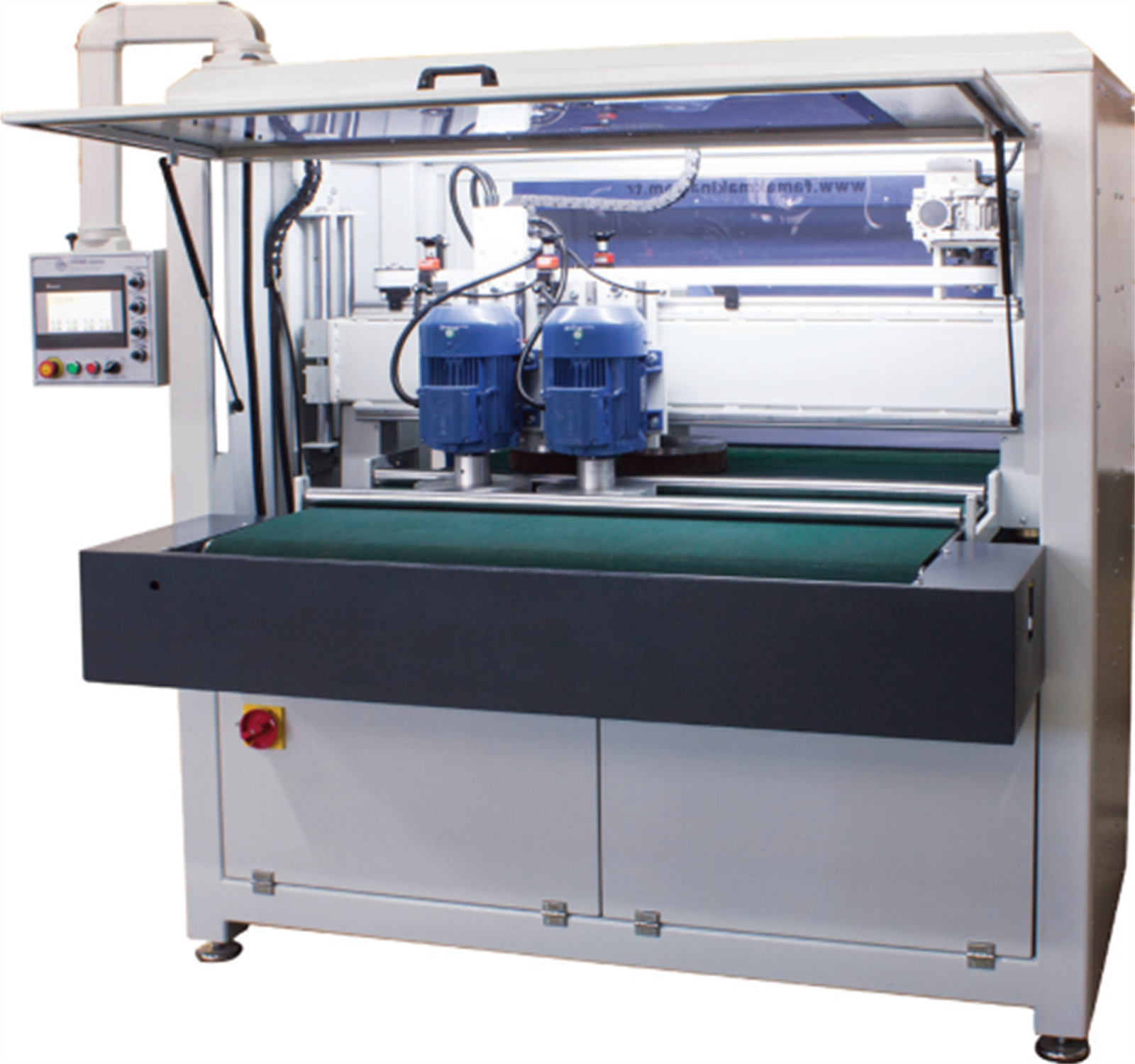

1350 – 4F
Machine name
1350 mm 4-head metal deburring machine
Unit Type
Front system heads: snap sanding, Rear system heads: scotch sanded,
Makine çalışma genişliği
(mm)
0 – 1350
Material Processing Thickness
0,5 – 120
Motor Power
(kW)
(4X) 2,2
Sanding Cutting Speed
(m/s)
Speed Adjustable
Oscillation Speed
Sandpaper Sizes
Ø250
Material Thickness Control
PLC Control
Conveyor System Features
Speed adjustable system (1-5m/min),
Machine Working Pressure
(bar)
6
Machine Weight
(kg)
1700
machine Control
Touch PLC panel controlled
Machine Parameter and Operation Control
From touch PLC panel
Electric Panel
Siemens
Motor Drivers
Mitsubishi
PLC and touch screen
Delta
Cover Safety Switch
Yes
Engine Protection Unit
Materials that can be used
Iron, stainless, brass, copper, bronze
