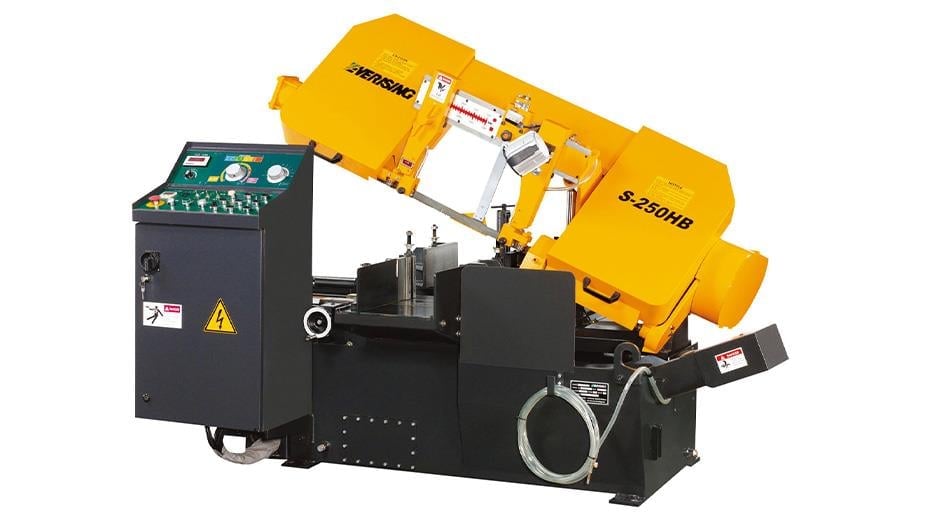

Everising S-250HB Fully Automatic Band Saw Pivot Type

Brand : Everising

Stock Code (S-250HB)

Est. Delivery Time60-75 Days After Order

Shipment Place Turkey

Payment Terms% 30 T/T On Order Confirmation, % 70 T/T Before Shipment

Made In Taiwan

Min. Order Qty.1 Pcs.

Warranty1 Year

Stock Amount : 0

Note: The prices shown here are retail sales prices. SPECIAL DISCOUNT MAY APPLY FOR BULK PURCHASES . Additionally, discounted prices offered to dealers may differ.

Import duties, customs charges, and value-added taxes for products originating outside of Turkey are not included in the listed prices. This is applicable to customers purchasing from within Turkey.

The prices mentioned here do not include door-to-door delivery. Buyers purchasing from other countries are responsible for customs duties and any other taxes applicable under their local commercial laws.

For orders under 13,000 Euros, if the product value is below this, the total order value must either reach 13,000 Euros or a 150 Euro customs fee will be added to your final invoice value.

Price : 0,00 EURO(Vat included)

Item is out of stock.

Contact Via WhatsApp

Add to Favorites

Add to My Wish List

Compare

Notify me when the price goes down

Notify me when it is in stock

United Contruction-(Bar feed and saw are on one base)
Shuttle type automatic feed
P.L.C. control for all electric and hydraulic function
Hydraulically controlled dual vise clamping system
Floating shuttle vise system
Split front vise
Infinitely variable speed control by inverter
Blade speed tachometer
Hydraulic blade tensioning
Roller bearing with carbide blade guide system
Automatic work height control by fast approach bar sensor
Preset cut counter with shut off
Out-of-stock shut off
Multiple indexing (9 times)
Nesting fixture for bundle cutting
Power driven blade cleaning brush
Idler wheel motion detector with blade stalling and breakage shut off
Flushing hose for machine cleaning
Work light
Roller stock table 2M long
One M42 bi-metal saw blade
One set of tools and tool box

Automatic chip conveyor
Variable vise pressure
User friendly NC touch screen control with selfdiagnostic system
Full stroke vise clamping system

Model		S-250HB
Capacity		250 mm (10")
		300 x 250 mm (12"W x 10"H)
Bundle Cutting	Width	145 to 190 mm (5.7" to 7.5")
	Height	30 to 120 mm (1.2" to 4.5")
Blade Speed		20 to 100 m/min (65 to 330 fpm)
		(INVERTER)
Motor	Blade Drive	3.7 kW (5HP)
	Hyd. Pump	0.75 kW (1HP)
	Coolant Pump	0.1 kW (1/8HP)
Blade Size		3505 x 34 x 1.1 mm
		(138" x 1.3" x 0.042")
Blade Tension		Hydraulic
Index Length		400 mm (16")
		400 mm x 9 times (16" x 9)
Machine Weight		1460 kg (3215 lb)
Floor Space (L x W)		2100 x 2200 mm (82.6" x 86.6")
