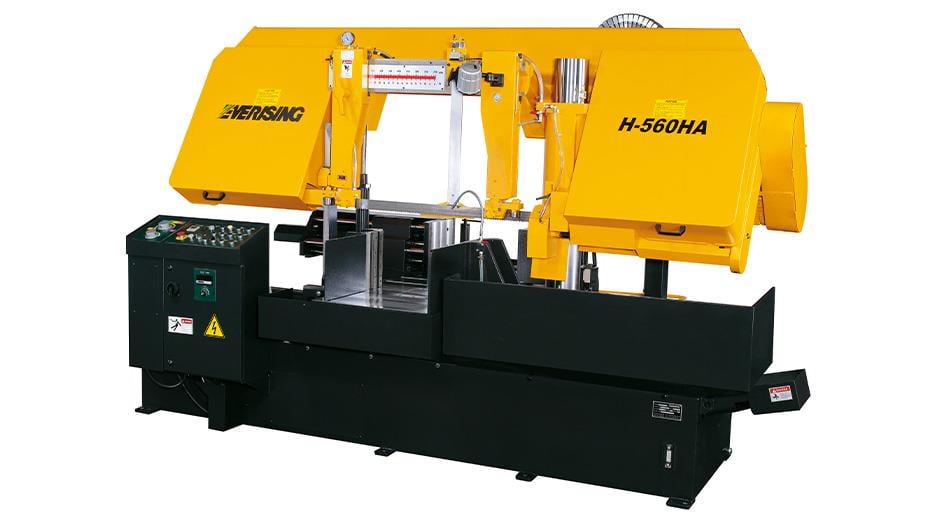

Everising H-560HA Fully Automatic Band Saw Column Type

Brand : Everising

Stock Code (H-560HA)

Est. Delivery Time60-75 Days After Order

Shipment Place Turkey

Payment Terms% 30 T/T On Order Confirmation, % 70 T/T Before Shipment

Made In Taiwan

Min. Order Qty.1 Pcs.

Warranty1 Year

Stock Amount : 0

Note: The prices shown here are retail sales prices. SPECIAL DISCOUNT MAY APPLY FOR BULK PURCHASES . Additionally, discounted prices offered to dealers may differ.

Import duties, customs charges, and value-added taxes for products originating outside of Turkey are not included in the listed prices. This is applicable to customers purchasing from within Turkey.

The prices mentioned here do not include door-to-door delivery. Buyers purchasing from other countries are responsible for customs duties and any other taxes applicable under their local commercial laws.

For orders under 13,000 Euros, if the product value is below this, the total order value must either reach 13,000 Euros or a 150 Euro customs fee will be added to your final invoice value.

Price : 0,00 EURO(Vat included)

Item is out of stock.

Contact Via WhatsApp

Add to Favorites

Add to My Wish List

Compare

Notify me when the price goes down

Notify me when it is in stock

Shuttle type automatic feed.
P.L.C. control for all electric and hydraulic function.
Hydraulically controlled dual vise full stroke clamping system.
Floating shuttle vise system.
Split front vise.
Infinitely variable speed control by inverter.
Blade speed tachometer.
Hydraulic blade tensioning.
Roller bearing carbide blade guide system with hydraulic clamped.
Auxiliary lifting cylinder.
Automatic work height control by fast approach bar sensor.
Preset cut counter with shut off.
Out of stock shut off.
Multiple indexing (9 times).
Power driven blade cleaning brush.
Idler wheel motion detector with blade stalling and breakage shut off.
Flushing hose for machine cleaning.
Work light.
Roller stock table 2M long.
One M42 bi-metal saw blade.
One set of tools and tool box.

Automatic chip conveyor.
Variable vise pressure.
User friendly NC touch screen control with self-diagnostic system.
Out of square detector.

Model		H-560HA
Capacity		560 mm (22")
		610 x 560 mm (24"W x 22"H)
		min. clamp width 110 mm (4.3")
Blade Speed		18 to 90 m/min (60 to 300 fpm) (INVERTER)
Motor	Blade Drive	7.5 kW (10 HP)
	Hyd. Pump	2.2 kW (3 HP)
	Coolant Pump	0.2 kW (1/4 HP)
Blade Size		6600 x 54 x 1.6 mm (260" x 2.1" x 0.0632")
Blade Tension		Hydraulic
Index Length		400 mm (16")
		400 mm x 9 times (16" x 9)
Machine Weight		4500 kg (9920 lb)
Floor Space (L x W)		3400 x 2190 mm (134" x 86")
