Shuttle type automatic feed.
P.L.C. control for all electric and hydraulic function.
Hydraulically controlled dual vise full stroke clamping system.
Floating shuttle vise system.
Split front vise.
Infinitely variable speed control by inverter.
Blade speed tachometer.
Hydraulic blade tensioning.
Roller bearing with carbide blade guide system.
Automatic work height control by fast approach bar sensor.
Preset cut counter with shut off.
Out of stock shut off.
Multiple indexing (9 times).
Nesting fixture for bundle cutting.
Power driven blade cleaning brush.
Idler wheel motion detector with blade stalling and breakage shut off.
Flushing hose for machine cleaning.
Work light.
Roller stock table 2M long.
One M42 bi-metal saw blade.
One set of tools and tool box.

Automatic chip conveyor.
Variable vise pressure.
User friendly NC touch screen control with selfdiagnostic system.

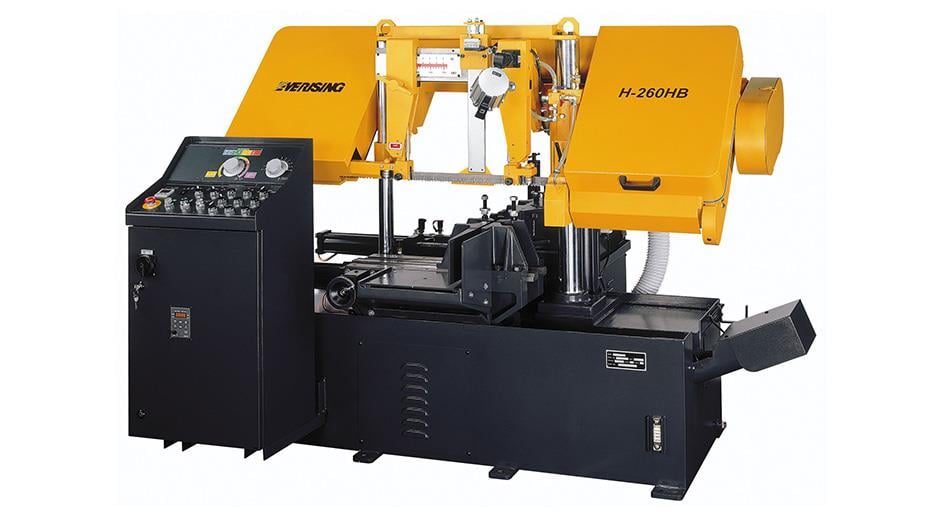

Model		H-260HB
Capacity		260 mm (10.25")
		300 x 260 mm (11.5"W x 10.25"H)
Bundle Cutting	Width	145 to 190 mm (6" to 8")
	Height	30 to 130 mm (1.2" to 5")
Blade Speed		20 to 100 m/min (65 to 330 fpm) (INVERTER)
Motor	Blade Drive	3.7 kW (5 HP)
	Hyd. Pump	0.75 kW (1 HP)
	Coolant Pump	0.1 kW (1/8 HP)
Blade Size		3920 x 34 x 1.1 mm (155" x 1.3" x 0.042")
Blade Tension		Hydraulic
Index Length		400 mm (16")
		400 mm x 9 times (16" x 9")
Machine Weight		1750 kg (3860 lb)
Floor Space (L x W)		2170 x 2100 mm (85" x 83")
