Ermaksan Ekm 45 Shear Cutting Machine

Brand : Ermaksan

Stock Code (Ermaksan EKM 45)

Est. Delivery Time60-75 Days After Order

Shipment Place Turkiye

Payment Terms% 30 T/T On Order Confirmation, % 70 T/T Before Shipment

Made InTurkiye

Min. Order Qty.1 Pcs.

Warranty1 Year

Stock Amount : 0

Note: The prices shown here are retail sales prices. SPECIAL DISCOUNT MAY APPLY FOR BULK PURCHASES . Additionally, discounted prices offered to dealers may differ.

Import duties, customs charges, and value-added taxes for products originating outside of Turkey are not included in the listed prices. This is applicable to customers purchasing from within Turkey.

The prices mentioned here do not include door-to-door delivery. Buyers purchasing from other countries are responsible for customs duties and any other taxes applicable under their local commercial laws.

For orders under 13,000 Euros, if the product value is below this, the total order value must either reach 13,000 Euros or a 150 Euro customs fee will be added to your final invoice value.

Price : 0,00 EURO

Item is out of stock.

Contact Via WhatsApp

Add to Favorites

Add to My Wish List

Compare

Notify me when the price goes down

Notify me when it is in stock

EKM - COMBINED SHEAR

Five Jobs on One Machine...

The improved EKM series combined shears are designed in 3D CAD programs and produced in precision CNC machines. Consisting of high quality components, EKM series includes punching, straight profile cutting, bevel profile cutting, solid square and circular profile cutting, flat sheet metal cutting and corner cutting stations.

You can quickly switch between processes without changing tools. Thus, you can increase your productivity by completing a lot of work in a short time.

MASS PRODUCTION WITH LOW COST

Besides competitive advantages with its low investment cost, it satisfies your expectations with hourly average output.

FUNCTIONAL OPERATIONS

Save from space and time by profile cutting, bending, punching, corner notching and oval cutting in a single machine.

EASY INSTALLATION

Thanks to its compact structure, it can be easily mounted to the ground and commissioned.

PUNCHHING	EKM 45
Ø Diameter x max. thickness	22x15 mm (0,86x0,59 inch)
Diameter x thickness	38x8mm (1,49x0,31 inch)
Max. Diameter X Thickness	100x3mm (3,93x0,11 inch)
Stroke	50mm (1,97 inch)
Strokecountin(20mm)	x20
Throat depth	175mm (6,89 inch)
Working height	935mm (36,8 inch)
STEEL BAR SHEAR
Round/Square	30 round 25 mm square (1,18 round 1 inch square)
ANGLE SHEAR
Angle secton (90°)	100x100x10 mm (3,93x3,93x0,39 inch)
Angle secton (45°)	70x6mm (2,75x0,23 inch)
Working height	1140mm (44,9 inch)

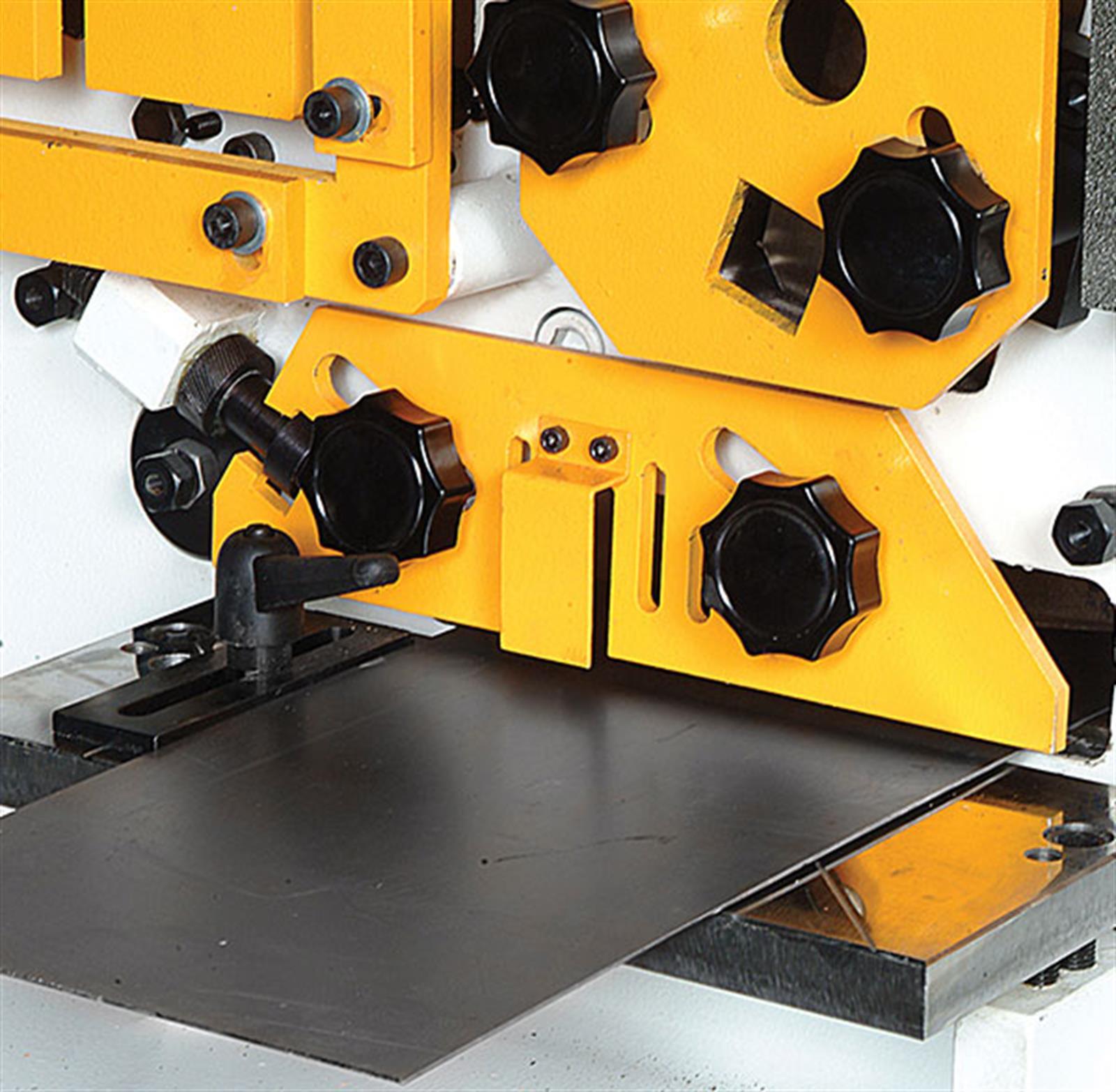

SHEET METAL SHEAR
Sheet metal	200x15mm (7,87x0,59 inch)
Sheet metal	300x12mm (11,81x0,47 inch)
Blade Length	316mm (12,44 inch)
Shearing with angle	80 x 10 mm (3,15x0,39 inch)
Working height	935mm (36,8 inch)
NOTCHING
Thickness	8mm (0,31 inch)
Width	35mm (0,38 inch)
Depth	75mm (2,95 inch)
Working height	935mm (36,8 inch)
OPTIANAL TOOOLS
U-I Secton blades(for UPN-IPN cutting)	80x45mm (3,15x1,77 inch)
T Secton Blades	40x5mm (1,57x0,2 inch)
Special V-Notching tooling	100x100x8 (3,93x3,93x0,31 inch)
V - bending Press Brake	100x12mm (3,93x0,47 inch)
Sheet Bending Maximum
Throat Depth	85mm (3,34 inch)
Punching on notcher	18x12mm (0,71x0,47 inch)
TECHNICAL DATA
MotorPower	4kw (5,4 HP)
Weight	1165kg (2569 lbs)
Machine Dimensions (LxWxH	1430x950x1680 mm (56,3x37,4x66,1 inch)
Power (Pressure)	45ton (49,5 US Tons)
