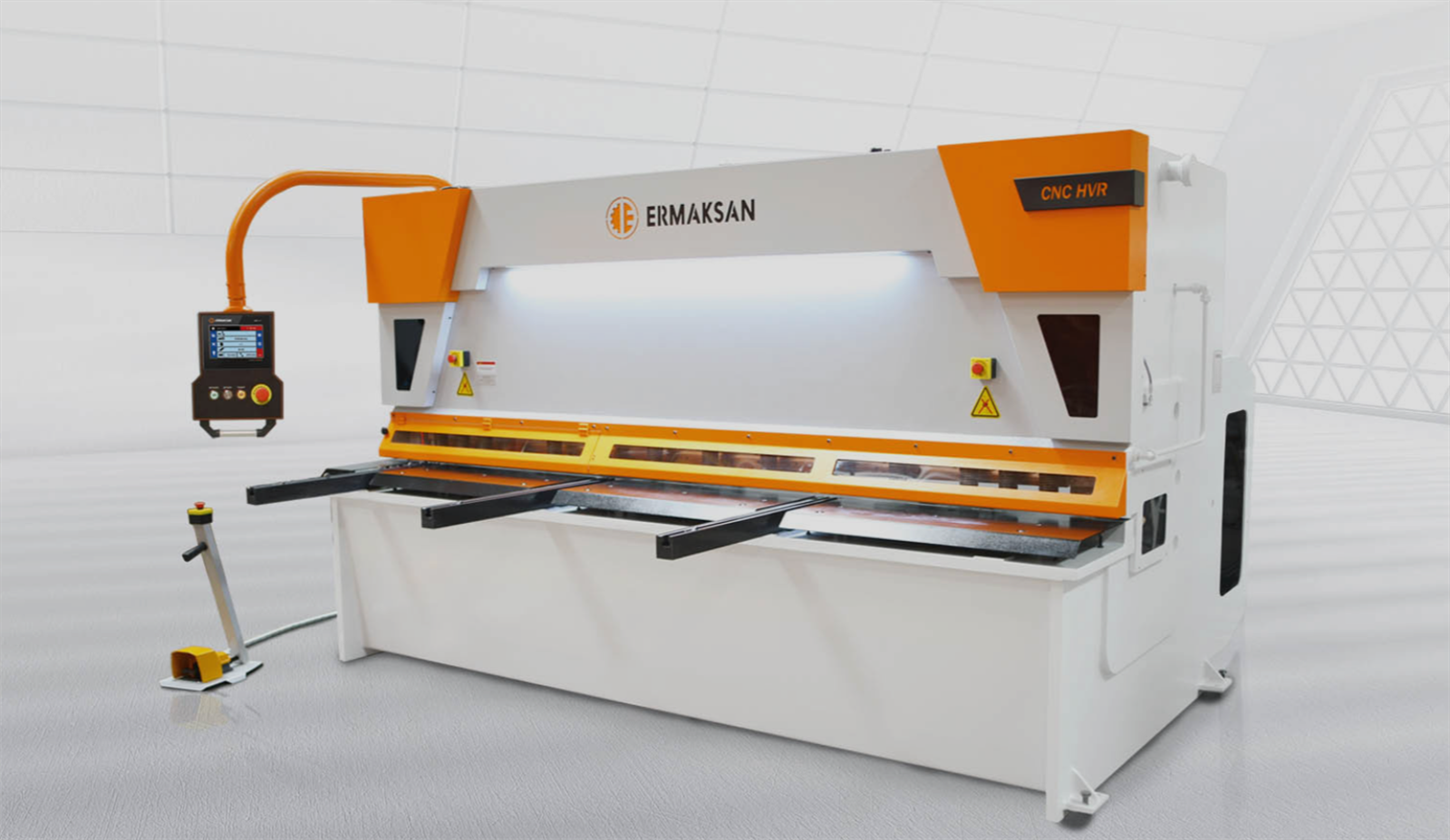

AUTOMATIC ANGLE ADJUSTABLE HYDRAULIC GUILLOTINE SHEARS

Automatic Solutions, Perfect Cuts...

When you enter length, thickness and type of the metal sheet to be cut into easily programmable controller; blade gap, cutting angle and cutting length are automatically and instantly adjusted. This provides flexibility for various production requests, and prevents time losses completely by aiming high efficiency.

By selecting CNC HVR model developed by ERMAKSAN engineers; you will bring up to date technology to your company with maximum safety, high accuracy and unique ease of handling.

LED FITTED BODY

The led fitted body adds aesthetics to the machine, and allows operator to perform cutting operations using the light of machine, without any need to workshop lights.

7” CONTROLLER

With its intuitive interface, 7” touch screen controller developed by Ermaksan with its advanced engineering and sector experience is the closest friend of the operator.

CENTRAL LUBRICATION

Automatic lubrication of the parts that require lubrication for extended lifetime of the machine by central lubrication system, without the need for an operator.

RTS (Return To Sender)

This is the system to remove cut sheet metal automatically from the front part of the machine for performing several operations on the same sheet metal in a minimum time.

ANTI TWIST SYSTEM

Anti-twist system keeps the material being cut stable during top blade moves, and prevents twisting while cutting thin and strip-shaped sheet metals.

PNEUMATIC SHEET METAL SUPPORT SYSTEM (X Type)

Pneumatic X-type arms, which prevent wide and thin sheets from sagging, work parallel to the ground from the bottom, and support the cut sheet during the cutting operation. Thus, more precise cuts are obtained.

TECHNICAL SPECIFICATIONS			CNC HVR 6100 - 20 (20-0.79)
CUTTING LENGTH	A	mm (feet)	6100 (20)
CUTTING CAPACITY (42 kg/mm²)		mm (inch)	20 (0,79)
CUTTING CAPACITY (70 kg/mm²)		mm (inch)	13 (0,5)
CUTTING ANGLE		( ° )	0.5 - 2.5
STROKE PER MINUTE		1/Sec	4 - 7
NUMBER OF HOLD DOWNS		Amount	26
PRESSURE		Ton (Us Tons)	96 (105,6)
MAIN MOTOR		kW (HP)	37 (50)
BACK GAUGE MOTOR		kW (HP)	1,5 (2)
BACK GAUGE STROKE		mm (inch)	1000 (39,4)
BACK GAUGE SPEED		mm/s (inc/s) l	110 (4,33)
OIL CAPACITY		lt. (Us Gallon)	500 (132,1)
BLADE GAP ADJUSTMENT		mm (inch)	0.05 - 2.3 (0.02 - 0.09)
NUMBER OF FRONT SUPPORT ARM		Amount	5
TABLE LENGHT	B	mm (inch)	6940 (273,2)
THROAT DEPTH	C	mm (inch)	350 (13,8)
		Ops. mm (inch)	500 (19,7)
MACHINE WIDTH	D	mm (inch)	3210 (126,4)
TABLE HEIGHT	E	mm (inch)	1100 (43,3)
TRANSPORT WIDTH	F	mm (inch)	2375 (93,5)
LENGHT	G	mm (inch)	8415 (331,3)
WIDTH	H	mm (inch)	2730 (107,5)
HEIGHT		mm (inch)	3120 (122,8)
WEIGHT		kg (lbr.)	50600 (111573)

Foot Pedal

FOOT PEDAL SUITABLE FOR SINGLE AND MASS CUTTING

This movable pedal allows to start and finish cutting operation easily anywhere in the cutting area, and to easily stop the operation when desired.

Blade

ERMAKSAN BLADE

You can prefer this affordable blade for black and soft sheet metal cutting.

STAINLESS BLADE

Extends the dulling time of the blade while providing a more precise cut for a longer period of time in stainless and black sheet cutting.

Throat

350 MM

Allows cutting sheets longer than the cutting length with a standard throat depth of 350 mm.

WITHOUT THROAT

Customers who will not perform splitting on sheet metals can prefer this option to lower the costs.

Electrical System

SIEMENS ELECTRICAL SYSTEM

Electrical equipment such as the components that make up the motor power circuit, contactor, motor protection, and main switch are offered with proven Siemens quality.

T-square

1000 MM FRONT T-SQUARE

It is your best assistant that facilitates the continuous 90° cutting of the sheets.

ANGLE ADJUSTED T-SQUARE

Allows high precision, easy cutting in angled cutting thanks to angle adjusted T-square.

Hydraulic System

HAWE HYDRAULIC SYSTEM

This system ensures that sufficient amount of oil required for the main rollers, pressing rollers, and feeler adjustment rollers circulates in the system at an accurate pressure.

Cutting Line

CUTTING LINE ILLUMINATION SHADE WIRE

Generates projection over sheet metal to be cut to provide high quality and precise cutting.

LASER CUTTING LINE

Thanks to laser cutting line, angled and lined cutting can be easily controlled.

Controller

CYBTOUCH 8 G

Touch screen with high contrast and vivid colours.

DELEM DAC 360T

4.7” monochrome bright LCD display.

ESA S630

The controller can support up to 4 axes and has a 2D graphic display.

Anti-Twist

ANTI-TWIST SYSTEM

Anti-twist system keeps the material being cut stable during top blade moves, and prevents twisting while cutting thin and strip-shaped sheet metals.

Backgauge

1000MM ERMAKSAN MOTORIZED BACKGAUGE

With an accuracy of 0.1 mm, the 1 meter long fast backgauge provides precise cutting results. With the automatic folding function for your sheets longer than 1 m, it allows you to freely operate.

Back Protection

LEUZE MLD 520

Prevents undesired accidents by creating an invisible light barrier behind the machine.

Front Support Arms

1000 SIDE T-SQUARE AND FRONT SUPPORT ARMS

While the front arm with t-square allows you to slide the sheet metal 90 degrees (perpendicular) to the machine, the support arms make it easier to work and slide sheet metals, allowing you to make more precise and faster cuts.

Front Protection

FRONT VISOR

Complying with international safety standards, the finger protection provides a safer working environment.

LASER LIGHT FINGER PROTECTION

Allows the cutting area to be observed better and more easily, allowing the operator to intervene the sheet metal to be cut more easily.

Sheet Metal Support System

SOLID SHEET METAL SUPPORT SYSTEM

Solid table-type pneumatic sheet metal support system prevents sagging of wide and thin sheet metal to enable more precise cutting

Sheet Metal Support System

RTS

This system allows to retract the cut sheet metal automatically from the front part of the shear for performing several operations on the same sheet metal within minimum time.

Sheet Metal Support System

X-TYPE PNEUMATIC SHEET METAL SUPPORT SYSTEM + RTS



More precise cuts are achieved with pneumatic X type levers which prevent sagging of wide and thin sheet metals.

Sheet Metal Sliding

FRONT SHEET METAL SLIDING GROUP WITH BALLS

Front sheet metal sliding system with balls enables faster cutting by simplifying operation and sheet metal sliding

MOTORIZED SHEET METAL SLIDING SYSTEM

After the sheet metal to be cut with shear is placed for the cutting process, cutting process takes place after an automatic system slides the sheet metal, instead of an operator.

WITH T GROOVE AND RULER

T-grooved worktable with static and dynamic rigidity ensures precise cuts and ease of use.

Feeler Adjustment System

AUTOMATIC FEELER ADJUSTMENT SYSTEM

The automatic feeler adjustment system, which does not require separate adjustments for sheet metals with different thickness, adjusts the gaps between the blades.

Oil Heating and Cooling System

OIL HEATING AND COOLING SYSTEM

In the environments where the operating temperature is inconvenient, hydraulic oil is heated up to the desired temperature and it is ensured that the shear operates in the optimum environment.

Lubrication System

CENTRAL LUBRICATING SYSTEM

Automatic lubrication of the parts that require lubrication for extended lifetime of the machine by central lubrication system, without the need for an operator.
