Note: The prices shown here are retail sales prices. SPECIAL DISCOUNT MAY APPLY FOR BULK PURCHASES . Additionally, discounted prices offered to dealers may differ.
Import duties, customs charges, and value-added taxes for products originating outside of Turkey are not included in the listed prices. This is applicable to customers purchasing from within Turkey.
The prices mentioned here do not include door-to-door delivery. Buyers purchasing from other countries are responsible for customs duties and any other taxes applicable under their local commercial laws.
For orders under 13,000 Euros, if the product value is below this, the total order value must either reach 13,000 Euros or a 150 Euro customs fee will be added to your final invoice value.

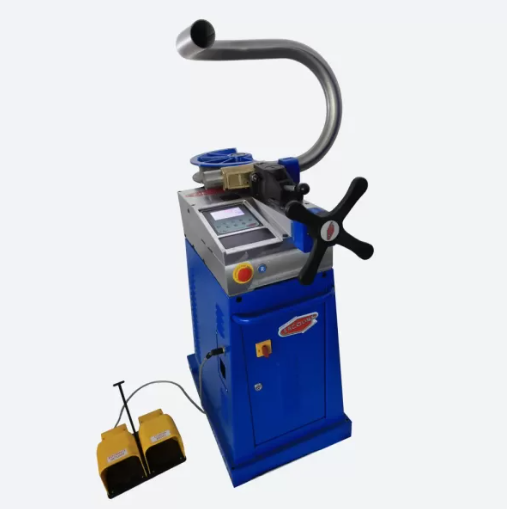

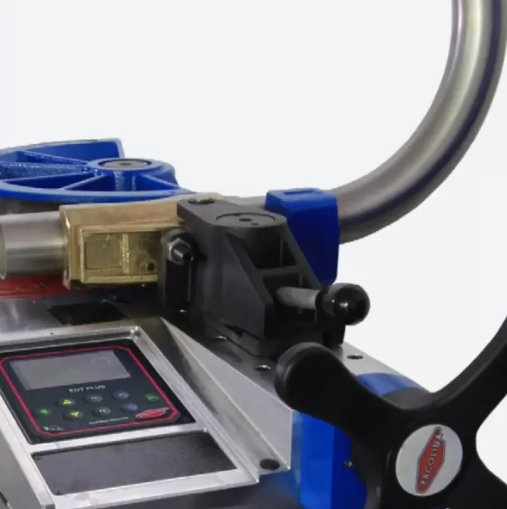

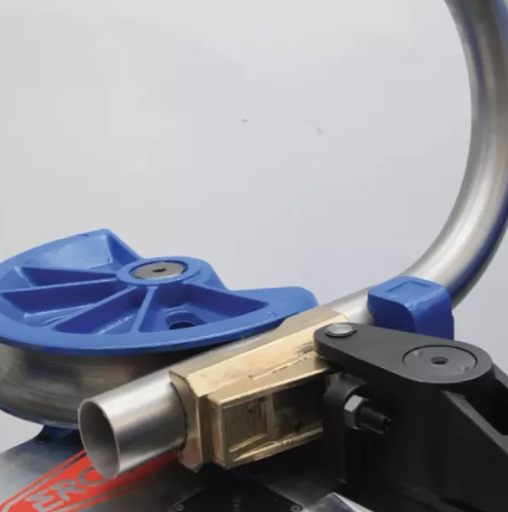

The Ercolina MG030 tube bender is extraordinary, the standard tube bending capacity is 76 x 3 mm, it is easy to move thanks to the wheels and the retractable handle and allows operator to always have free hands, thanks to the convenient pedal control.
Flexion modulus
15 cm³
Minimum external diameter
5 mm
Max. bend radius (CLR)
380 mm
Min. bend radius (CLR)
10 mm
Installed power
3.5 kW
Supply voltage
220 – 400 V 1 3 ph / 50-60 Hz
Bend speed
min. 0.68 rpm – max 2.13 rpm (MG030T – MG030M) 1 speed = 2 rpm – 2 speeds = 4 rpm (MG030V2T) at 50 Hz = 0.7 rmp (MG030EDTP-M)
Dimensions (Length x Width x Height)
680 x 910 x 370 mm
Weight
193 kg
