Ercolina MB42 Rotary Draw Benders

Brand : Ercolina

Stock Code (MB42)

Estimated Delivery TimeReady In Stock

Shipment Place Turkiye

Payment Terms%100 T/T On Order Confirmation

Made InItaly

Minimum Order Quantity10 Pcs.

Warranty1 Year

Stock Amount : 1

Price : 0,00 EURO(Vat included)

Add to Favorites

Notify me when the price goes down

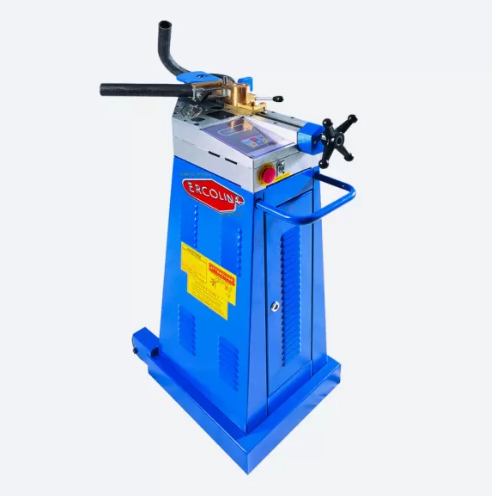

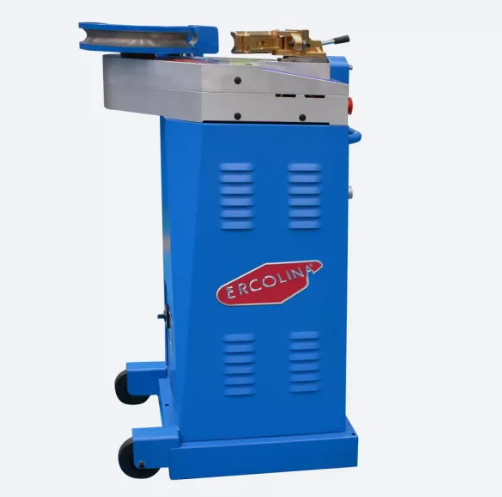

The MB42 is a machine of small dimensions with large capacities, with a three-phase or single-phase motor, with the possibility of adapting a two-axis positioner, a simple and fast tool change system and a very convenient pedal control.

Electromechanical bending C axis with digital display of values
Overload control system with flashing warning lights
Available with three-phase or single-phase motor
Possibility of adapting a two-axis positioner (A40/P optional) to allow the mass production of bends on different planes.
Simple and fast tool change system(Ercolina^® Patent)
Easy to move thanks to the built-in wheels and retractable handle.
Foot pedal control

Flexion modulus	4 cm³
Minimum external diameter	5 mm
Maximum Bend Radius (CLR)	260 mm
Minimum Bend Radius (CLR)	10 mm
Installed power	1.5 kW
Power Supply	220-400 V 1-3 PH / 50-60 Hz
Bend speed	1.64 rpm
Dimensions (Length x Width x Height)	400 x 1000 x 570 mm 400 x 450 x 570 mm (PM)
Weight	80 kg 50 kg (PM)
