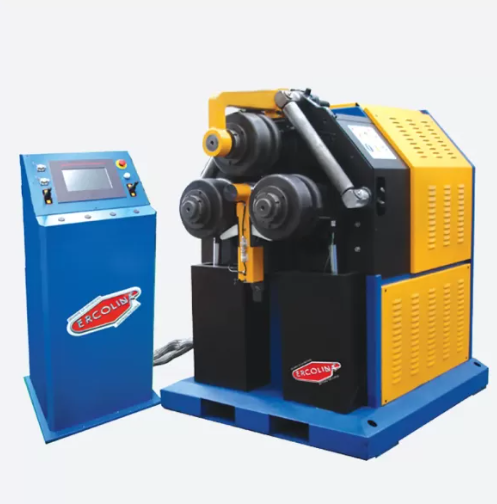

The Ring roller machine CE70H3DP is an extraordinary machine, available with three driving rollers. Supplied with a set of universal rollers.
Robust and heavy machine body, with rigid parts to bend even high section profiles, available on request with a lateral guide system.
Shaft diameter
70 mm
Standard diameter work rollers
260 mm
Thrust roller max stroke
NO
Shaft speed
4.8/3 rpm
Number of independent driving rollers
3 smooth
Voltage
220/380/440/480 V
Engines
3 x 1.1 kW
Hydraulic unit motor
2 kW
Piston thrust
2 x 70,000 N
Machine work plan
Horizontal and vertical
Upper roller adjustment
Hydraulic
Display
Touch Screen
Machine base
Electrowelded steel
Number of memorisable programs
8
Pedal Electric control
YES
Dimensions
900 x 1380 x 1200 mm
Weight
1,600 kg
