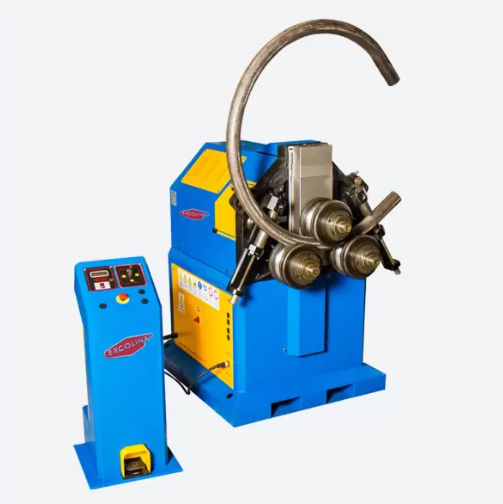

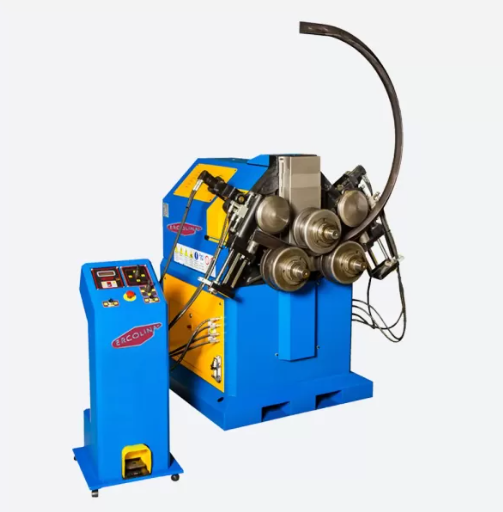

The CE70H3 Ring roller machine is an extraordinary machine, available with three driving rollers, with digital readout of position of the upper roller. Supplied with a set of universal rollers.
Robust and heavy machine body, with rigid parts to bend even high section profiles, lateral guide system available on request.
Shaft diameter
70 mm
Standard diameter work rollers
245 mm
Thrust roller max stroke
170 mm
Shaft speed
5.6 rpm
Number of independent driving rollers
3 smooth
Voltage
220/380/440-480 V
Engines
3 x 1.1 kW
Hydraulic unit motor
2 kW
Machine Body
Cast iron GS500
Piston thrust
220.000 N
Machine work plan
Horizontal and vertical
Upper roller adjustment
Hydraulic
Display
Digital
Machine base
Electrowelded steel
Number of memorisable programms
8
Pedal Electric control
YES
Dimensions
1000 x 1500 x 1250 mm
Weight
1400 kg
