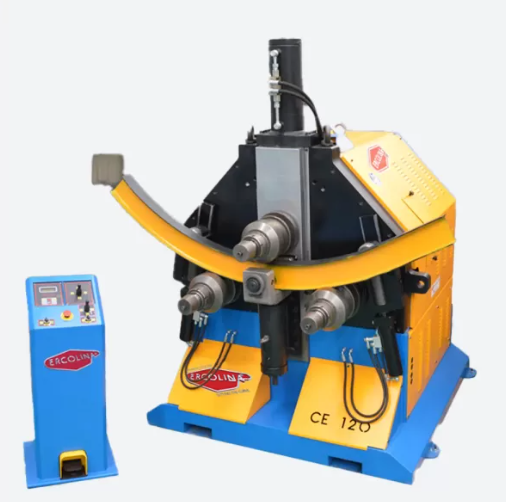

The CE120H3-RLI Ring roller machine is an extraordinary machine, available with three driving rollers.
Shaft diameter 100 mm, robust and heavy machine body, with rigid parts to bend even high section profiles, available with optional side guide system.
Shaft diameter
100 mm
Work rollers Standard diameter
310 mm
Thrust roller max stroke
300 mm
Shaft speed
6 rpm
Number of independent driving rollers
3 smooth
Voltage
380/220/440/480 V
Engines
3 x 1.85 kW
Hydraulic unit motor
2 kW
Machine Body
Cast iron GS500
Piston thrust
360.000 N
Machine work plan
Horizontal and vertical
Upper roller adjustment
hydraulic
Display
Digital
Machine base
Electrowelded steel
Number of memorisable programs
8
Pedal Electric control
YES
Dimensions
1800 x 2200 x 1700 mm
Weight
2800 kg
