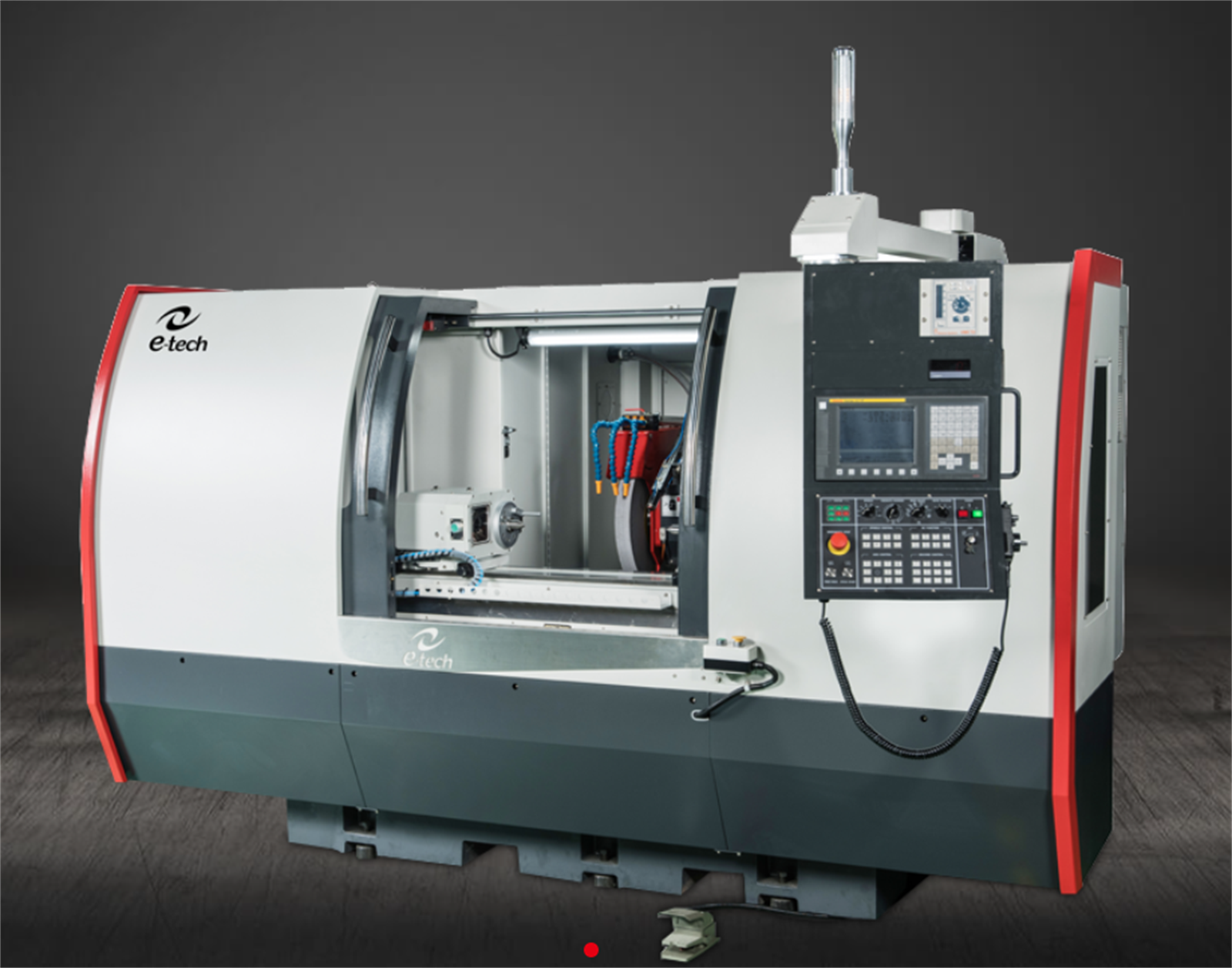

E-tech EGP-50200 Plunge Type Cylindrical Grinder

Brand : E-tech

Stock Code (EGP- 50200)

Est. Delivery Time60-75 Days After Order

Shipment Place Turkiye

Payment Terms% 30 T/T On Order Confirmation, % 70 T/T Before Shipment

Made InTaiwan

Min. Order Qty.1 Pcs.

Warranty1 Year

Stock Amount : 0

Price : 0,00 EURO(Vat included)

Item is out of stock.

Grinding Capacity	Swing over table	mm	Ø500
	Distance between centers	mm	2000
	Max. grinding daimeter	mm	Ø480
	Max. load held between center	kg	250
	Center distance between spindle & slide table	mm	255
Grinding Wheel	Diameter x Width x Bore	mm	Ø510x50-100xØ152.4(6")
	Diameter x Width x Bore	mm	Opt.Ø610x50～100xØ203.2(8")
	Motor rated power / max. torque	Kw/Nm	7.5kw/49Nm
	Motor rated power / max. torque	Kw/Nm	(Opt.11Kw/ 71Nm)
	Wheel speed	rpm	-
Workhead	Max. manual swiveling angle	deg	90
	Spindle speed (infinite variable)	rpm	10～600 (infinite variable)
	Motor rated power / max. torque	kw	1.5
	Center taper		MT4 (Opt. MT5)
	Center working		Fixed or Rotary
	Diameter of bore	mm	Ø26
Tailstock	Tailstock quill travel	mm	25 (Opt.50/75)
Tailstock	Cente taper		MT4 (Opt. MT5)
X axis	Travel	mm	280
	Max. rapid feedrate	m/min	6
	Heidenhain linear scale resolution	um	0.05
	Min. increment	mm	0.0001
	Servo motor rated power	Kw	1.8(F)/2.2(M)
Z axis	Travel	mm	2450
	Swiveling angle	deg	±5
	Max. rapid feedrate	m/min	10
	Min. increment	mm	0.0001
	Servo motor rated power	kw	2.5(F)/3.5(M)
Motor	Hydraulic motor	Kw	0.38
	Hydrodynamic GW spindle lubrication pump	kw	0.2
	Guide way lubrication pump	kw	0.2
	Coolant pump	Kw	0.2
Machine	Net Weight (semi-enclosed splash guard)	kg	6900
Machine	Gross weight	kg	7700
