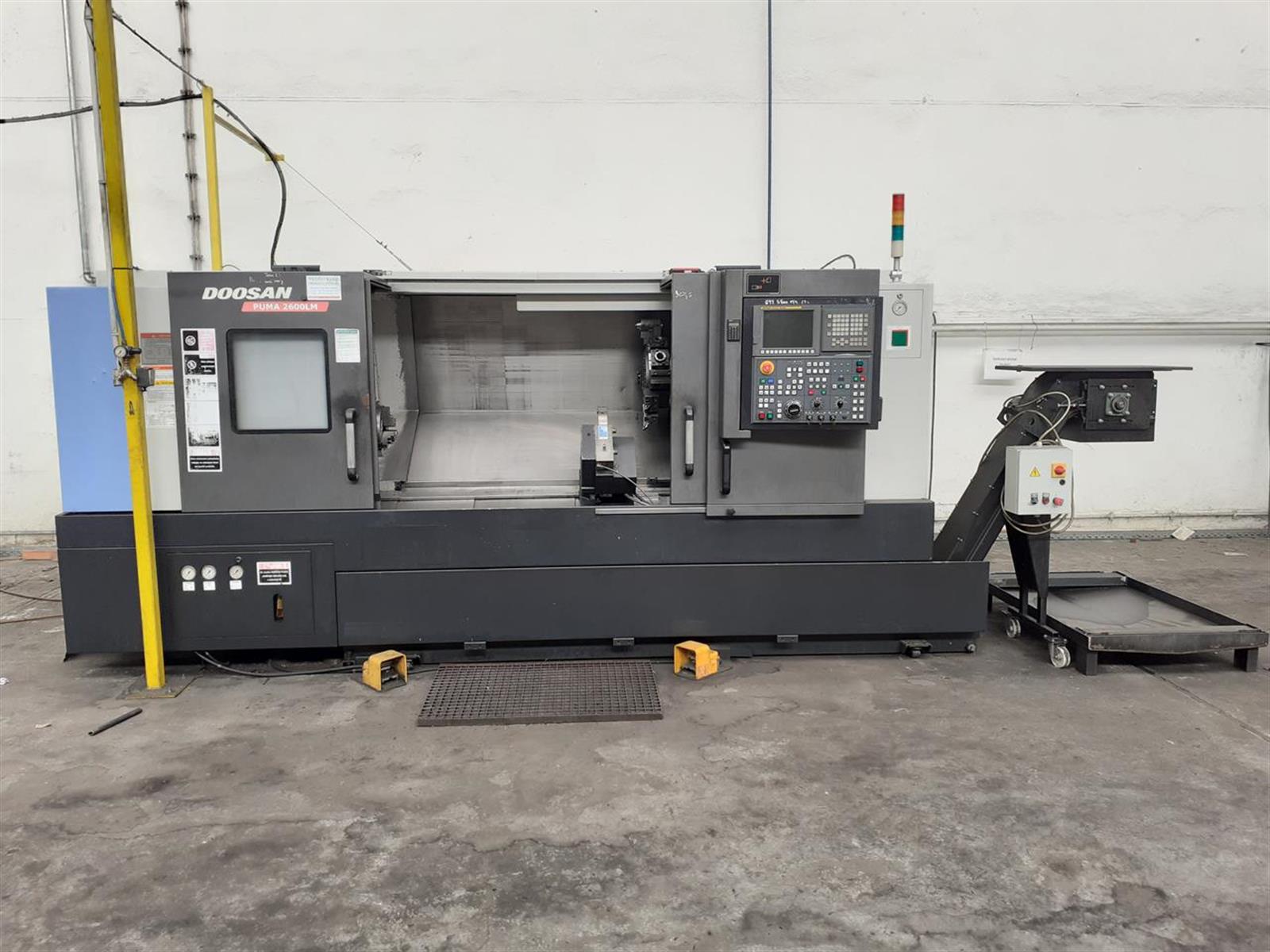

DOOSAN PUMA 2600 LM Cnc Lathe (PUMA 2600 LM)

Type: PUMA 2600 LM
Producer: DOOSAN
Made in: 2013
Characteristic:
Control system: DOOSAN FANUC i-series
Total hours: 9868 h
Maximum-turning length: 1280 mm
Turning diameter over bed (max): 780 mm
Turning diameter over cross slide (max): 630 mm
X-Axis travels: 260 mm
Z-Axis travels: 1350 mm
C-Axis travels: 360
Maximum power of the main spindle: 22 kW
Diameter of the spindle bore: 86 mm
Minimum rotary speed of the main spindle: 30 1/min
Maximum spindle speed: 3500 1/min
Workpiece weight: 770 kg
Maximum number of tools: 12 pcs
Number of synchronous axles: 3 pcs
Max. bar diameter: 76 mm
Height: 1900 mm
Weight: 6850 kg
Equipment:
Chip conveyor

Turning length	1280 mm
Turning Ø	376 mm
Ø above the bed	780 mm
Ø above transversing slide	630 mm
Length between centers	759.5 mm
Type of CNC	DOOSAN FANUC i-series
X-axis	260 mm
Z-axis	1350 mm
Max workpiece weight	770 kg
Spindle taper
Spindle bore	86 mm
Number of turrets	1
Number of tools on turret	12
Number of rotating tools	4
Turning speed	3500 rpm
Spindle motor power	22 kW
Tailstock	no
Bar feeder	no
-------------------
Weight	6850 kg
Worked hours
Hours under power
State	good
At local norms	---------
Status	under power
