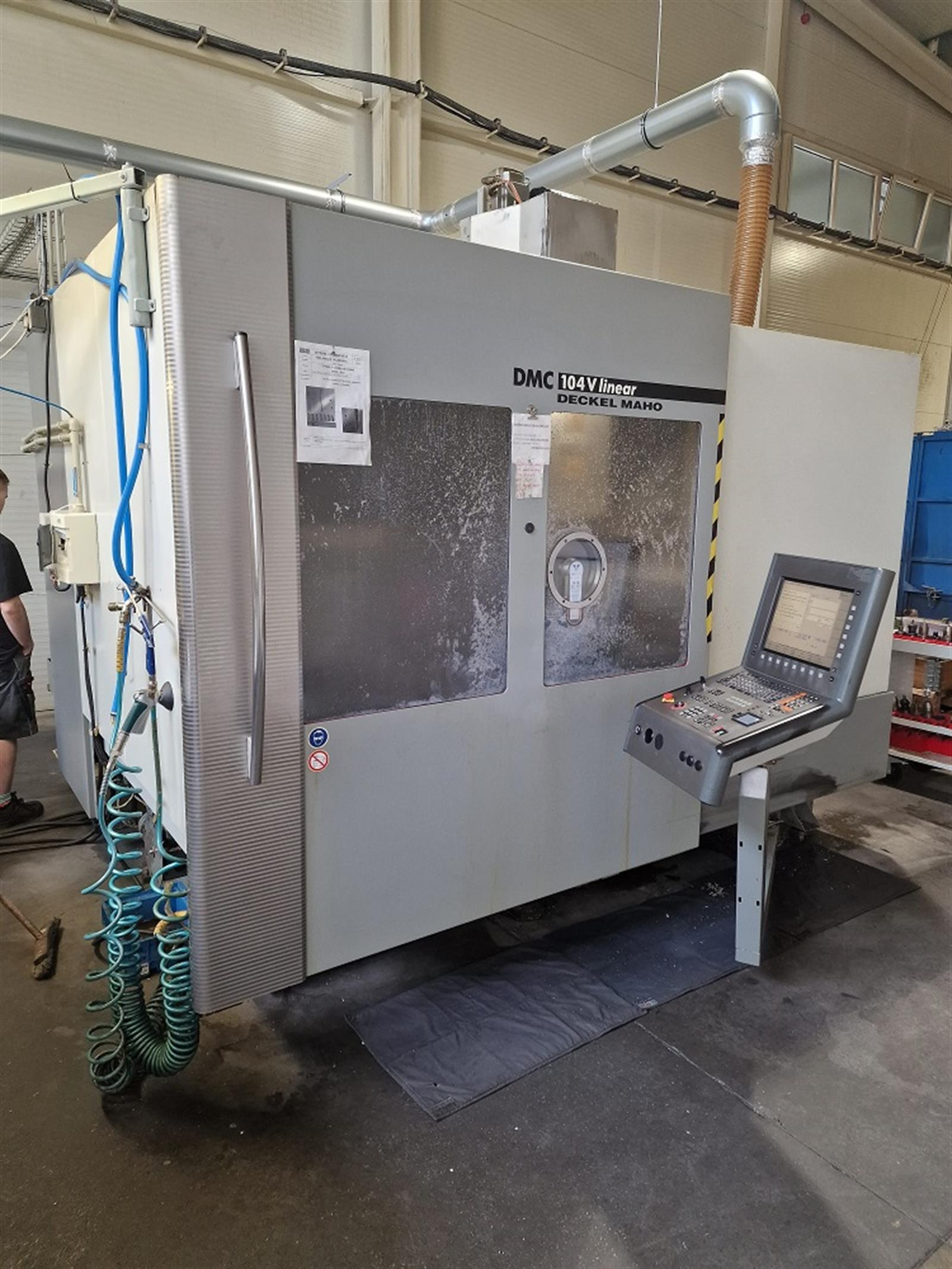

The machine is fully functional, control system Heidenhain 530, has central cooling. In 9/2022, replacement of the collet in the spindle.
BLUM laser tool probe, Heidenhain workpiece infrared probe, oil mist extraction, more than 100 holders of all kinds (weldon, collet clamp, MK, drill heads)

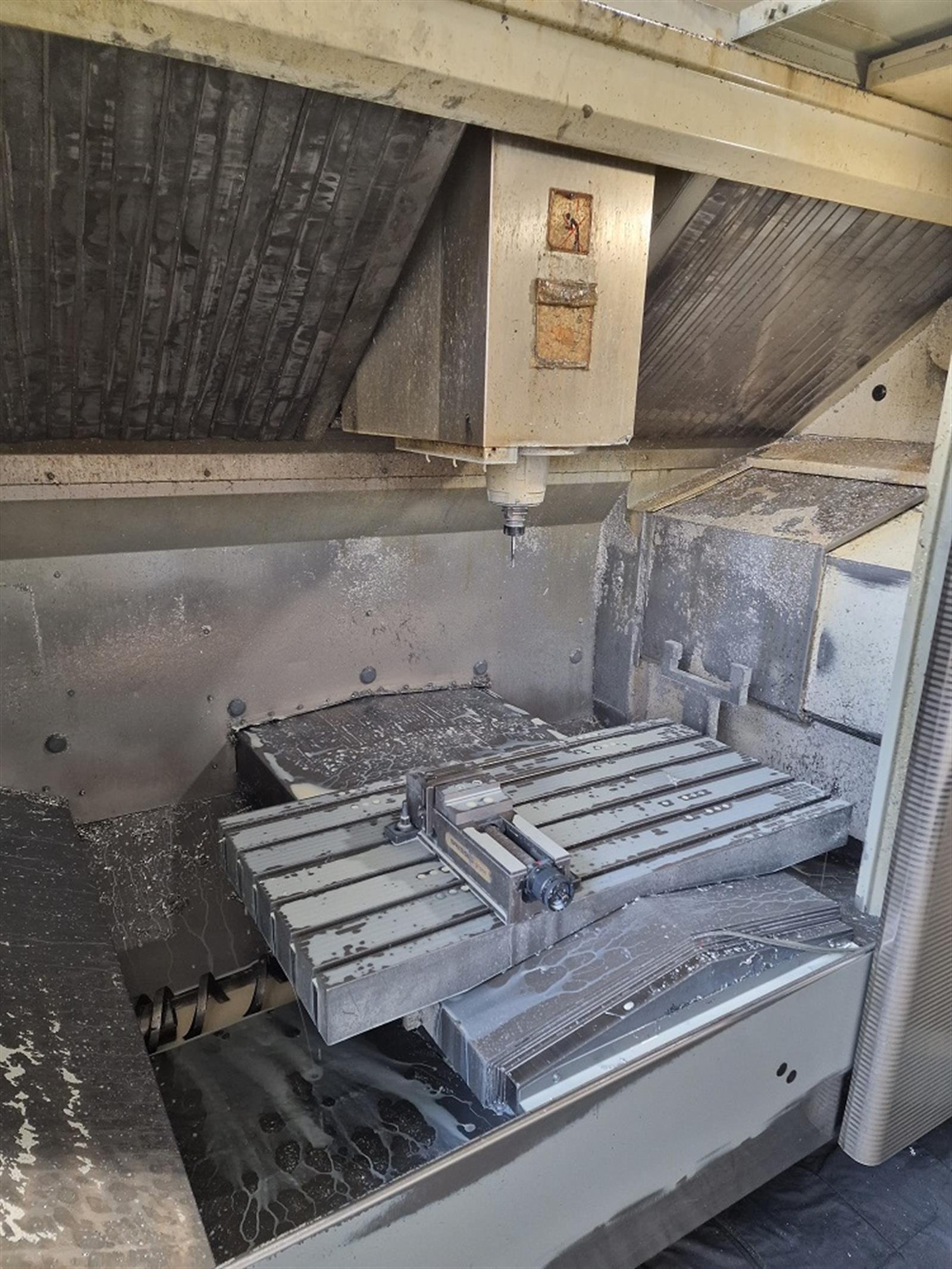

Table clamping surface: 1250 x 600 mm
X-axis of travel: 1040 mm
Y-axis of travel: 600 mm
Z-axis of travel: 500 mm
conical spindle cavity ISO 40
max. spindle speed 18,000 rpm
Number of storage places 30
Max. table load 800 kg
Storage height (top edge of the table) 850 mm
Number of driven axes: 3
Electrical connection:
Rated power kVA 39
Rated current A 56 Fuse
(3x, phase) A 63
Operating voltage V 400
Frequency Hz 50
Central cooling 40 bar - 600 l

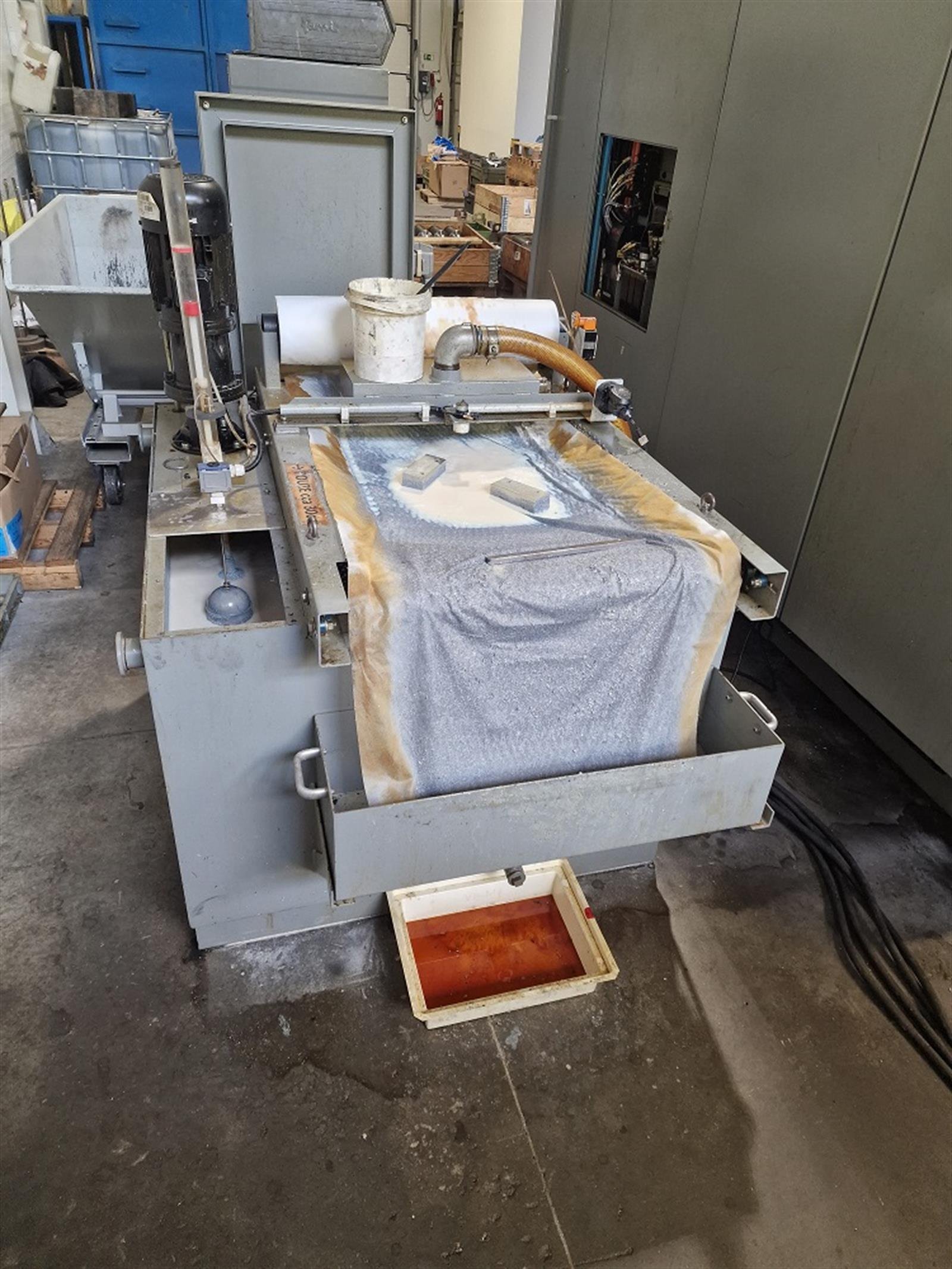

liquid filtration tank - belt filter
