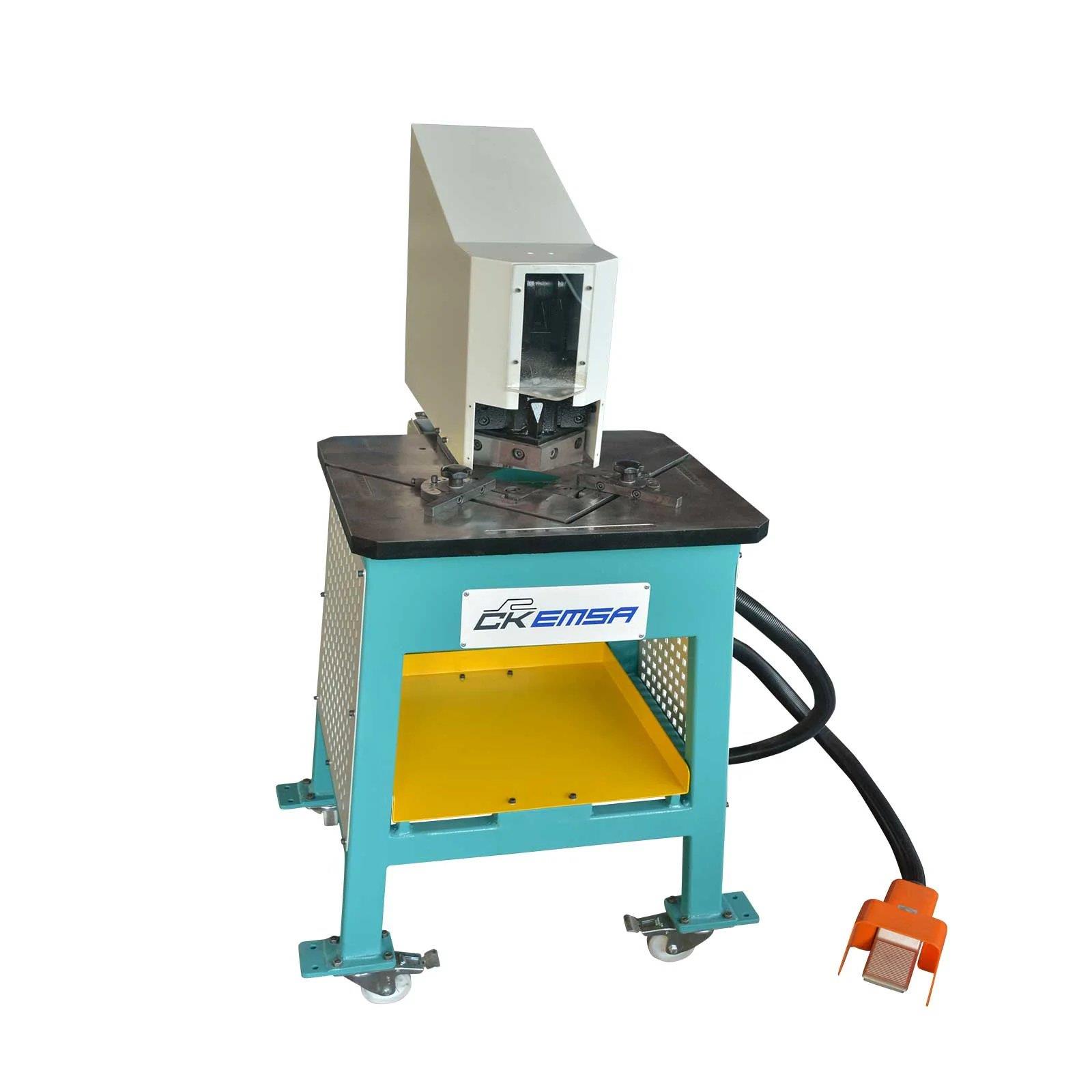

CK Emsa PN-3 Neumatic Fixed Angle Corner Notching Machine (PN-3)

The PN-3 hydraulic notcher can cut up to 3 mm
The biggest notcher size is 130x130mm

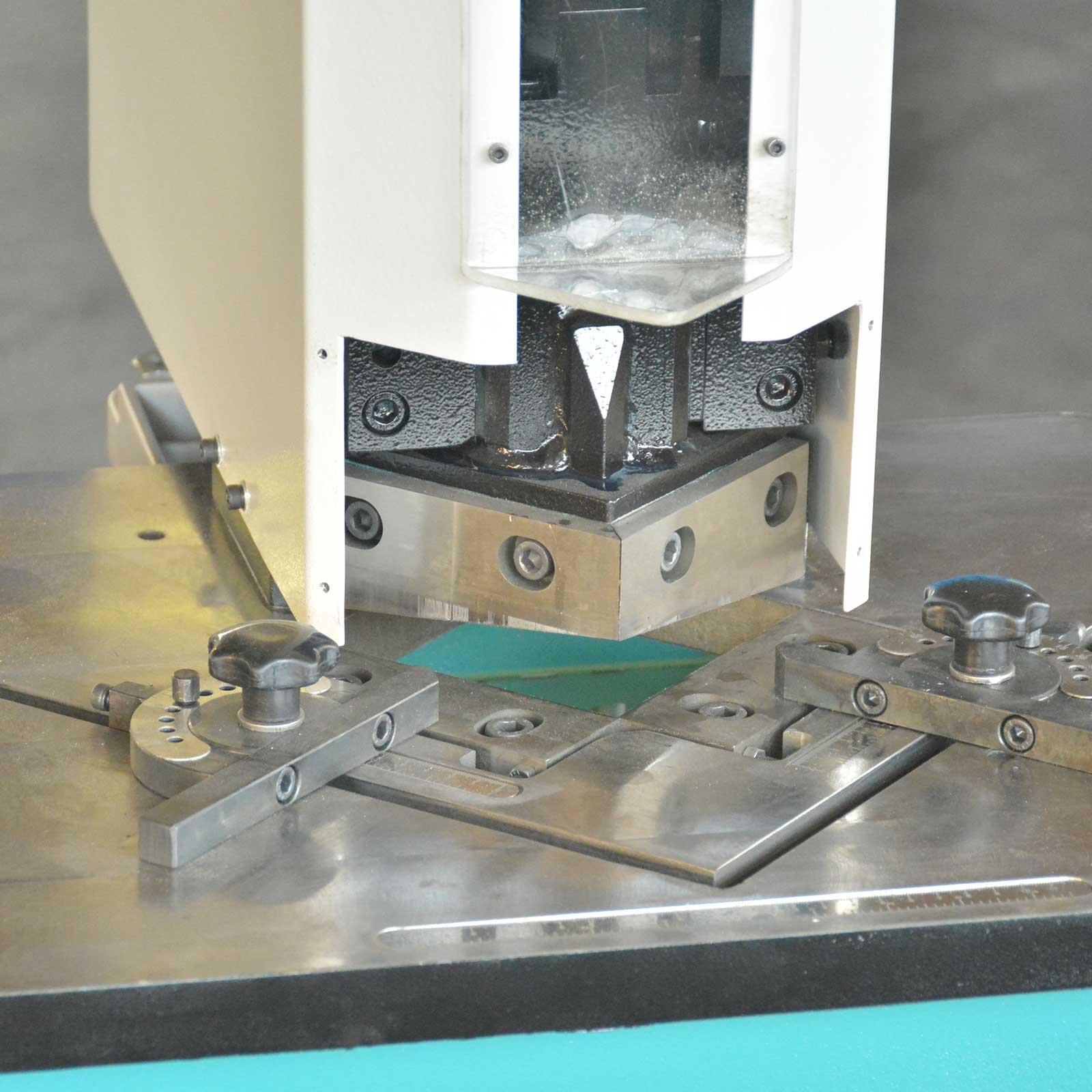

The notching angle fixes in 90° with high notching speed
The Pneumatic notcher has compact structure,small volume and convenient operation

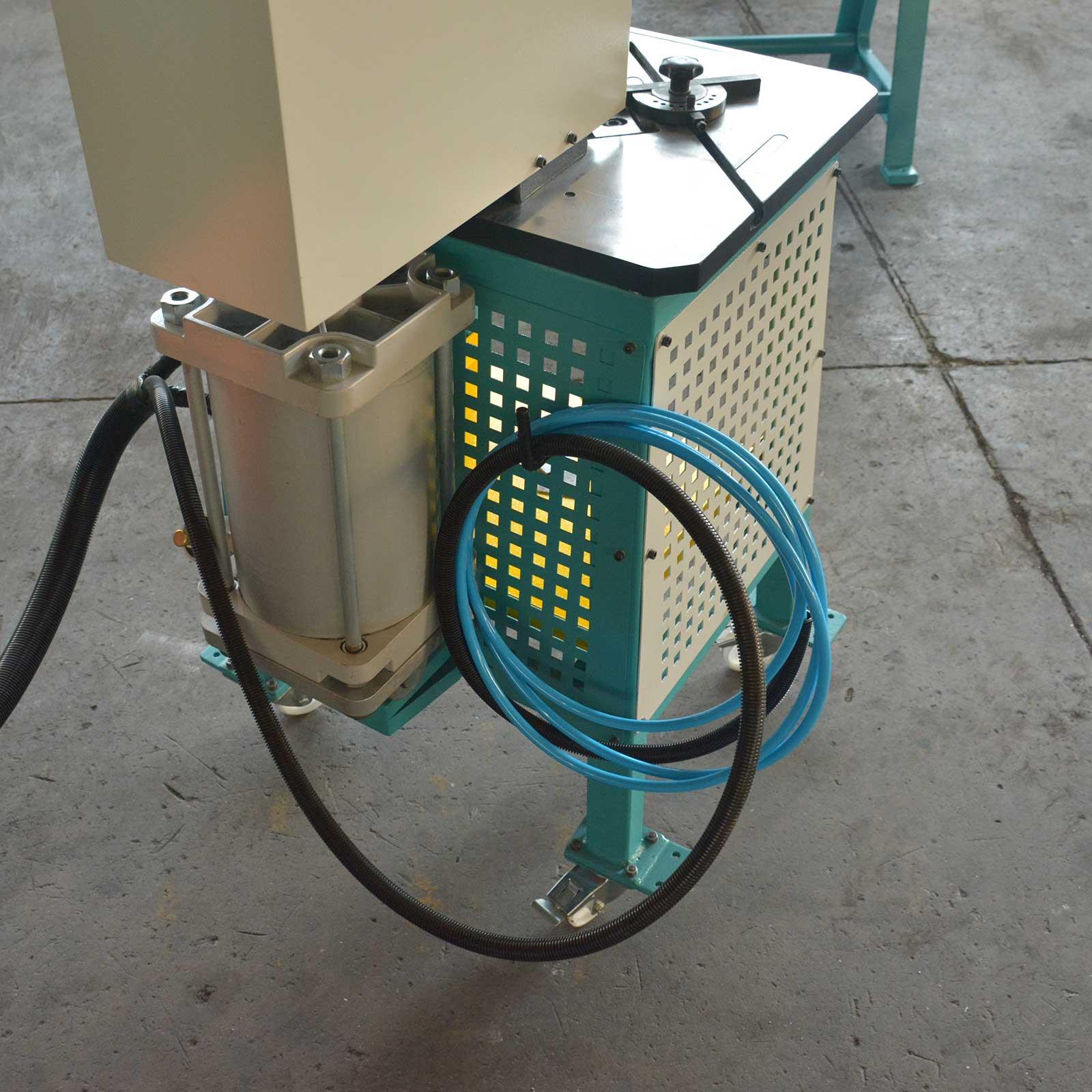

Easyly moveable body with roller wheels

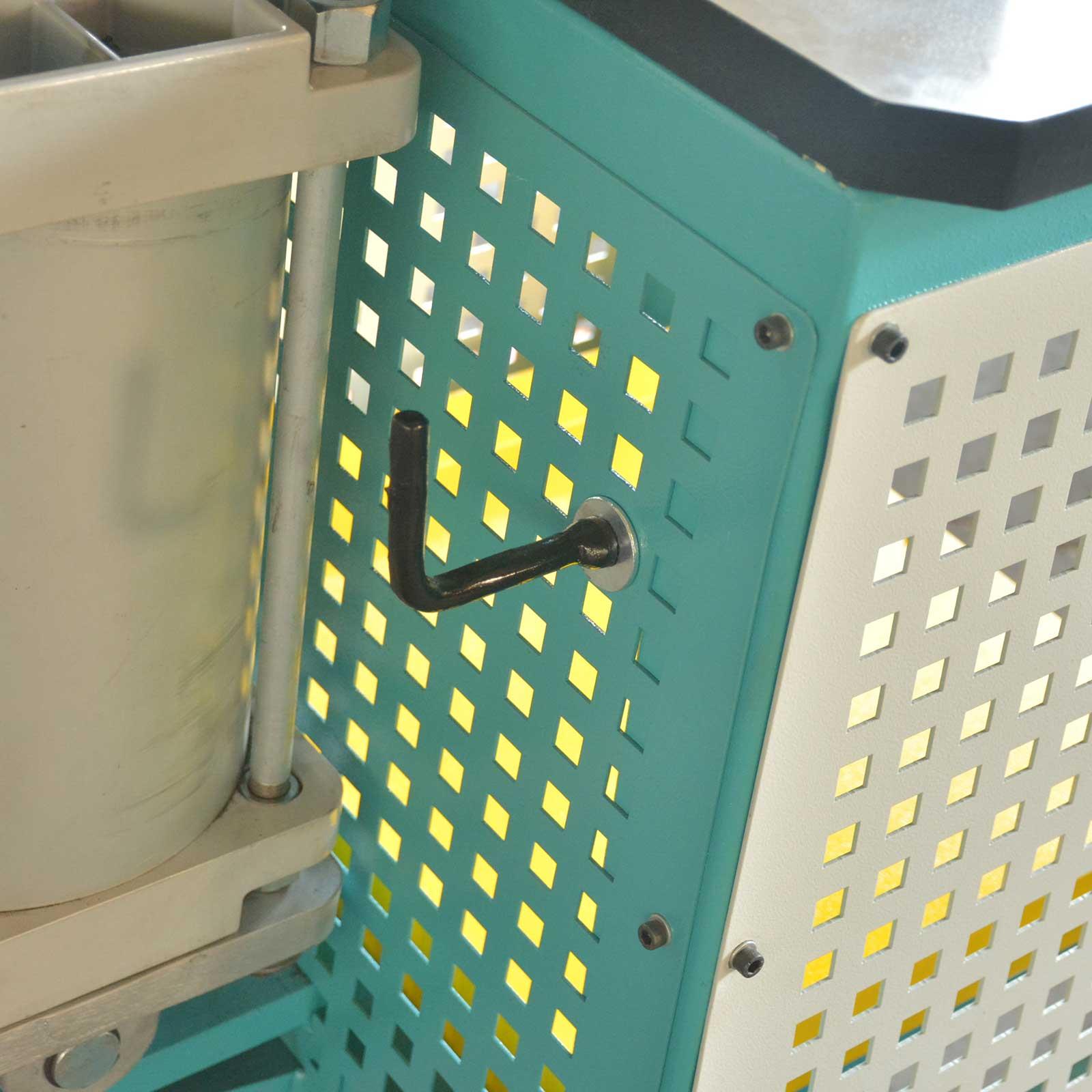

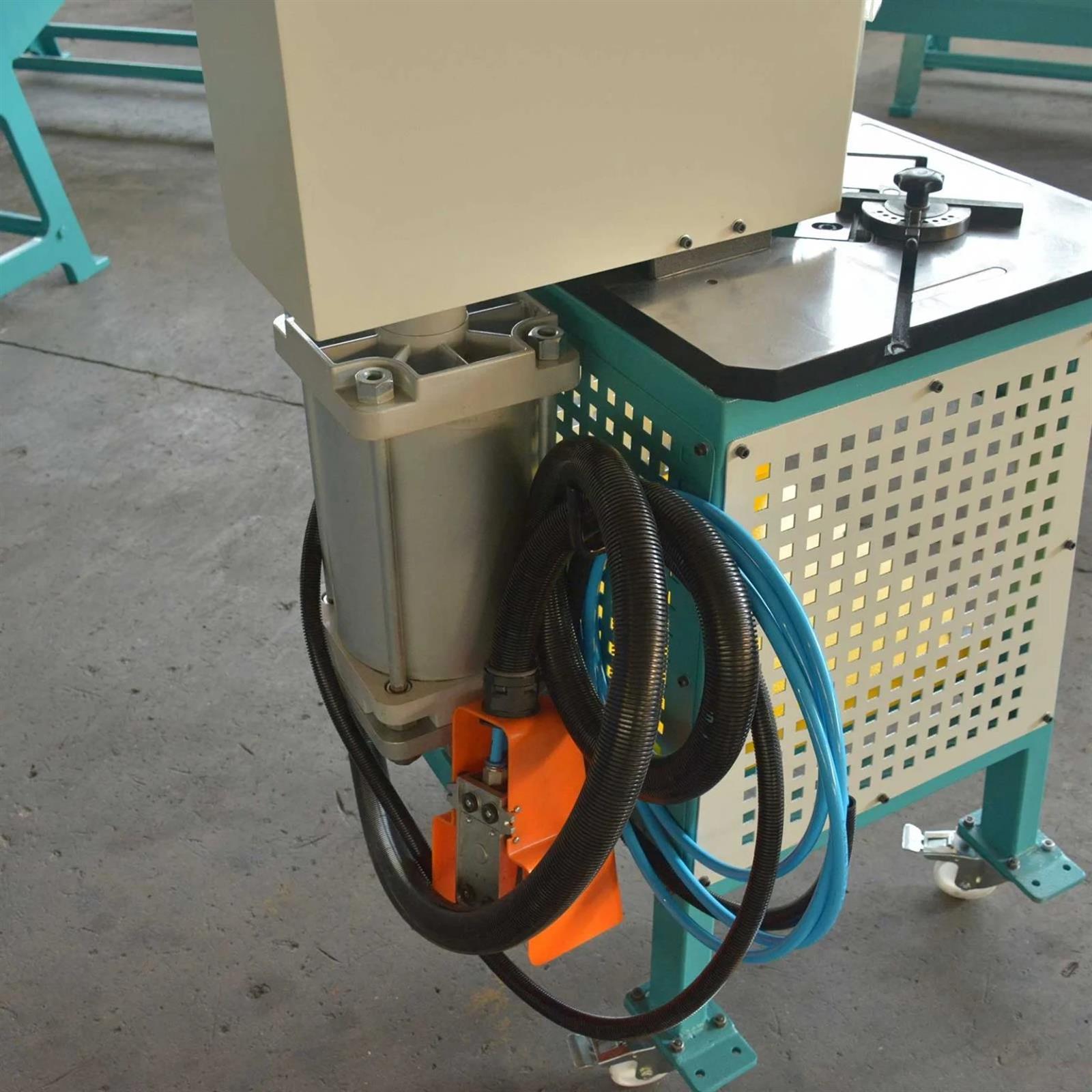

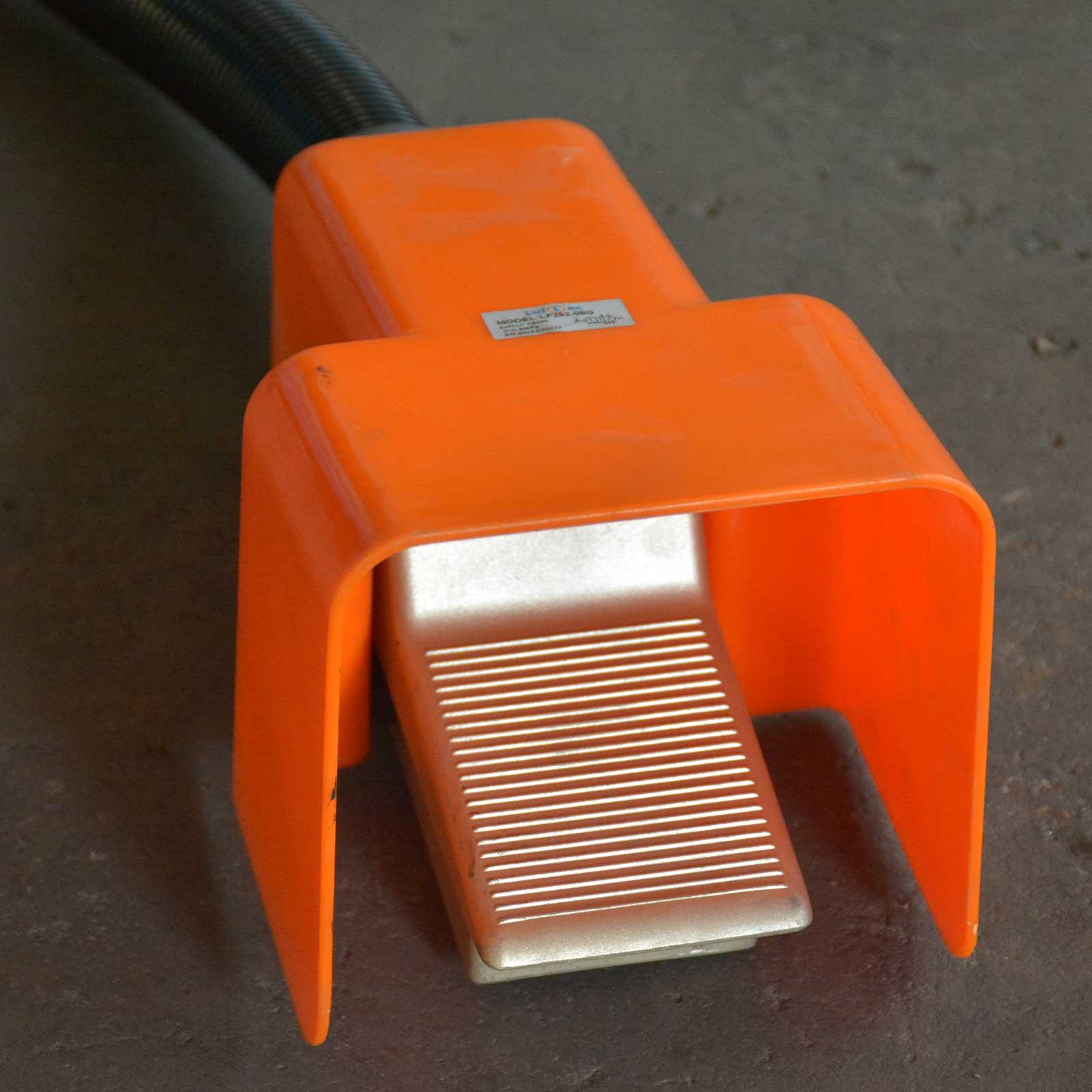

Hook to collect all cable, pedal  and hoses

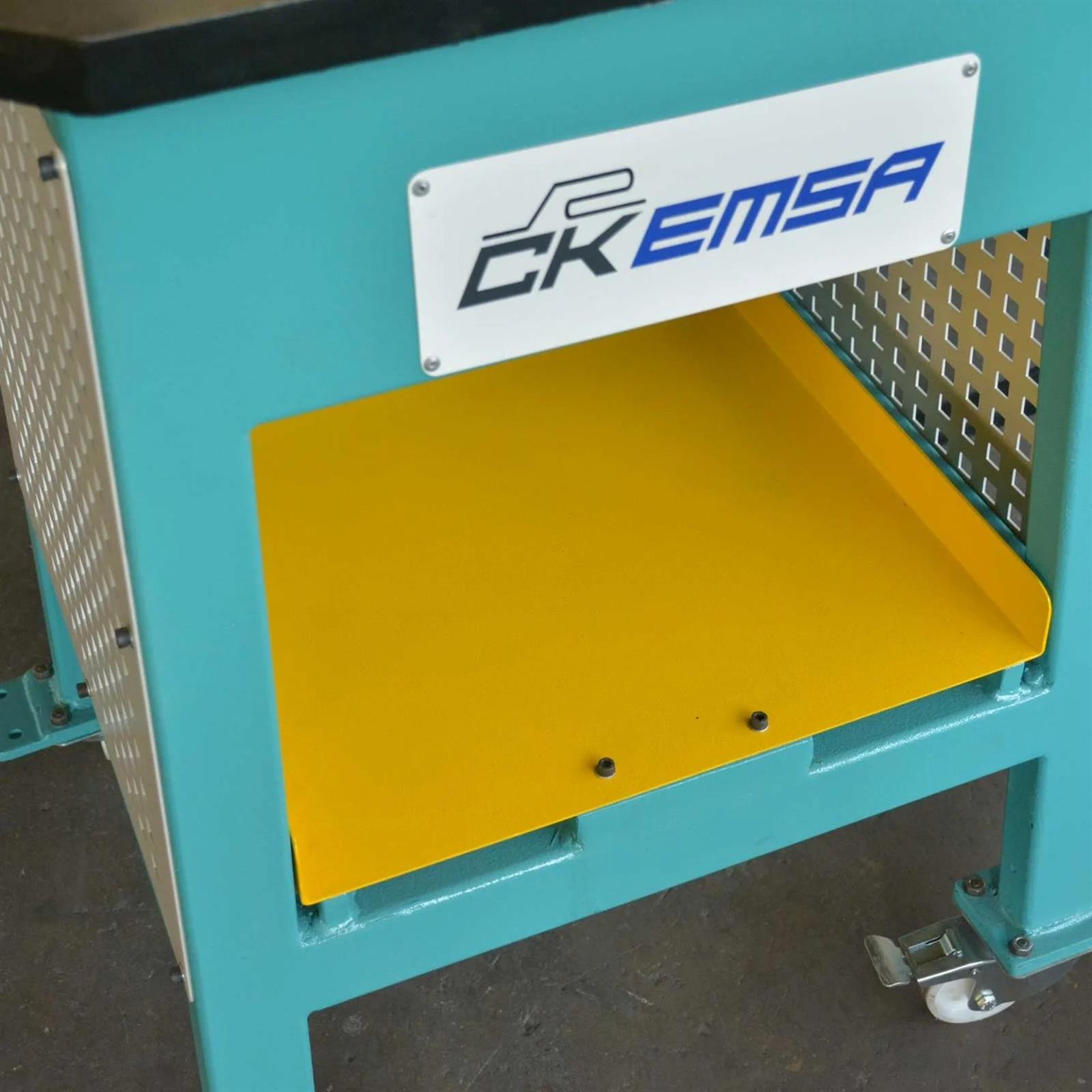

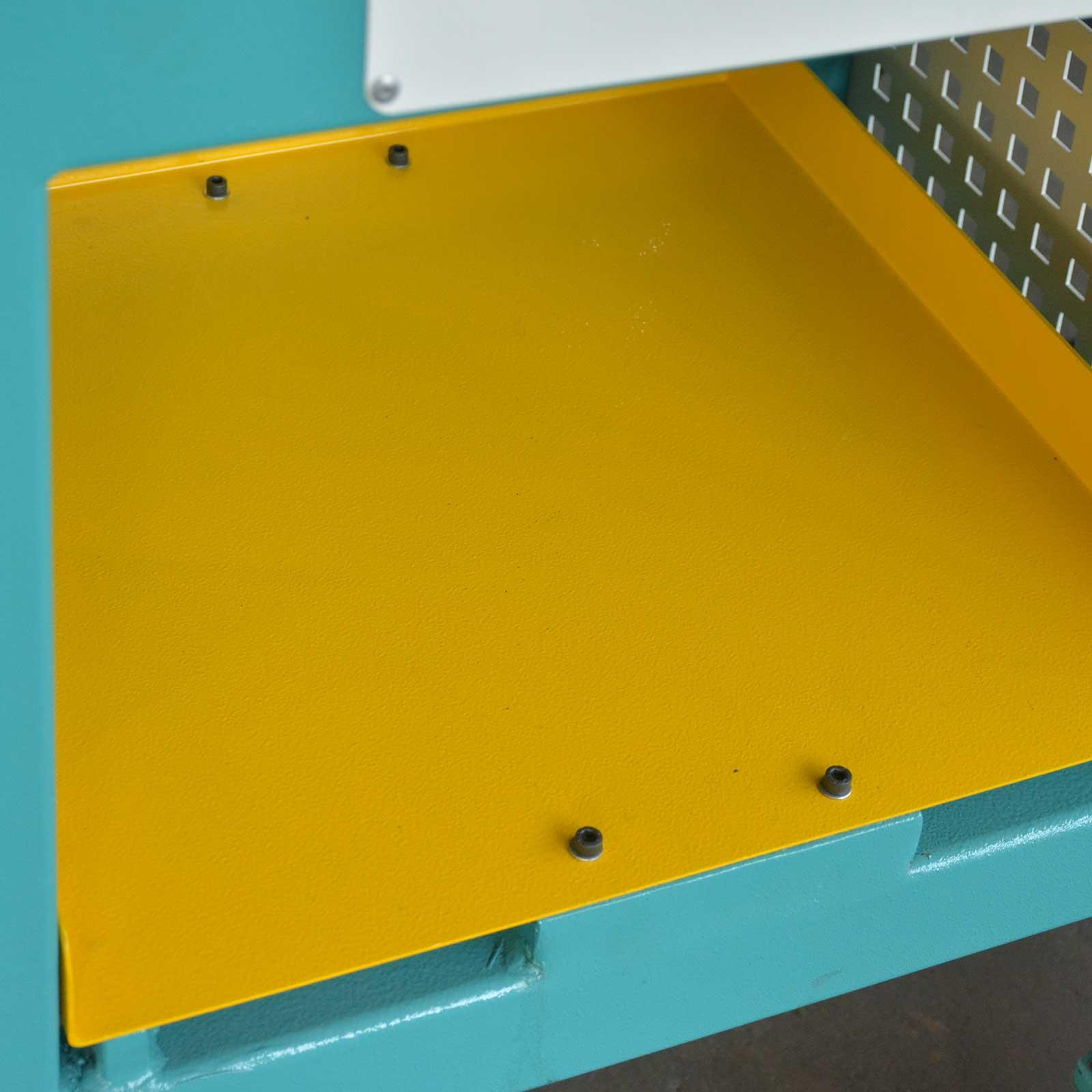

Wide scrap pan in baldes below area

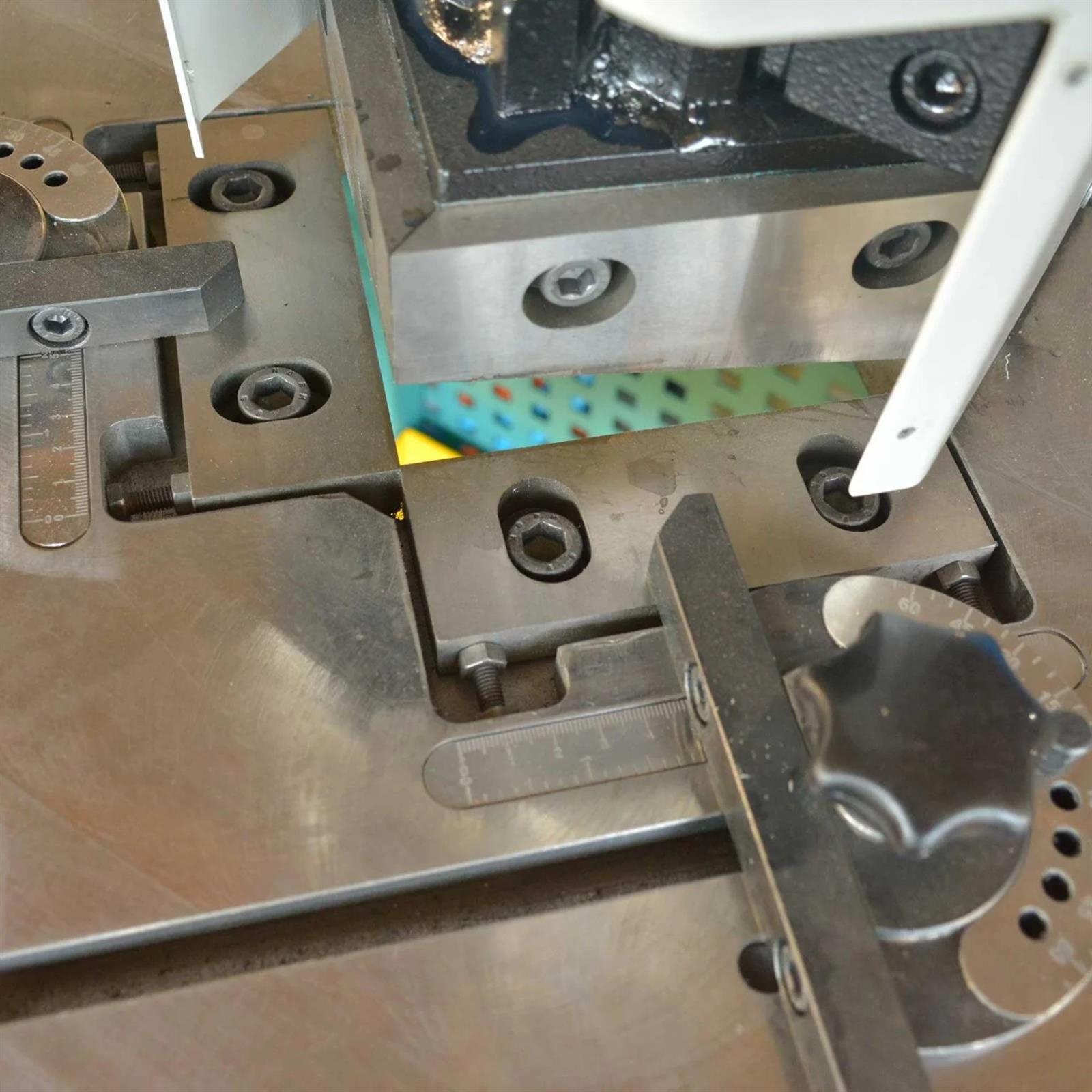

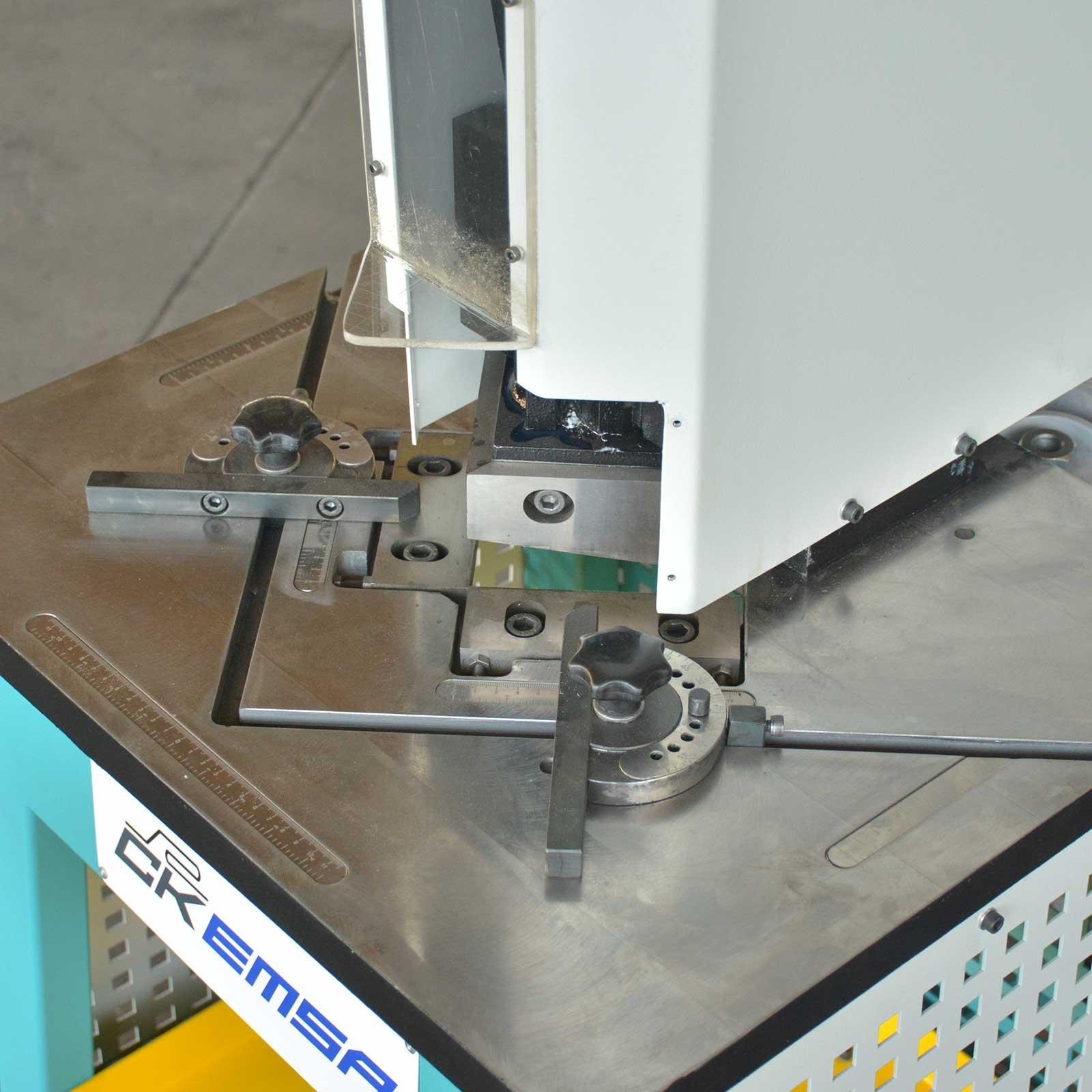

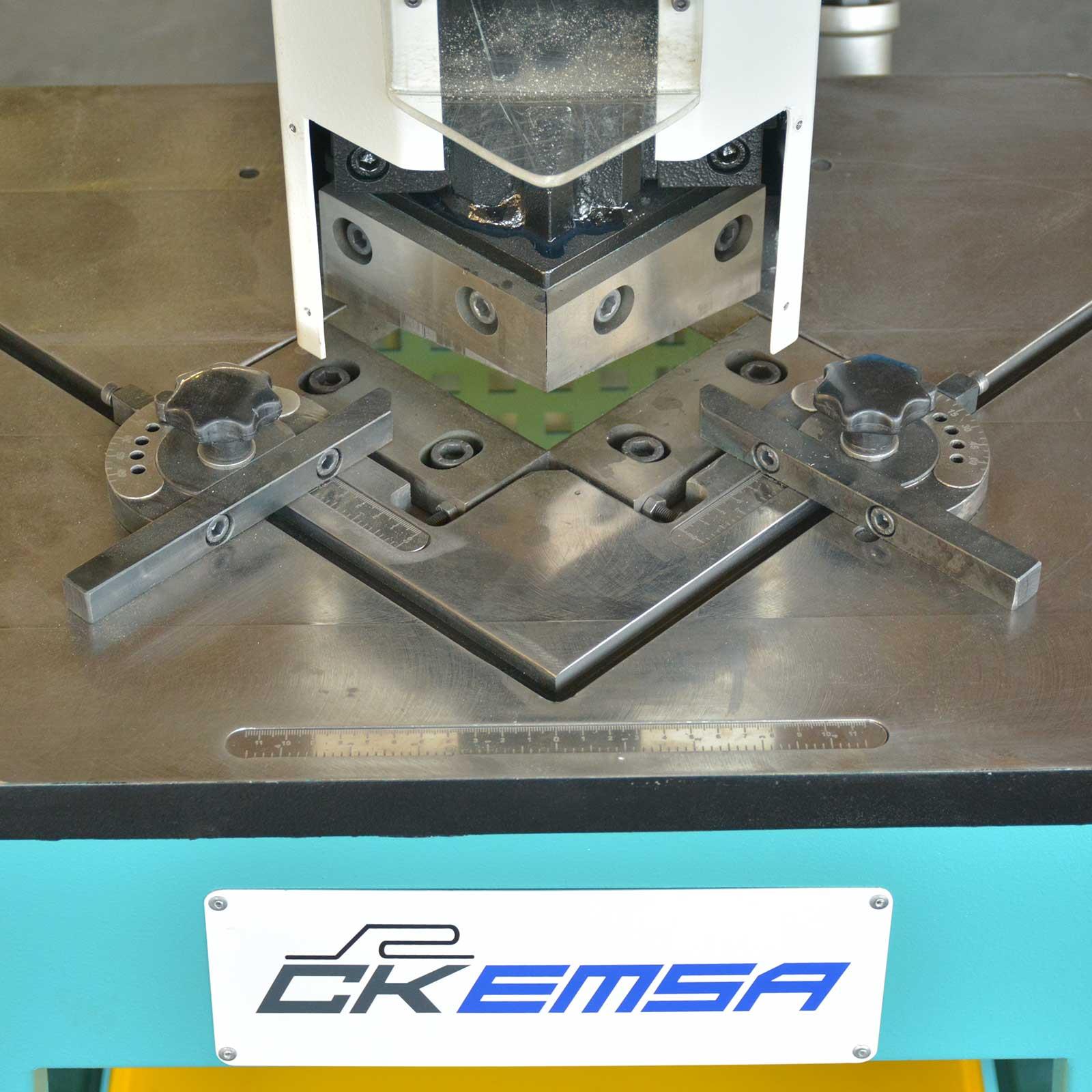

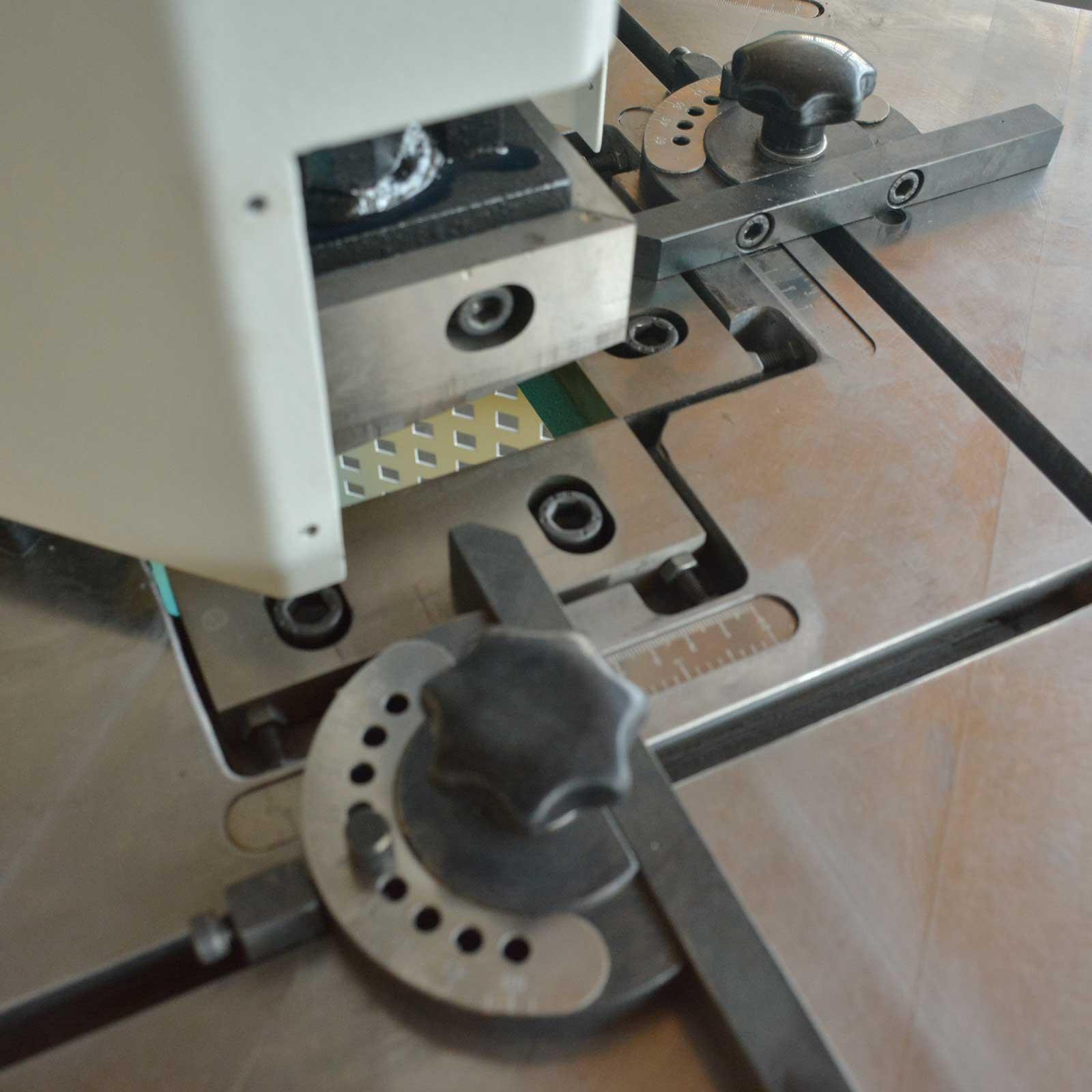

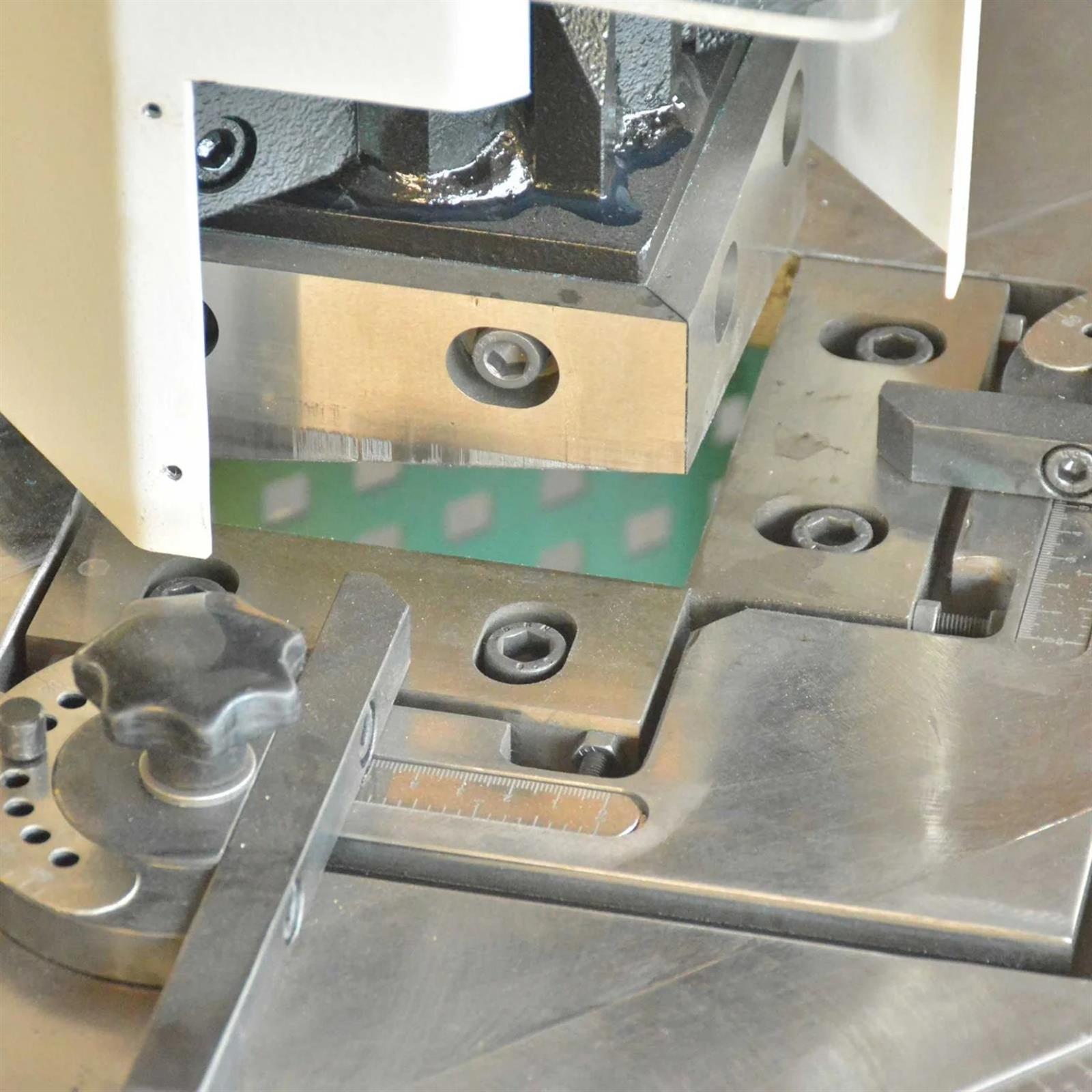

Easyly set angle fixers and sidegauges

PN-3
Steel Cutting Capacity	mm (90 °)	3
Stainleess Cutting Capacity	mm (90 °)	2
Working Pressure	bar	~8- 10 bars
Table Dimension	mm	600×500
Cutting Angle	°	90
Max. cutting per minute	X	20
Blade Length	mm	130×130
Piston Size	lt.	200×200
Max. working pressure	bar	12
Length x Width x Height	mm	750x800x1460
Weight	kg	180
