Rectangular hardened sliding guideways of 3-axes. Features: high rigidity, high accuracy, high speed, high efficiency, high reliability and large torque. They have a wide working range.
These machines are used in automotive, motorcycle, manufacturing, sewing machine, motor and instrument industries for milling, drilling, counterboring, boring, tapping and countersinking valve-type, cam, dies/molds and plate/disk type workpieces. They are especially suitable for all sorts of complex 2D/3D convex/concave molds and complex ID/OD surfaces. They can be used for medium/small batch multi-work production or be linked into an auto line for large batch production.
Using these machines can save manufacturing equipment, shorten production cycle, guarantee machining accuracy and increase productivity.

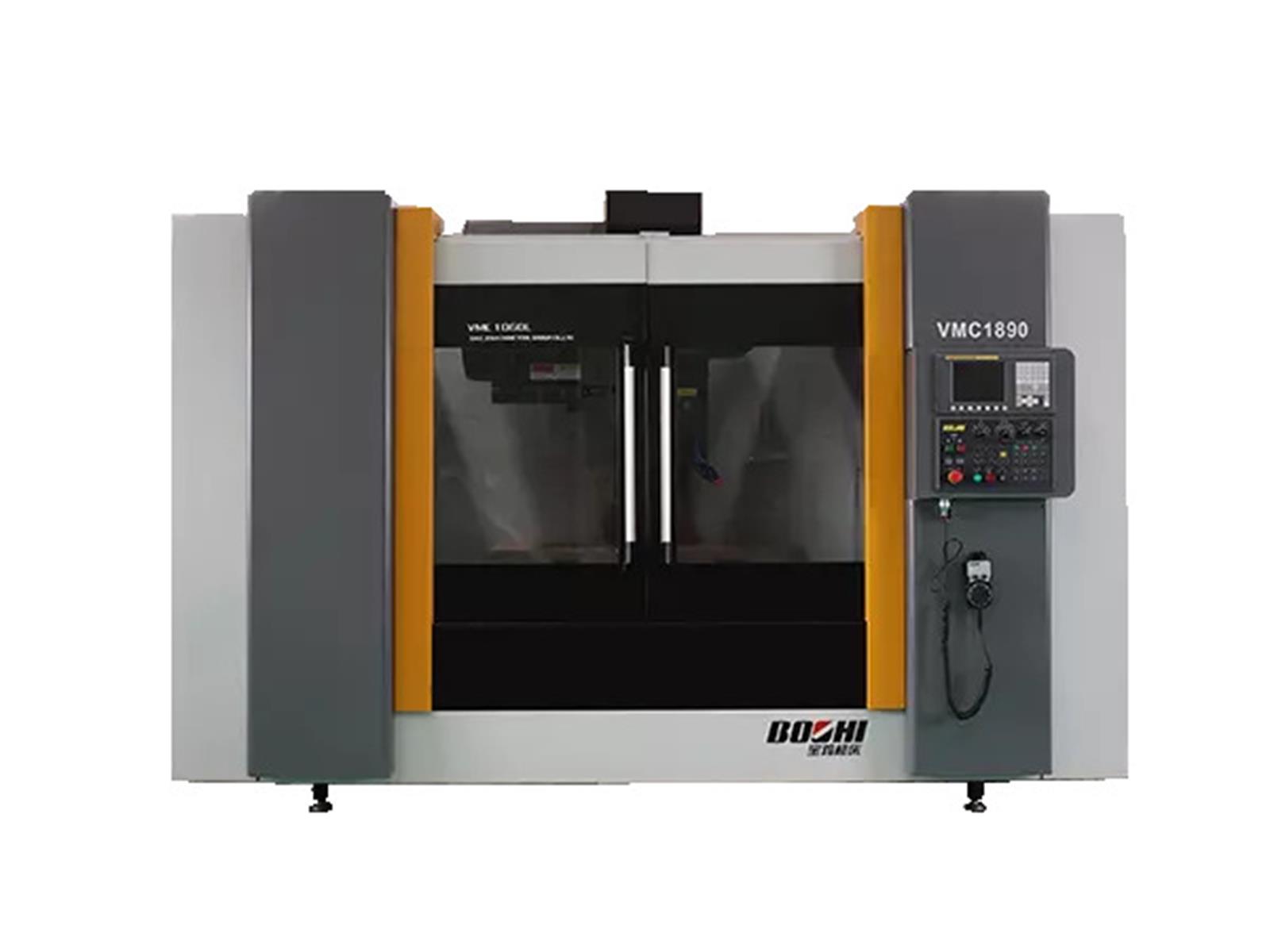

Spec.		Unit	VMC1890
Work table	Dim. of table(W×L)	mm	900×2000
	T-slot (num.-size × space)	mm	5-22×165
	Permissible load	kg	1800
Spindle	Spindle taper hole	/	ISO 50
	Power of main motor (cont./15min overload)	kW	18.5/22
	Top speed of spindle	r/min	7000
Travel	X-axis right and left travel	mm	1800
	Y-axis back and forth travel	mm	900
	Z-axis up and down travel	mm	680
	Distance of spindle nose to table face	mm	160-840
	Distance of spindle center to column way	mm	950
Feed	X/Y-axis rapid traverse	m/min	16
	Z-axis rapid traverse	m/min	12
	Max. cutting federate	mm/min	10000
Magazine	Capacity of magazine	pcs	16/20/24
Magazine	Max. tool weight	kg	15
Accuracy	Repeatability (JIS)	mm	±0.010
Accuracy	Positioning accuracy (JIS)	mm	±0.005
Others	Air source	L/min	350
	Air pressure	MPa	0.6
	Gross weight of machine	kg	15000
	Net weight of machine	kg	14500
	Dimensions of machine (L×W×H)	mm	4800x3800x3300
