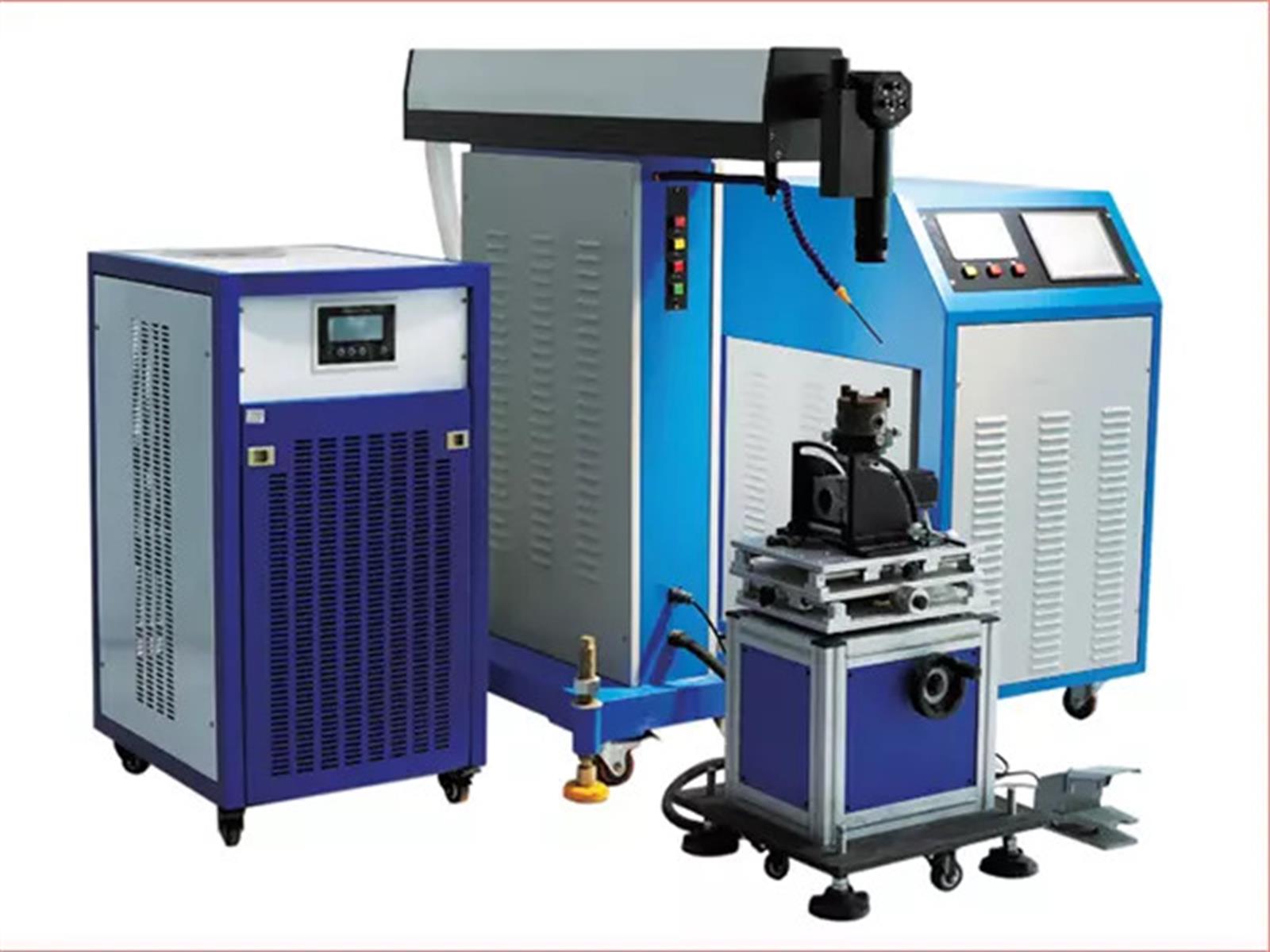

Bochi JHJ-200 General Laser Welder (JHJ-200)

Introduction
Laser welding is the use of high-energy laser pulses to local heating in small area of material, the energy of laser
radiation by diffusion, heat transfer to the material within the material melt after the formation of a particular pool in
order to achieve the purpose of welding.
Advantages
High welding speed, low cost, the welding effect is good
Simple operation, easy to use
Small heat affected zone , the workpiece surface is not easy to deformation
Adjustable welding spot,good welding quality
Blowing argon gas protection system
Beautiful welding surface
Application
Various metals such as titanium, nickel, zinc, copper, aluminum, chrome, niobium, gold and silver and their alloys.
Be widely used in Battery, solar energy, mobile phone communication, glasses industry, mold, electronic appliances, instruments and meters, gold and silver jewelry, medical devices.

Model	JHJ-200
Max laser power	200w
Laser wavelength	1064nm
Max Laser pulse energy	40J
Pulse width range	0.1ms-20ms
Pulse frequency	1-100Hz
Power consumed	9KW
Power supply	AC 380V±10%
Cooling method	Water cooling
Positioning	Red light
Worktable conttrol system	Controller or PC
Processing scale	200×200/300×500
