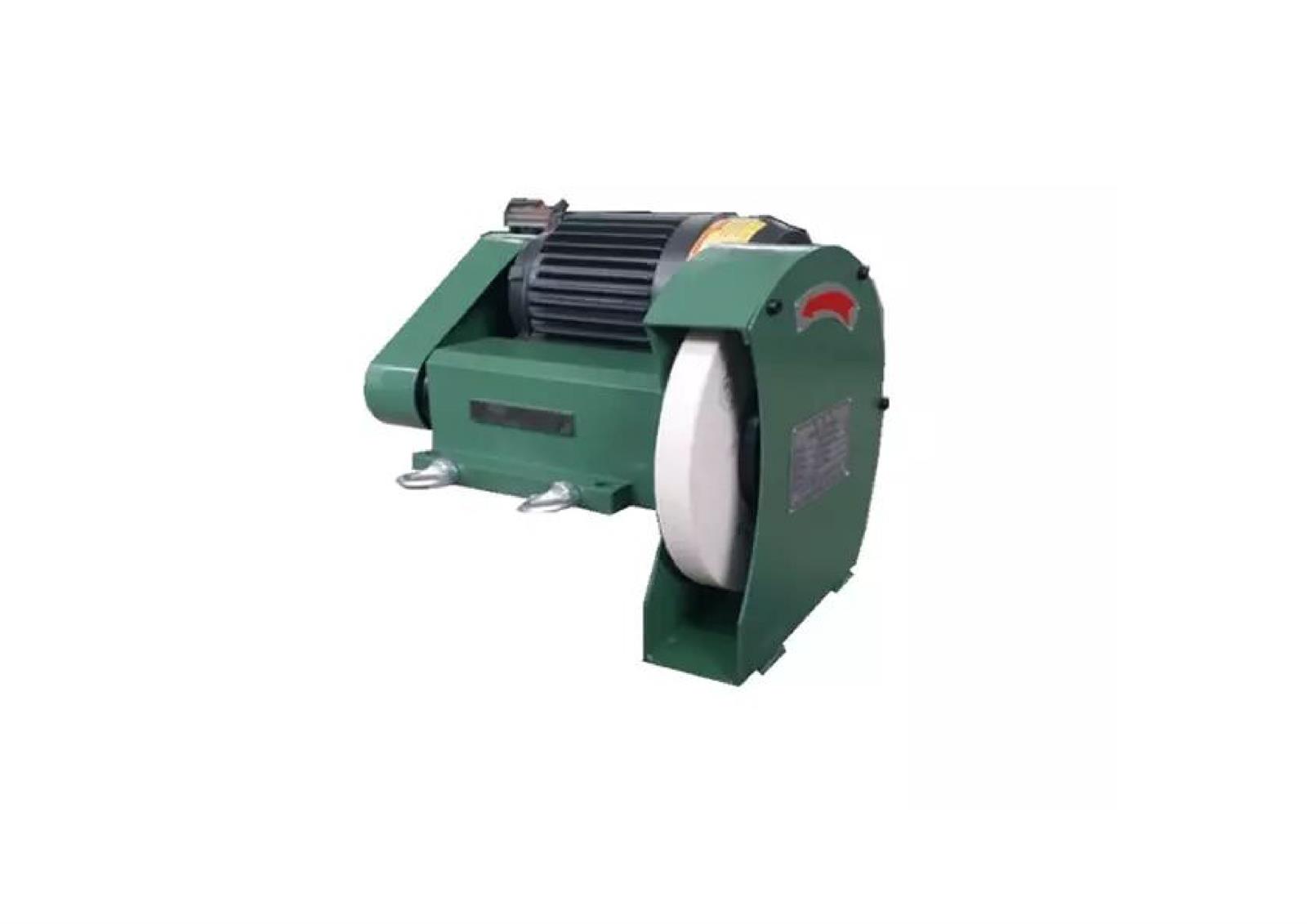

Bochi FY200 Grinding Head (FY200)

Brand : Bochi

Stock Amount : 0

Est. Delivery Time60-75 Days After Order

Shipment Place Turkiye

Payment Terms% 30 T/T On Order Confirmation, % 70 T/T Before Shipment

Made InChina

Min. Order Qty.1 Pcs.

Warranty1 Year

Notify me when the price goes down

Notify me when it is in stock

Machine Tool Accessories

Grinding Head

High grinding accuracy,Widely used,Simple structure,the adjustment and installation is very convenient so as to make it safe and reliable for operating.It can provide the base according to lathe model.Suitable for CS61/240 CS61/250 CS61/266 CS61/280 etc.

PARAMETER TYPE	FY200
Radicai runout of spindle cone（mm）	≤0.005
Axial runout of spindle（mm）	≤0.005
Spindle speed of internal grinding wheel(rpm)	6265
Spindle speed of Cylindrical grinding wheel (rpm)	2675(FY200)
Wheel linear velocity(m/s)	30
Spindle diameter(mm)	Φ41
Motor power(kw)	1.5
Wheel size(mm)	Φ200×Φ32×20mm
Distance from spindle center to bottom surface of machine	62
Distance from spindle center to front side of machine	48
Weight(kg)(No base)	50
Overall weight(Lenght×Wide×Height mm)	350×350×250
