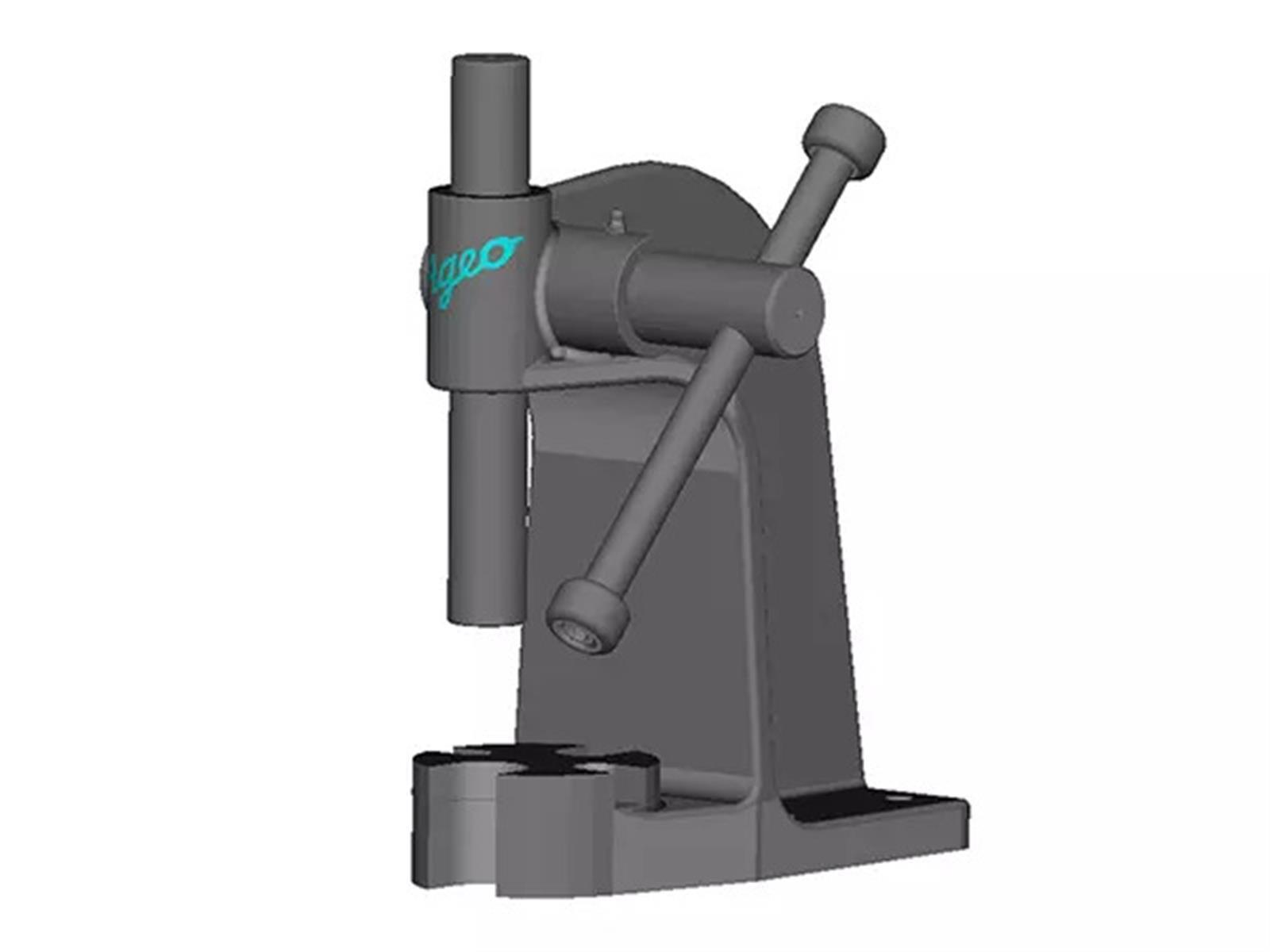

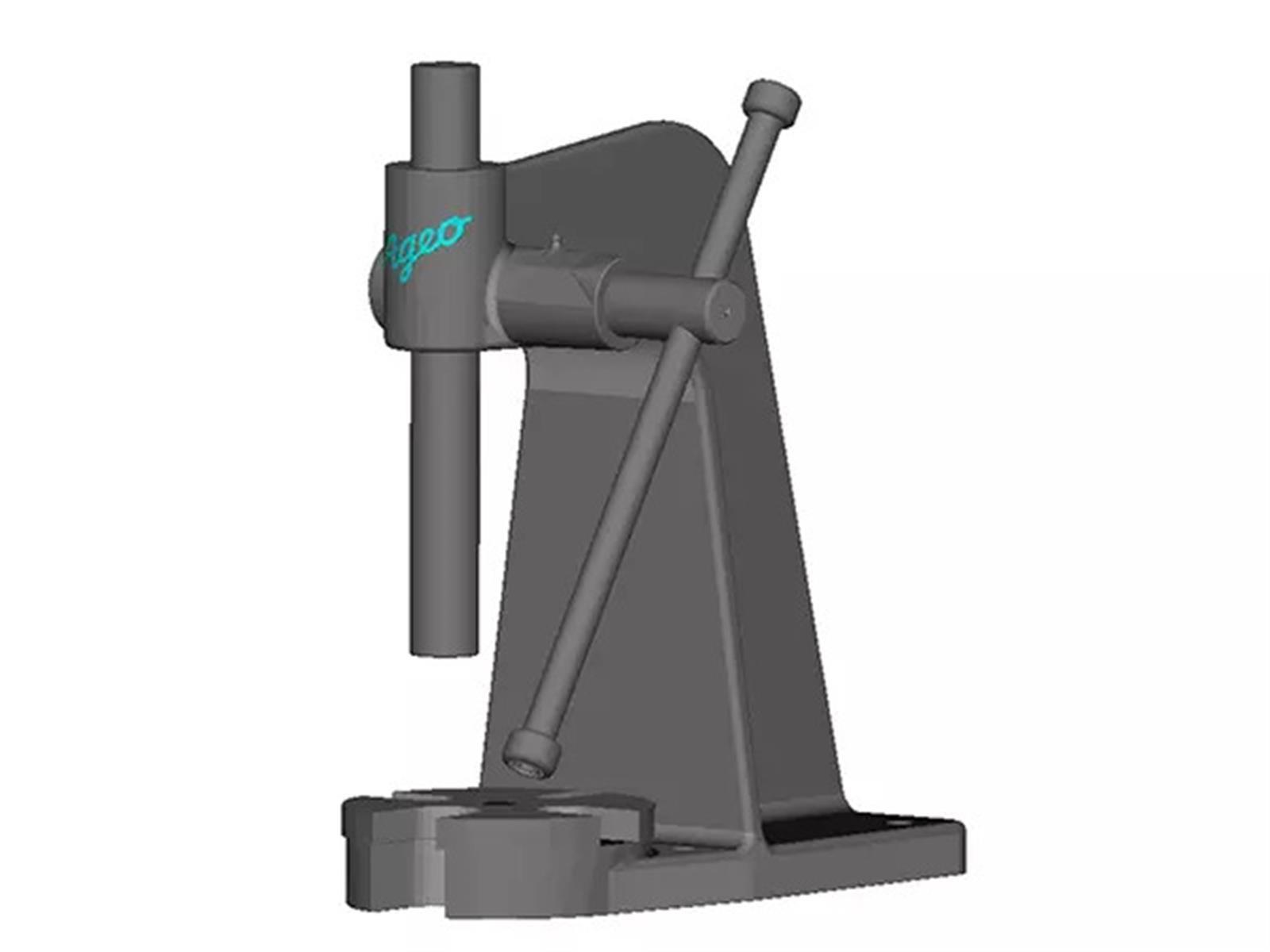

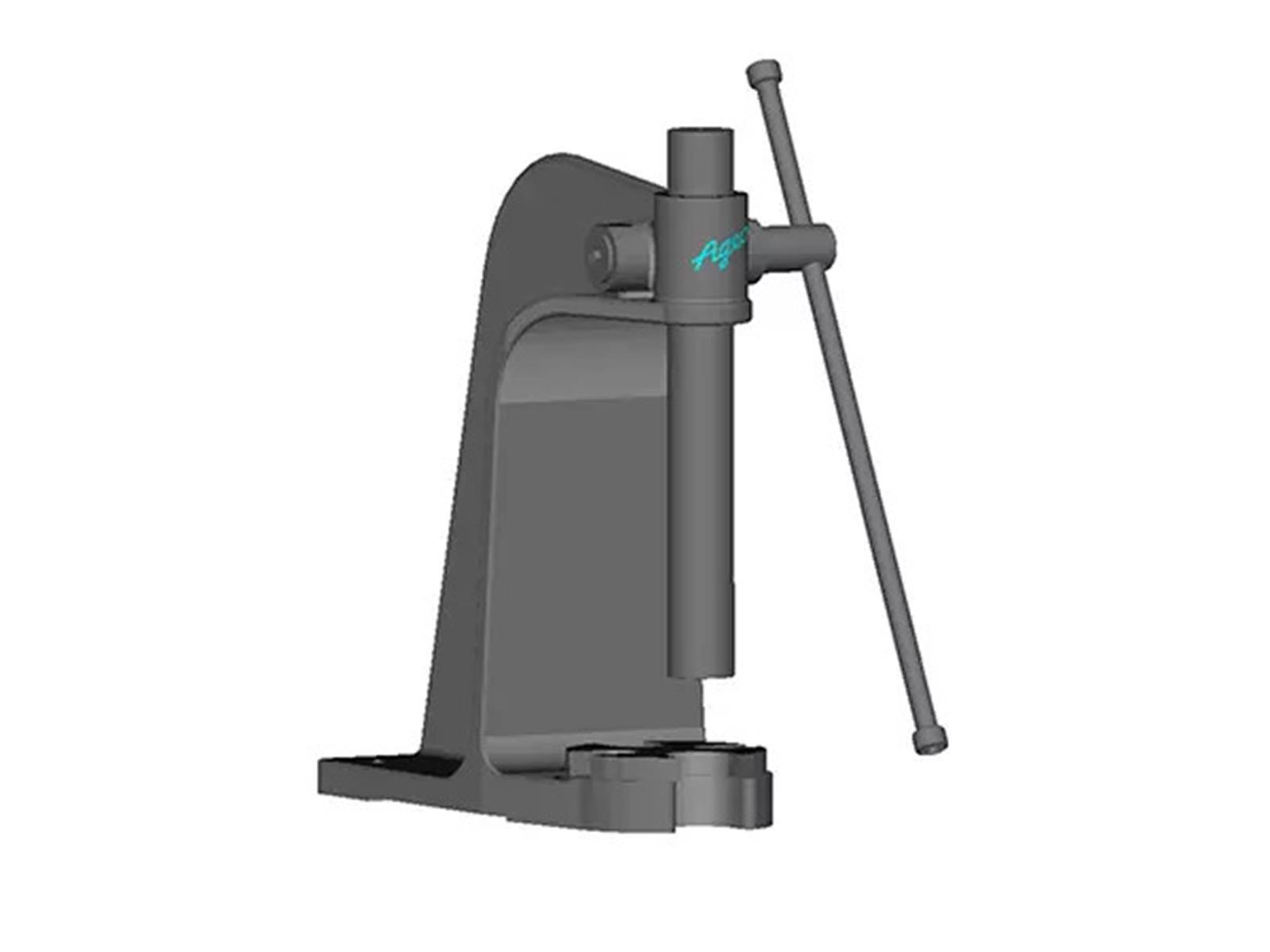

Bochi DP1000V Mandrel press with lever (DP1000V)

Brand : Bochi

Stock Amount : 0

Est. Delivery Time60-75 Days After Order

Shipment Place Turkiye

Payment Terms% 30 T/T On Order Confirmation, % 70 T/T Before Shipment

Made InChina

Min. Order Qty.1 Pcs.

Warranty1 Year

Notify me when the price goes down

Notify me when it is in stock

Machine Tool Accessories

Mandrel Press With Lever

The Ageo PRESS mandrel Presses with lever are robust and inexpensive presses for a variety of applications. The high precision manufacturing guarantees safety, reliability and durability. Mandrel presses with lever are ideal for grouting of turn handles, bushings, bearings, bolts and pins.

DP1000V
Pressing power (kN)		10
Lever transmission (i)		1:27
Depth of throat till the centre of ram (mm)	a	155
Max.Height Of Installation (mm)	b	480
Stroke of ram (mm)	c	500
Diameter of ram (mm)	d	40
Height of pressing body (mm)	e	665
Slot width of the mounting plate(mm)	f	20-46
Net weight(kg)		56
Net weight with base frame(kg)		89
