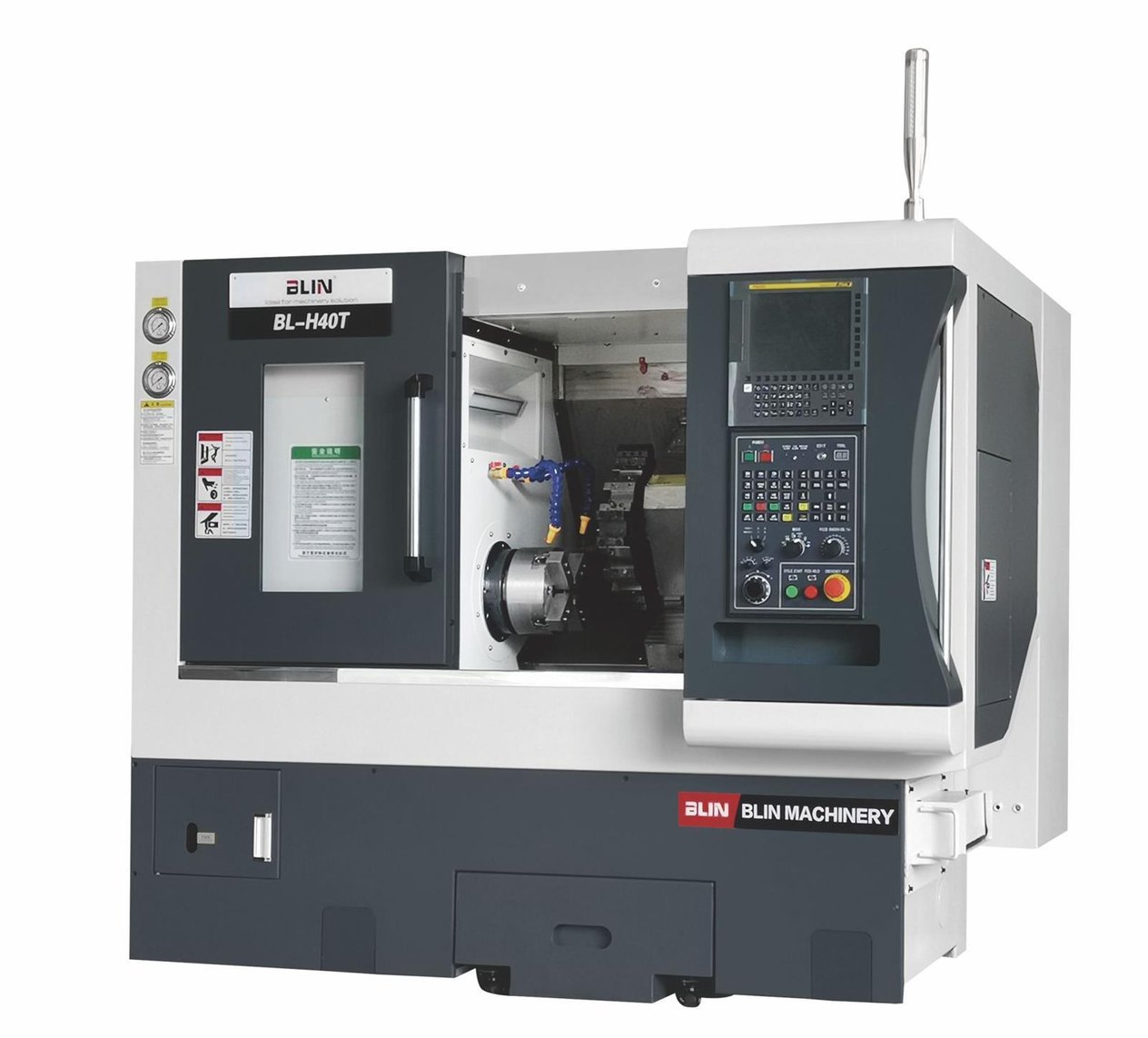

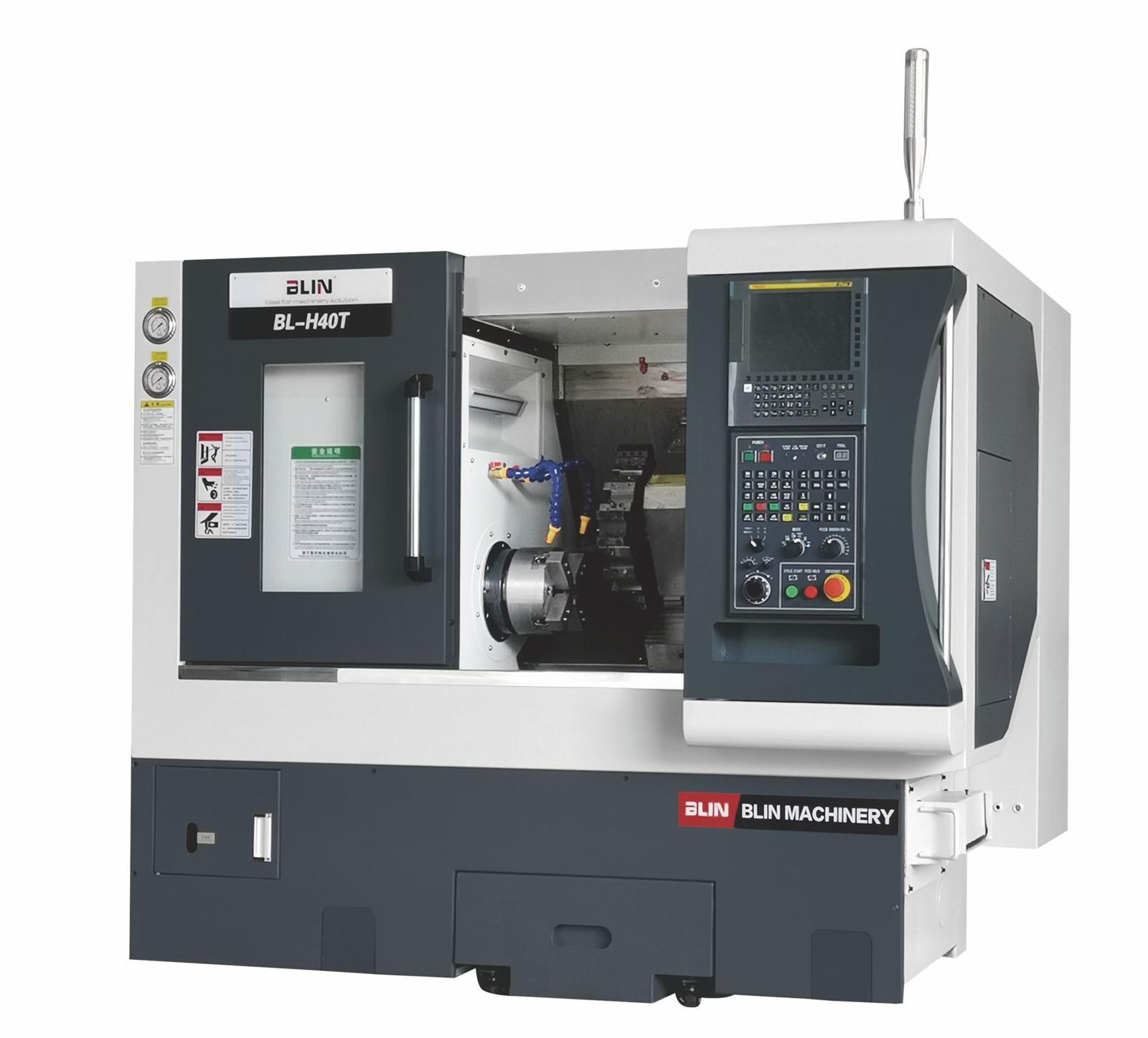

Blin BL-H40T TC TY SLANT BED CNC LATHE(H STANDARD Series)

Blin BL-H40TY Slant Bed CNC Lathe(H Standard Series)

Brand : Blin

Stock Code (BL-H40TY)

Est. Delivery Time60-75 Days After Order

Shipment Place Turkiye

Payment Terms% 30 T/T On Order Confirmation, % 70 T/T Before Shipment

Made InChina

Min. Order Qty.1 Pcs.

Warranty1 Year

Stock Amount : 0

Note: The prices shown here are retail sales prices. SPECIAL DISCOUNT MAY APPLY FOR BULK PURCHASES . Additionally, discounted prices offered to dealers may differ.

Import duties, customs charges, and value-added taxes for products originating outside of Turkey are not included in the listed prices. This is applicable to customers purchasing from within Turkey.

The prices mentioned here do not include door-to-door delivery. Buyers purchasing from other countries are responsible for customs duties and any other taxes applicable under their local commercial laws.

For orders under 13,000 Euros, if the product value is below this, the total order value must either reach 13,000 Euros or a 150 Euro customs fee will be added to your final invoice value.

Price : 0,00 EURO(Vat included)

Item is out of stock.

Contact Via WhatsApp

Add to Favorites

Add to My Wish List

Compare

Notify me when the price goes down

Notify me when it is in stock

Item	Brand
Spindle unit	TAIWAN-ROYAL
Tool turret	TAIWAN-GSA/GERMANY-SAUTER/TAIWAN-YULIN/SWIFT
Ball screw	TAIWAN-HIWIN C3 class
Ball screw bearing	GERMANY-FAG

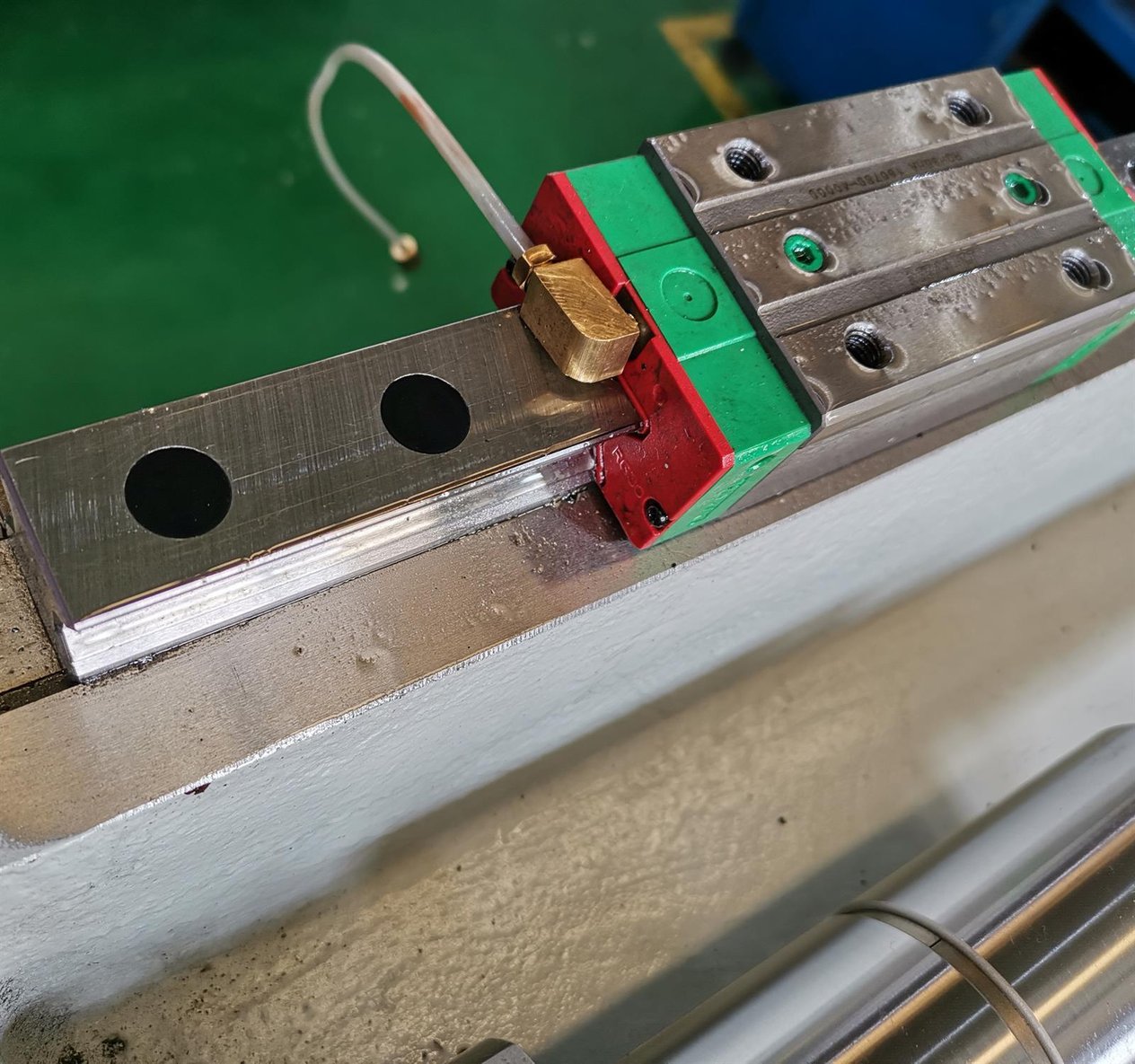

Linear guideway	TAIWAN HIWIN P class
Lubrication system	TAIWAN-ISHAN
Rotary oil cylinder&chuck	TAIWAN-AUTOGRIP
Hydraulic parts	TAIWAN/JAPAN
Heat exchanger	Joint-venture

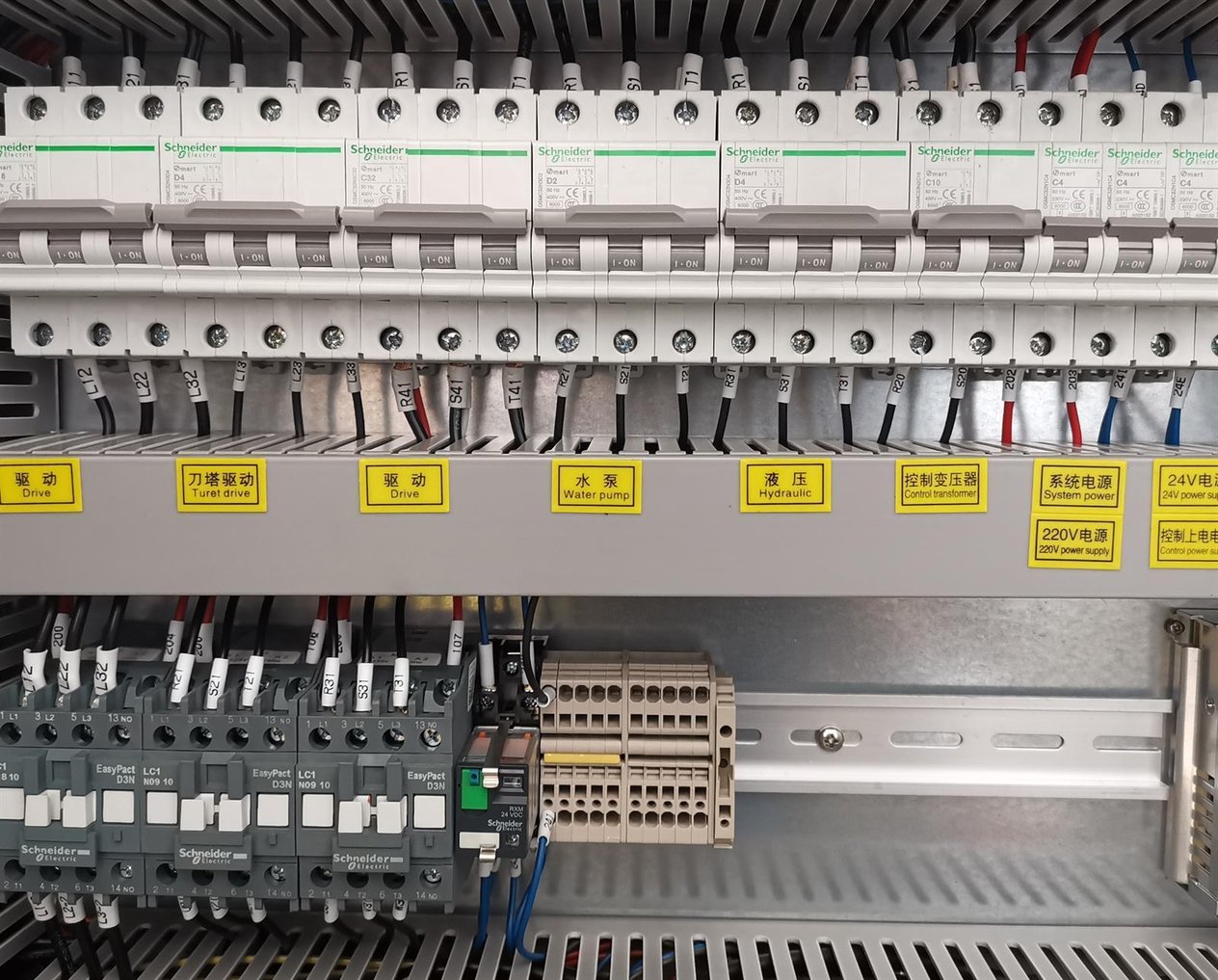

Main electricity parts	FRANCE-SCHNEIDER

Item	Specification	Unit	BL-H40TY
Capacity	Chuck size	/	6''(8'' *)
	Max. swing dia. over bed	mm	Φ400
	Max. swing dia. over saddle	mm	Φ300
	Max. turning length	mm	240
	Max. turning dia.	mm	Φ225
	Standard turning dia.	mm	Φ150(6'' chuck);Φ200(8'' chuck*)
Spindle	Spindle bore	mm	Φ56(Φ66*)
	Spindle end type	/	A2-5(A2-6*)
	Spindle speed	rpm	5000(4000*)
	Max. bar through dia.	mm	44(51*)
	Spindle motor power	kw	11
X/Z axes	X/Y/Z axes linear guideway type	/	BALL type/BALL type/ROLLER type
	X/Y/Z axes linear guideway width	mm	30/30/30
	X/Y/Z axes ball screw O.D.	mm	Φ32
	X/Y/Z axes ball screw pitch	mm	10
	X axes travel	mm	110
	Y axes travel	mm	70
	Z axes travel	mm	250
	X/Z axes rapid moving speed	m/min	30
	Y axes rapid moving speed	m/min	8

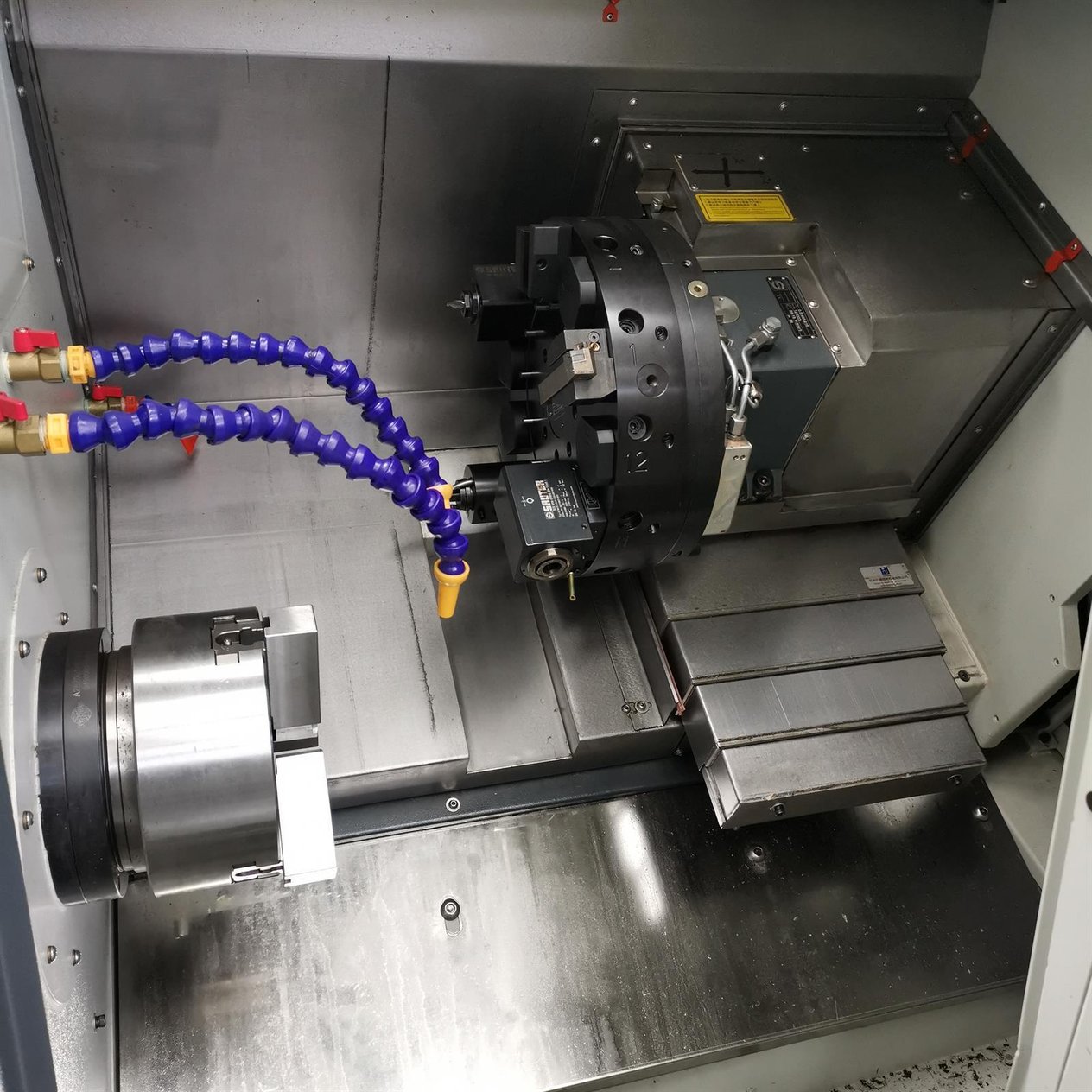

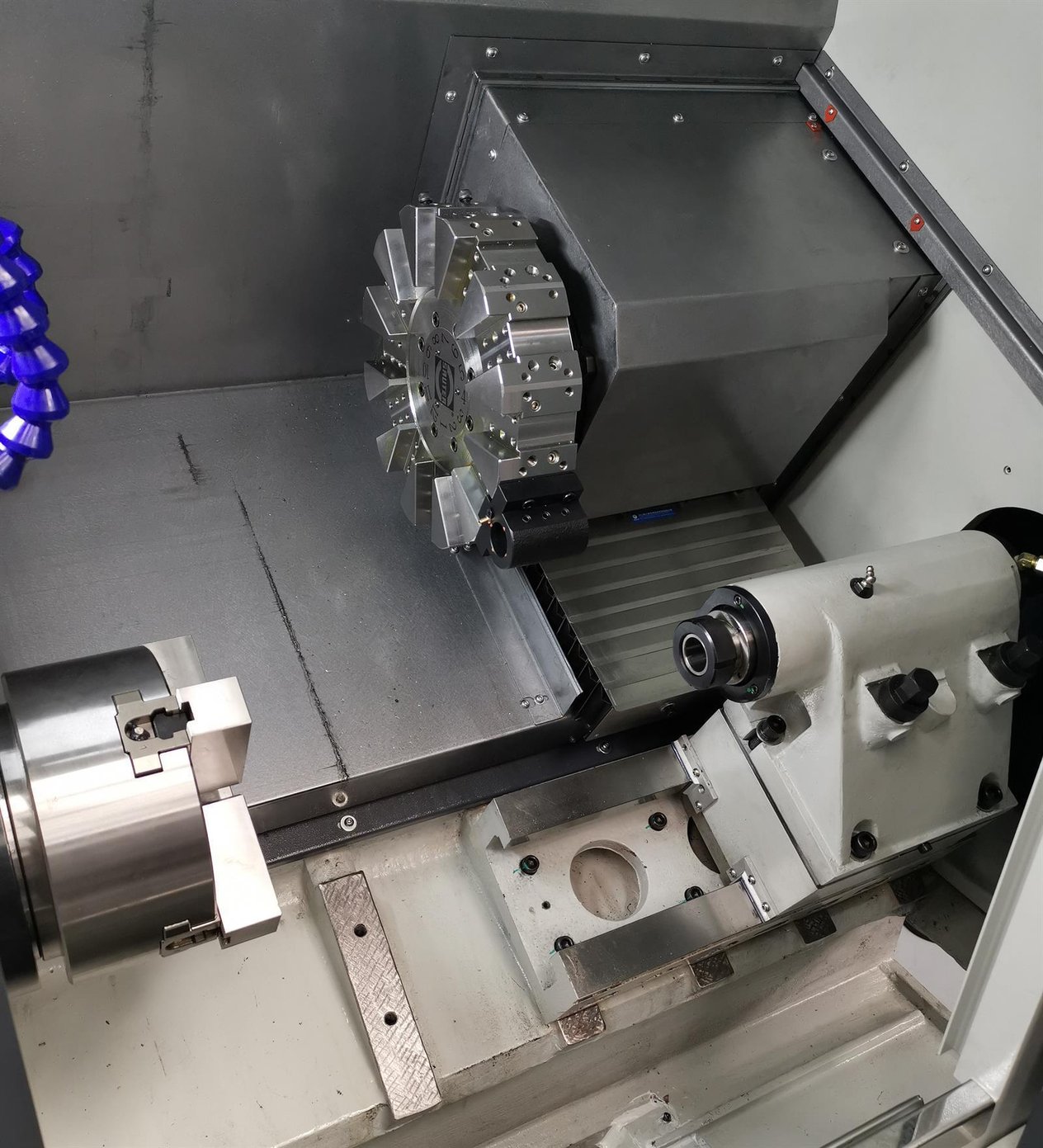

Tool turret	Tool turret type	/	12T BMT40 Powered tool turret with Y axes
	Toolshank size	mm	25×25, Φ40(SAUTER 8T); 2020,Φ25/32(SAUTER 12T); 25×25, Φ32(GSA 8T*)
	Live tool type		ER20(BMT40)
Tailstock	Tailstock quill taper	/	MT4#
Tailstock	Tailstock quill dia./travel	mm	Φ70/70
Accuracy	Positioning accuracy(X/Z)	mm	0.008/1000
Accuracy	Repeat positioning accuracy(X/Y/Z)	mm	≤0.005
Others	Overall size	mm	2180×1830×1710
Others	N.W.	kg	3300
