Blin BL-S800 CNC Drilling & Tapping (BL-S800)

Brand : Blin

Stock Amount : 0

Est. Delivery Time60-75 Days After Order

Shipment Place Turkiye

Payment Terms% 30 T/T On Order Confirmation, % 70 T/T Before Shipment

Made InChina

Min. Order Qty.1 Pcs.

Warranty1 Year

Notify me when the price goes down

Notify me when it is in stock

Drilling & Tapping Machines

CNC Drilling & Tapping Machines

16T/21T SLANT DISC tool magazine
High SPEED
High EFFICIENCY

Standard configuration:

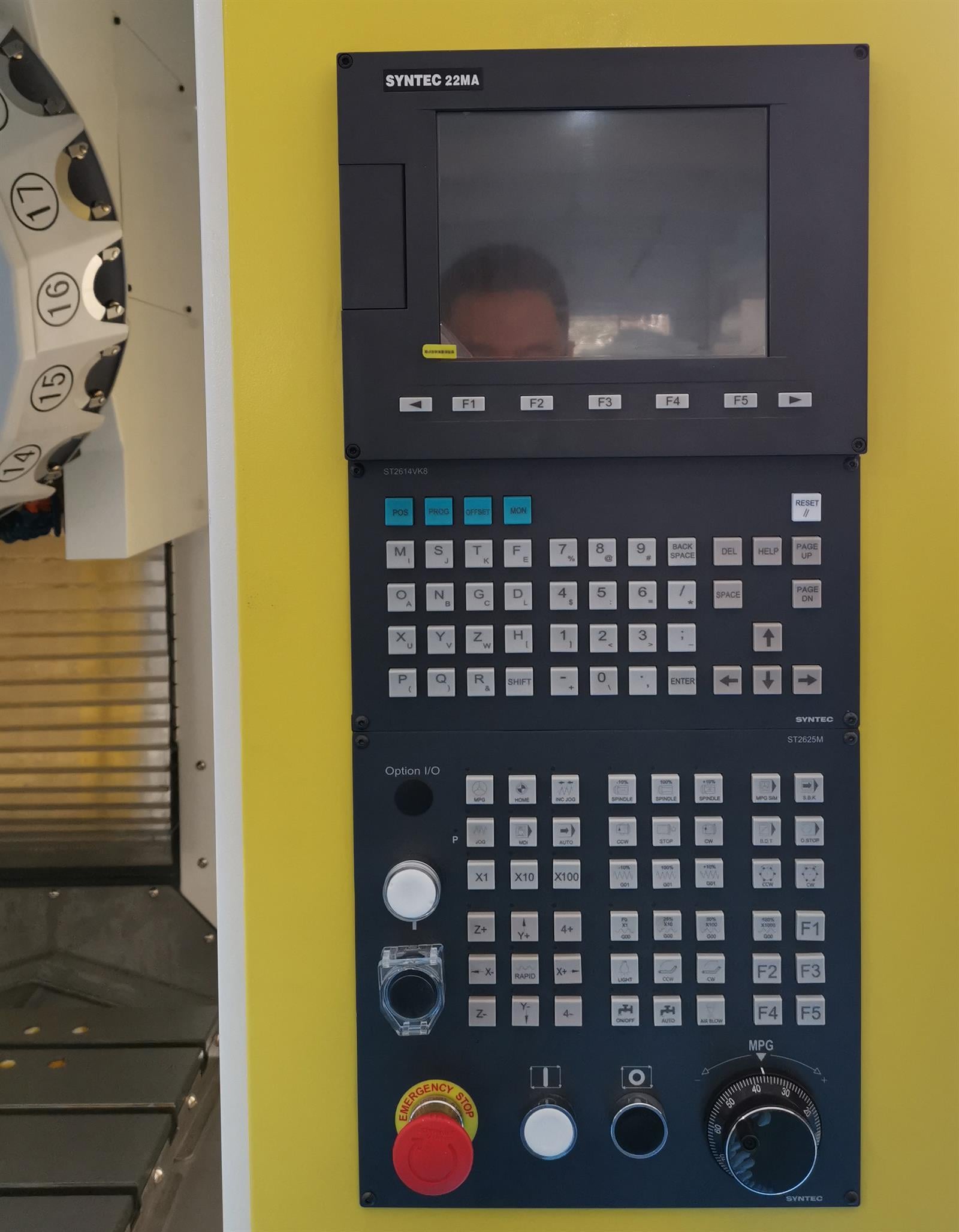

SYNTEC 22MA CNC controller

Features:
Adopt HT300 class cast iron
3 axes adopt wide linear guideway, high rigidity
3 axes adopt big pre-stretched ball screw

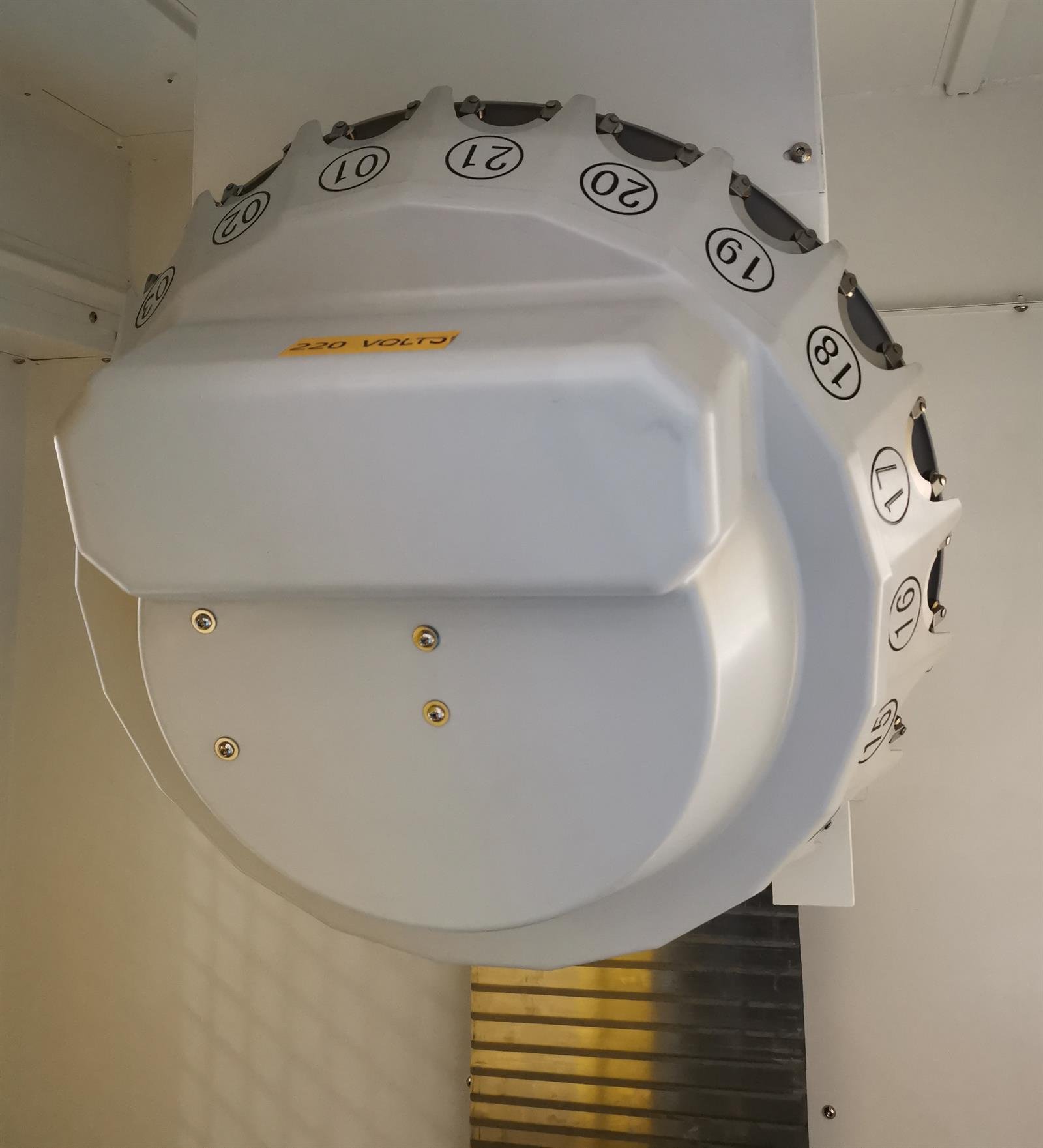

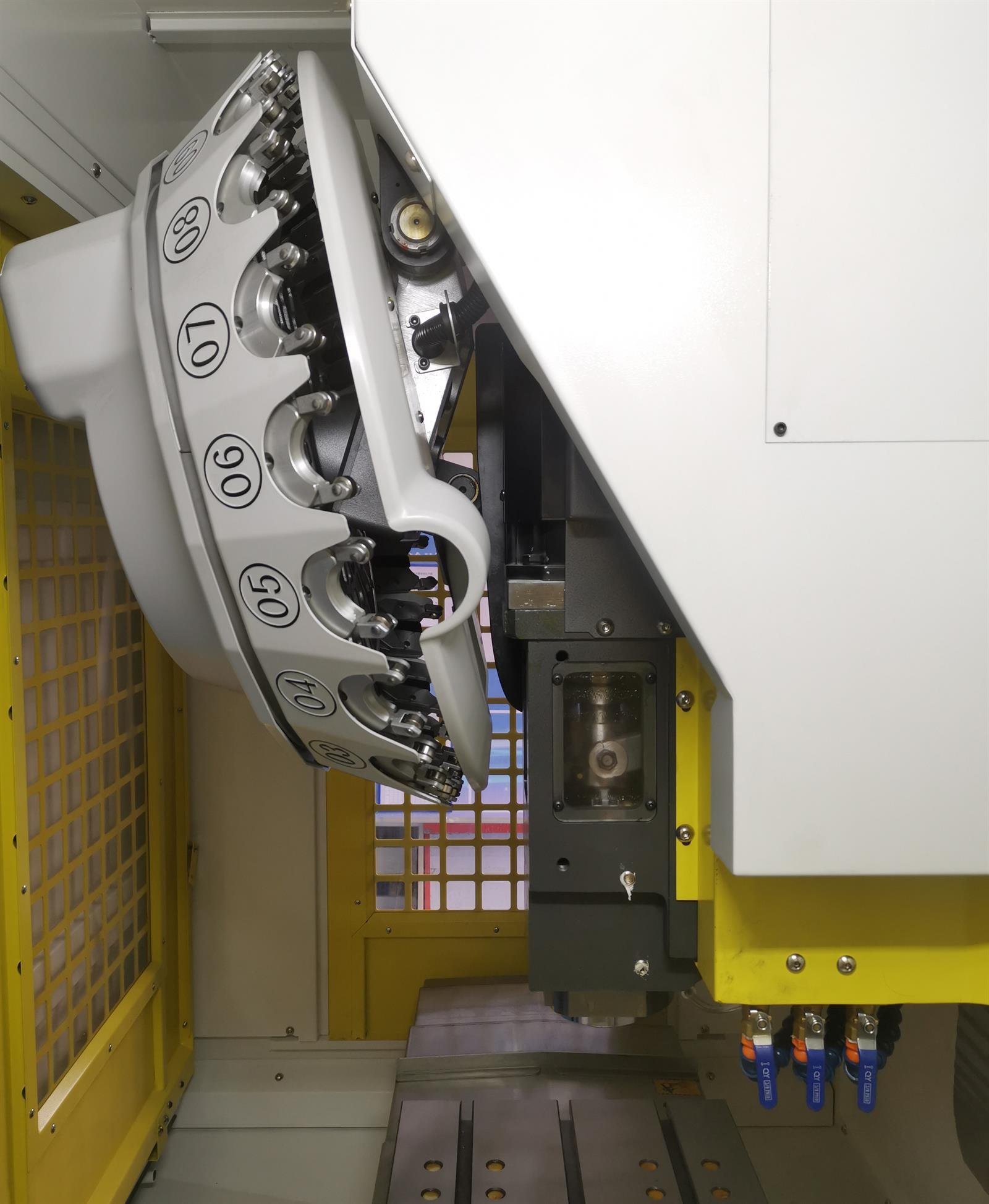

Adopt Slant Disc type 21T/16T tool magazine,fast tool changing

Item	Brand
Ball screw	TAIWAN-HIWIN/PMI
Linear guideway	TAIWAN-HIWIN/PMI
Ball screw bearing	SWEDEN SKF/GERMAN FAG
Spindle	TAIWAN
Tool magazine	TAIWAN-SANJET
Main electric parts	FRANCE-SCHNEIDER

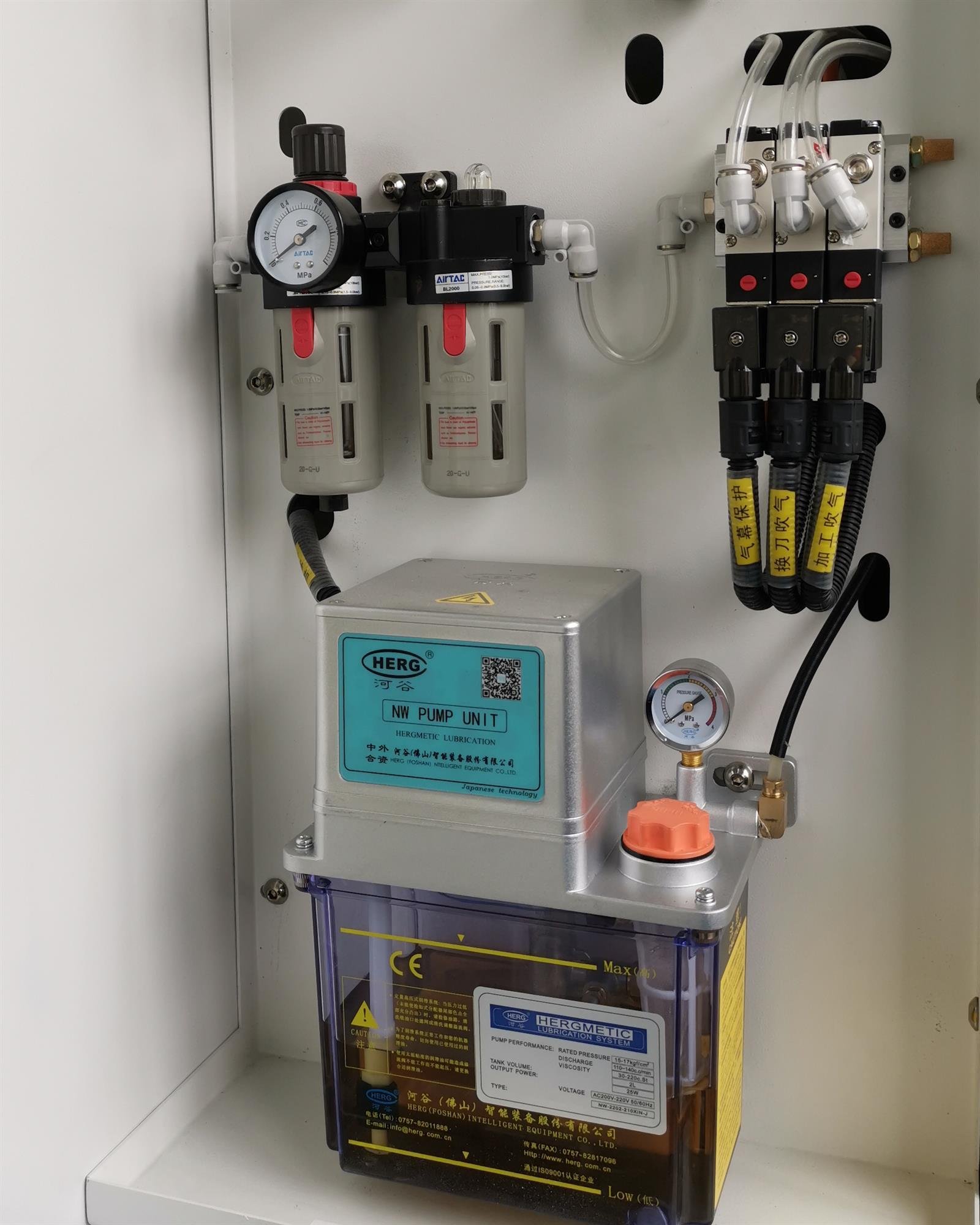

Pneumatic parts	TAIWAN-AIRTAC
Lubrication pump	JAPAN-HERG

FANUC 0I MF CNC controller
4th axes

Item	Specification	Unit	BL-S800
Capacity	Max. drilling dia.(U driller)	mm	Φ20
Capacity	Max. tapping dia.	mm	M18

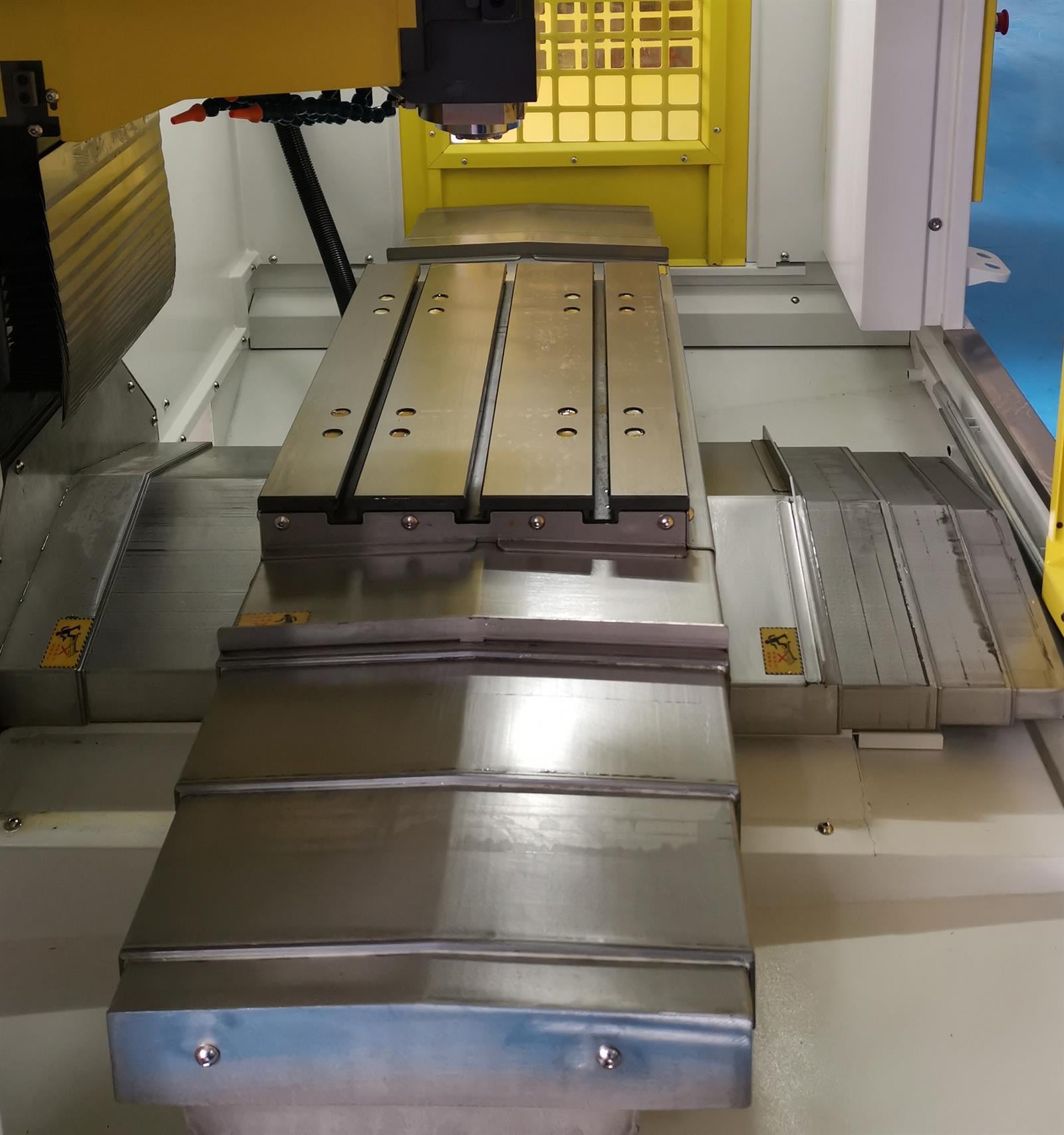

Worktable	Table size(L×W)	mm	900×500
	T slot(NO./width/distance)	mm	5/18/90
	Table max. loading	kg	500
Spindle	Spindle motor power	kw	5.5/7.5
	Spindle type	/	BT30
	Spindle max. speed	rpm	Direct-drive 12000(opt.:20000)
	Distance from spindle nose to table face	mm	120~570
Feeding axes	X/Y/Z axes travel	mm	800/520/450
	Cutting feed speed	mm/min	5~15000
	X/Y/Z axes rapid moving speed	m/min	48/48/36
	Positioning precision	mm	±0.003/300
	Repeatable positioning precision	mm	0.003
Tool magazine	Tool magazine type	/	Slant disc type
	Tools qty	/	16
	Tool changing time(tool to tool)	s	1.8
	Max. tool dia.(full/(no adjacent tool)	mm	Φ60/Φ120
Others	Overall dimension(L×W×H)	mm	2400×1700×2100
Others	Weight	kg	4500
