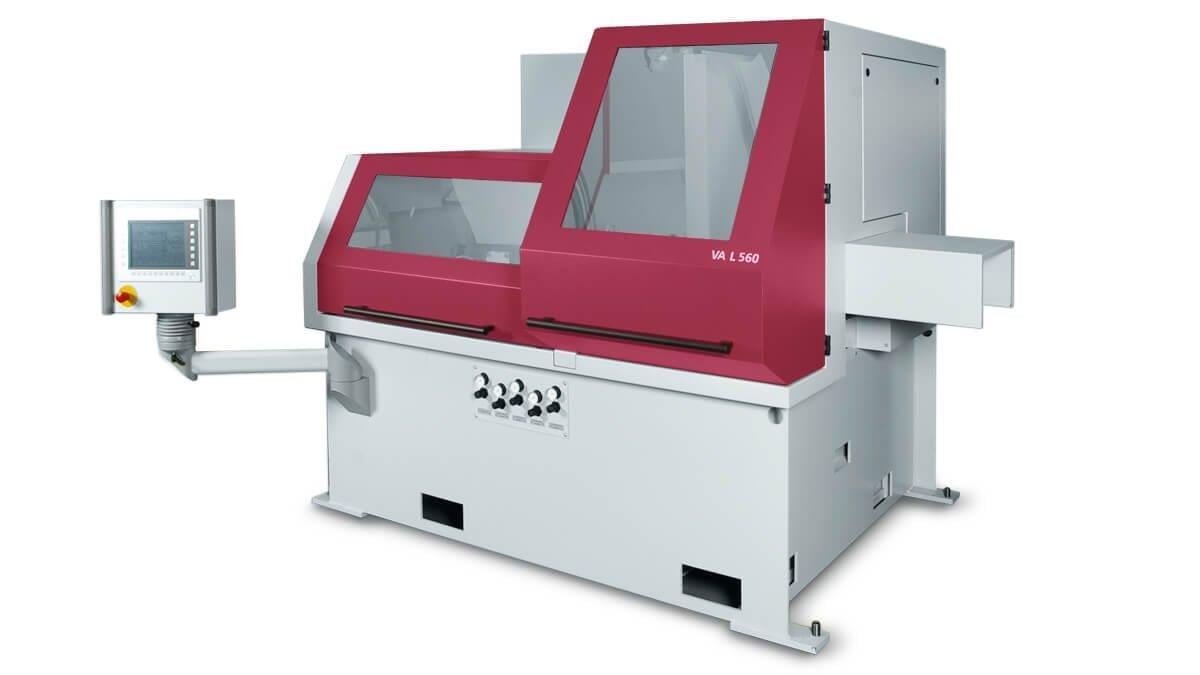

Behringer VA-L 560 NC3 XL Aluminium Circular Saw (VA-L 560 NC3 XL)

Excellent surface quality, high output, short rest piece lengths and careful material handling - the VA-L series aluminium saws set standards in all areas worldwide. With its servo-driven material clamping devices and servo-driven saw feed system, it is unsurpassed in terms of cutting performance and precision.

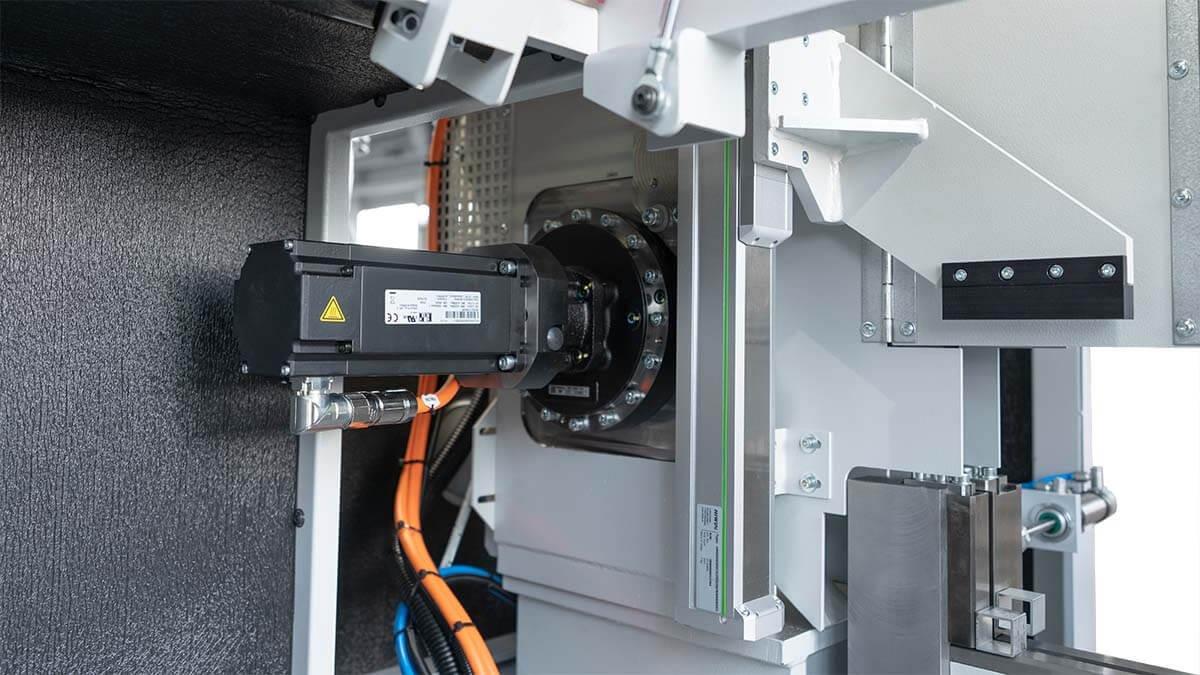

• Servo-driven material clamping
  Clamping force and clamping travel can be set precisely. This ensures particularly safe and surface-protecting clamping and high repeatability in the fully automated process.
• Excellent surface quality
  The aluminium circular saw provides an optimum, low-vibration cutting process. The workpieces can be transferred to the next operations without or almost without post-processing.
• Careful material handling
  Damage to the material surface is avoided by the special design of the material handling systems.

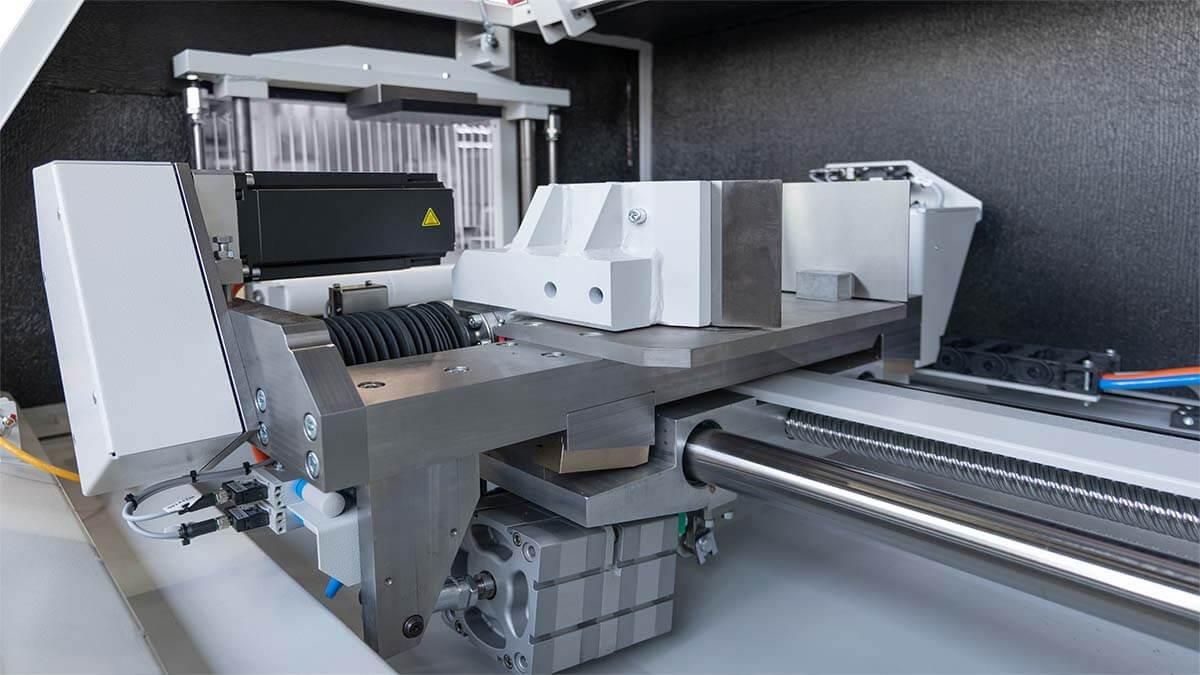

• Material feed system with lift and shift device
  The NC axis with ball screw and servo drive in conjunction with lift and shift device guarantees extreme positioning accuracy and helps ensure gentle material handling. The material is lifted by the material support and moved by the fixed jaw.

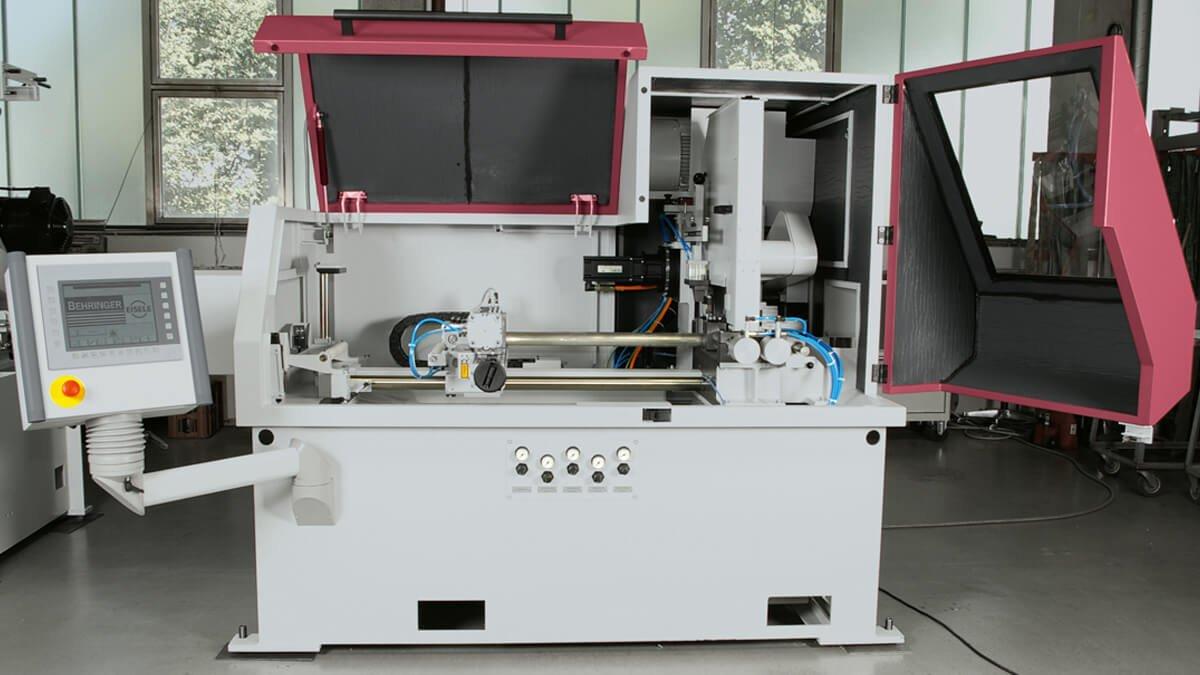

• Good accessibility
  The housing of the circular saw can be opened up to expose large areas of the machine. All the important components and parts are easily accessible. The machine’s open design affords direct access to all important components, facilitating maintenance, cleaning, repairs and saw blade exchange.
• Short remnant length
  of only 50 mm in automatic operation saves expensive material.
• Highest level of safety
  The unique machine concept prioritizes occupational safety and ergonomic design. The VA-L is 100% encapsulated as standard. The seal-tight casing practically excludes any risk of injury caused by reaching into the machine during sawing operation, as well as drastically reducing noise emissions.
• Chip extraction
  The basic design of the VA-L aluminium saw is optimised for the connection of extraction systems. Tests have shown that up to 99.95% of the chips are thus extracted from the machine interior. This is essential for mass cutting applications!

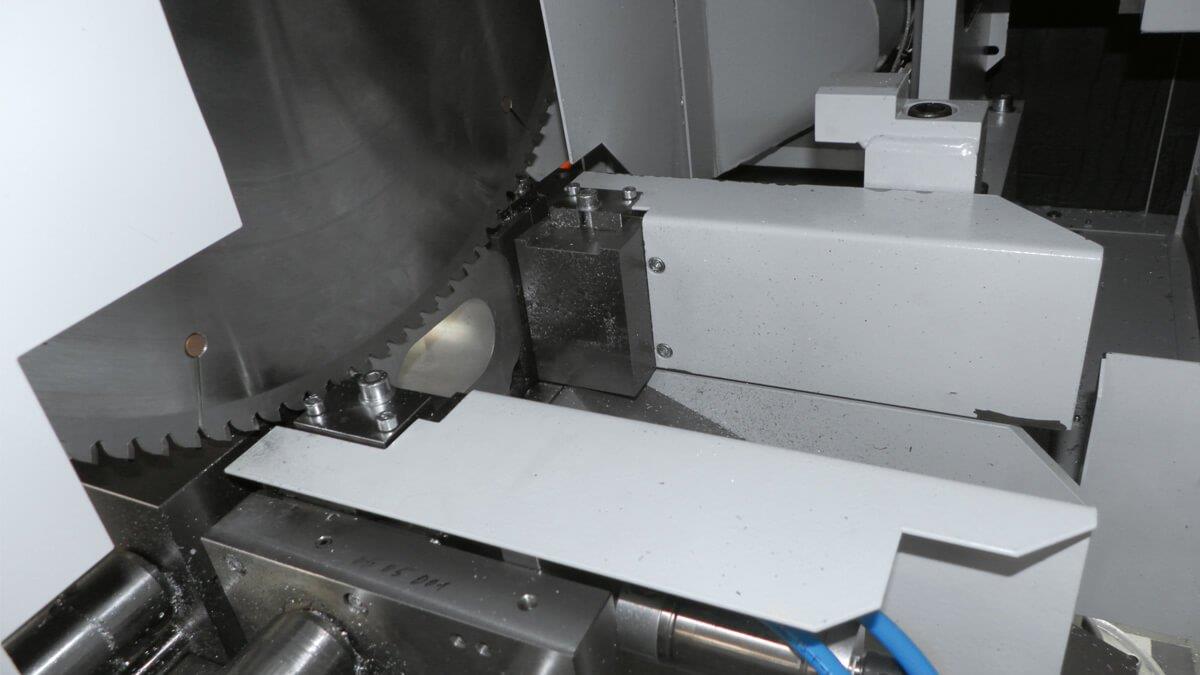

• Automatic widening of kerf channel
  allows clear return travel of the saw blade by pressing back the material and the offcut on both sides. The effect: increased service life of tools and elimination of scratching on the cut surface during blade retraction.
• High output
  due to a powerful drive and optimised material flow
