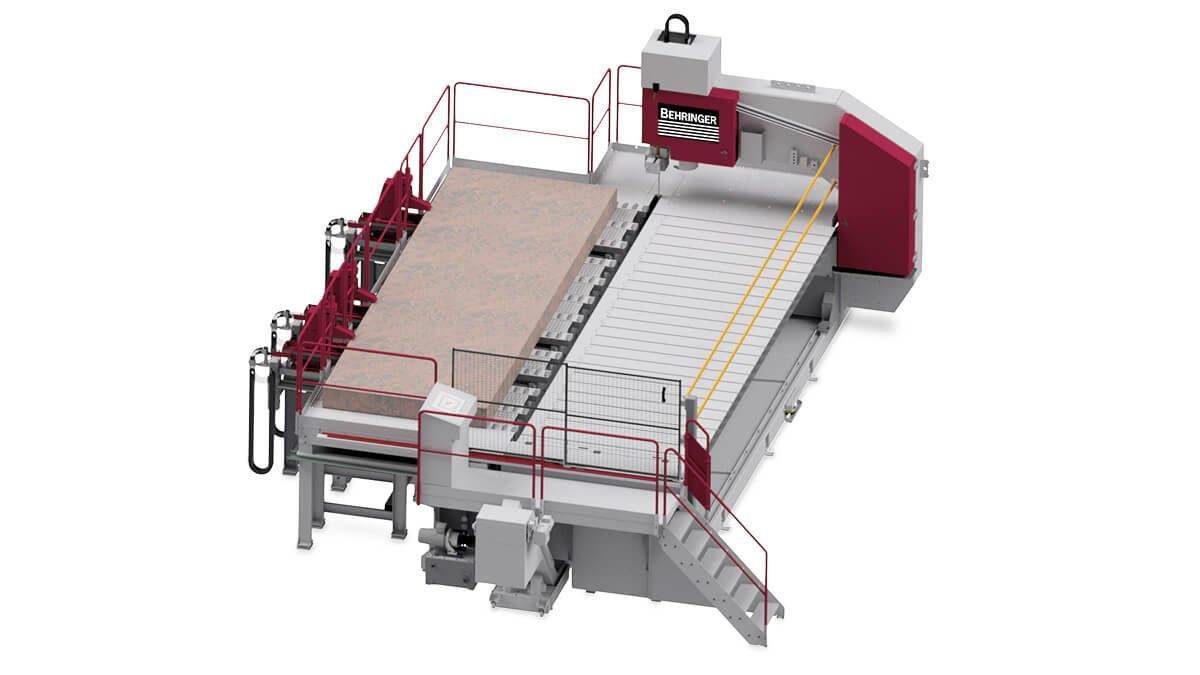

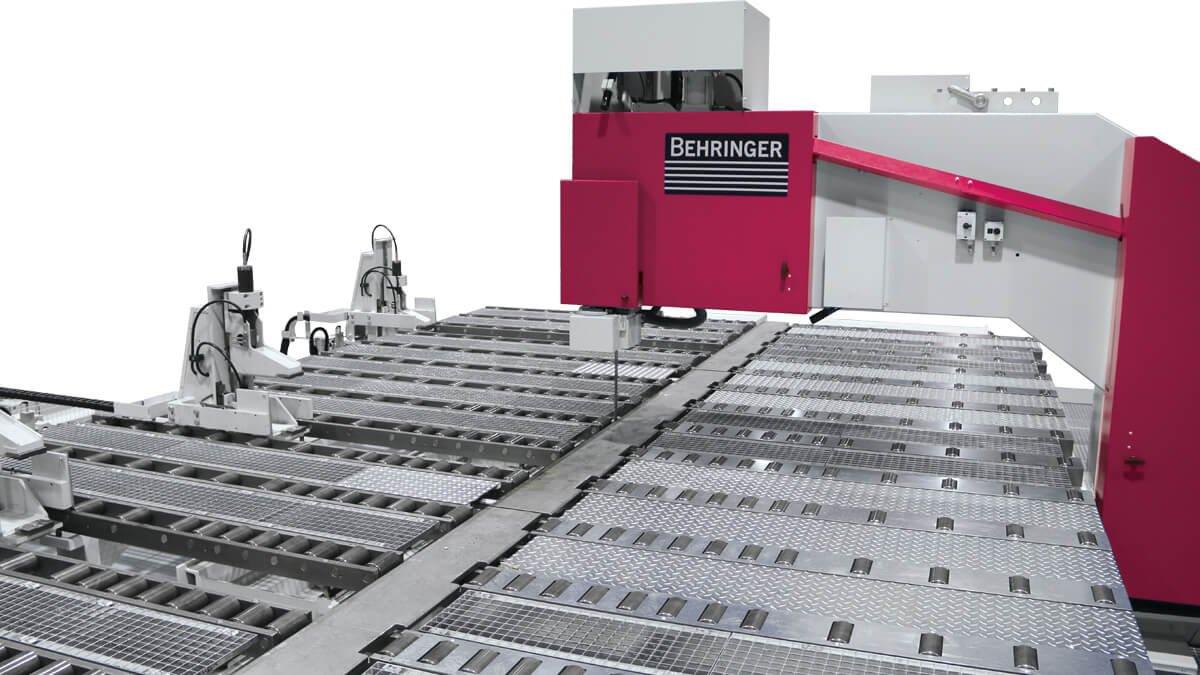

Behringer LPS25-200-6A Automatic Vertical Band Saw (LPS25-200-6A)

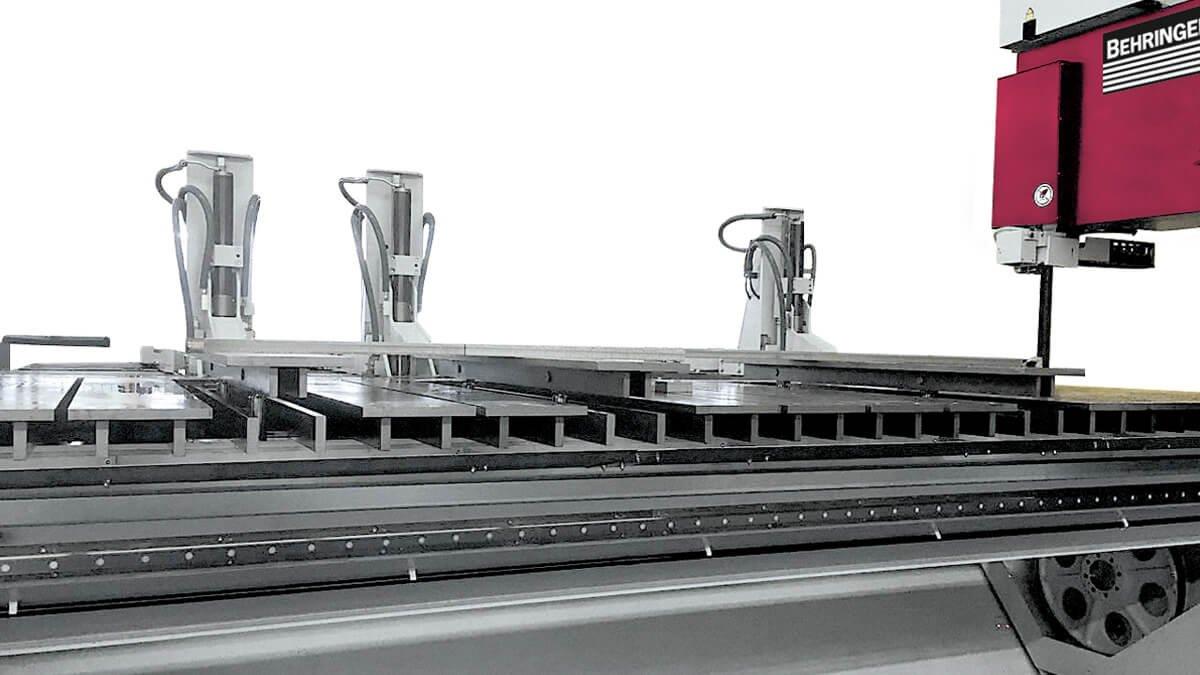

The LPS25-200-6A automatic plate saw is the ideal solution to produce parts from plates in one set-up. There is no need to rotate the plates manually. Thanks to the 90° rotating band guide the vertical bandsaw produces both longitudinal cuts and sawing of finished parts without manual material handling. The precise servo-driven feeding gripper position the heavy material precisely.

The nesting functionality of the automatic vertical band saw reduces processing time and waste. The clear machine control visualizes the sawing tasks clearly and prevents errors.

• High degree of automation
  Due to their high degree of automation and the optional 90° rotatable band guide, the Behringer LPS automatic machines enable fully automatic order processing for the production of customer-specific dimensions.

• Advantages in material purchasing
  By producing flat materials from large sheets, rationalisation effects can be achieved both in warehousing and in the purchase of raw materials.

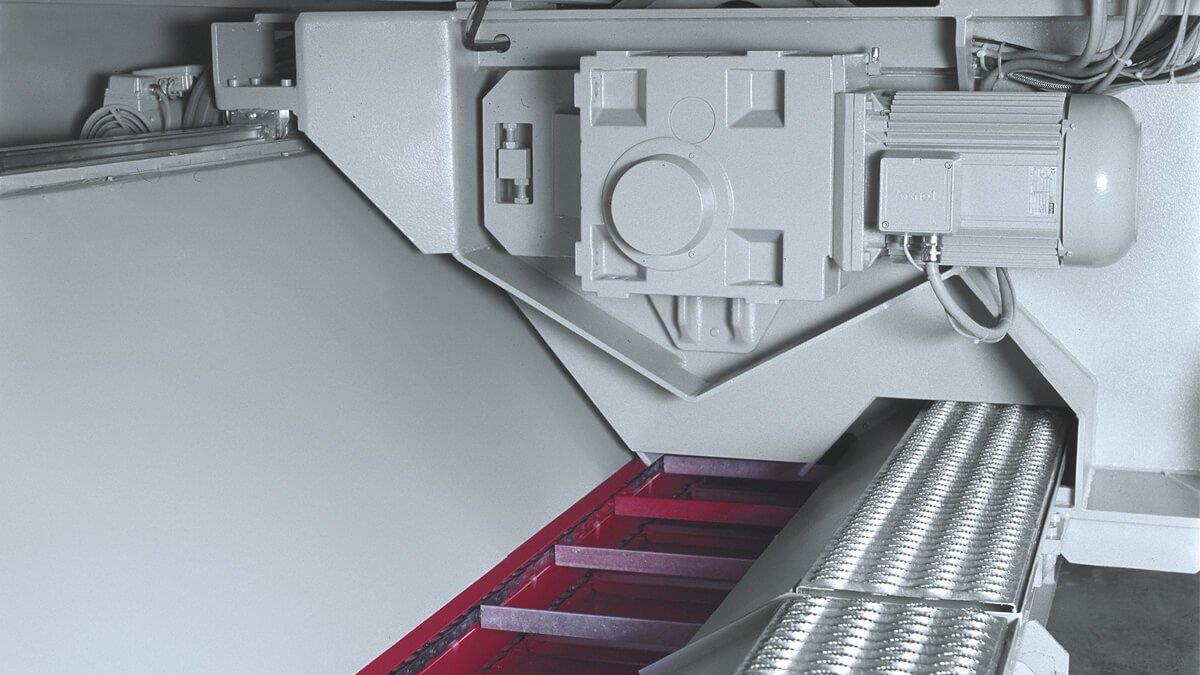

• Unsurpassed precision and cutting performance
  The high cutting accuracy, quiet running and long blade life are all down to the special torsion resistant design of the saw frame. In comparison to plate and block bandsaw machines from other manufacturers, the force for the saw feed is applied directly beneath the cutting point, which results in feed movements that are considerably more accurate.

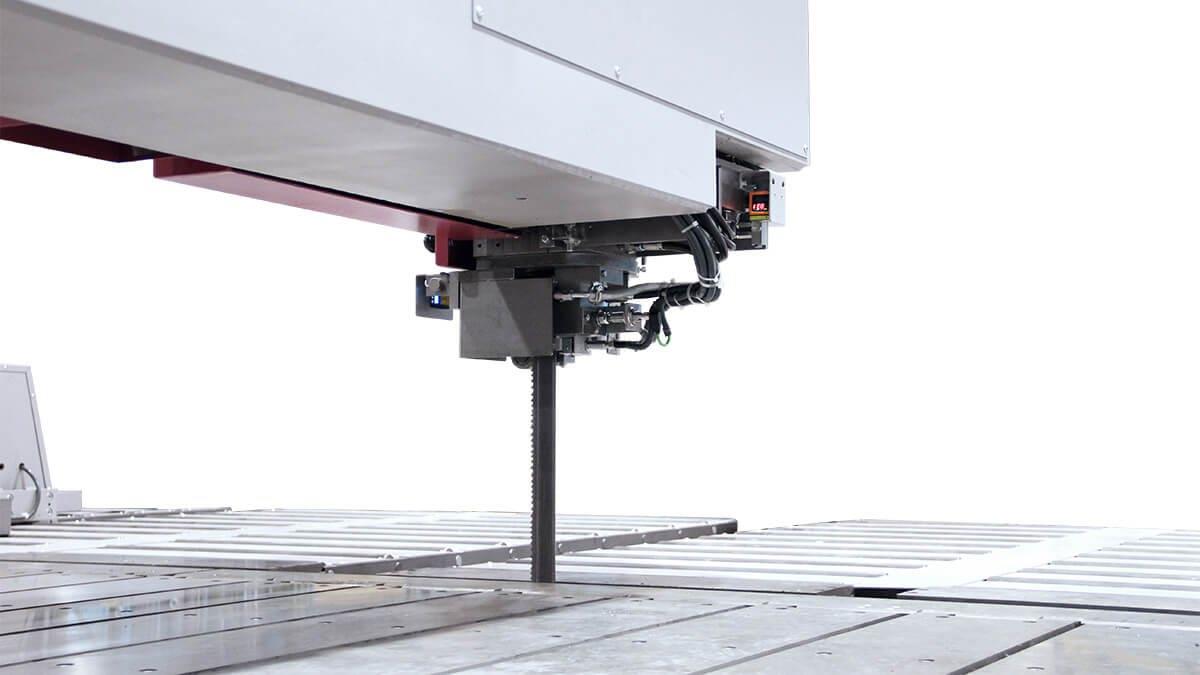

• Rotatable blade guide
  The LPS automatic machines can be supplied with a blade guide that can be rotated by 90°. This enables the machine to be used for automatic longitudinal and crosswise cutting of plates.

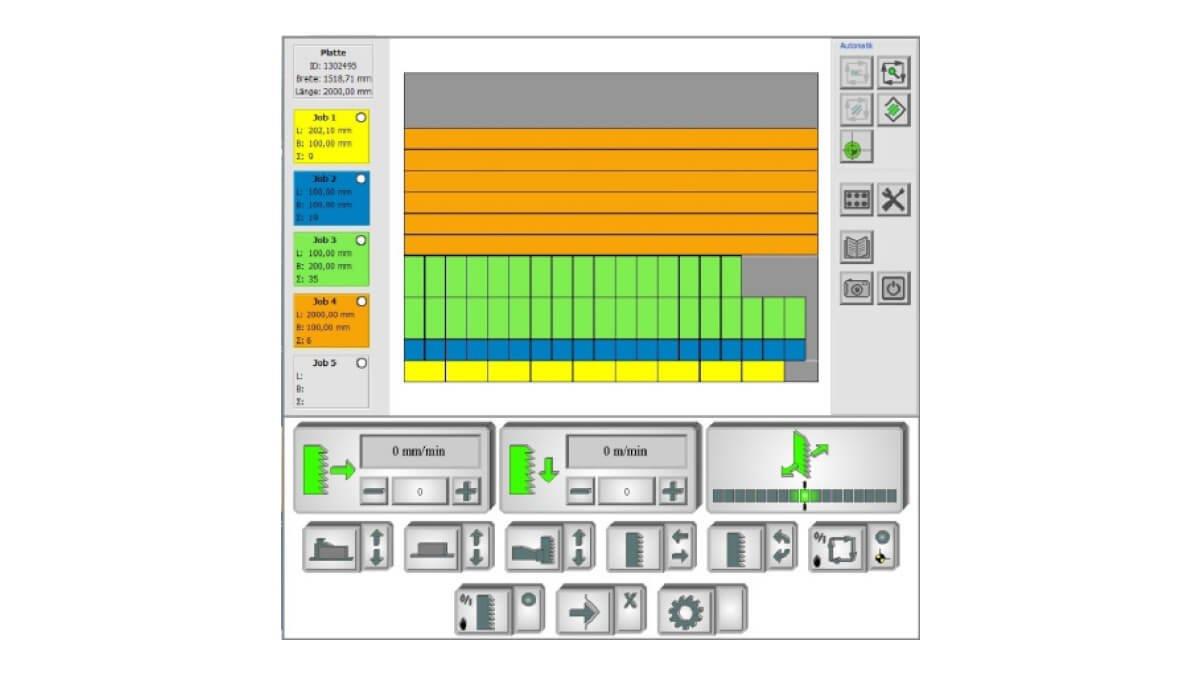

• System control / plate editor
  Benefit from intuitive system control with touchscreen. The jobs are entered into the plate editor and clearly displayed in the working area. The raw plate dimensions are measured fully automatically through standard plate contour detection.

• Nesting functionality
  The optimised arrangement of the sawing jobs is carried out either according to cutting time or waste (rest piece optimisation).

• Quick bandsaw blade change
  Quick and easy – tool-free bandsaw blade changes mean shortest set-up times. Just a few simple steps are all that is needed to change the bandsaw blade of the block saw.
