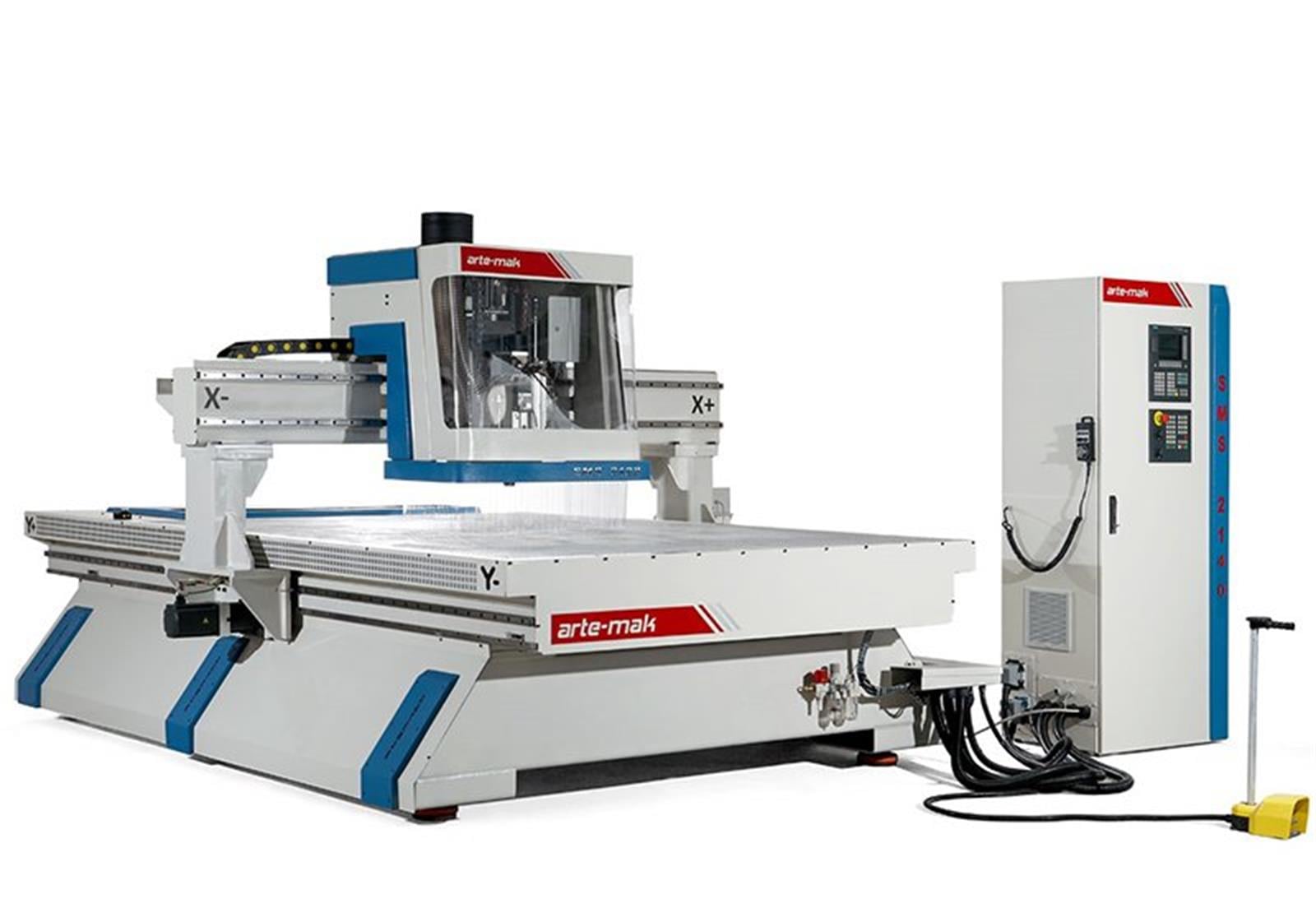

Wood CNC Router
1- HSD Automatic Spindle Motor(12kW Engine power24.000 rpm)
2- 3D Carving process can be done precisely and quickly
3- Siemens 1.5kW Servo motor
4- 8 Team Capable Automatic Magazine(Provides automatic use of various tools)
5- 8 Piece Vacuum from Control Panel
6- Reference Pistons(Precision damping pistons in the X and Y axes)

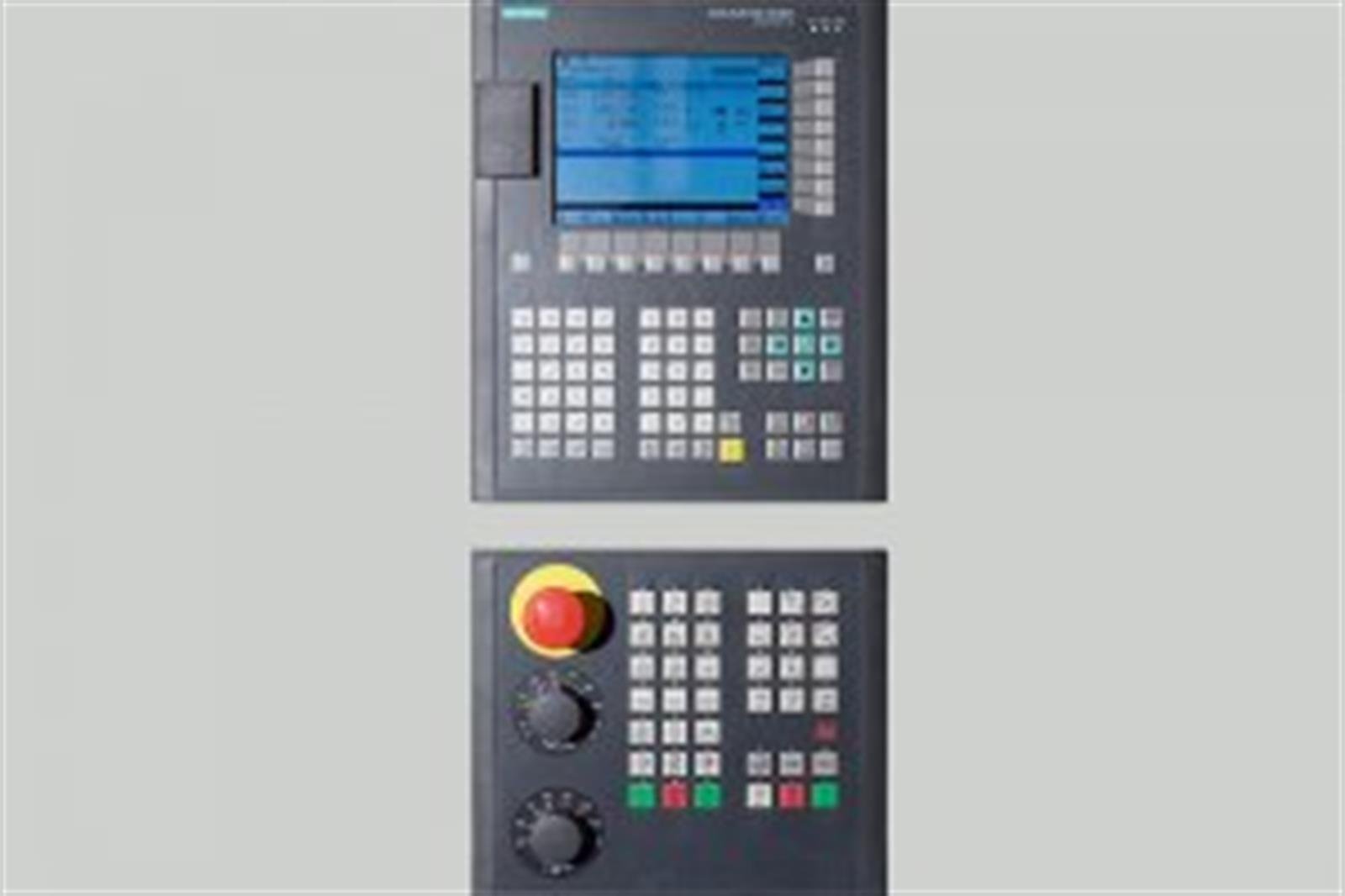

7- Control unit (Siemens CNC control unit)
8- Handwheel(Manually controls the axis)
9- Automatic Tool Reset

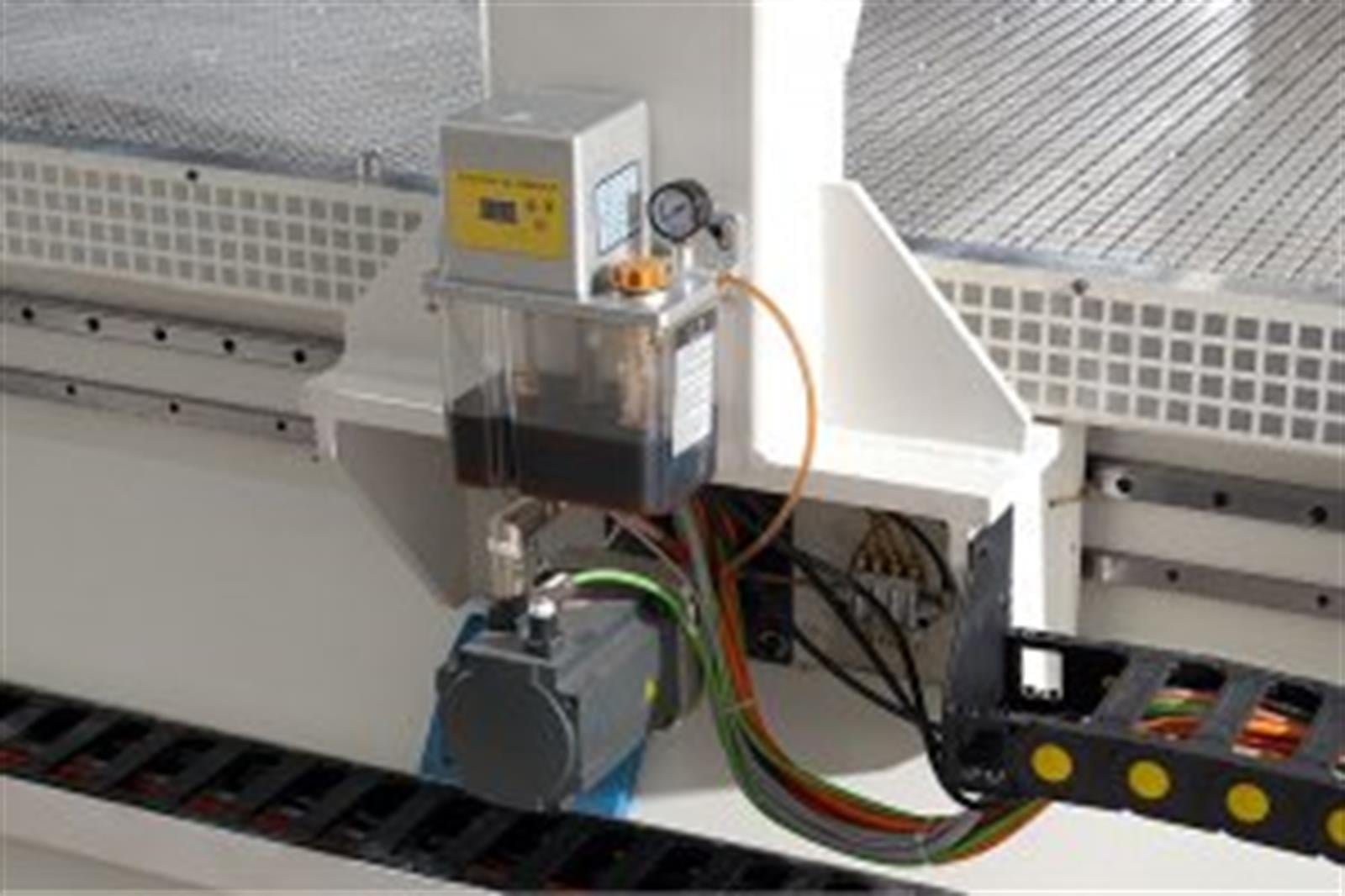

10- Automatic Lubrication
SPECIFICATIONS
VALUE
UNIT
Working Area
2100x3700
mm
X asix speed
60
m/min
Y asix speed
Z asix speed
20
Z asix the distance
200
HSD Spindle motor power
9
7,5 KW /9 KW
HSD Spindle motor age
24000
rpm
Active magazin
8 capacity
(option as 16 capacity)
.
CAD\CAM Program
Alphacam standard router 2D
Control unit
SIEMENS SINUMERİK 808 ADVANCED
Board power
25
KW
Vacuum region
8
n
BECKER vacuum pomp
250
m/h
(dry system)
Weight
5500
Kg
Dimensions
2700x5000
Board Dimensions
3600x6000
