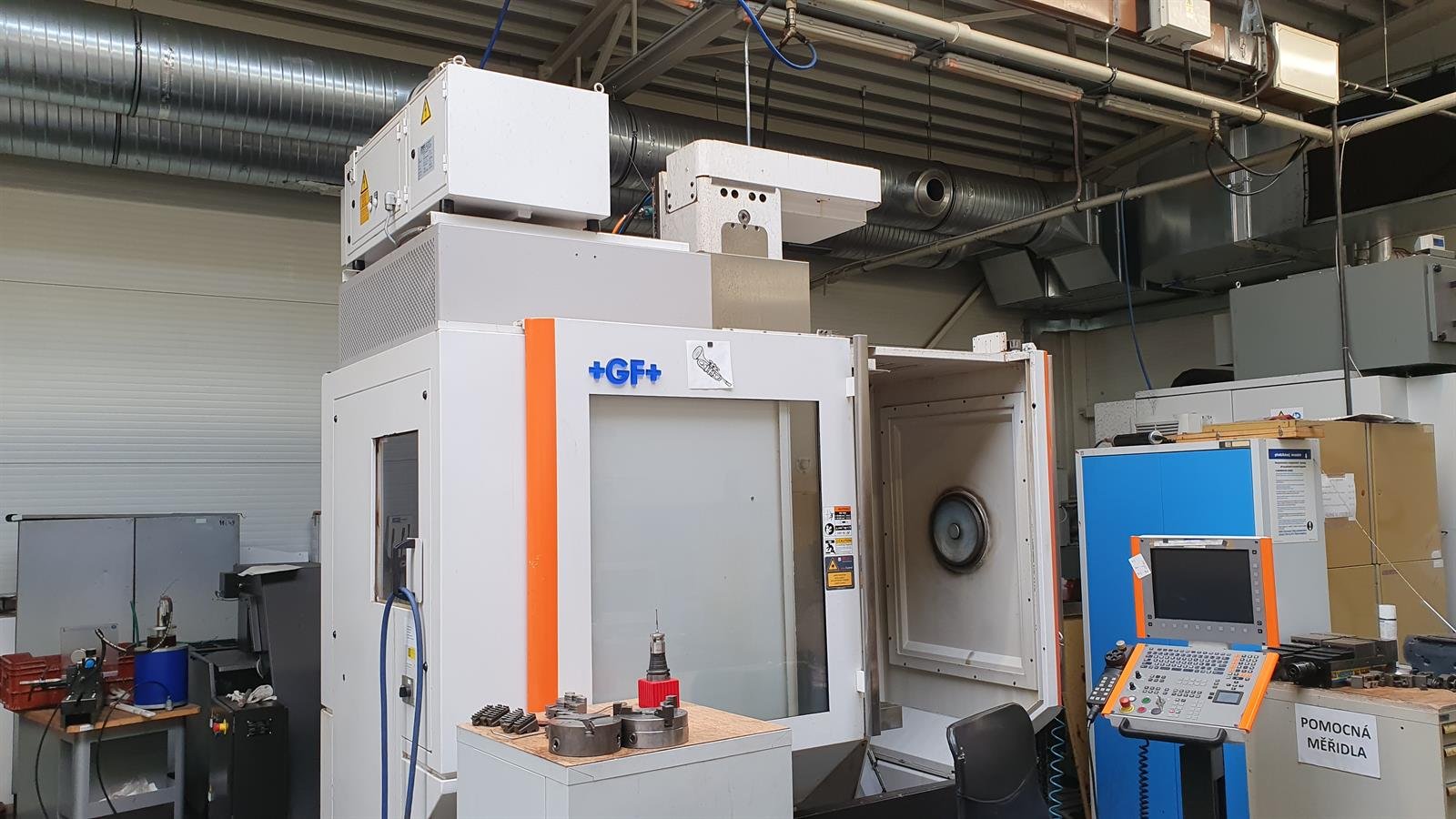

Agie Mikron HPM 600 HD Machining center - vertical (Agie Mikron HPM 600 HD Machining center - vertical)

Longitudinal travel (X-axis) 600 mm
Transverse travel (y-axis) 600 mm
Vertical travel (z-axis) 500 mm
Table length 800 mm
Table width 600 mm
T-slot distance 63 mm
T-channel width 14H7 mm
Table load max. 500 kg
Tool changer:
Number of tools 60
Tool diameter max. 80 mm
Diameter with free adjacent pockets 130 mm
Tool length 300 mm
Max. tool weight 6.5 kg
Spindle taper: HSK-A 63
Spindle speed:
smooth from 0 rpm up to 20000 rpm
Rapid feed: long. 40 m / min
Rapid feed: transverse 40 m / min
Rapid feed: vertical 30 m / min
Air connection 6 bar
Voltage 50 Hz 3x 400 volts
Length x width x height 3514 × 2293 × 3037 mm
Weight 9000 kg

Axis X	600 mm
Axis Y	600 mm
Axis Z	500 mm
Rotary table (4th axis)	no
Type of CNC
Table length	800 mm
Table width	600 mm
Spindle taper
-------------------
Worked hours
Hours under power
State	excellent
At local norms	yes
Status	visible
