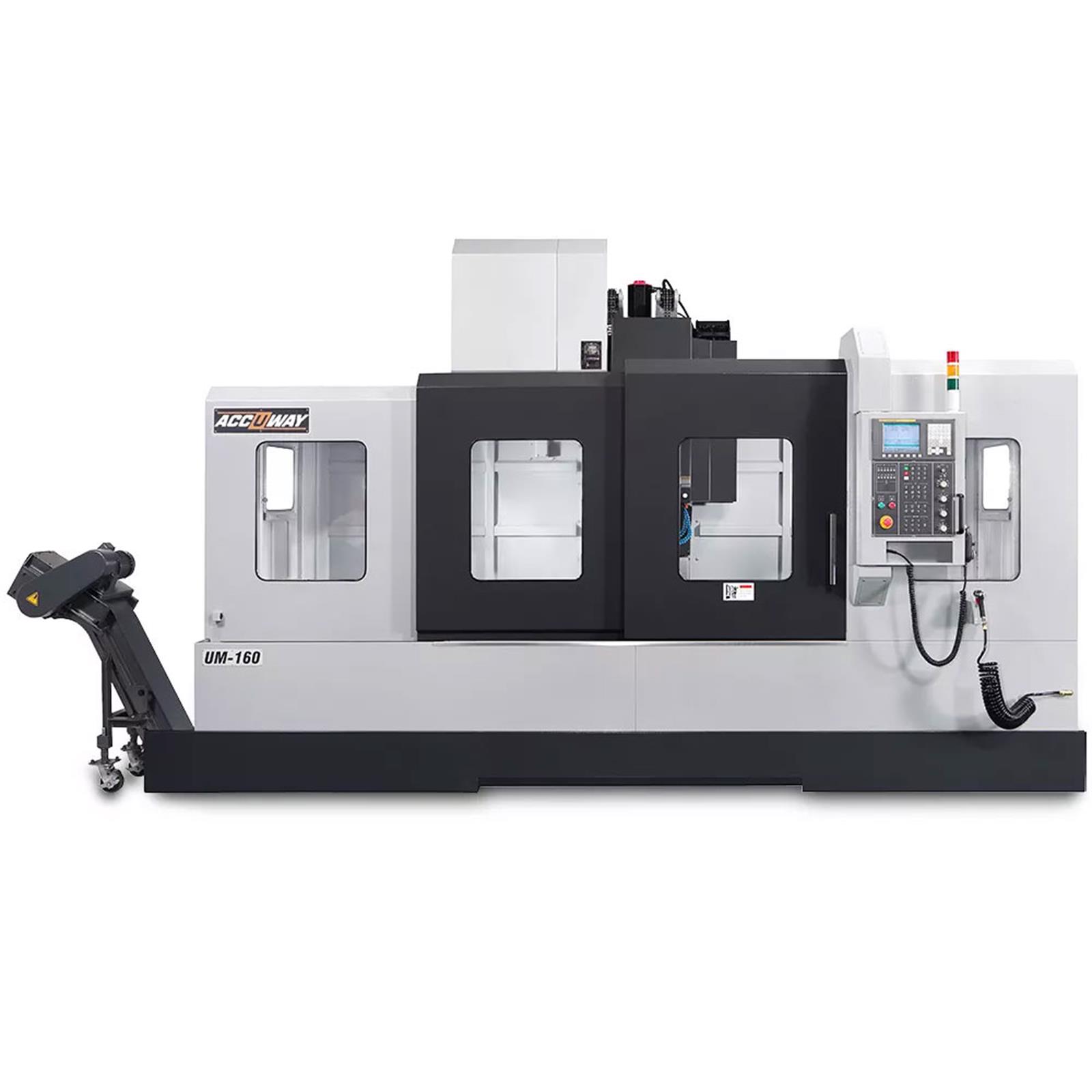

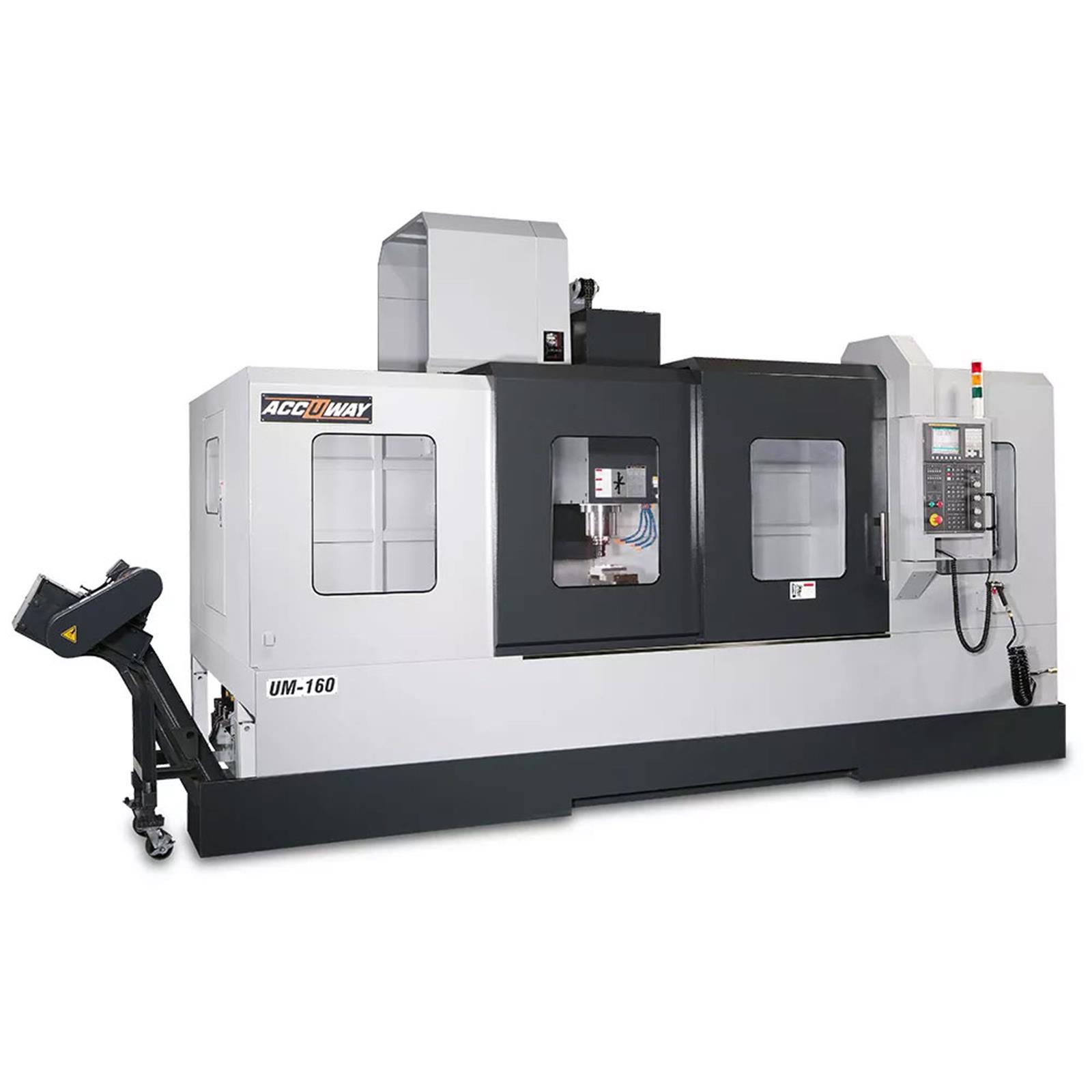

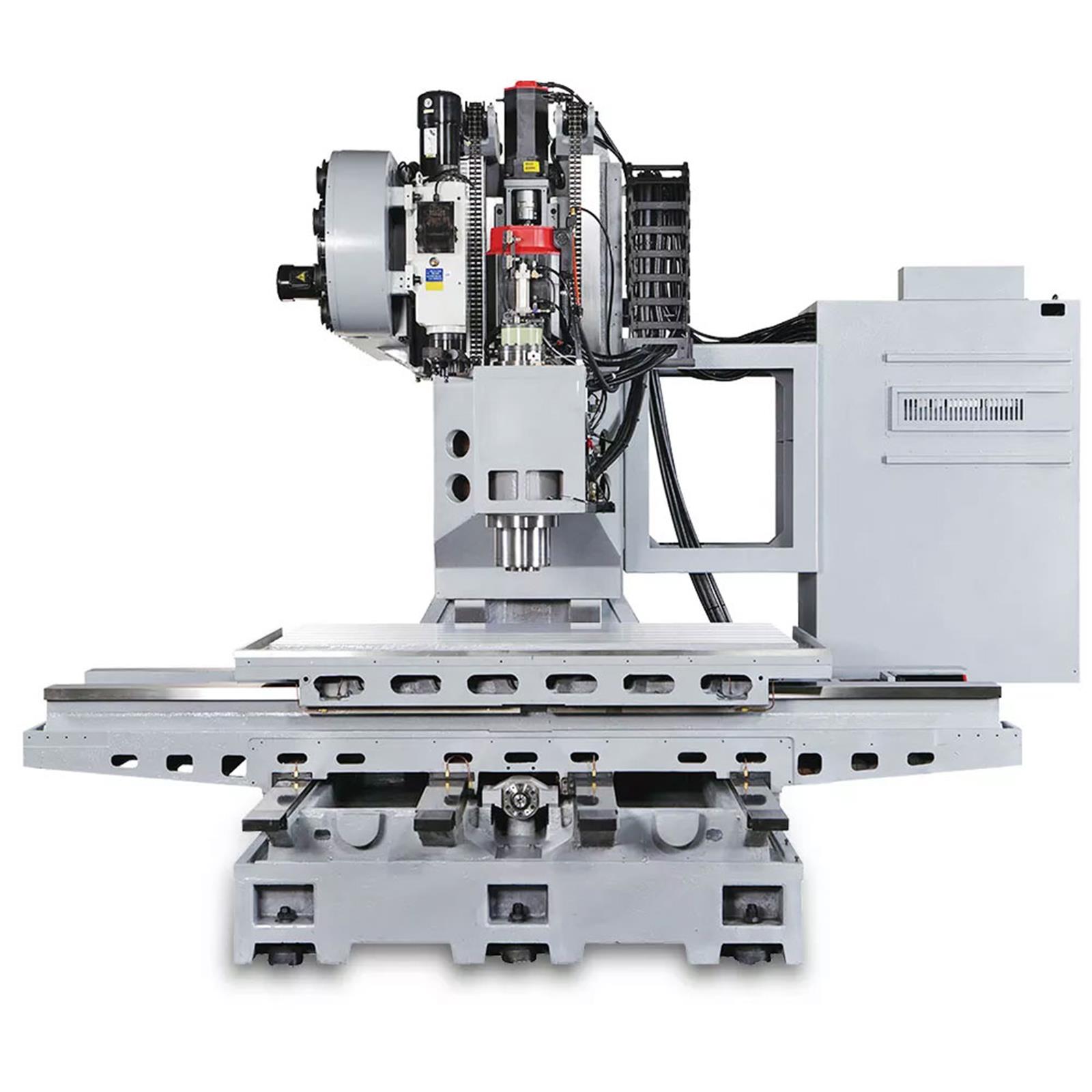

Accuway UM-160 Vertical Machining Center (UM-160)

Brand : Accuway

Stock Amount : 0

Est. Delivery Time60-75 Days After Order

Shipment Place Turkiye

Payment Terms% 30 T/T On Order Confirmation, % 70 T/T Before Shipment

Made InTurkiye

Min. Order Qty.1 Pcs.

Warranty1 Year

Machining Centers

Vertical Machining Centers

NO.	STANDARD ACCESSORIES
1	FANUC 0i-M controller + AICC II
2	RJ-45 interface
3	Rigid tapping
4	Heat exchanger for electric cabinet
5	10.4" Colored LCD monitor
6	Lubrication system
7	4-bar Coolant system
8	Cutter air blast
9	Spray gun
10	Three-color warning light
11	Spindle oil cooling system
12	2-step gear box

NO.	OPTIONAL ACCESSORIES
1	Data server 2G
2	Linear scale (Heidenhain)

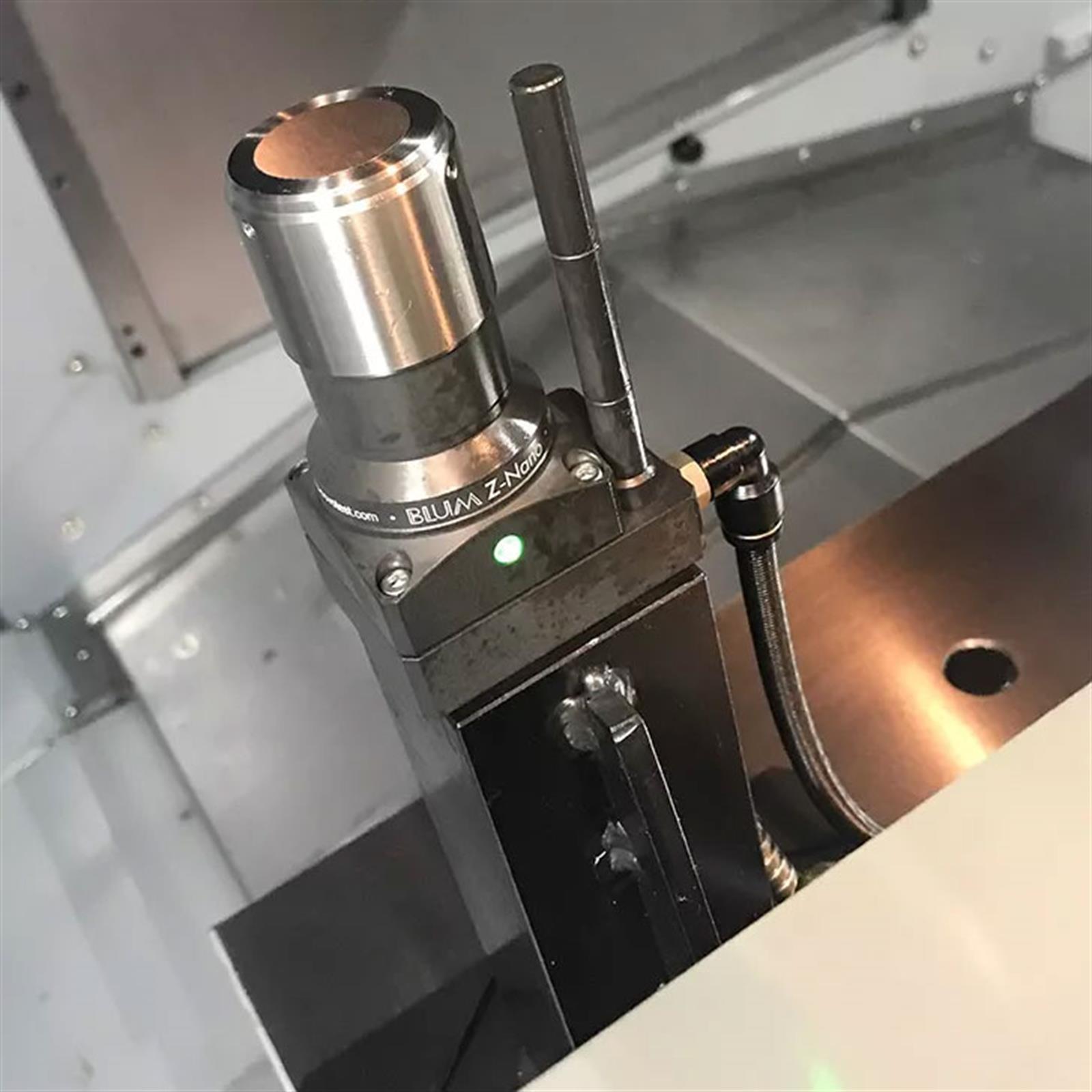

3	Contact tool setter
4	Workpiece touch probe
5	Air cooler for electric cabinet
6	Spindle speed upgrading
7	Upgrade to 15" Colored LCD monitor
8	20 bar coolant through spindle system
9	Oil-coolant skimmer
10	Oil mist collector
11	4th axis interface + FANUC motor & driver
12	4th axis rotary table
13	Auto door
14	Chain type chip conveyor + chip cart
15	Transformer
16	CE version

ITEM/MODEL		UM-160
Controller		FANUC 0i-M
SPINDLE
Spindle speed	rpm	6000
Spindle nose taper		BT50
Bearing inner diameter	mm	90
Drive system		2-step gearbox
TRAVELS
X-axis travel	mm	1600
Y-axis travel	mm	850
Z-axis travel	mm	850
Spindle nose to table	mm	150~1000
TABLE
Table dimension	mm	1700 x 880
T-slot(No. of T-slot x width x pitch)	mm	7 x 18 x 120
Max. weight on table	kg	2000
FEED RATES
X-axis Rapid Traverse Rate	m / min	15
Y-axis Rapid Traverse Rate	m / min	15
Z-axis Rapid Traverse Rate	m / min	15
Cutting feed rate	m / min	12
Ball screw diameter (X/Y/Z)	mm	50/50/50
Guideway bearing type		Box
AUTOMATIC TOOL CHANGE SYSTEM
Tool magazine capacity	pcs	24(32)
Max. tool weight	kg	15
Max. tool diameter	mm	105
Max. tool diameter without adjacent tools	mm	210
Method of tool exchange		Arm type
Max. tool length	mm	300
MOTORS
AI contour control		AICC I
Spindle motor power(Cont. / 30min)	kW	15/18.5
X/Y/Z feed motor	kW	4.04.2007
Coolant pump motor(50Hz/60Hz)	kW	0.53+0.85/0.75+1.27
OTHERS
Air supply	kg/cm²	5.May
Machine dimension L x W x H	m	4.4 x 3.9 x 3.0
Net weight	kg	15000
