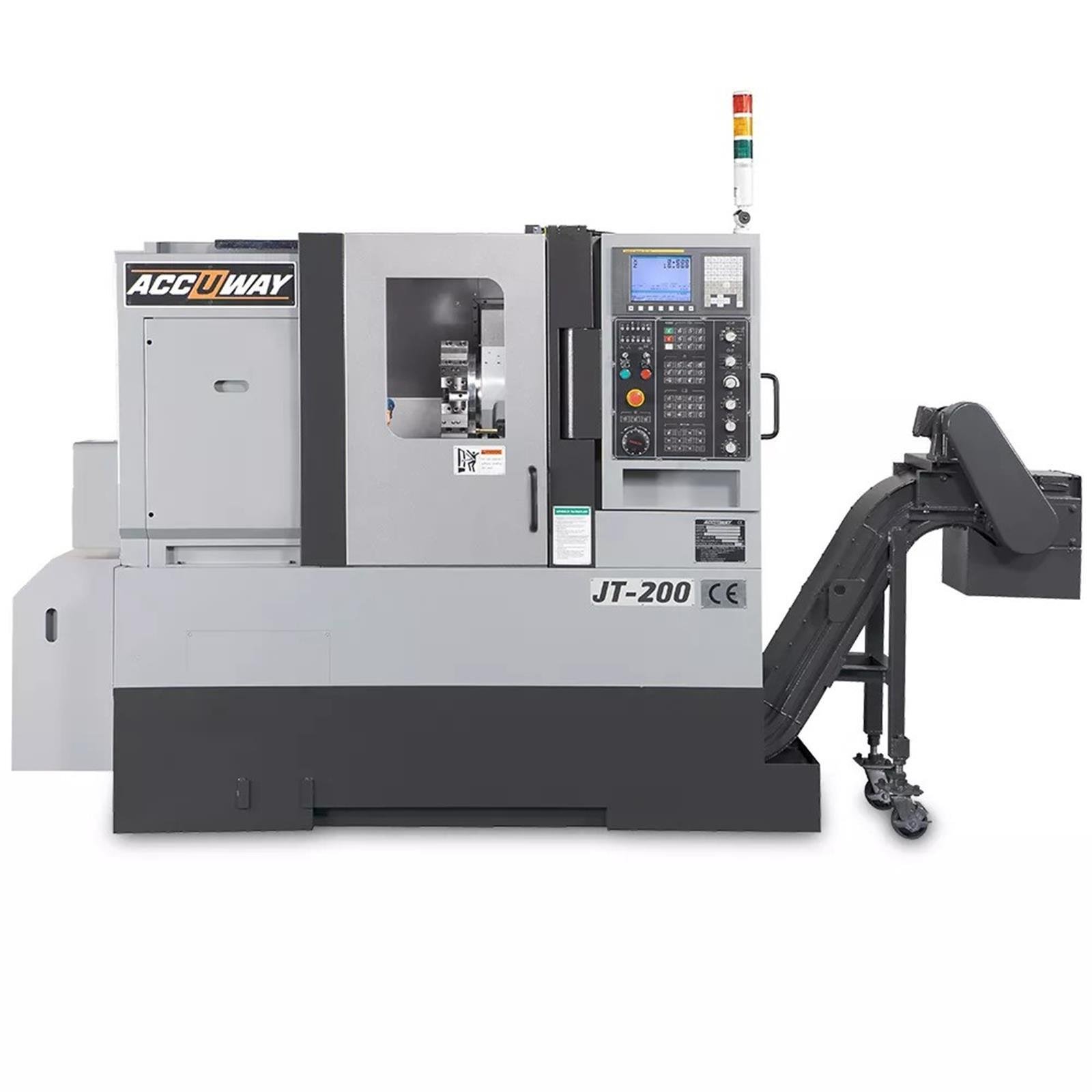

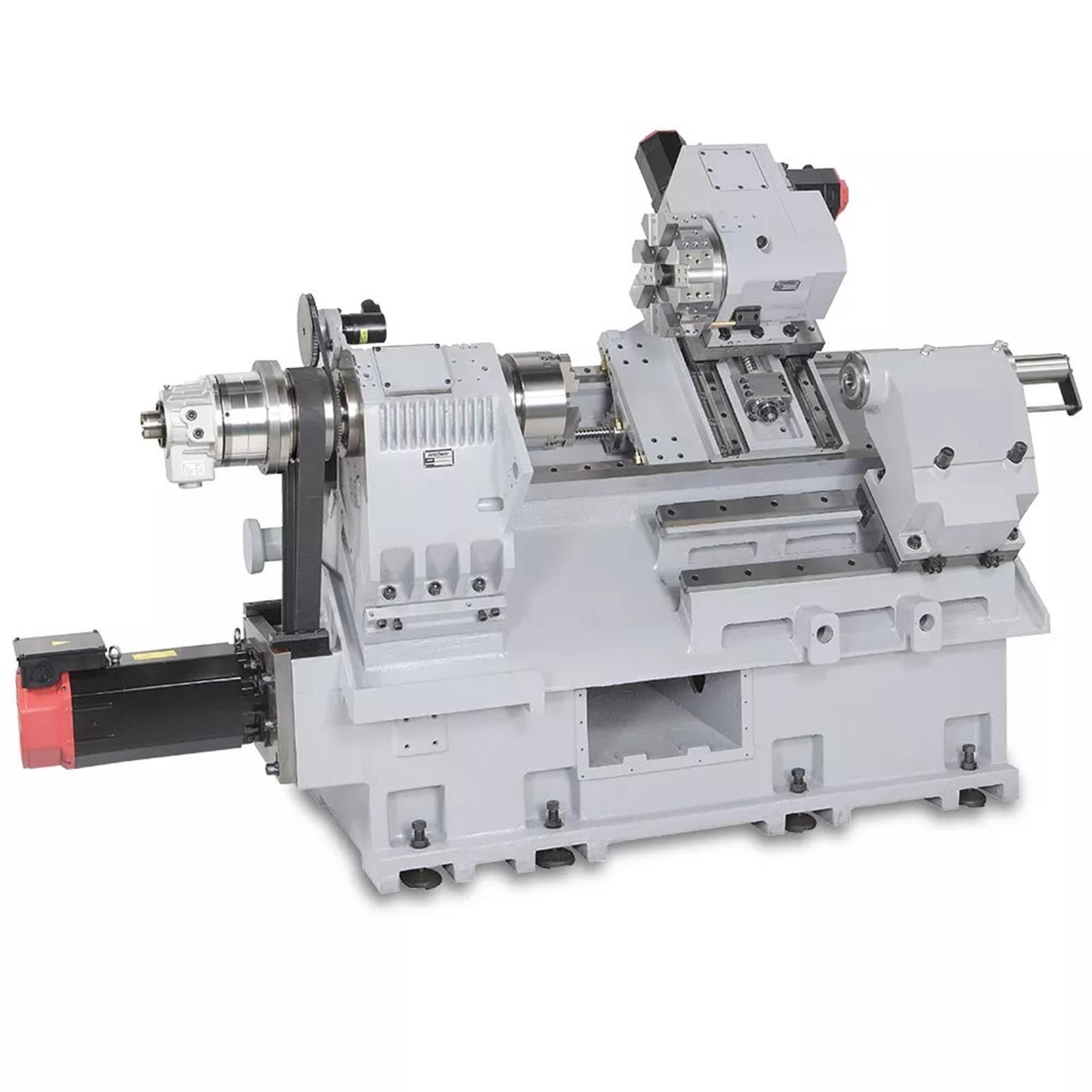

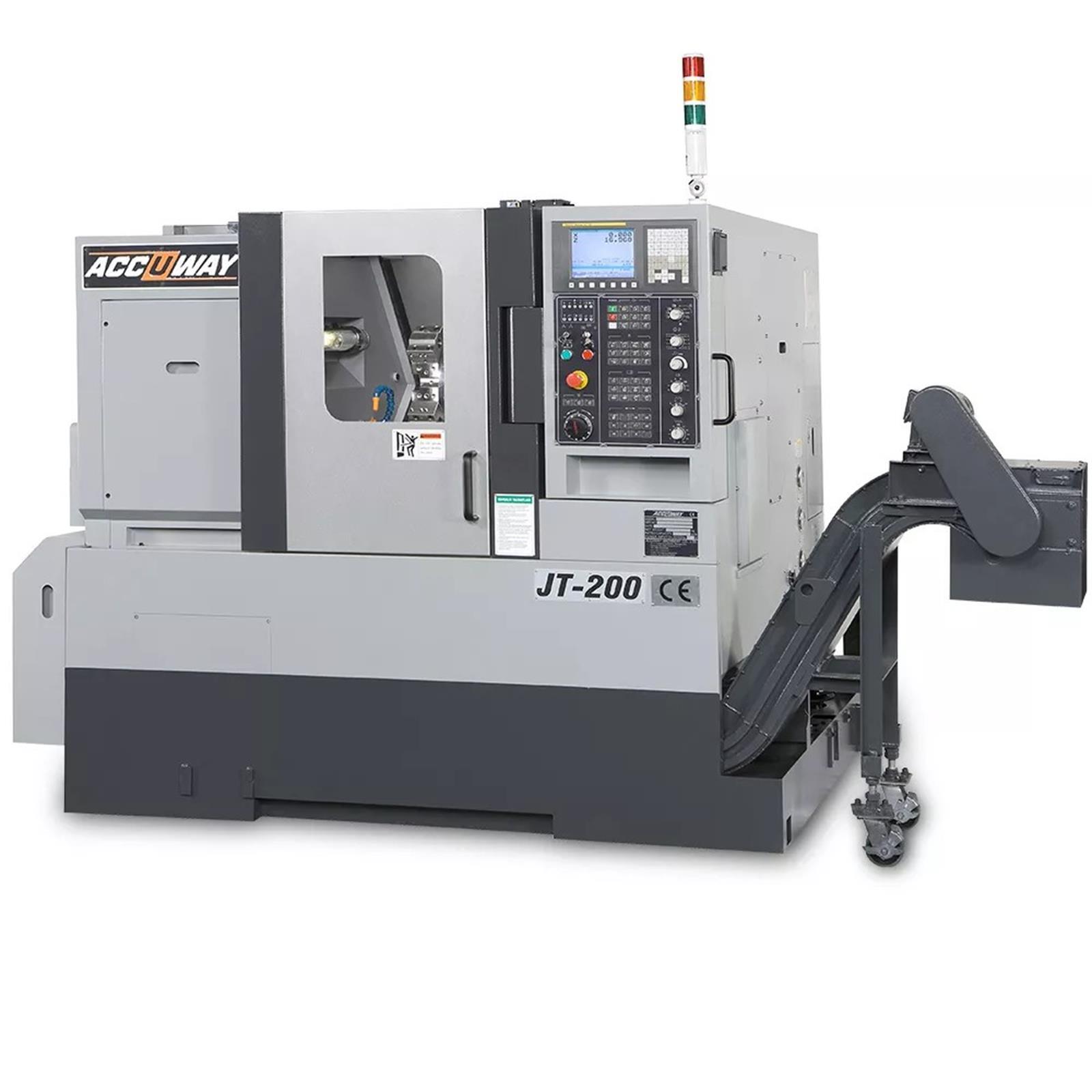

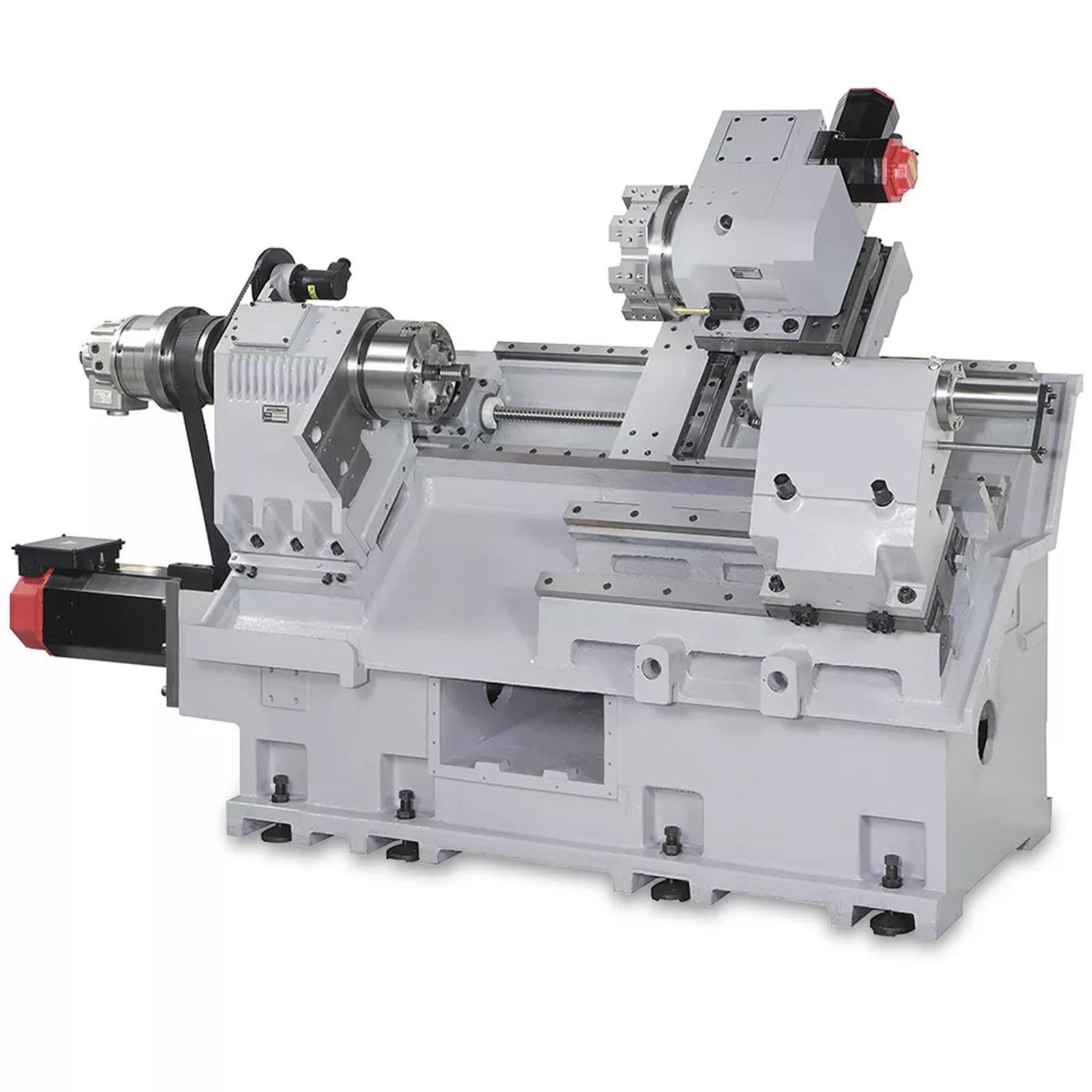

Accuway JT-200M Slant Bed Linear Way CNC Lathe (JT-200M)

Brand : Accuway

Stock Amount : 0

Est. Delivery Time60-75 Days After Order

Shipment Place Turkiye

Payment Terms% 30 T/T On Order Confirmation, % 70 T/T Before Shipment

Made InTaiwan

Min. Order Qty.1 Pcs.

Warranty1 Year

Add to Favorites

Add to My Wish List

Notify me when the price goes down

Notify me when it is in stock

Lathes

Slant Bed Linear Way CNC Lathe

NO.	STANDARD ACCESSORIES
1	FANUC 0i-T controller
2	Rigid tapping
3	RJ-45 interface
4	10.4" Colored LCD monitor
5	Heat exchanger for electric cabinet
6	4-bar coolant system
7	Lubrication system
8	Three-color warning light

NO.	OPTIONAL ACCESSORIES
1	Upgrade to 15" Colored LCD monitor
2	Collet chuck
3	Tool setter
4	Parts catcher and parts conveyor
5	Bar feeder interface (7 or 24 pins)
6	Bar feeder
7	Oil mist collector
8	Oil-coolant skimmer
9	Air cooler for electric cabinet
10	Transformer
11	CE version

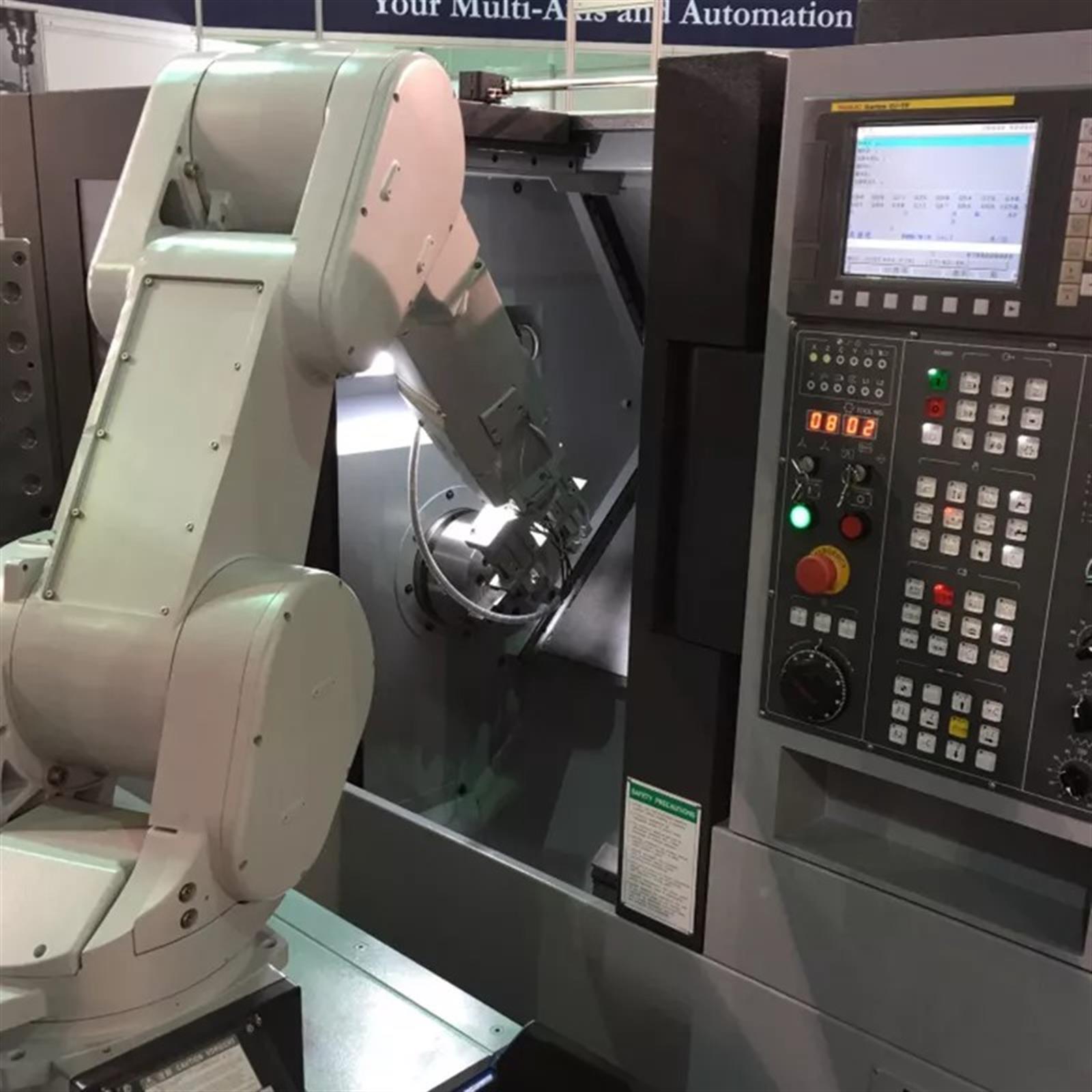

12	Loader interface

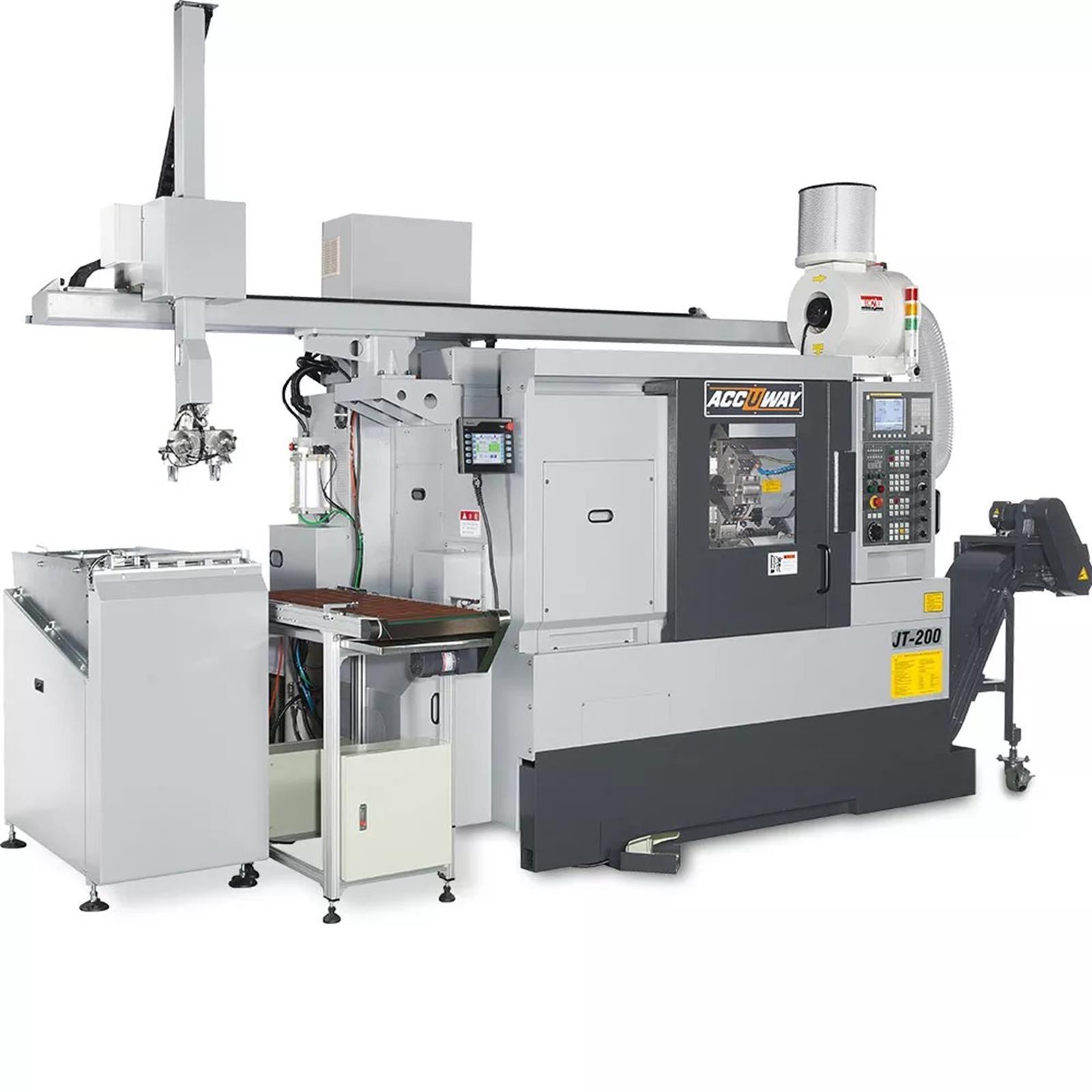

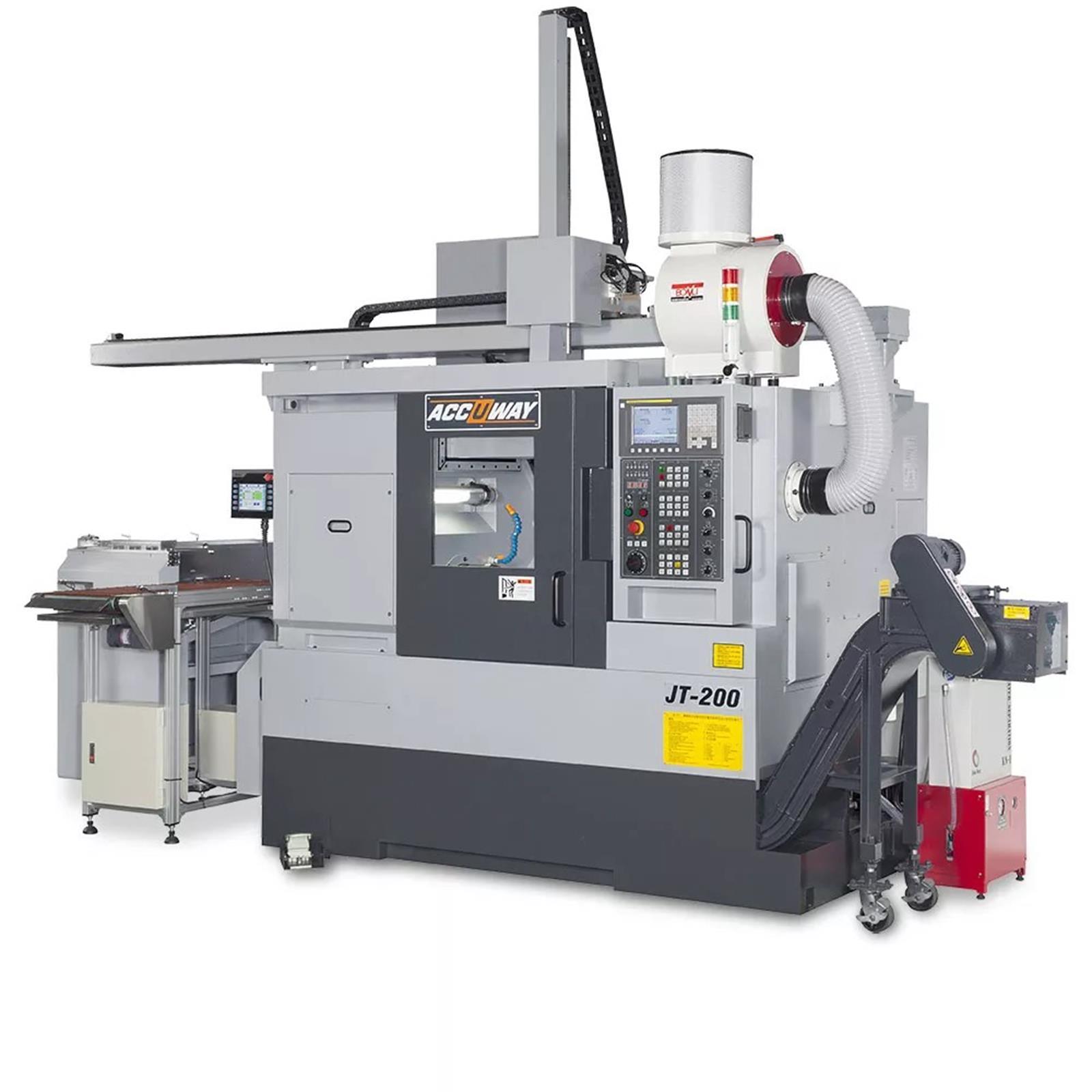

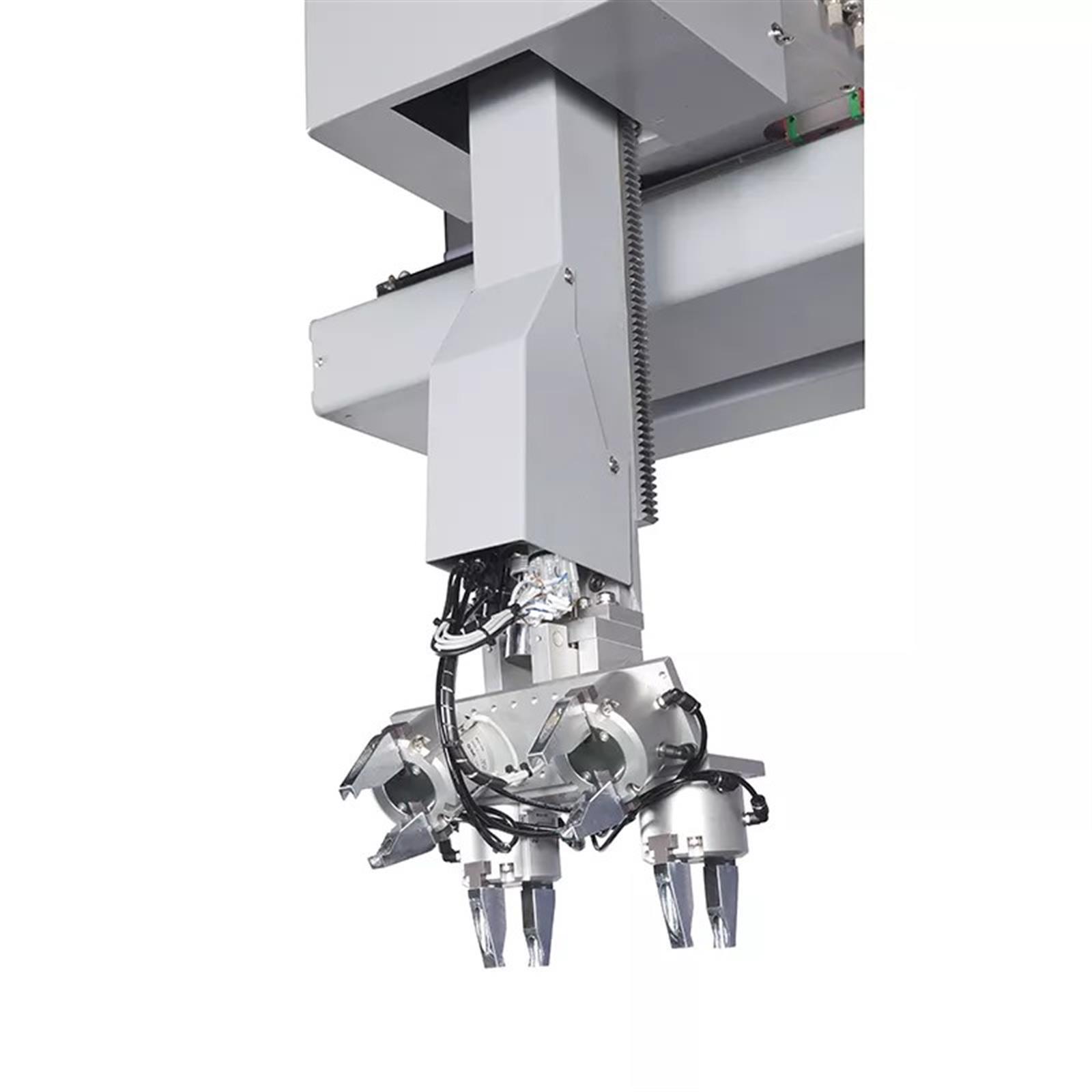

13	Gantry loader system
14	Auto door
15	Linear scale
16	0 degree rotary tool holder(JT-200M)
17	90 degree rotary tool holder(JT-200M)

/MODEL		JT-200M
Controller		FANUC 0i-T
CAPACITY
Swing over bed	mm	505
Swing over saddle	mm	318
Max. turning diameter	mm	230
Max. turning length	mm	450

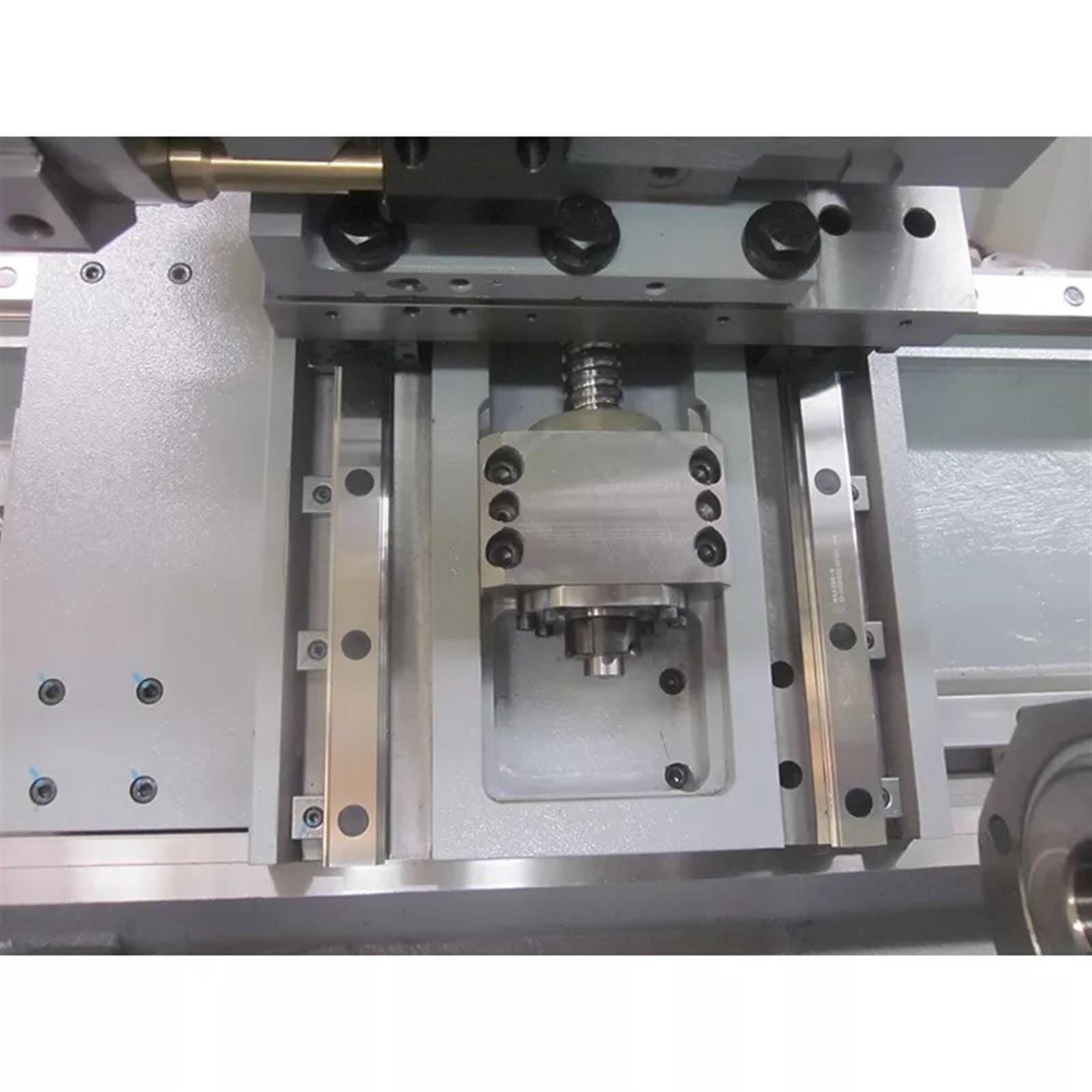

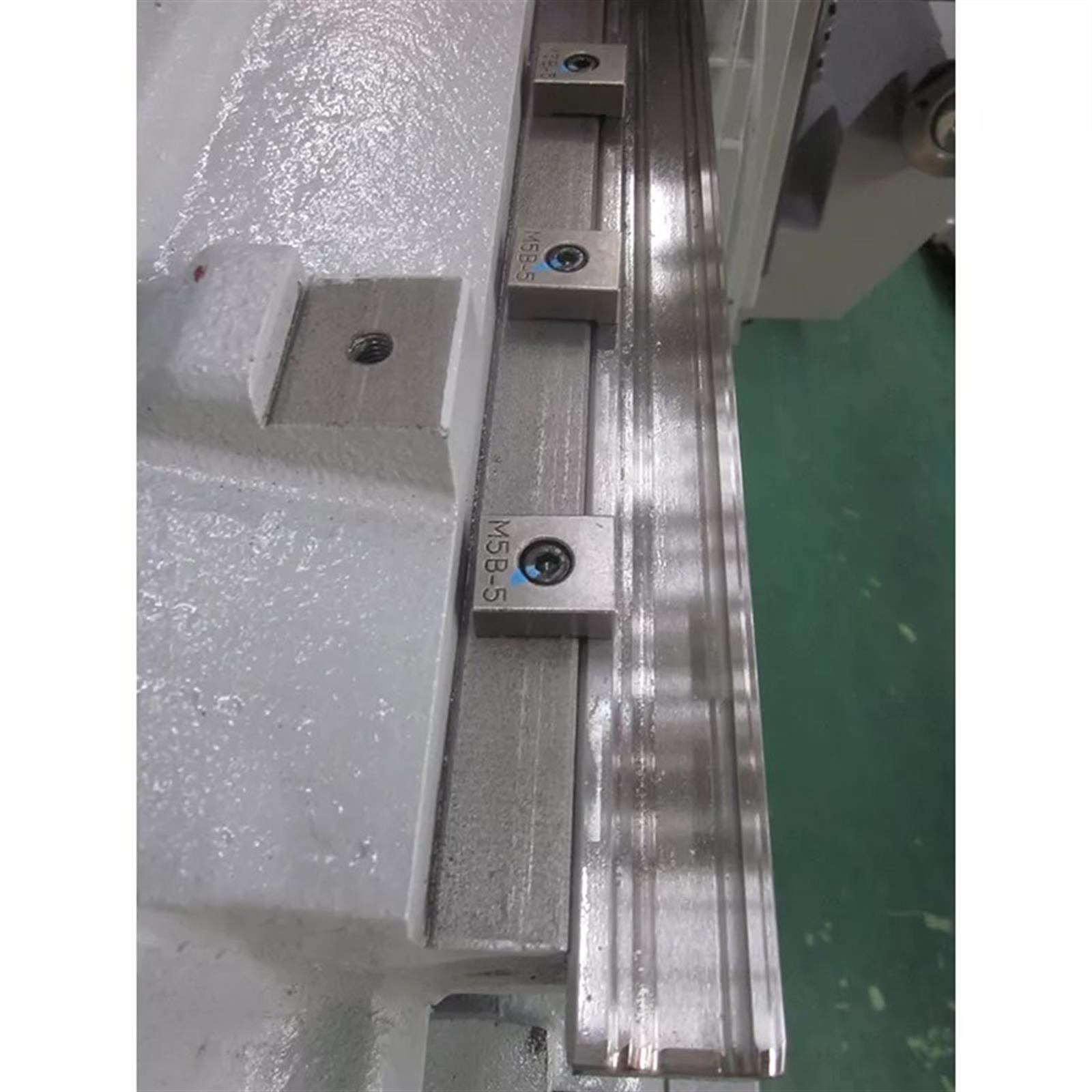

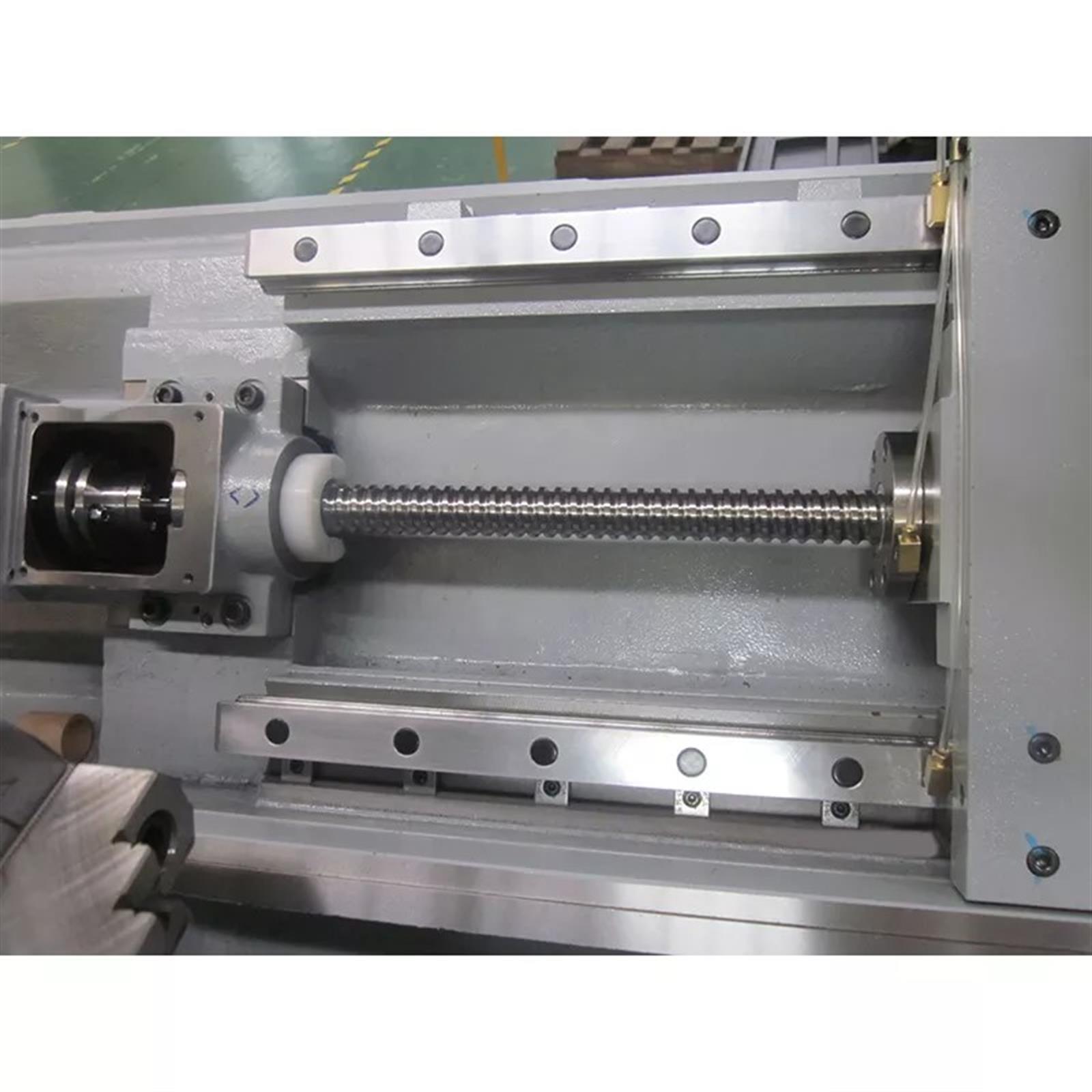

Guide way type		Linear

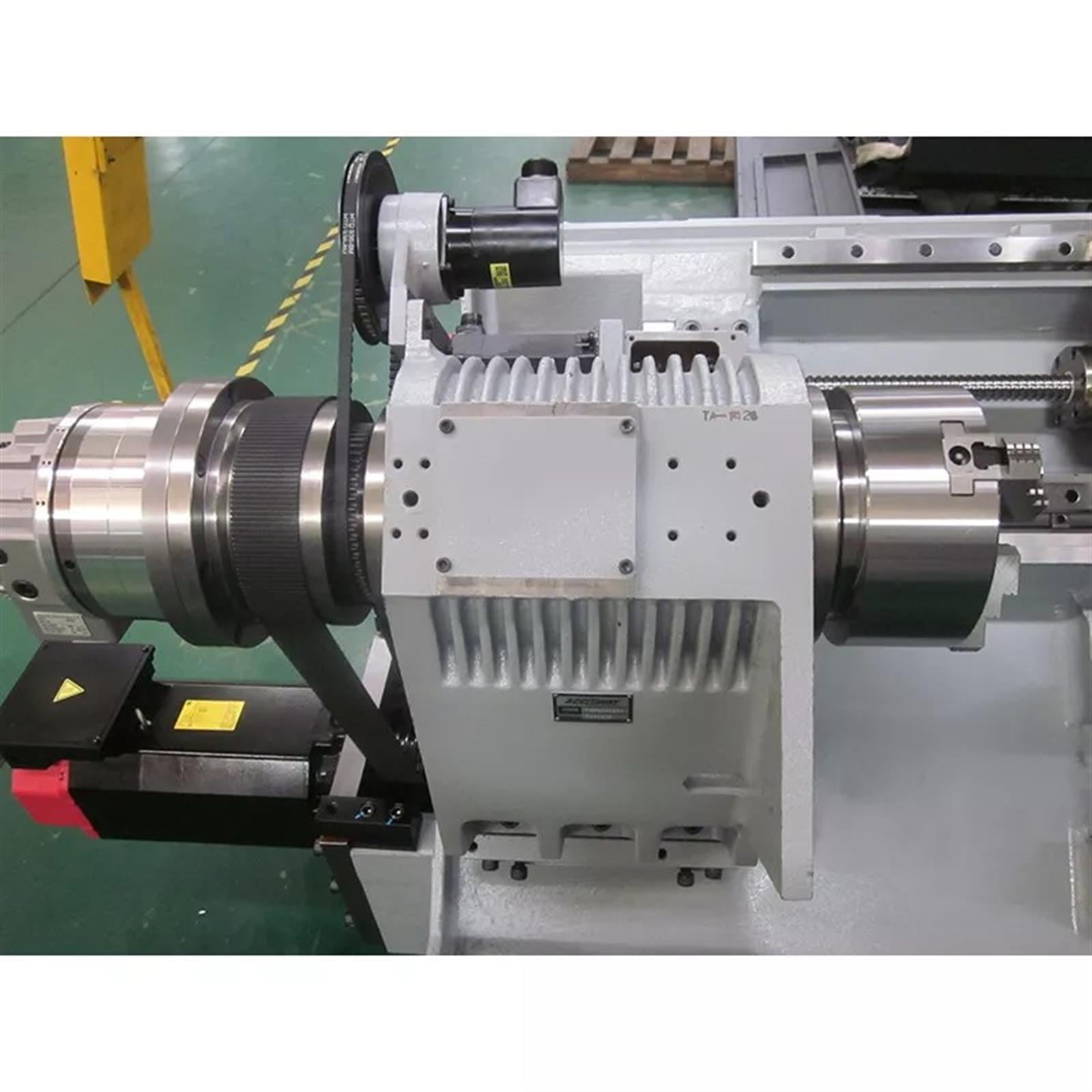

SPINDLE
Spindle nose taper	ASA	A2-5	A2-6

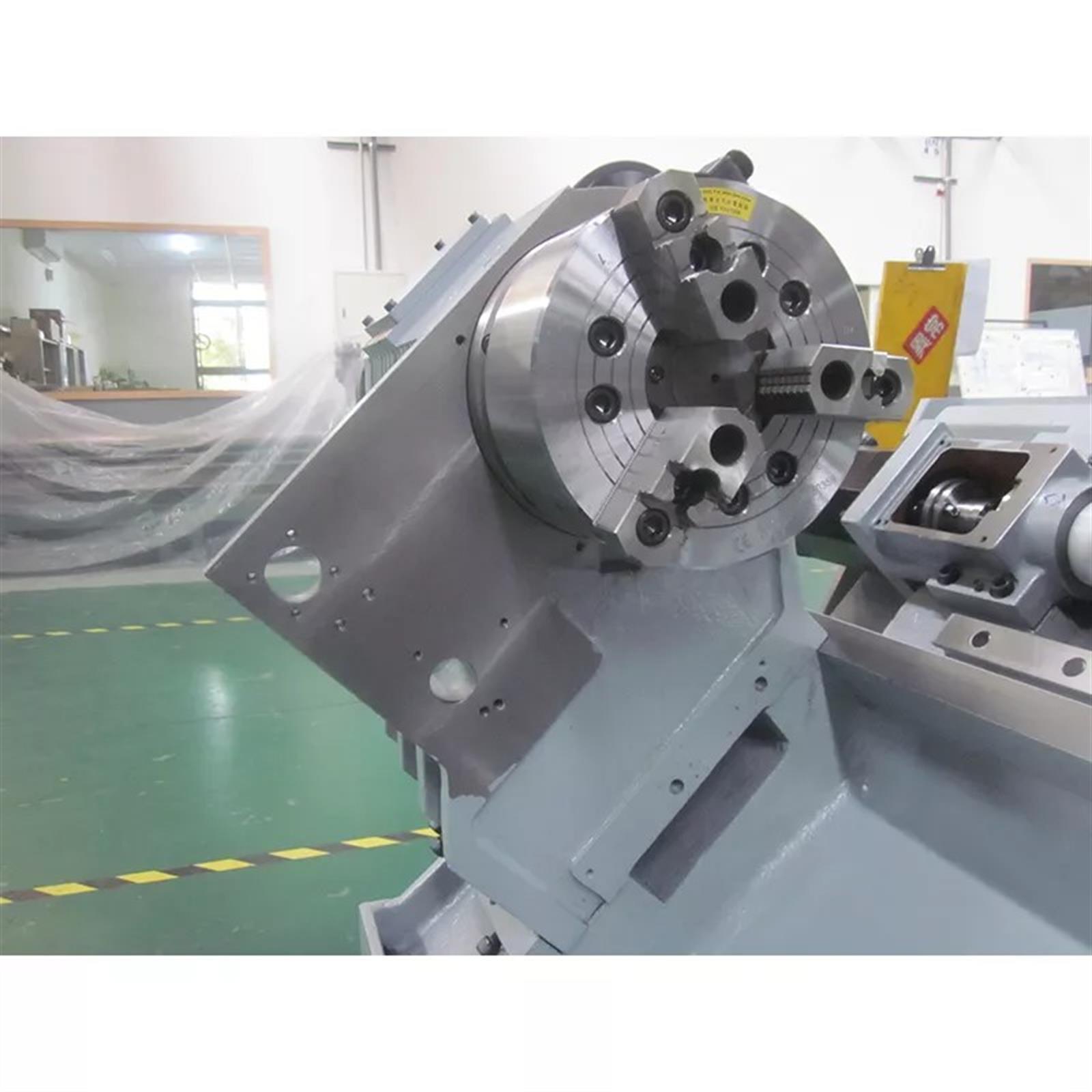

Chuck diameter	inch	6	8
Bar capacity	mm	44	52	65
Spindle speed	rpm	6000	4500	4000
Spindle motor power(Cont. / 30min)	kW	11/15
TRAVELS
X-axis Travel	mm	195
Z-axis Travel	mm	600
Y-axis Travel	mm	-
FEED RATES
X-axis Rapid Traverse Rate	m/min	30
Z-axis Rapid Traverse Rate	m/min	30
Y-axis Rapid Traverse Rate	m/min	-

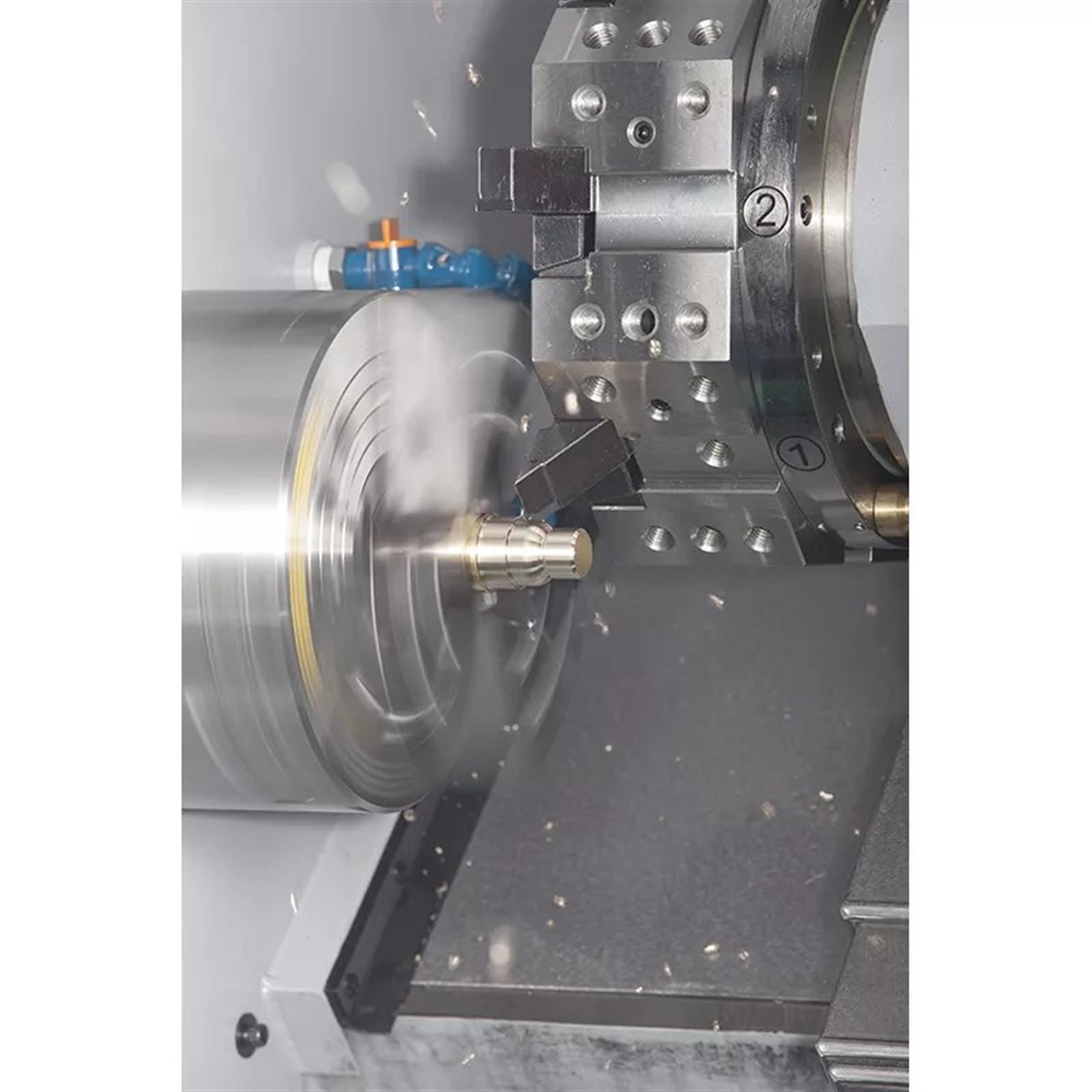

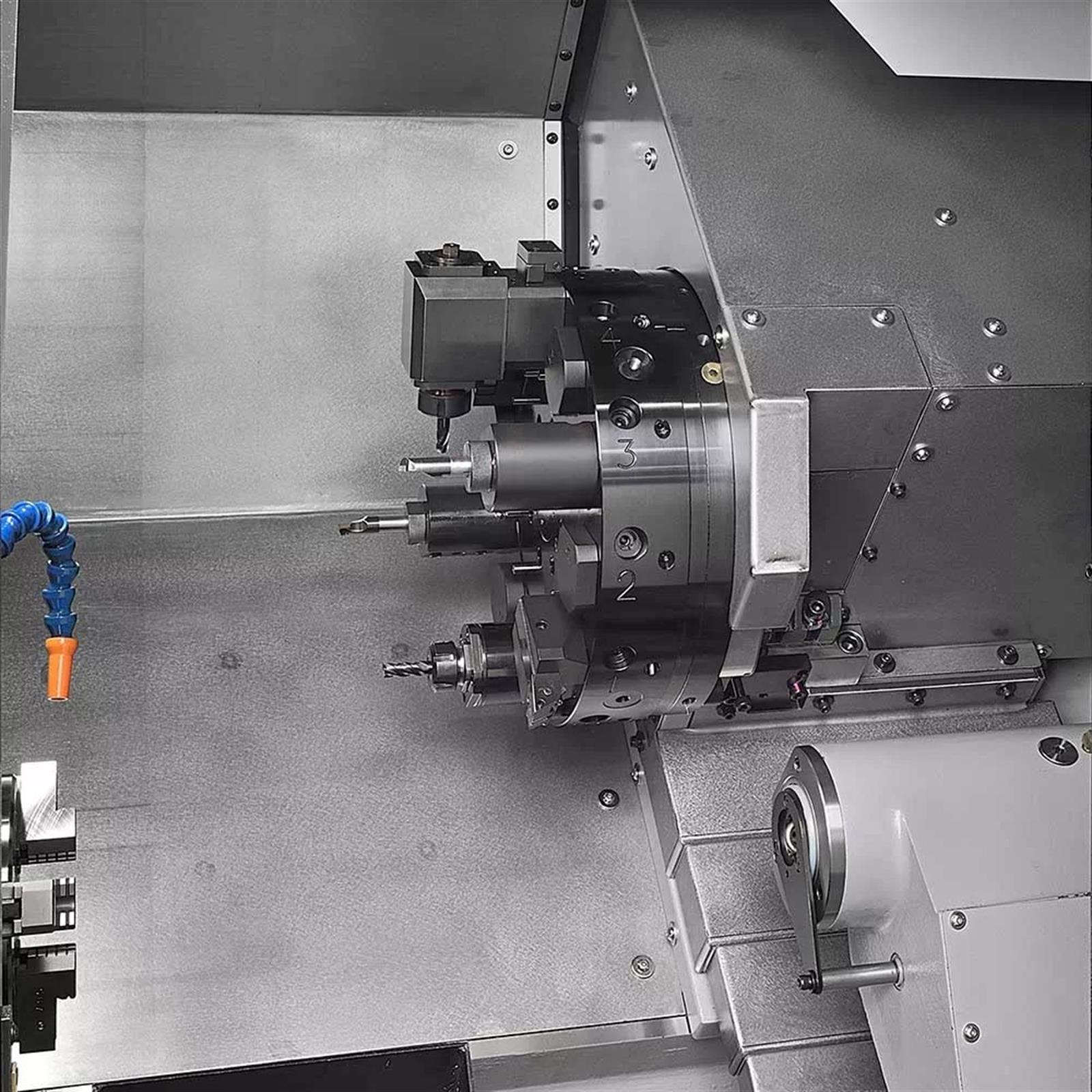

TURRET
Tooling system		-
Turret driven type		Servo mechanical
Number of tools	station	12
Square tool shank size	mm	20
Round tool shank size	mm	32
Max. Rotary Tool Speed	rpm	6000
Rotary Tool power	kW	4.5

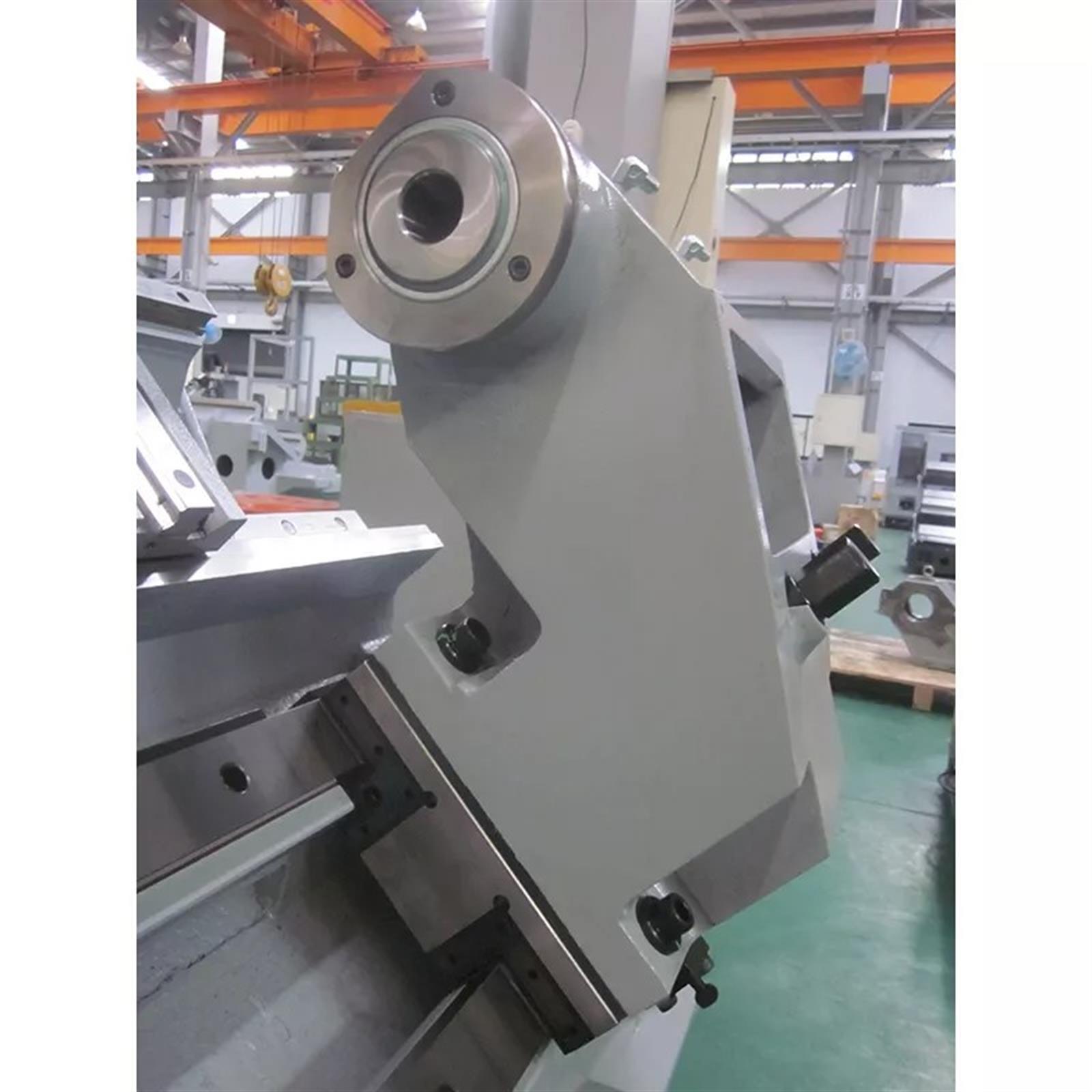

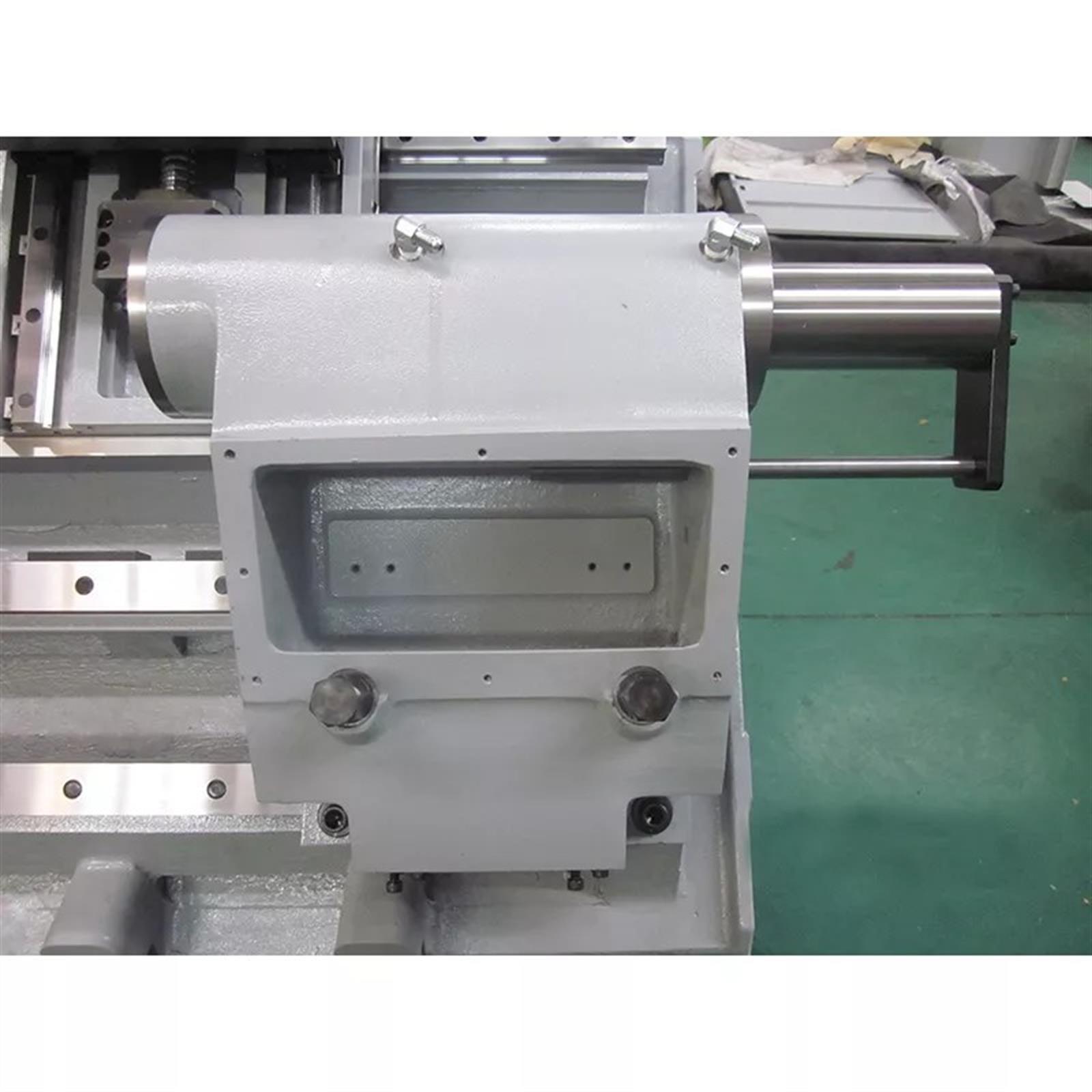

TAILSTOCK
Tailstock body travel	mm	450
Quill travel	mm	150
Quill diameter	mm	70
Quill taper	MT#	4
DIMENSION
Machine dimension L x W x H	m	2.6 x 1.7 x 1.9
Net weight	kg	3300
