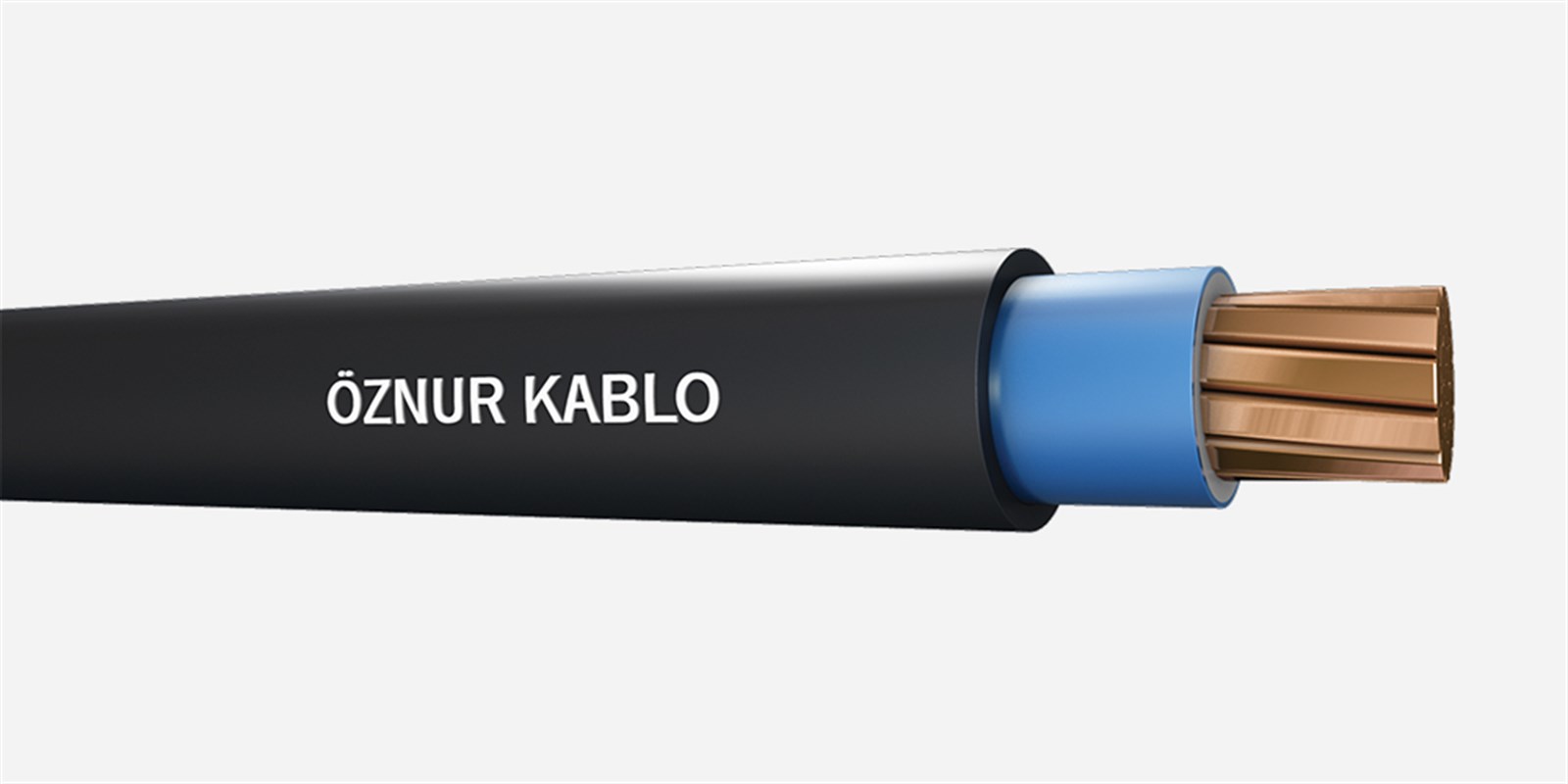

0.6/1 kV Pvc Insulated Single Core Cables With Copper Conductor (YVV-U, YVV-R (TSE), NYY (VDE), Cu/PVC/PVC (BS))

Brand : Öznur

Stock Amount : 0

Est. Delivery Time45 Days After Order

Shipment Place Turkiye

Payment Terms%30 T/T On Order, %70 T/T B.S.

Made InTurkiye

Min. Order Qty.1000 Pcs.

Warranty1 Year

Notify me when the price goes down

Notify me when it is in stock

Cables

0.6/1 Kv Pvc Insulated Low Voltage Power Cables

Code	YVV-U, YVV-R (TSE), NYY (VDE), Cu/PVC/PVC (BS)
Standarts	TS IEC 60502-1, VDE 0276
Construction	Copper conductor, PVC insulation, PVC outer sheath
Application	Preferably for installation indoors, in cable ducts and in industrial plants or switching stations underground installation with additional protection where mechanical damage is unexpected.
Technical Datas	Max. Operating temperature 70 °C Max. Short circuit temperature <=300 mm² for 160 °C > 300 mm² for 140 °C Min. Bending radius 15*D D:Cable outer diameter (mm)

PLEASE CLICK FOR RELATED CATALOGUE PAGE
