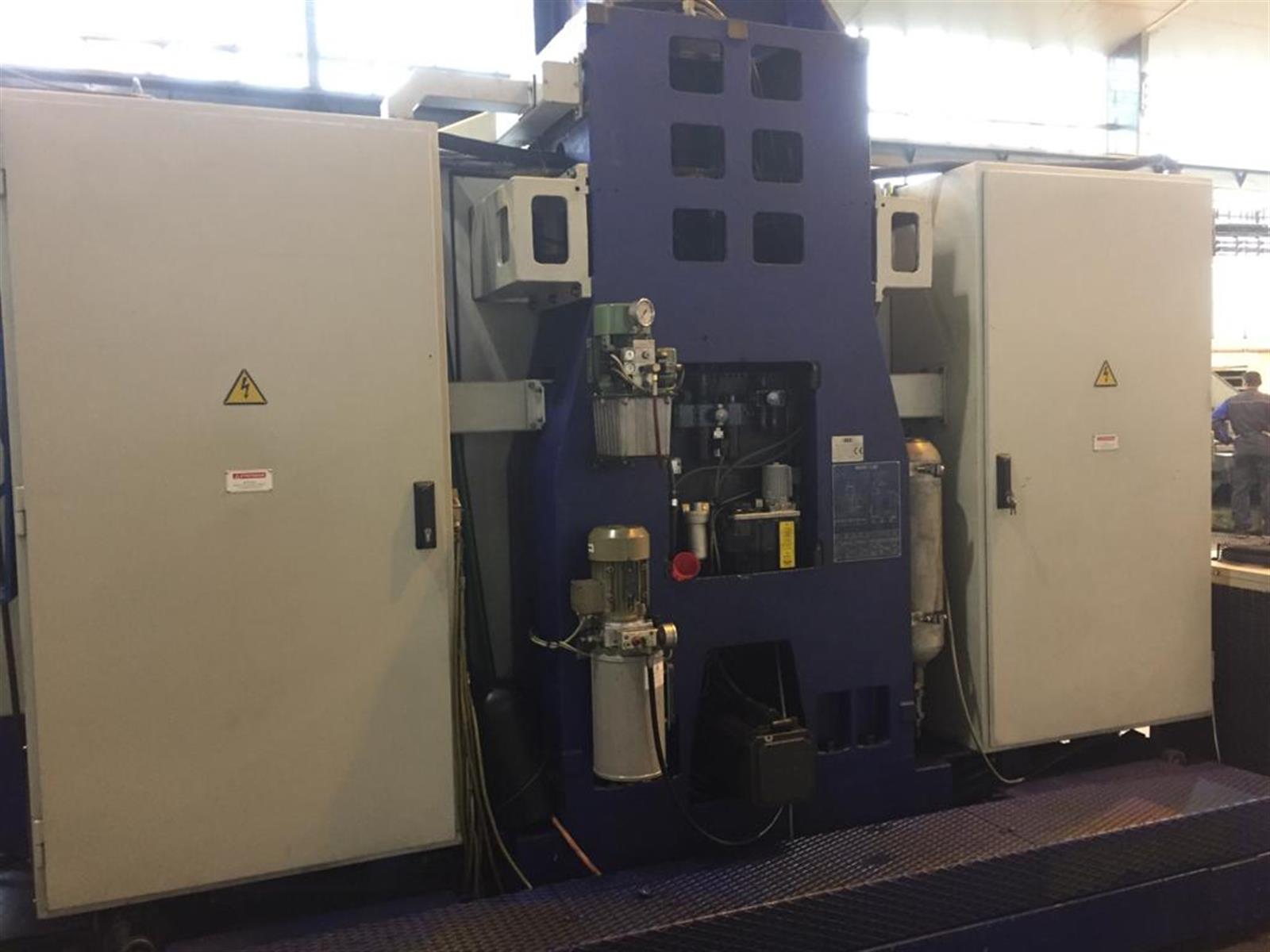

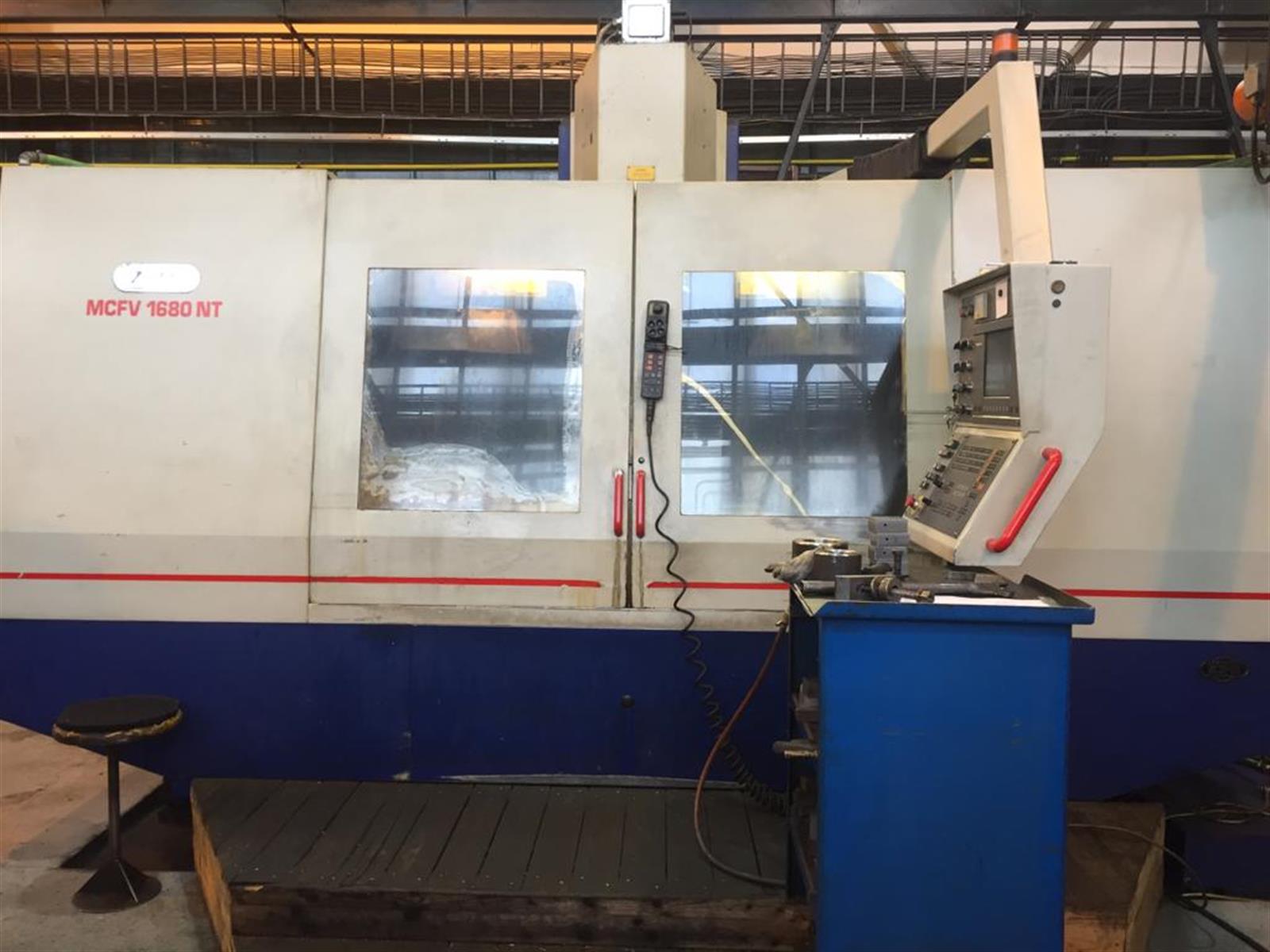

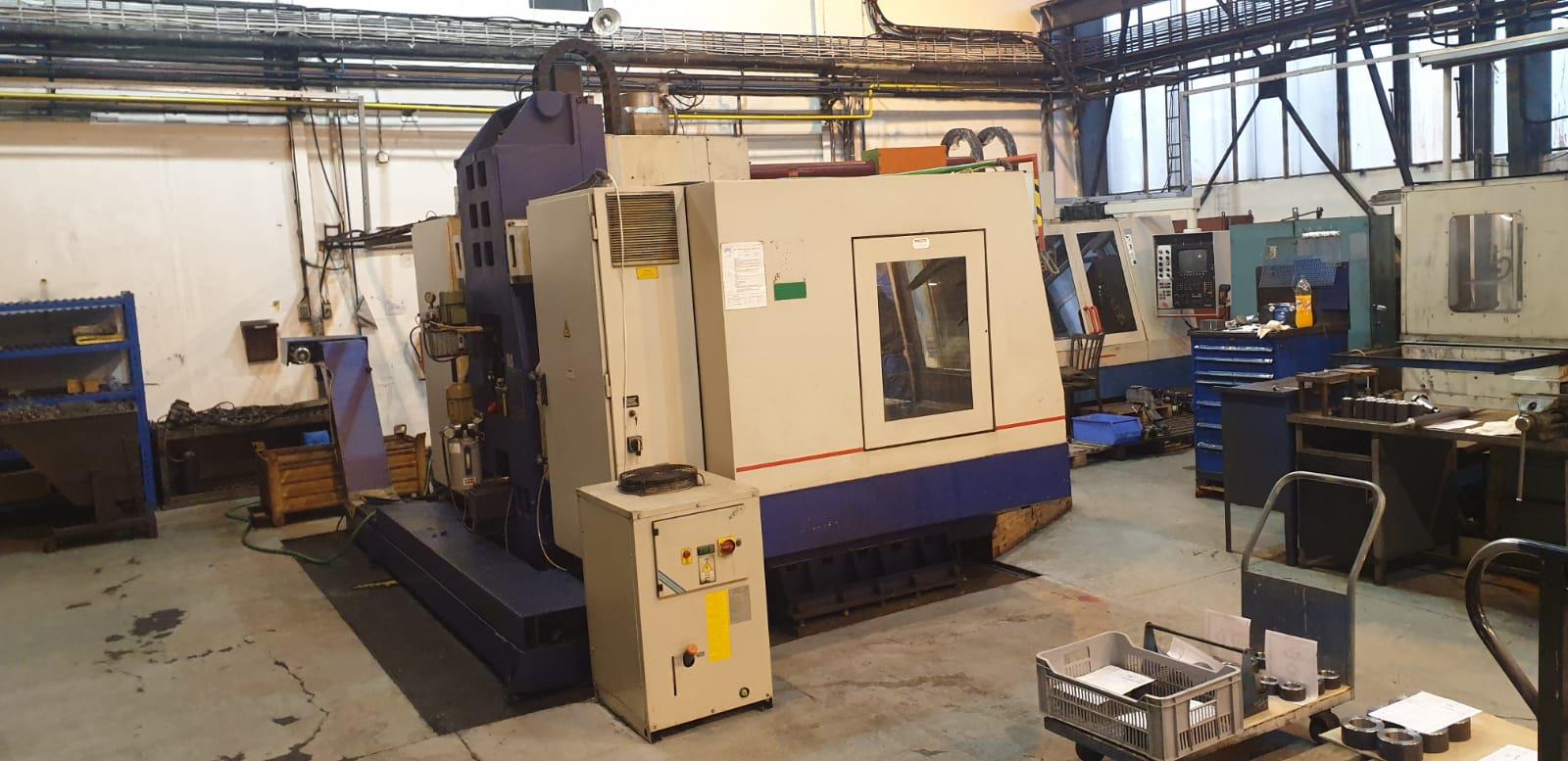

ZPS.a.s. Zlín MCFV 1680 NT Machining center - vertical (ZPS.a.s. Zlín MCFV 1680 NT Machining center - vert)

travels: longitudinal 1650mm
transverse: 810 mm
vertical: 810 mm
max. table load 1750 kg
desk
clamping area 1800 x 780 mm
working feed 0-20000 mm.min
rapid traverse 20000 mm.min
spindles
conical cavity ISO 50
speed range 30-6000 min.
working feed 0-20000mm. min
rapid traverse 20000mm.min
distance of the forehead from the table surface 110-920mm
main engine power 17.0 / 20.5 kW
tool tray
number of places in the magazine 2x16
max. tool diameter 130 mm
max. tool diameter at free adjacent points 220 mm
max. tool length 300mm
max. tool weight 12kg
total input 34.0kVA
dimensions 4120x 2440x3700 mm
weight 11400kg

Axis X	1650 mm
Axis Y	810 mm
Axis Z	810 mm
Rotary table (4th axis)	no
Type of CNC

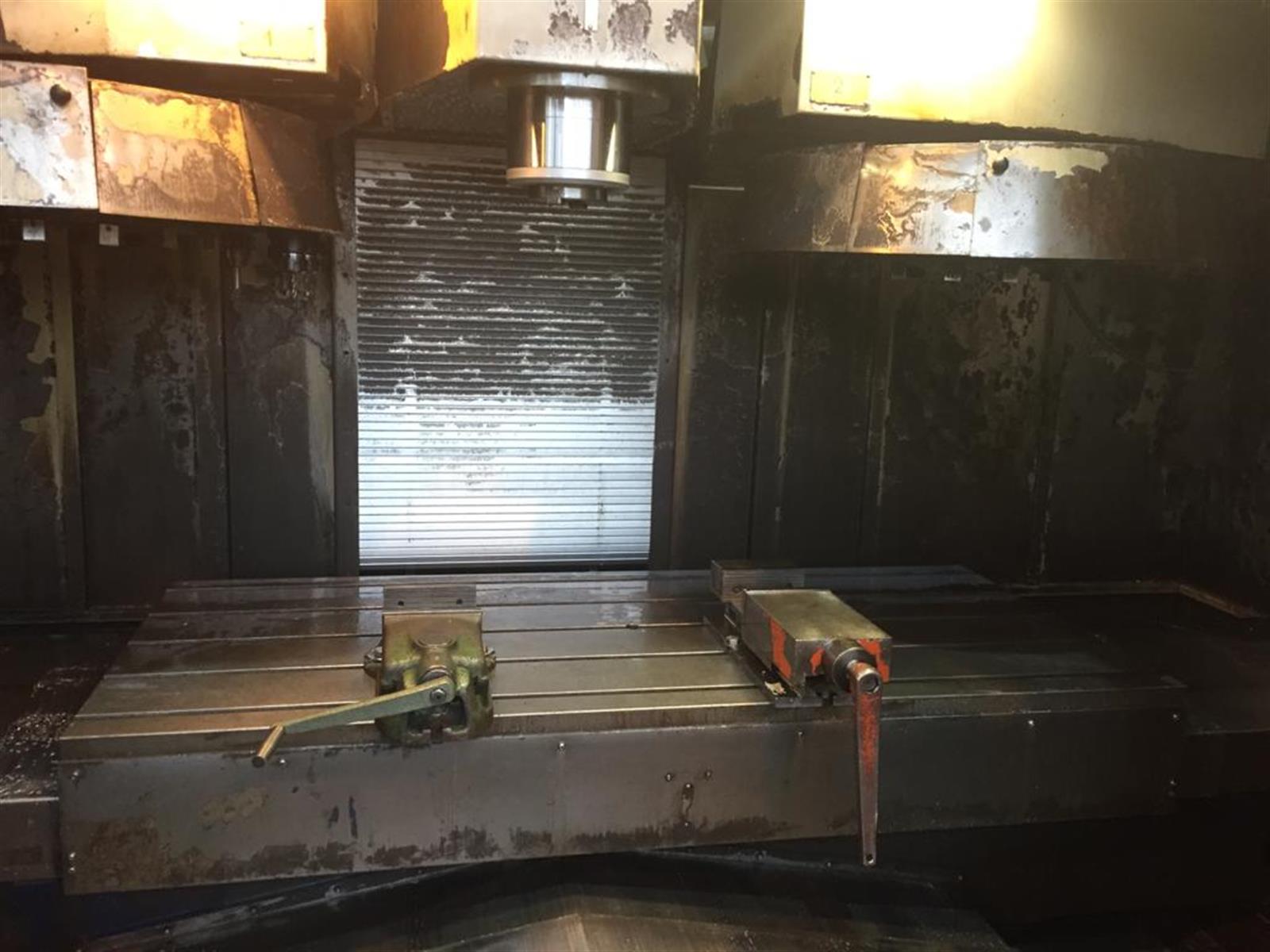

Table length	1800 mm
Table width	780 mm
Max. part weight	1750 kg
Spindle taper	ISO 50
Max. spindle speed	6000 rpm
Spindle motor power	20.5 kW
-------------------
Length x width x height	4120.0 × 2440.0 × 3700.0

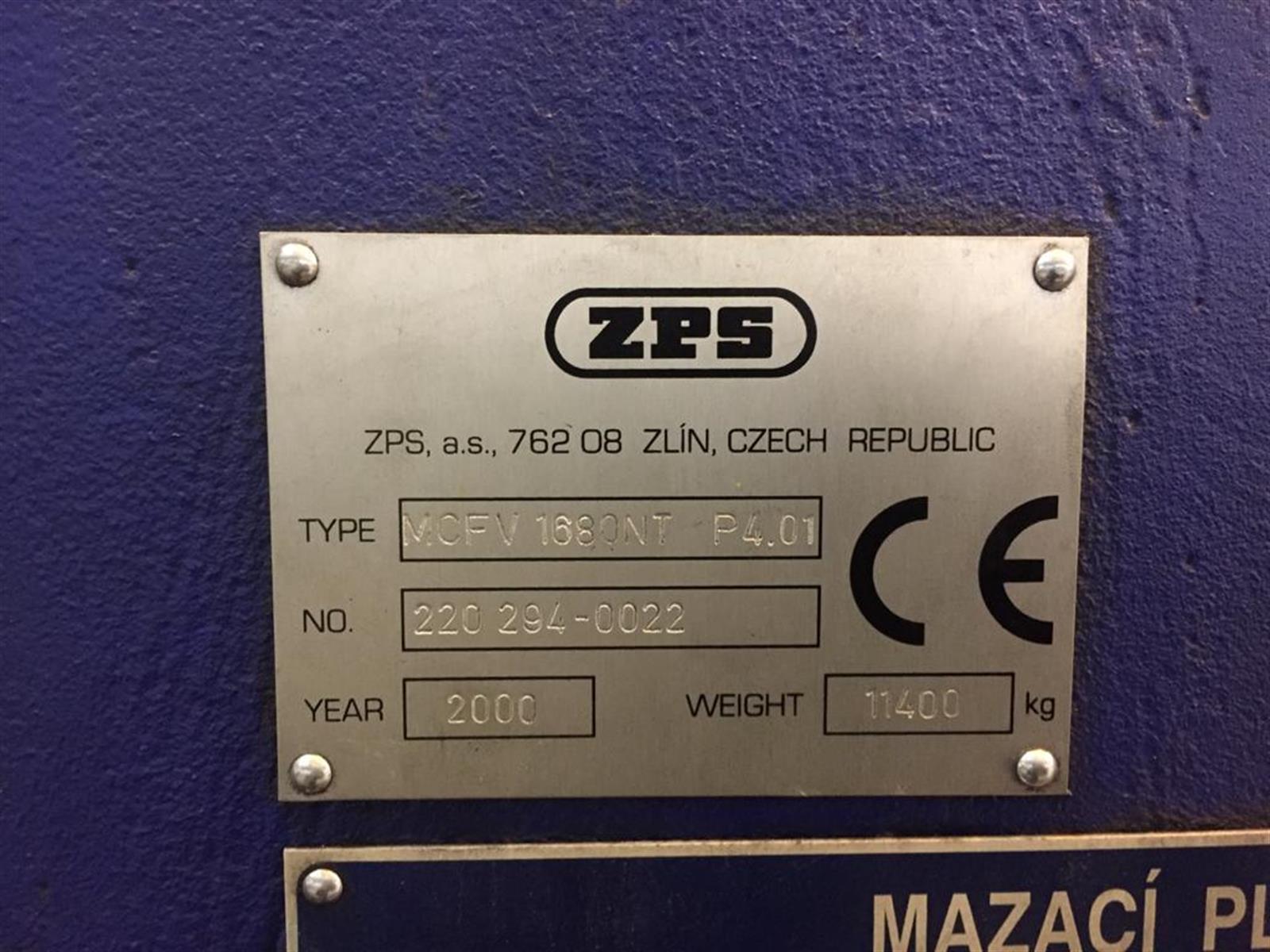

Weight	11400 kg
Worked hours
Hours under power
State	good
At local norms	yes
Status
