Wacker Neuson ACBe Modular Battery-Powered Internal Vibrator

Wacker Neuson Modular Battery-Powered Internal Vibrator ACBe With Battery BP1000 (ACBe BP1000)

Brand : Wacker Neuson

Stock Amount : 0

Delivery Time Ready In Stock

Shipment Place Turkiye

Payment Terms % 100 T/T On Order Confirmation

Made In Germany

Min. Order Qty.1 Pcs.

Warranty1 year

Notify me when the price goes down

Notify me when it is in stock

Modular battery-powered internal vibrator ACBe: Unique freedom of movement

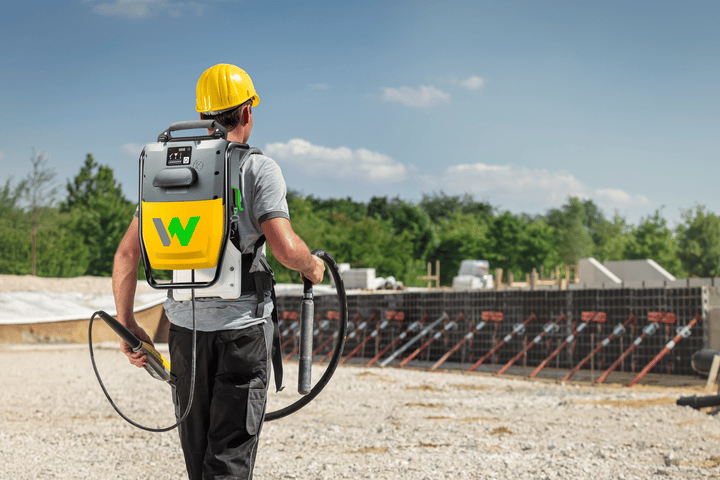

The battery-powered internal vibrator with integrated converter offers the user maximum flexibility on the construction site during concrete consolidation. The operator benefits from greater freedom of movement and an unrestricted work radius because there is no need to pull along a cable or protection hose. This is especially helpful when working on formwork and scaffolding. Remote areas can be accessed without having to route a power supply. The high-performance battery delivers enough energy for a whole workday.

Technical Data ACBe

Electric Output Details

Nominal current	20 A
Nominal voltage	51 V
Output current	16.7 A
Output voltage	34 V
Output frequency	200 Hz

Mechanical Details

Length	336 mm
Width	254 mm
Height	568 mm
Weight	3.9 kg
Operating weight	10.3 kg

Battery BP1000

Electric Output Details

Nominal voltage

510 V

Mechanical Details

Length	2,960 mm
Width	3,960 mm
Height	3,220 mm
Weight	930 kg

Electrical System

Installed energy	1.008 Wh
Installed capacity	200 Ah
Load time 100% C48/13	95 min
Load time 80% C48/13	70 min
Load time 100% C48/7	160 min
Load time 80% C48/7	140 min
Charge level indicator	yes
Type of battery	Li - Ion

Environment Data

Operating temperature range charging	0 - 450 °C
Degree of protection	IP2X

High-performance electric motor with stable speeds

With the consistently high rpm, this high-frequency internal vibrator delivers reliable concrete consolidation performance and efficient, high-quality results.
The motors were developed by Wacker Neuson and are wound and produced by in-house manufacturing in Germany. This ensures consistently high engine output and quality.

Short power cable directly connected to the backpack

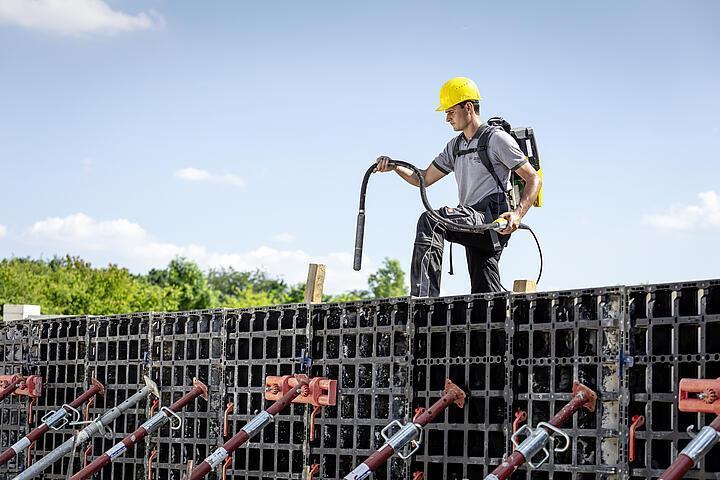

The operator benefits from greater freedom of movement and an unrestricted work radius because there is no need to pull along a cable or protection hose. This is especially helpful when working on formwork and scaffolding.
There are no cables to trip over, providing for a safer working environment.

Independence from external power sources

In large areas, the operator saves time moving power cables and replugging and moving internal vibrators and frequency converters.
Even small remote areas can be accessed quickly with no need to install a power connection.
The ACBe makes it unnecessary to drag cables through concrete.

One battery for all products

The battery can also be used for all other Wacker Neuson battery-powered equipment. This allows saving costs when procuring further machines.

The front third of the vibrator head is tempered

The front third of the vibrator head is tempered. This reduces the wear on the head. This saves maintenance costs.

High-frequency operation

Electric, high-frequency operation ensures a stable rpm and optimum quality results.

No machines standing on the ground with long cables, e.g. switch box or external converters

Safe working, as no tripping hazards are caused and no cables lie in the wet concrete.

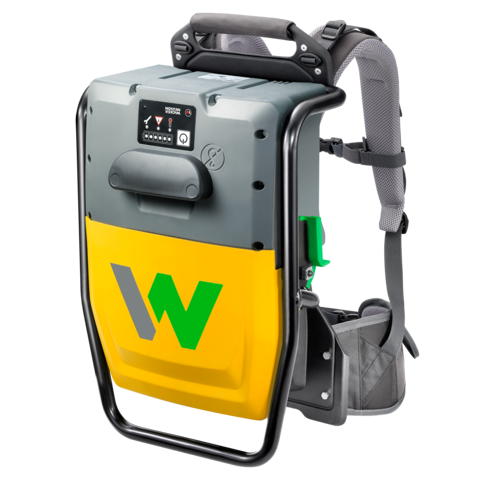

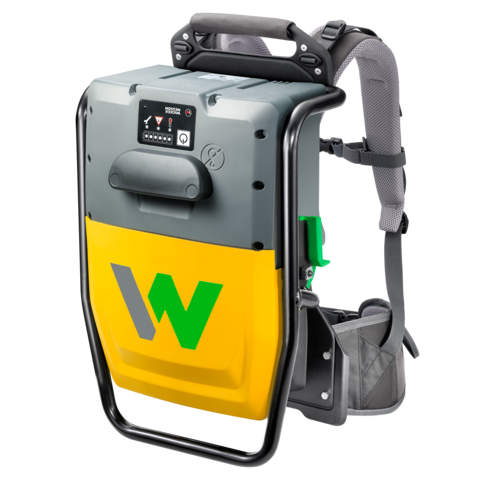

The battery backpack vibrator has compact dimensions.

The ergonomic backpack vibrator offers compact dimensions and excellent weight distribution, making it comfortable to wear.
The comfortable backpack can be adjusted to fit individual operators of any size.

Starts with a push of a button

The electric motor can be easily started with the push of a button even under adverse weather conditions and high altitude.

Sturdy, maintenance-free electric motor

The drive system with electric motor eliminates problems that usually come up with combustion engines, e.g. carburetor pollution or problems due to fuel aging or poor fuel quality. This saves time and maintenance costs.

Made in Germany

High quality standard, high performance and long service life are guaranteed, as the machine is developed and produced in Germany.

-The specification of the effective diameter is not binding, based on the practical experiences of our customers under specific operating conditions. Please note that under specific operating conditions these findings may vary. We recommend always beginning by carrying out a test pour under operating conditions.

Please note that the product range may vary depending on the country. Under certain circumstances, the contents / products shown here may not be available in your country. The illustrations, equipment, and data shown may also differ from the current product range in your country. Optional extras may be shown that are subject to an additional charge. Subject to changes.

As a project order, we offer shortening all protection hoses to any dimension.

This product consists of several components. Please choose their configuration.

IEe38/34/1,5
