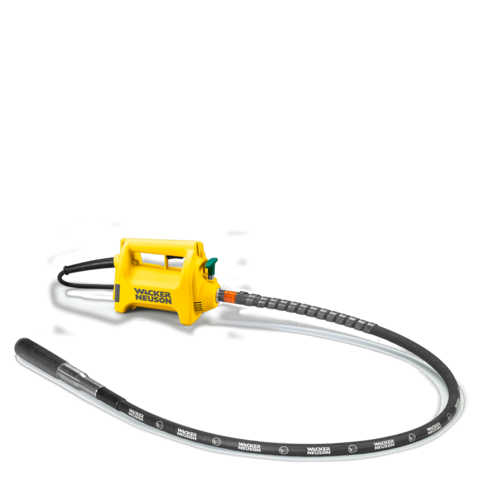

Modular internal vibrator HMS: Wide variety of versions

The HMS series offers impressive flexibility and cost-effectiveness: the internal vibrators of this product series are individually configurable with different flexible shafts, vibrator heads and motors. All devices feature quick disconnect coupling for fast and easy use, as well as light, portable motors. The vibrator heads are induction hardened and therefore offer high wear resistance. This means the HMS series offers flexible adjustment options for every construction site’s requirements.

Modular system

• The modular structure allows the machine to be configured appropriately for every application.
• Only one drive unit is required in order to use internal vibrators in different sizes. This allows saving costs on acquisition and maintenance.

High-performance electric motor with stable speeds

• With the consistently high rpm, this high-frequency internal vibrator delivers reliable concrete consolidation performance and efficient, high-quality results.
• The motors were developed by Wacker Neuson and are wound and produced by in-house manufacturing in Germany. This ensures consistently high engine output and quality.

Very good operating weight

• The lightweight, high-performance motor is comfortable to operate.

Completely tempered vibrator head

• The vibrator head is fully tempered. This makes the head particularly sturdy and prevents quick wear.

Made in Germany

• High quality standard, high performance and long service life are guaranteed, as the machine is developed and produced in Germany.

Maintenance

Service life of the carbon brushes is up to 500 operating hours

• The carbon brushes have a very long durability of up to 500 operating hours. This makes the machine mostly maintenance-free in practice, as the useful life often falls below this number of hours.

Efficiency

Quick change coupling

• The flexible shafts can be replaces easily with no tools. This allows the machine to be quickly configured to match to the job.
• The high-quality coupling provides for optimal power transmission.
• The specification of the effective diameter is not binding, based on the practical experiences of our customers under specific operating conditions. Please note that under specific operating conditions these findings may vary. We recommend always beginning by carrying out a test pour under operating conditions.
• Please note that the product range may vary depending on the country. Under certain circumstances, the contents / products shown here may not be available in your country. The illustrations, equipment, and data shown may also differ from the current product range in your country. Optional extras may be shown that are subject to an additional charge. Subject to changes.
• As a project order, we offer shortening all protection hoses to any dimension.



Mechanical Details

Engine

Effective power:1.3 KW

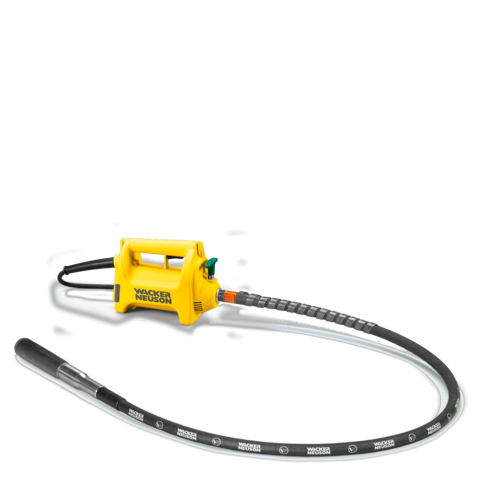

M1500/230

Powerful electric motor for modular high frequency HMS internal vibrator.

Item Number 5100005142

M2500/230

Powerful electric motor for modular high frequency HMS internal vibrator.

Item Number 5100009717
