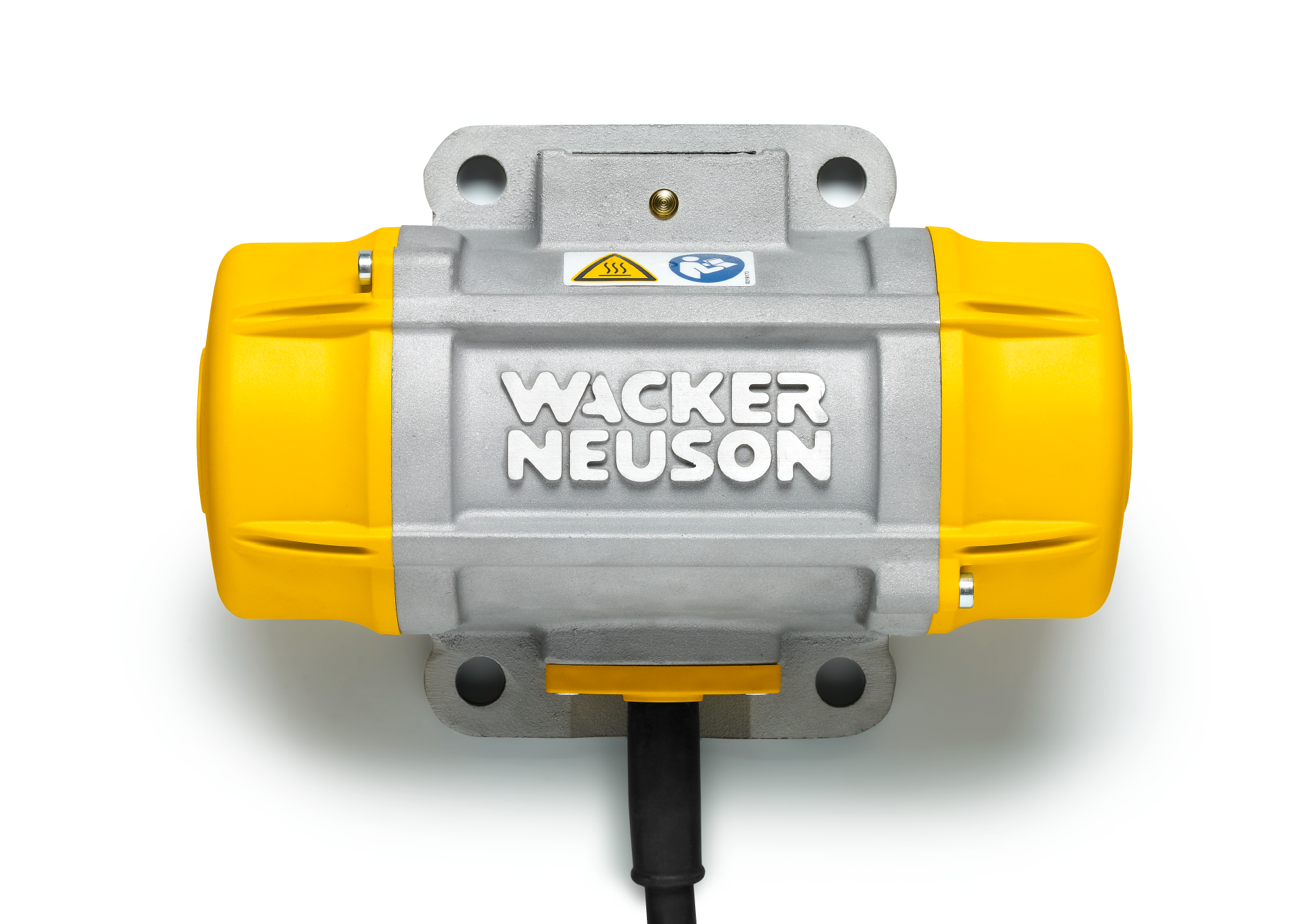

Wacker Neuson AR26/6 Series External Vibrators For Consolidation Of In-Situ Concrete AR26/6/042

Wacker Neuson AR26/6 Series External Vibrators For Consolidation Of In-Situ Concrete AR 26/6/042 cs (AR 26/6/042 cs)

Brand : Wacker Neuson

Stock Amount : 0

Delivery Time Ready In Stock

Shipment Place Turkiye

Payment Terms % 100 T/T On Order Confirmation

Made In Germany

Min. Order Qty.1 Pcs.

Warranty1 year

Notify me when the price goes down

Notify me when it is in stock

External vibrators for consolidation of in-situ concrete AR26: Quality exposed concrete surface is first-rate

For the production of concrete surfaces, flawlessly consolidated concrete is essential. The high quality design of Wacker Neuson's AR26 external vibrator offers precision concrete consolidation. The result: beautifully smooth and level concrete surfaces on walls, pillars and columns.

Maintenance free

The external vibrator is equipped with lifetime lubricated bearings and is completely maintenance-free.
Please note that the product range may vary depending on the country. Under certain circumstances, the contents / products shown here may not be available in your country. The illustrations, equipment, and data shown may also differ from the current product range in your country. Optional extras may be shown that are subject to an additional charge. Subject to changes.

Model Variations	AR 26/6/042 cs
Nominal current	8 A
Nominal voltage	42 V
Nominal frequency	200 Hz
Nominal power [P]	0.3 KW
Phase	3 ~
Centrifugal force	2 kN
Centrifugal force max.	3.47 kN
Length	223 mm
Width	190 mm
Height	102 mm
Weight	6.35 kg
Unbalanced mass/side pos1	5
Unbalanced mass/side pos2	0
Engine type	Asynchronous motor
Operating indicator	yes
Adjusting frequency	No
Length Cable	10 m
Kind of plug	CEE-Plug 3P 32A 42V 4H
Protection class	III / Safety extra-low voltage
Degree of protection	IP67

AR26/6/042

External vibrators for exposed concrete. Series 2, type of fastening 6, 6000 rpm, protective low voltage.

Item Number 5100003120

AR 26/6/042 cs

External vibrator for exposed concrete with On/Off switch in power cable. Series 2, type of fastening 6, 6000 rpm, protective low voltage.

Item Number 5100003940

AR 26/6/042 3,5kN

External vibrator for exposed concrete with max. set centrifugal force of 3.5 kN. Series 2, type of fastening 6, 6000 rpm, protective low voltage.

Item Number 5100004048
