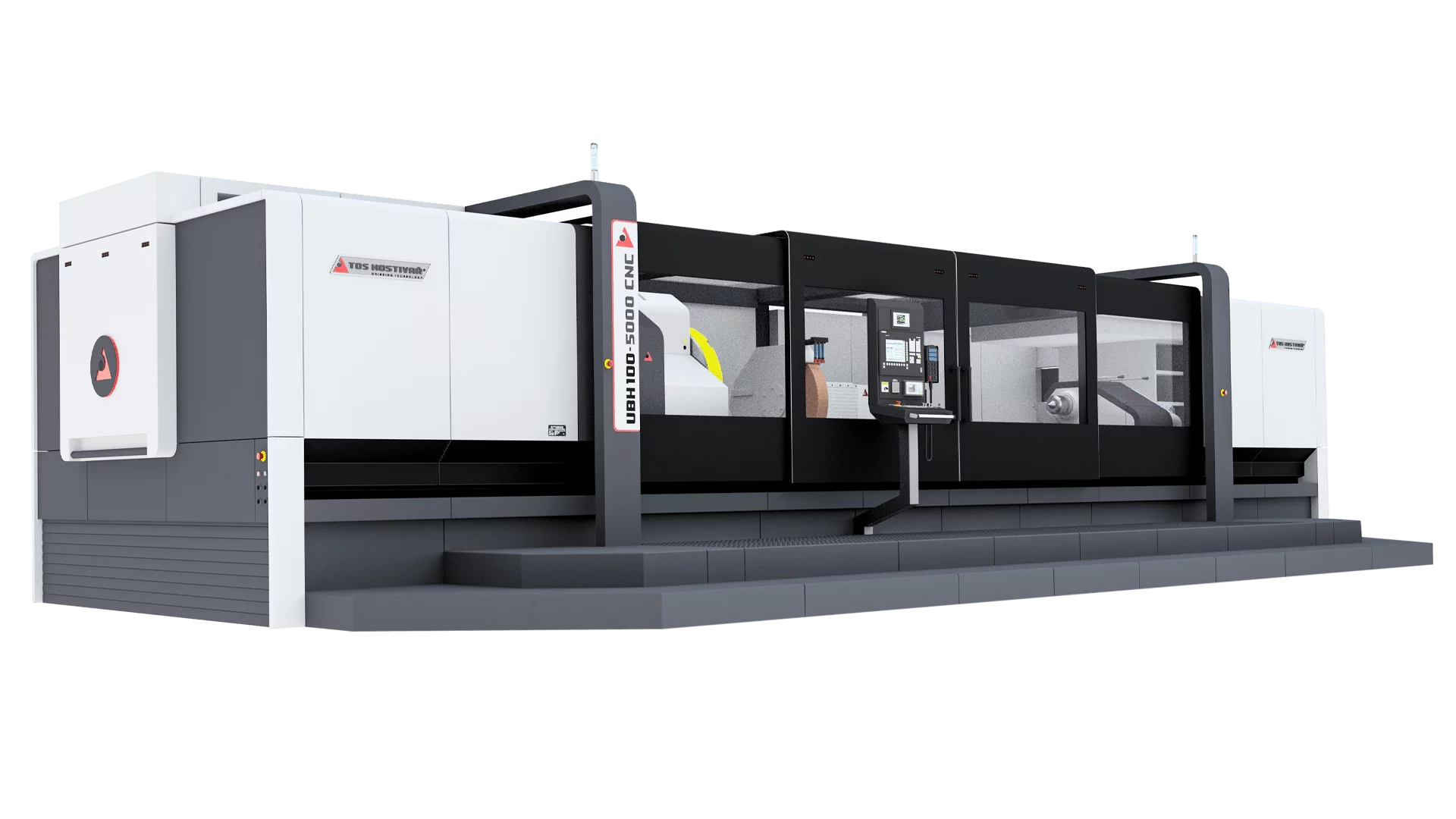

The UBH 100 CNC universal grinding machine is the heaviest machine produced by TOS Hostivař. Thanks to the concept with a grinding headstock moving in the X and Z axis, allows the workpiece to be clamped between points 8,000 mm long and weighing up to 9,000 kg.

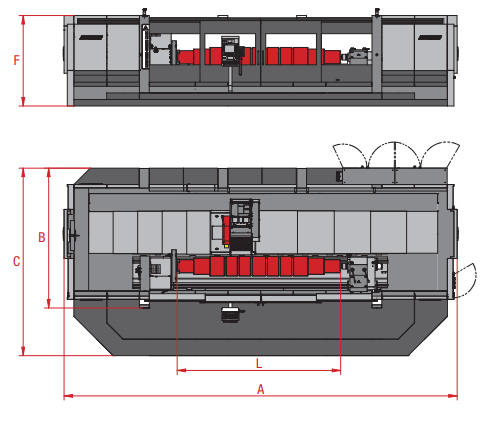

It has a turning diameter of the workpiece clamped between the working headstock and the tailstock up to 1,000 mm. The modular concept of the machine allows any length configuration of the machine together with a large variability of optional accessories. Development of a UBH 100 CNC center CNC grinder in cooperation with CTU and RCMT.

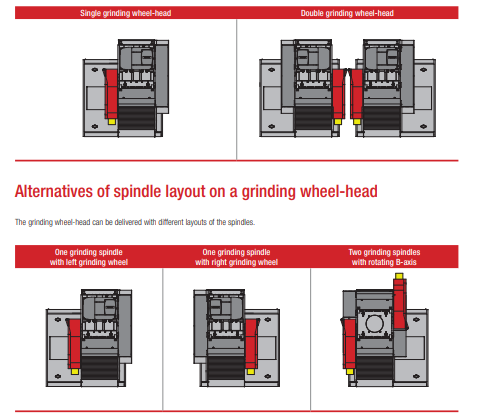

The basic layout of the machine is with one grinding wheel-head. To increase productivity and expand the technological possibilities of the machine it is possible to install two grinding wheel-heads. The grinding wheel-head is installed on a cross bracket that ensures its motion along the X axis as well as longitudinal motion along the Z axis. Movement of the cross bracket along the X axis is provided by servomotor and an accurate ball screw. Movement of the cross bracket along the Z axis is provided by servomotor in master-slave arrangement and by an accurate rack gear with highaccuracy transmissions. The maximum accuracy of the X and Z axes is ensured by Heidenhain linear optical scale. The grinding wheel-head can be equipped with a grinding wheel of 915 mm maximum diameter. The fitting of the grinding spindles in the body is done with high-accuracy roller bearings with permanent grease filling. The grinding spindles are driven by asynchronous electric motors controlled by frequency converter, with optional constant peripheral speed of 25–50 m/s. Grinding wheels for outer grinding can be equipped with automatic balancing device and an acoustic or GAP control detection of contact between the grinding wheel and the workpiece.
