When two operations are required to run simultaneously (like punching and shearing), a dual-operator ironworker is the perfect solution.

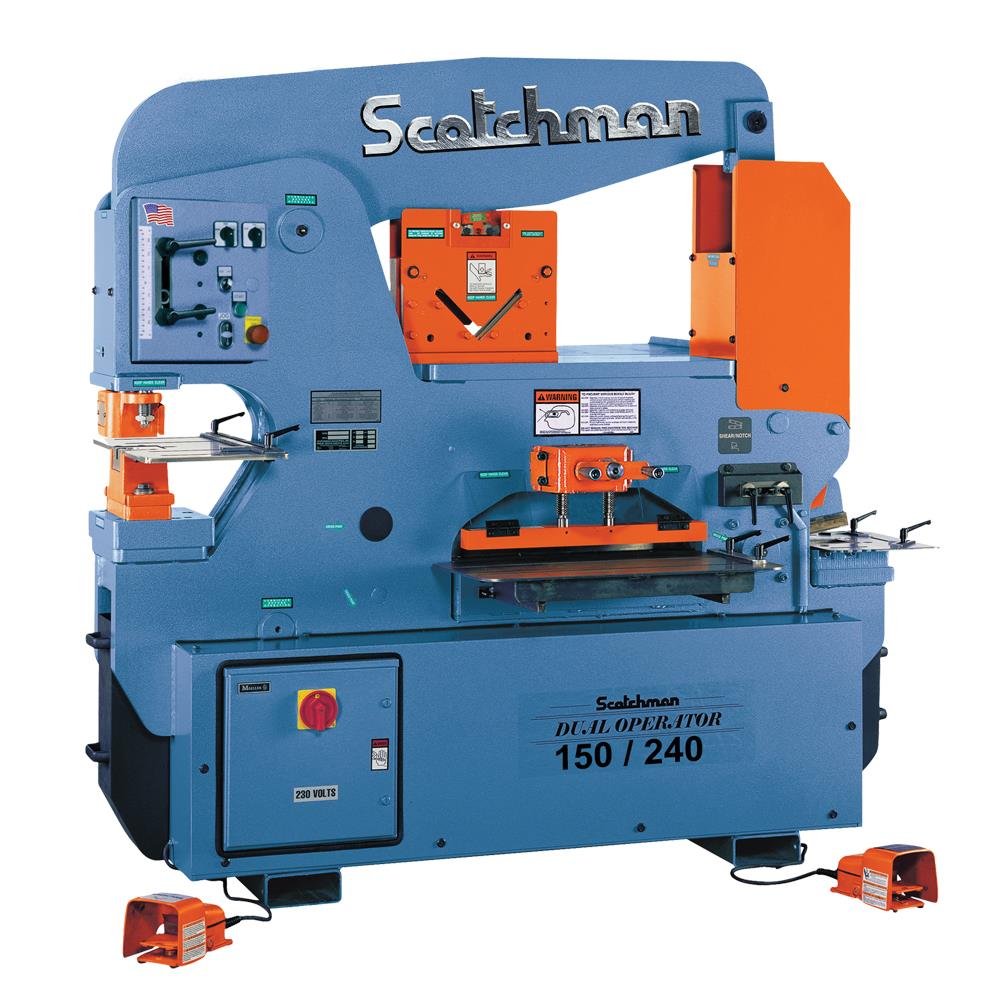

The DO150 is the largest ironworker built by Scotchman. With its 150-ton punching capacity and a 12" throat depth, this machine can punch a 2-1/2" hole in 3/4" thick mild steel or a 1-7/8" hole through 1 inch. This dual operator 150-ton machine has a tandem hydraulic pump system designed to allow two operators to use the machine at the same time guaranteeing that both operations maintain full hydraulic pressure and speed.
The DO 150/240-24M is made in America with many standard features that include: 6" x 6" x 1/2" angle shear and a rectangular notcher that can notch 3" x 5-3/4" through 1/2" material. The 24" flat bar shear features a low rake angle and can shear up to 1" x 14" and 3/4" x 24" steel plate. This machine also accepts optional equipment such as press brakes, rod shear, tube shear, picket tool, as well as custom-built tooling. The versatility of a Scotchman ironworker is unrivalled as our machine's design allows for additional tooling to be quickly swapped in and out of the tool table workstation which allows you to easily customize this machine to fit your needs!
This American-made ironworker is built tough and utilizes a hydraulic system with electric valves & remote foot pedals for ease of use, an adjustable electric stroke control with scale, and is backed by Scotchman’s industry leading 3-Year Warranty and lifetime customer support!
Punching Capacity
150 ton 1-7/8" in 1" 2-1/2" in 3/4"
136 mt 47 in 25 mm 64 in 19 mm
Special Tooling
4" Max. Dia.
102 mm Max. Dia.
Throat Depth
12"
305 mm
Flat Bar Shear (Sabre Blade - Standard)
24" Length 1" x 14" 3/4" x 24"
610 mm 25 x 356 mm 19 x 610 mm
Angle Shear 90 degree
6" x 6" x 1/2"
152 x 152 x 12 mm
Angle Shear 45 degree w/Tool w/Bar Shear
3" x 3" x 3/8" 4" x 4" x 1/2"
76 x 76 x 10 mm 102 x 102 x 12 mm
Brake 12"
90 ton
81.6 mt
Brake 24"
70 ton
63.5 mt
Open End Brake
Max. 1/4" x 5" [Flat or Angle Iron]
6 x 127 mm
Pipe Notcher Schedule 40
3/4", 1", 1-1/4", 1-1/2", 2"
Rectangle Notcher
3" x 5-3/4" x 1/2"
76 x 146 x 12 mm
90 degree V-Notcher
6" x 6" x 5/16" 3" x 3" x 1/2"
152 x 152 x 8 mm 76 x 76 x 12 mm
Notching in Leg of Channel
6" to 10"
152 to 254 mm
Channel Shear
2" to 6" adj.
51 to 152 mm adj.
Unistrut Shear
Samples Required
Rod Shear Round (max.) Square (max.)
9 Cavity - 1/4" to 1-1/4" 1 Cavity - 1/4" to 1"
6 to 32 mm 6 to 25 mm
Square Tube Shear
1/2" to 2" 12 gauge
12 to 51 mm 0.105" / 2.7 mm
Picket Tool
1/2", 3/4" & 1" 16 gauge
12, 19, & 25 mm 0.06" / 1.5 mm
Weld Coupon Bender (max.)
2" wide x 3/8"
51 x 10 mm
Offset Die Holder
Max. 40 ton
Max. 36 mt
Strokes per Minute in Light Material
44 spm [Punch Station]
1/4" Stroke
Strokes per Minute in Heavy Material
17 spm [Punch Station]
3/4" Stroke
Hydraulics
3,500/3,500 psi
241/241 bar
Motor Standard
10 hp 208/230/460, 380/575v; 3ph
7.46 kW
Motor Optional
10 hp 220v, 1 ph
Dimensions
L: 83" W: 38-1/2" H: 77-1/4"
L: 211 cm W: 98 cm H: 196.5 cm
Shipping Weight (may vary)
6,404 lbs
2,905 kg
