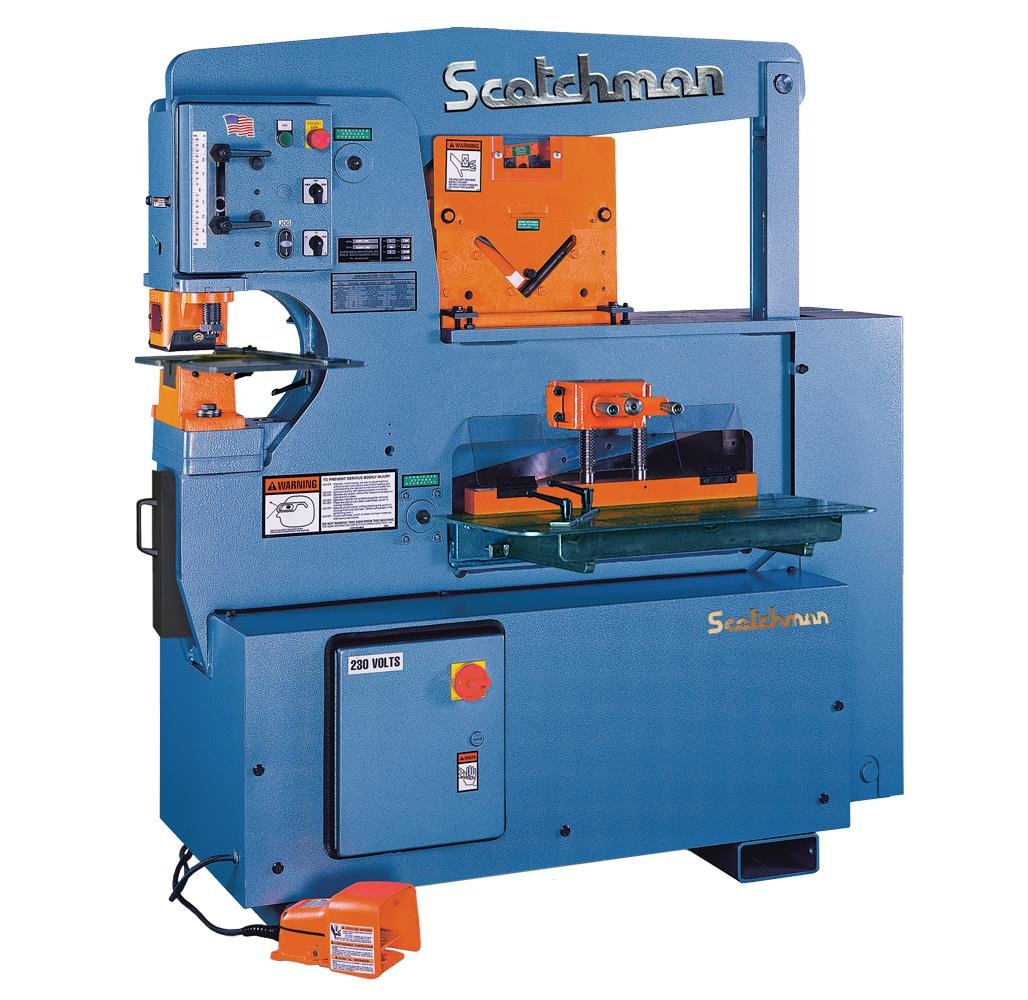

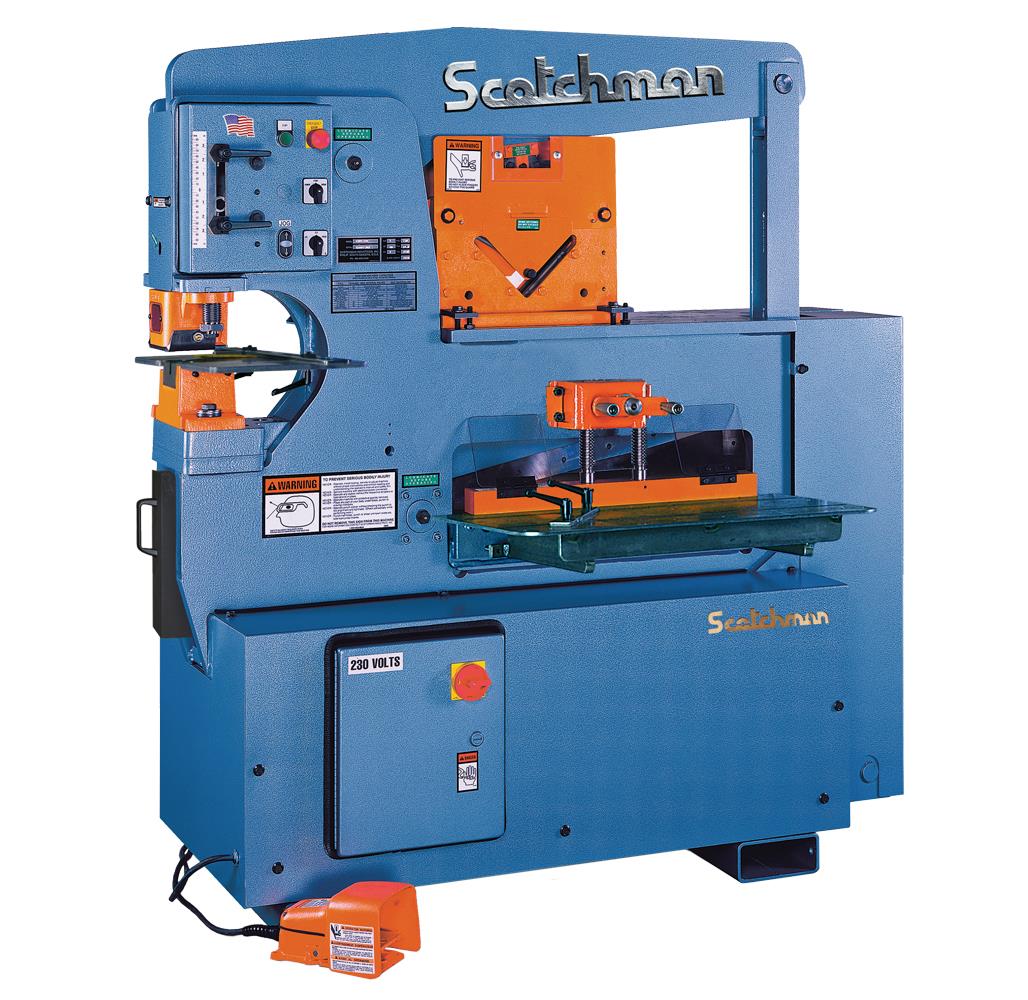

More Versatility and Flexibility than Any Other Ironworker on the Market!
With a 65-ton punching capacity, this ironworker can punch 1-1/16" hole through 3/4" thick, 65,000 tensile plate. It has the largest flat bar shear capacity and the largest angle shear capacity of any machine in its class. Combining this machine's large capacity with its large open tool table makes this machine the most versatile and flexible machine on the market.
A six inch angle shear comes standard and is located in our unique tool table area. This versatile workstation allows additional tooling to be quickly & easily swapped in and out so you can customize the machine to fit your needs.
This American-made ironworker is built tough and utilizes a hydraulic system with electric valve & remote foot pedal for ease of use, an adjustable electric stroke control with scale, and is backed by Scotchman’s industry leading 3-Year Warranty and lifetime customer support!
Punching Capacity
65 ton 1-1/16" in 3/4"
58 mt 27 mm in 19 mm
Special Tooling
4" Max. Dia.
102 mm Max. Dia.
Throat Depth
9"
229 mm
Flat Bar Shear
24" Length 1" x 6" 3/4" x 10" 1/2" x 12" 3/8" x 16" 1/4" x 24"
610 mm 25 x 152 mm 19 x 254 mm 12 x 305 mm 10 x 406 mm 6 x 610 mm
Saber Blade (optional)
1" x 6" 1/2" x 16"
25 x 152 mm 12 x 406 mm
Angle Shear 90 degree
6" x 6" x 3/8" 5" x 5" x 1/2"
152 x 152 x 10 mm 127 x 127 x 12 mm
Angle Shear 45 degree w/Tool w/Bar Shear
3" x 3" x 3/8" 4" x 4" x 1/2"
76 x 76 x 10 mm 102 x 102 x 12 mm
Brake 12"
40 ton
36 mt
Brake 24"
30 ton
27 mt
Open End Brake
Max. 1/4" x 5" [Flat or Angle Iron]
6 x 127 mm
Pipe Notcher Schedule 40
3/4", 1", 1-1/4", 1-1/2", 2"
Rectangle Notcher
2" x 2-1/2" x 3/8"
51 x 63 x 10 mm
90 degree V-Notcher
6" x 6" x 5/16"
152 x 152 x 8 mm
Channel Shear
2" to 5" adj.
51 to 127 mm adj.
Unistrut Shear
Samples Required
Rod Shear Round (max.) Square (max.)
9 Cavity - 1/4" to 1-1/4" 1 Cavity - 1/4" to 1"
6 to 32 mm 6 to 25 mm
Square Tube Shear
1/2" to 2" 12 gauge
12 to 51 mm 0.105" / 2.7 mm
Picket Tool
1/2", 3/4" & 1" 16 gauge
12 , 19 , & 25 mm 0.06" / 1.5 mm
Weld Coupon Bender (max.)
2" wide x 3/8"
51 x 10 mm
Offset Die Holder
Max. 40 ton
Max. 36 mt
Strokes per Minute in Light Material
58 spm [Punch Station]
1/4" Stroke
Strokes per Minute in Heavy Material
26 spm [Punch Station]
3/4" Stroke
Hydraulics
2,600 psi
183 bar
Motor Standard
5 hp 208/230/460, 380/575v; 3 ph
3.73 kW
Motor Optional
5 hp 220v, 1ph
Dimensions
L: 60-3/4" W: 30" H: 64-1/2"
L: 154.5 cm W: 76 cm H: 164 cm
Shipping Weight (may vary)
2,984 lbs.
1,354 kg
