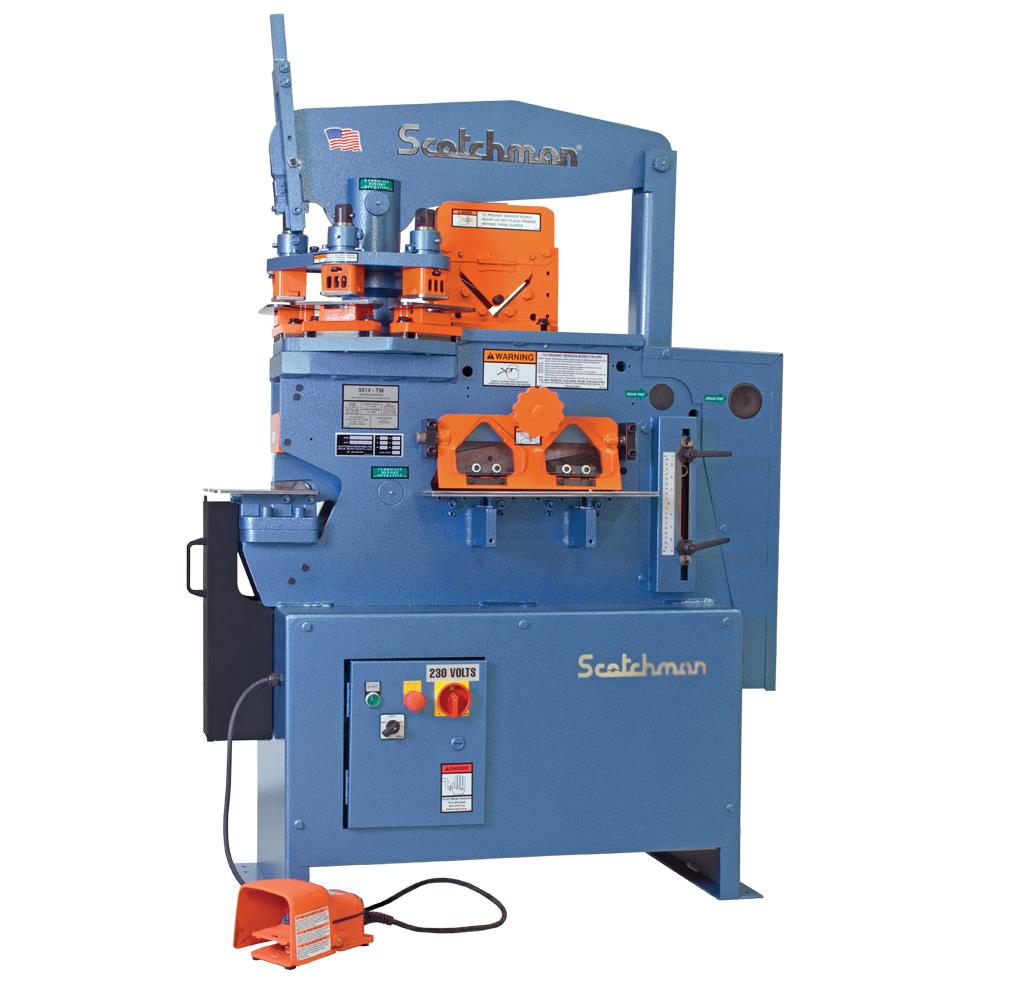

50-ton Ironworker with 3-station revolving turret punch station features quick change punching; reducing set-up times and increasing productivity!
The 5014-ET hydraulic ironworker is a single operator design with 7 total work stations. With a 50-ton punching capacity, this ironworker can punch a 13/16" hole through 3/4" mild steel plate. Comes standard with an angle shear capable of shearing 4" x 4" x 3/8" angle iron, a flat bar shear that can shear 3/4" x 4" to 1/4" x 14", and rectangle notcher for notching up to 2-1/2" x 3" in 5/16" material. It's electric stroke control makes this machine very accurate for bending, punching, shearing and notching operations. With its unique component tool table design, the 5014-ET has the ability to accept optional tooling, such as the 12" press brake, rod shear, square tube shear, picket tools, pipe notcher or custom tooling which greatly expands its fabricating capabilities. This versatile workstation allows additional tooling to be easily swapped in and out so you can customize the machine to fit your needs!
This American-made ironworker is built tough and utilizes a hydraulic system with electric valve and remote foot pedal for ease of use, an adjustable electric stroke control with scale, and is backed by Scotchman’s industry leading 3-Year Warranty.
Punching Capacity
50 ton 1-1/4" in 1/2" 13/16" in 3/4"
45 mt 32 in 12 mm 20 in 19 mm
Special Tooling
2-1/4" Max. Dia.
57 mm Max. Dia.
Throat Depth
4"
102 mm
Flat Bar Shear
14" Length 3/4" x 4" 1/2" x 8" 3/8" x 10" 1/4" x 14"
356 mm 19 x 102 mm 12 x 203 mm 10 x 254 mm 6 x 356 mm
Saber Blade (optional)
1/2" x 10" 3/8" x 12"
12 x 254 mm 10 x 305 mm
Angle Shear 90 degree
4" x 4" x 3/8"
102 x 102 x 10 mm
Angle Shear 45 degree
2" x 2" x 1/4"
51 x 51 x 6 mm
Brake 8"
25 ton
23 mt
Brake 12"
Open End Brake
Max. 1/4" x 3" [Flat or Angle Iron]
6 x 76 mm
Pipe Notcher Schedule 40
3/4", 1", 1-1/4", 1-1/2", 2"
Rectangle Notcher
2-1/2" x 3" x 5/16" 2-1/2" x 2-3/4" x 3/8"
63 x 76 x 8 mm 63 x 70 x 10 mm
90 degree V-Notcher
6" x 6" x 1/8" 3" x 3" x 1/4"
152 x 152 x 3 mm 76 x 76 x 6 mm
Unistrut Shear
Samples Required
Rod Shear Round (max.) Square (max.)
5 Cavity - 1/4" to 1" 1 Cavity - 1/4" to 3/4"
6 to 25 mm 6 to 19 mm
Square Tube Shear
1/2" to 1" 12 gauge
12 to 25 mm 0.105" / 2.7 mm
Picket Tool
1/2", 3/4" & 1" 16 gauge
12, 19, & 25 mm 0.06" / 1.5 mm
Weld Coupon Bender (max.)
2" wide x 3/8"
51 x 10 mm
Strokes per Minute in Light Material
34 spm [Punch Station]
1/4" stroke
Strokes per Minute in Heavy Material
14 spm [Punch Station]
3/4" stroke
Hydraulics
2,350 psi
162 bar
Motor Standard
3 hp 208/230/460, 380/575v; 3 ph
2.24 kW
Motor Optional
5 hp 220v, 1 ph
3.73 kW
Dimensions
L: 48-1/4" W: 23-1/2" H: 70-1/4"
L: 122.5 cm W: 60 cm H: 178.5 cm
Shipping Weight (may vary)
1,640 lbs
744 kg
