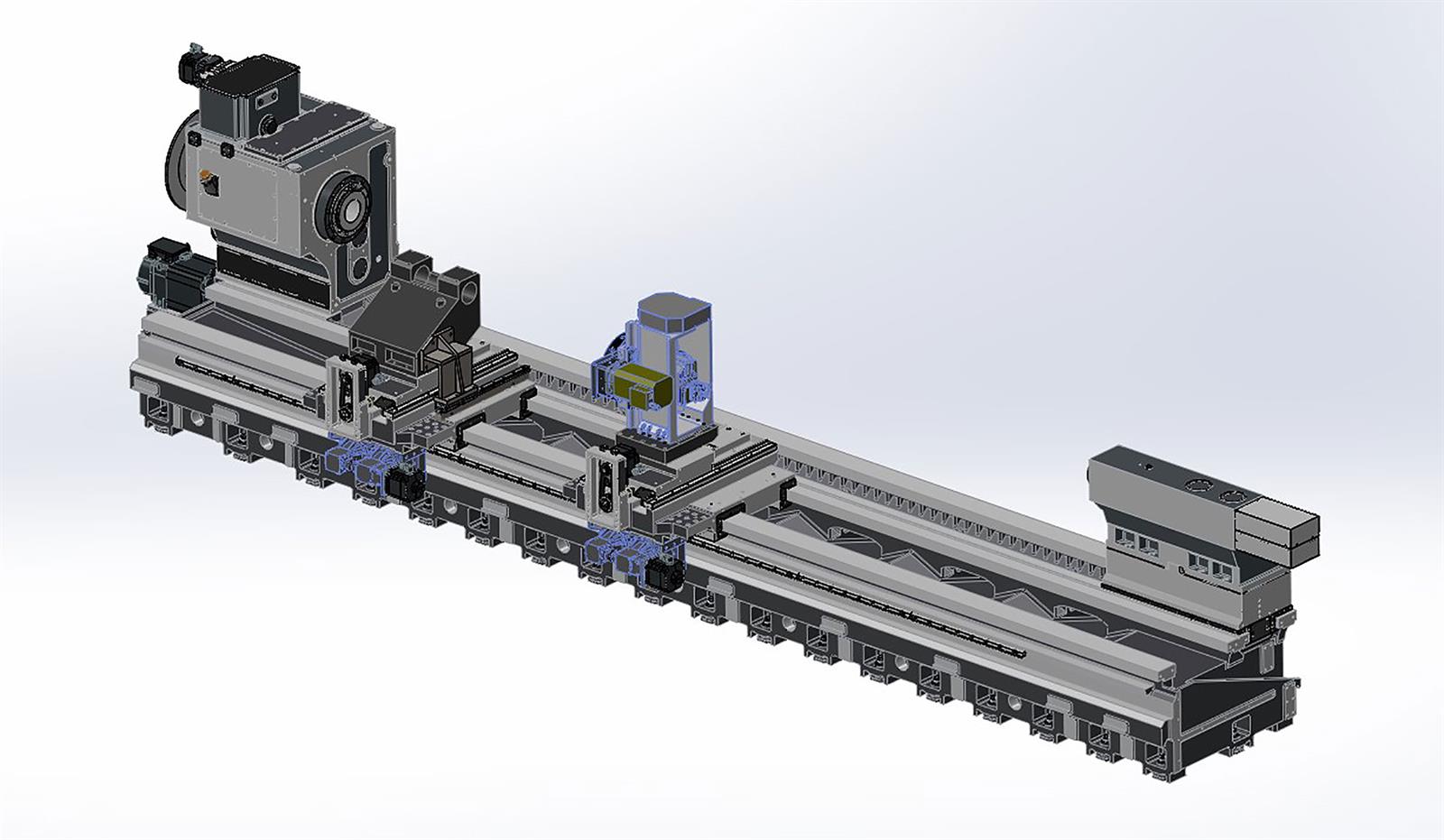

Myday SGE1500S CNC Four Guideway Lathe (53”Bed) (SGE1500S)

SGE is a four-guideway lathe series. The tailstock, steady rests and the carriage are designed to sit on two separate pairs of guide ways which effectively limit the interference when the carriage passing by the tailstock. In addition, the carriage is able to move next to both headstock and tailstock so that increase the flexibility in tooling arrangements and clamping. Besides, it is not necessary to remove steady rests or unclamp work-piece from the chuck amid the process A to process B for without wasting any time. Moreover, the tailstock quill doesn’t need to overhang long to approach work-piece which is a plus to maintain the stiffness due to the longer overhang, the weaker quill stiffness. It is optional to equip with a second carriage either to do turning simultaneously, to have a milling station, or to have an individual boring carriage.

Description  \  Model	SGE1500S
Swing over bed	1500 mm
Swing over cross slide	1000 mm
Center height	750 mm
Bed of width	1350 mm
Distance between centers	3000 mm ~ 15000 mm
Spindle bore	Ø150 mm
Spindle nose	A2-15
Spindle speeds	1200 rpm
Number of spindle speeds	3
Rapid travel	X-axis: 6 m / min , Z-axis: 8 m / min
Max, x-axis travel	550 mm
Max, z-axis travel	3600 mm~15600 mm
X-axis ball screw	Ø50 mm
Z-axis ball screw	Ø80 mm
	(* Z-axis transmission is by racks and dual pinions if DBC≧6M, or if there are two carriages)
Tailstock quill diameter	Ø220 mm
Tailstock quill taper	MT#6
Tailstock quill travel	250 mm
Controller	FANUC 0i-TF	SIEMENS 828D
Spindle motor	37 kw	37 kw
X-axis servo motor	4.0 kw	4.85 kw
Z-axis servo motor	4.0 kw	4.85 kw
