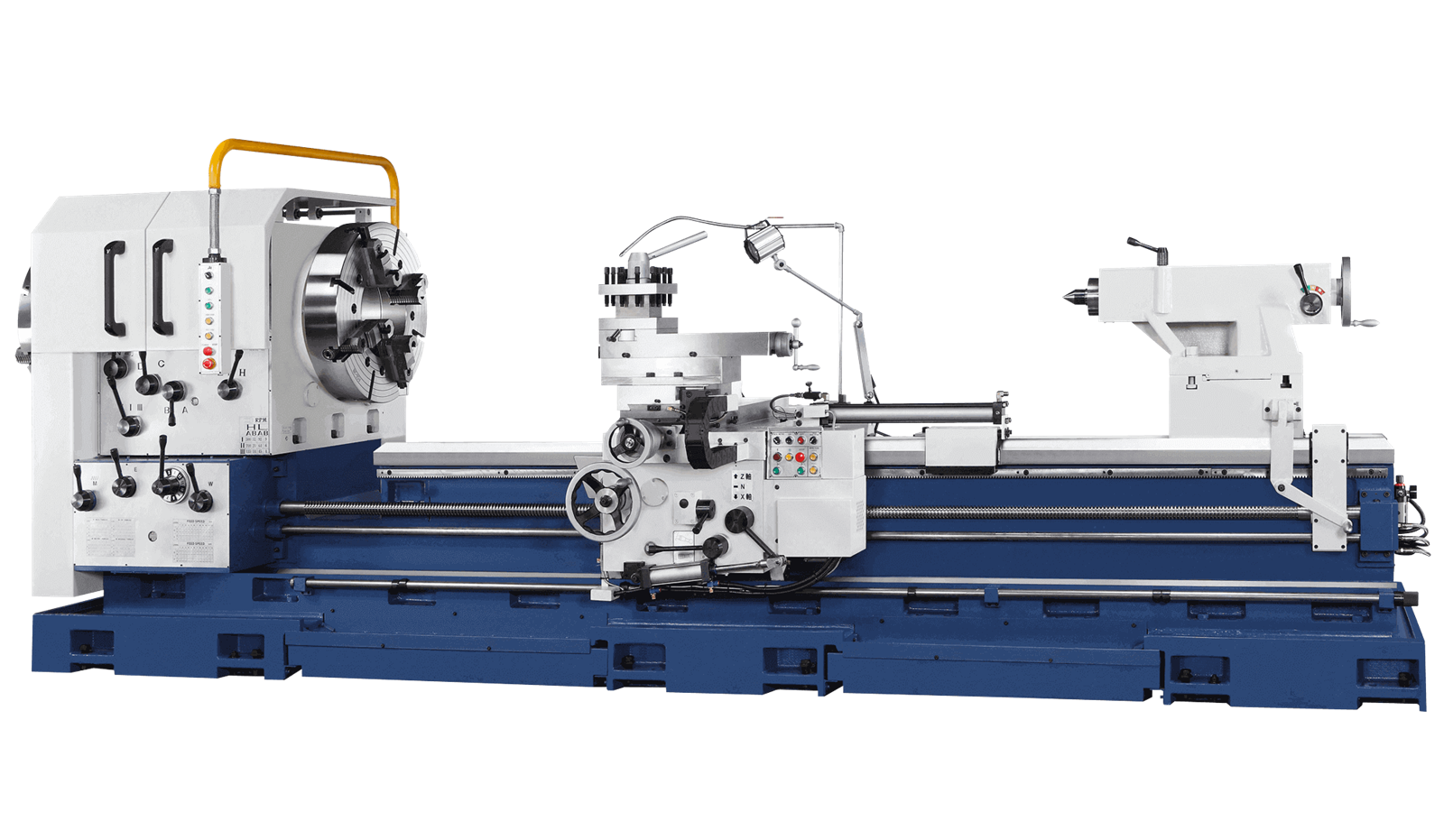

Myday MOC1200 Oil Country Lathe (22” Bed) (MOC1200)

Oil Country Lathe is a famous product line for oil & gas fielding and metal industry. It could be big bore lathe of double chucks at both sides of the headstock, or it could have large swing for big workpiece. Big bore lathe is very good at threading and cutting at the two ends of long pipes or tubes. Besides, large swing could be applied to big steel rollers, large diameter flanges, long shafts of ships, etc. By the way, for better workpiece clamping, we have rotary quill option on tailstocks.


Main Motor
Spindle Magnetic Brake
Auto Lubrication System
Coolant System
4-Way Tool Post
X, Z Axes Rapid Traverse
Meter / Inch Community Gear Box
Guideways Hardened, Ground with Wipers
Tailstock Center
Tool Box with Tools
Leveling Bolts & Pads
Operation & Service Manual
Work Light

3-Jaw Chuck
4-Jaw Chuck
4-Jaw Face Plate
Double Chuck System
Steady Rest
Follow Rest
Rear Supporting Stand
Quick Change Tool Post
Rear Tool Post
Boring Device
Taper attachment
Hydraulic Copy Device
6-way Rapid Traverse
Digital Readout
Rotary Center
C-axis Control
Electrical System for CE

Description  \  Model	MOC1200
Center height	585 mm
Swing over bed	1170 mm (46”)
Swing over cross slide	860 mm
Swing over gap	1720 mm
Width of gap	570 mm
	(No gap if Distance between centers ≥ 5m)
Width of bed	560mm (22”) (660mm with auxiliary guideway)
Distance between centers	1500~9000 mm (60~360”)
Spindle bore	Ø156mm (6”) / Ø230mm (9”) / Ø260mm (10”) /  Ø310mm (12”) / Ø360mm (14”)
Spindle nose	A2-11  / A2-15  / A2-15  / A2-20 / A2-20
Spindle speeds (12 Steps)	9-600 / 6-400 / 6-400 / 5-300 / 5-300 rpm
Tailstock quill diameter	Ø140 mm
Taper of center	MT#6
Quill travel	300 mm
Cross feeds	0.065-0.96 (48 Kinds)
Cross travel	540 mm
Compound rest travel	300 mm
Tool size	40 x 40 mm
Longitudinal feeds	0.13-1.92 (48 Kinds)
Lead screw diameter	Ø50mm
Lead screw pitch	2TPI (inch) or 12mm (metric)
Threading range, metric	2-30 mm/Pitch (48 Kinds)
Threading range, inch	1-15 TPI (48 Kinds)
Module pitch threads	1-15M (32 Kinds)
DP. pitch threads	2-30P (48 Kinds)
Main spindle motor	25 HP (Std.) or 30HP (Opt.)
Rapid motor	1/2 HP
Coolant pump	1/4 HP
Oil pump	12W
