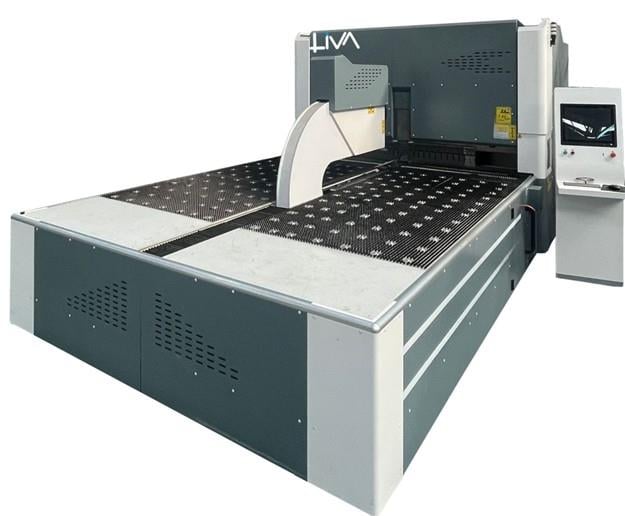

LIVA LPB 2500x2mm CNC Servo Panel Bender (LIVA LPB 2500x2mm)

The Panel Bender bending center is fully automatic and easy to use. It can efficiently produce parts with various features without requiring a separate programming or setup operator. The universal tool automatically adjusts to the size specified by the program without any setup time, ensuring both operator safety and product quality.

The positioning process is completed only once at the beginning of each bending cycle. The entire operation is then performed within this cycle. From the start to the completion of the process, the bending plate and rotating structure remain unchanged. The stability of 0.01 degrees ensures high production flexibility.

The bending center uses a servo clamping system that ensures stable feeding and enhances product processing accuracy. Unlike manual bending, where errors may occur, the automatic sheet bending machine’s mechanical arm guarantees precise, error-free bending, ensuring consistent quality for mass-produced parts.

Manual bending processes often suffer from inefficiencies as operators must lift large sheets manually, leading to synchronization errors. The automatic bending center eliminates the need for manual lifting, prevents asynchronous operations, and increases production efficiency.

Compared to traditional methods, the fully automatic bending center eliminates the need for manual lifting throughout the process, minimizing the risk of injuries caused by improper handling and ensuring overall safety during bending operations.

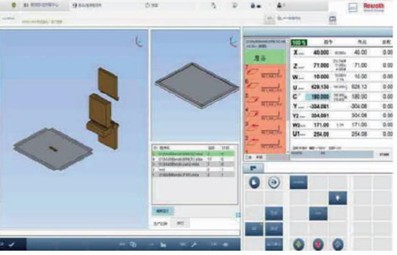

Moreover, the system is equipped with intelligent software, allowing even non-professional operators to use it easily and safely.

By improving bending efficiency and quality, the automatic panel bending machine streamlines operations, saves labor and materials, maximizes processing speed, and ultimately enhances efficiency, reduces costs, and raises product quality for businesses.

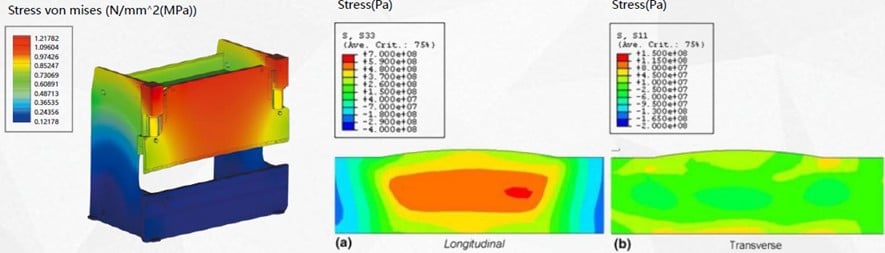

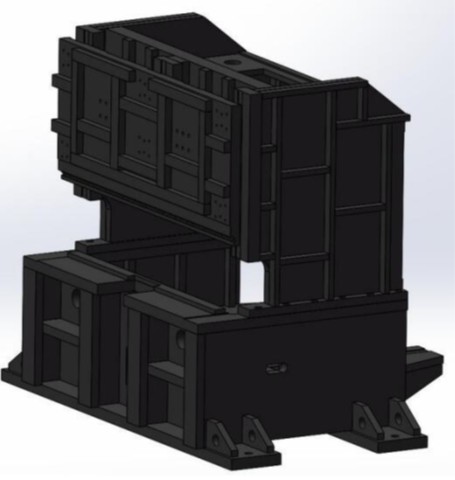

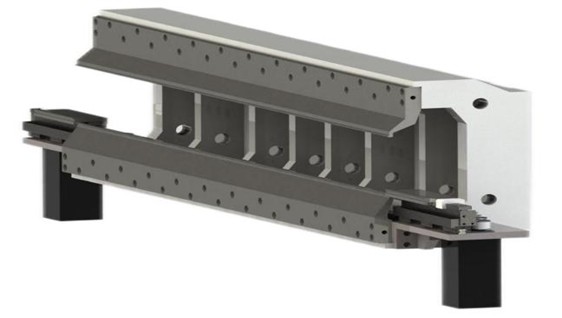

The body design of Servo Panel Benders consists of a cast-iron frame with a rigid structure to ensure minimum deflection under load and maximum precision.

After welding and machining, the material undergoes high-temperature heat treatment and stress-relief processes to improve its mechanical properties, reduce deformation, and enhance the stability and durability of the workpiece.

As a result, the machine body maintains long-term accuracy and structural stability throughout its service life.

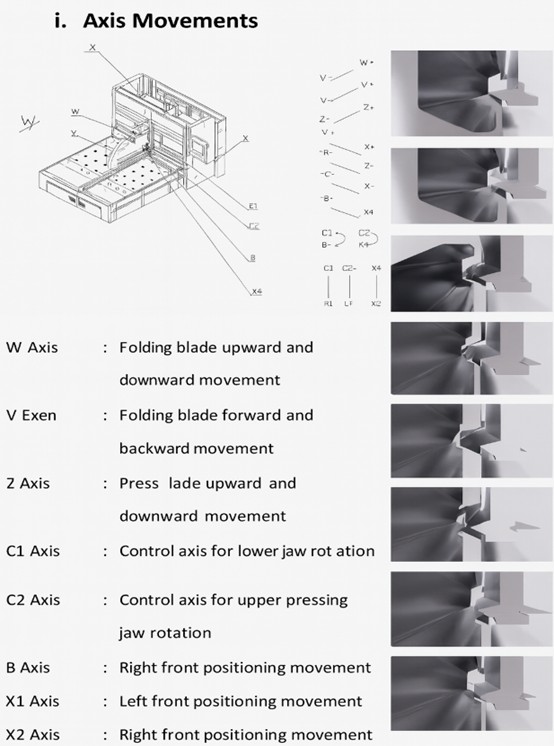

Two servo motors drive the auxiliary folding blades at both ends, and the system automatically operates the auxiliary folding blades according to the plate bending program requirements. This enables one-sided local bending of plates and enriches the range of bending styles.

Depending on the bending requirements of the plate, it can be configured as a lower or upper auxiliary folding blade.

The auxiliary folding blade is made of Japanese high-speed steel, subjected to overall quenching and surface hardening treatment to ensure long service life and maximum precision.

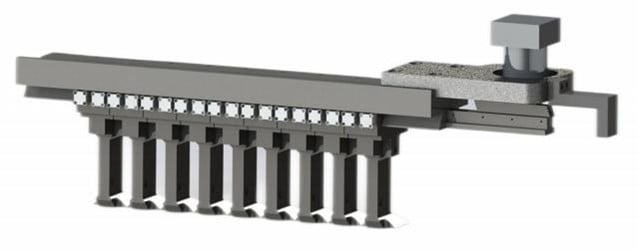

The servo motor drives the press die to move the guide plate, enabling each press die to operate independently. The system automatically selects and arranges the combination of press dies according to the size and bending requirements of the sheet.

The press die is made of quenched and hardened Japanese high-speed steel to ensure long service life and high precision.

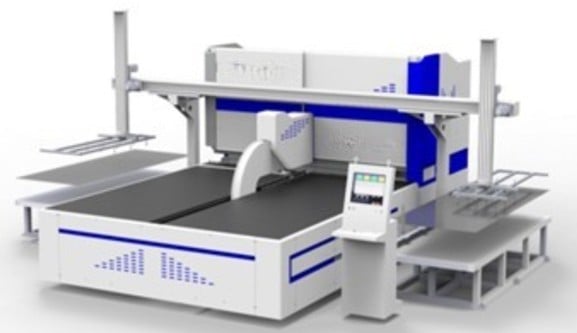

The automatic loading and unloading system provides an integrated operational infrastructure that significantly increases production capacity, thereby maximizing the efficiency of the bending process.

On both sides of the machine, the servo motor–driven loading and unloading mechanisms work in perfect synchronization with the bending table, ensuring smooth, accurate, and efficient material handling throughout the process.

The three-axis dual-head moving gantry adopts a single-beam design with dual retrieval arms.
Its function is for Retrieval Arm No.1 to transfer the cut plate from the laser cutting machine to the single-axis conveyor, while Retrieval Arm No.2 transfers the cut plate from the single-axis conveyor to the CNC punching machine’s working table.
The dual-arm retrieval design accelerates the plate transfer rhythm and improves the working efficiency of the entire assembly line.
Each retrieval arm grips the plate using vacuum suction cups, whose quantity can be freely configured, thereby increasing the flexibility and variety of plate handling.
