Useful cutting length (mm)
0,4 - 1,0
Capacity Zinc, Copper (mm) *
0,4 - 1,2
Capacity Stainless Steel (mm) *
0,4 - 0,6
Capacity 1050-H44 Aluminum (mm) *
Blades
reversible once
Cutting angle
1,5°
Left-hand and right-hand cutting lever (mm)
1 100
Right-hand scaled square gauge (mm)
500
Left-hand scaled square gauge (mm)
Back gauge stroke (mm)
15 - 750
Conical adjustment on mechanical counter (mm)
+/- 5
Table height (mm)
Operating dimensions (mm)
3 050 x 1 600 x 1 300
Net weight (kg)
692
* min-max thickness

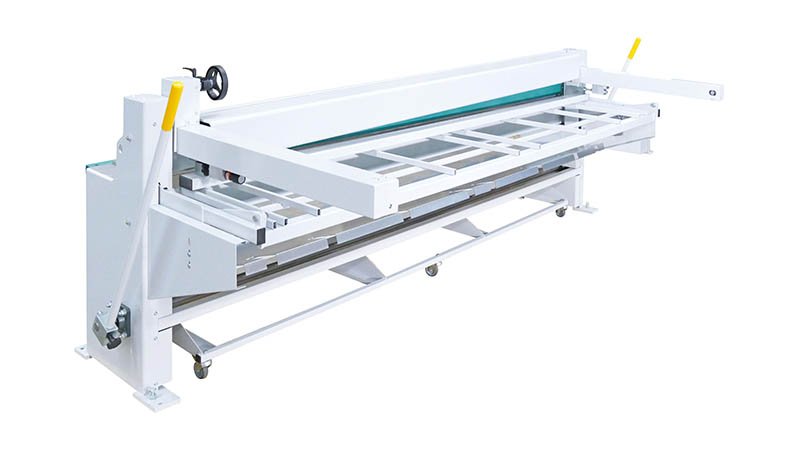

Belt-type manual back gauge for shear CGM2050, reference CGM2050-BCAV with control and reading at the front of the machine, conicity device with counter

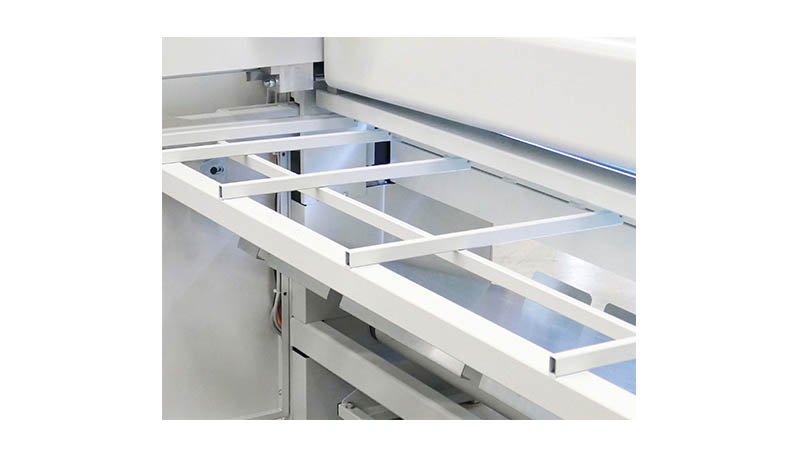

Automatic back metal sheet holding plate for shear CGM2050, reference CGM2050-PEIGNE. Device directly coupled to the cutting bar, allows the plate to be located automatically in upper position to hold the metal sheet and in low position to move the cut metal sheet into the tray
Metal sheet collecting tray, reference CGM2050-BL, collection of the metal sheet formats up to 750mm wide at the front of the machine, 4 small wheels with brakes
