Jouanel CGI1050-BAE Electric Shears 1m x 2.5mm With Electric Back Gauge 5-500mm And CNC Control

Jouanel CGI1050-BAE Electric Shears 1m x 2.5mm With Electric Back Gauge 5-500mm And CNC Control (Jouanel CGI1050-BAE )

Brand : Jouanel

Price : 0,00 EURO

Stock Amount : 0

Note: The prices shown here are retail sales prices. SPECIAL DISCOUNT MAY APPLY FOR BULK PURCHASES . Additionally, discounted prices offered to dealers may differ.

Import duties, customs charges, and value-added taxes for products originating outside of Turkey are not included in the listed prices. This is applicable to customers purchasing from within Turkey.

The prices mentioned here do not include door-to-door delivery. Buyers purchasing from other countries are responsible for customs duties and any other taxes applicable under their local commercial laws.

For orders under 13,000 Euros, if the product value is below this, the total order value must either reach 13,000 Euros or a 150 Euro customs fee will be added to your final invoice value.

Ask For Offer

Add to Favorites

Add to My Wish List

Compare

Notify me when the price goes down

Notify me when it is in stock

Artır Azalt

Delivery Time 45-60 Days After O.C.

Shipment Place Turkiye

Payment Terms % 50 T/T On O.C., % 50 T/T B.S.

Made In France

Min. Order Qty. 1 Pcs.

Warranty1 Year

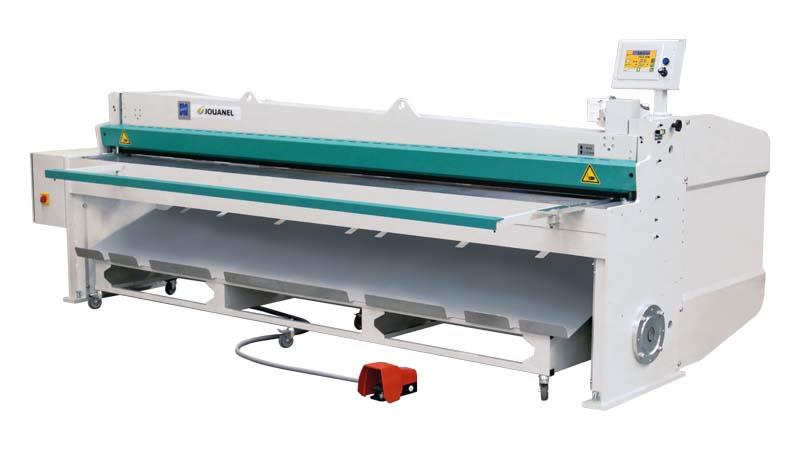

Electric guillotine shear for workshop, reference CGI1050-BAE, useful cutting length 1m, 2.5mm steel capacity, managed by numerical control with 7" touch screen, belt-type electric back gauge from 5 to 500mm, square gauges, retractable front table

Shears of new generation, reinforced rigidity
Power and cutting quality
Optimized for mass production
Permanent and powerful lighting of the cutting line by LED integrated in the sheet clamping device
High visibility of blades for scribe cut
Intuitive numerical control with 7’’ touch screen
Quick programming of lengths and quantities
Electric back gauge with rapid motion, from 5 to 500mm
Adjustment of the cutting width
Control consol on swivel arm (optional)

300mm wide and 800mm high front table, grooved every 10mm to make easy the cuts without support on gauge

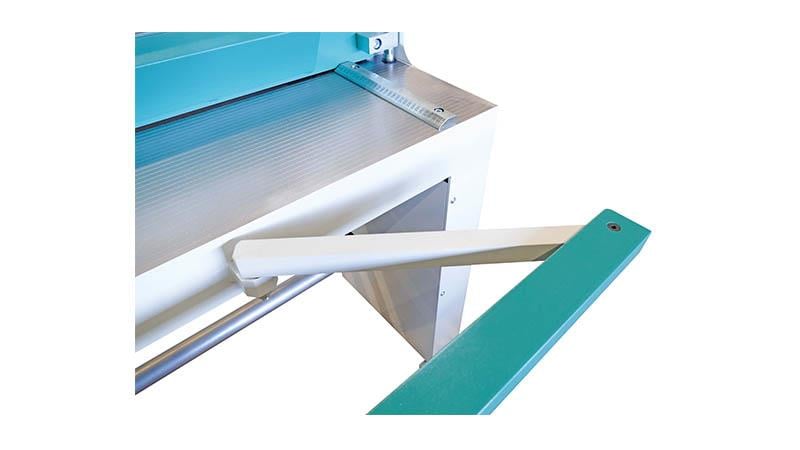

Retractable front table + 480mm for large formats
Retractable back metal sheet support 120mm (plate option excluded)
Left-hand 300mm and right-hand 500mm graduated square gauge
Belt-type electric back gauge, driven by numerical control, from 5 to 500mm and conicity device
Automatic sheet clamping system
Foot-operated control
Reversible one-piece blades
Cut counter with reset
Photocells providing safe access to the back of the machine

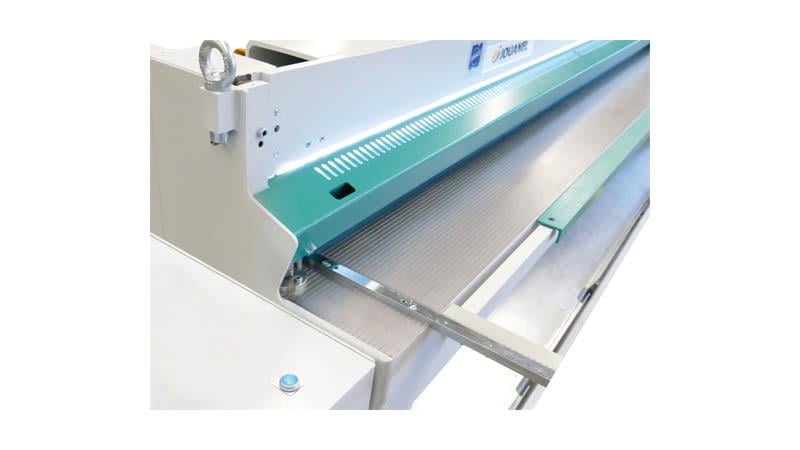

Powerful lighting of the cutting line with LED strip integrated in the sheet holding system (permanent lighting, better visibility)
Slinging rings

Control on 7" color touch screen
User-friendly and intuitive programming
Auto menu for mass production or manual mode shot by shot
Adjustment of the shearing length to increase the cutting rates
Management of preventive maintenance for the machine
Remote assistance

Useful cutting length (mm)	1 050
Max. capacity Zinc (mm)	3.0
Max. capacity Aluminum 1050-H44 (mm)	3.0
Max. capacity Steel S235JR (mm)	2.5
Max. capacity Stainless steel 304L (mm)	1.5
*Note: for cuts from 5 to 25mm, capacity reduction of -50%*
Table height (mm)	800
Cutting rate (cuts / min)	25
Electric back gauge stroke (mm)	from 5 to 500
Power (kW)	2.2
*Power supply (V)**	400V Three-ph + neutral + earth
Dimensions (mm)
Weight (kg)
* Choice of the voltage to be specified with the order / possible 220V power supply as an option

Back support for sheets with automatic release for CGI2050A shears

Automatic back metal sheet holding plate for CGI2050A shear, reference CGI2050A-PEIGNE.

Tray to collect the sheet - on wheels with brakes

Metal sheet collecting tray, reference CGM2050-BL, collection of the metal sheet formats up to 750mm wide at the front of the machine, 4 small wheels with brakes

Control consol on swivel arm for CGI

Swivel arm length 1m, ref.CGI-POTOR, for viewing the controls on the screen regardless of the position of the operator. Desk located on the right side of the machine

Left side square gauge 1000mm instead of 500 for CGI

Left side square gauge 1000mm ref.CGI-EQUER-1000G. Can be used as an alternative to the standard side square gauge

Right side square gauge 1000mm instead of 500 for CGI

Right side square gauge 1000mm ref.CGI-EQUER-1000. Can be used as an alternative to the standard side square gauge

220V single-phase power supply for CGI-BAE

220V single-phase power supply, ref.CGI-220-BAE, for electric guillotine shears CGI-A-BAE, instead of the standard 400V Three-phases + Neutral + Earth power supply (220V single-phase power supply according to electrical installation recommendations)
