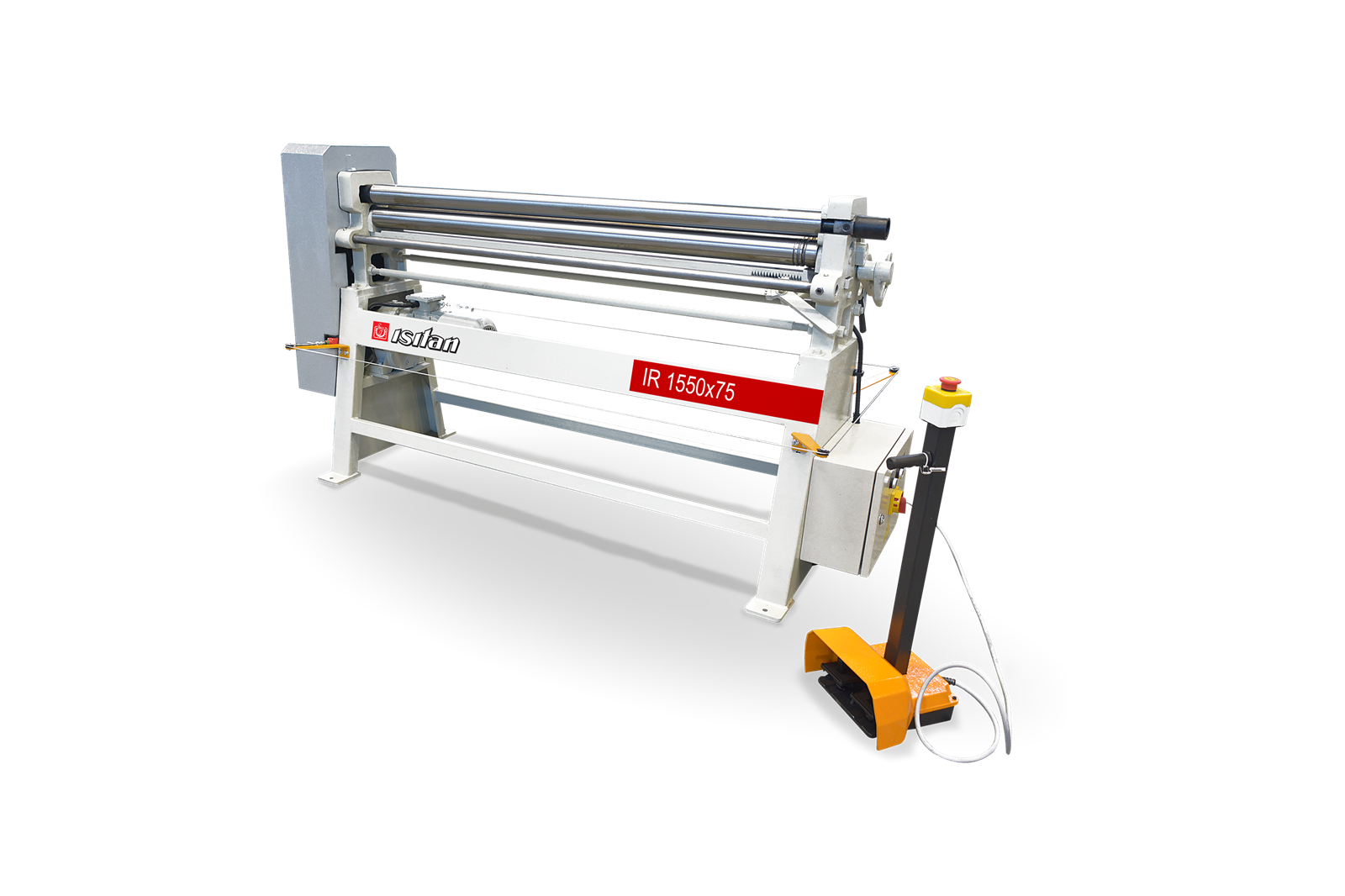

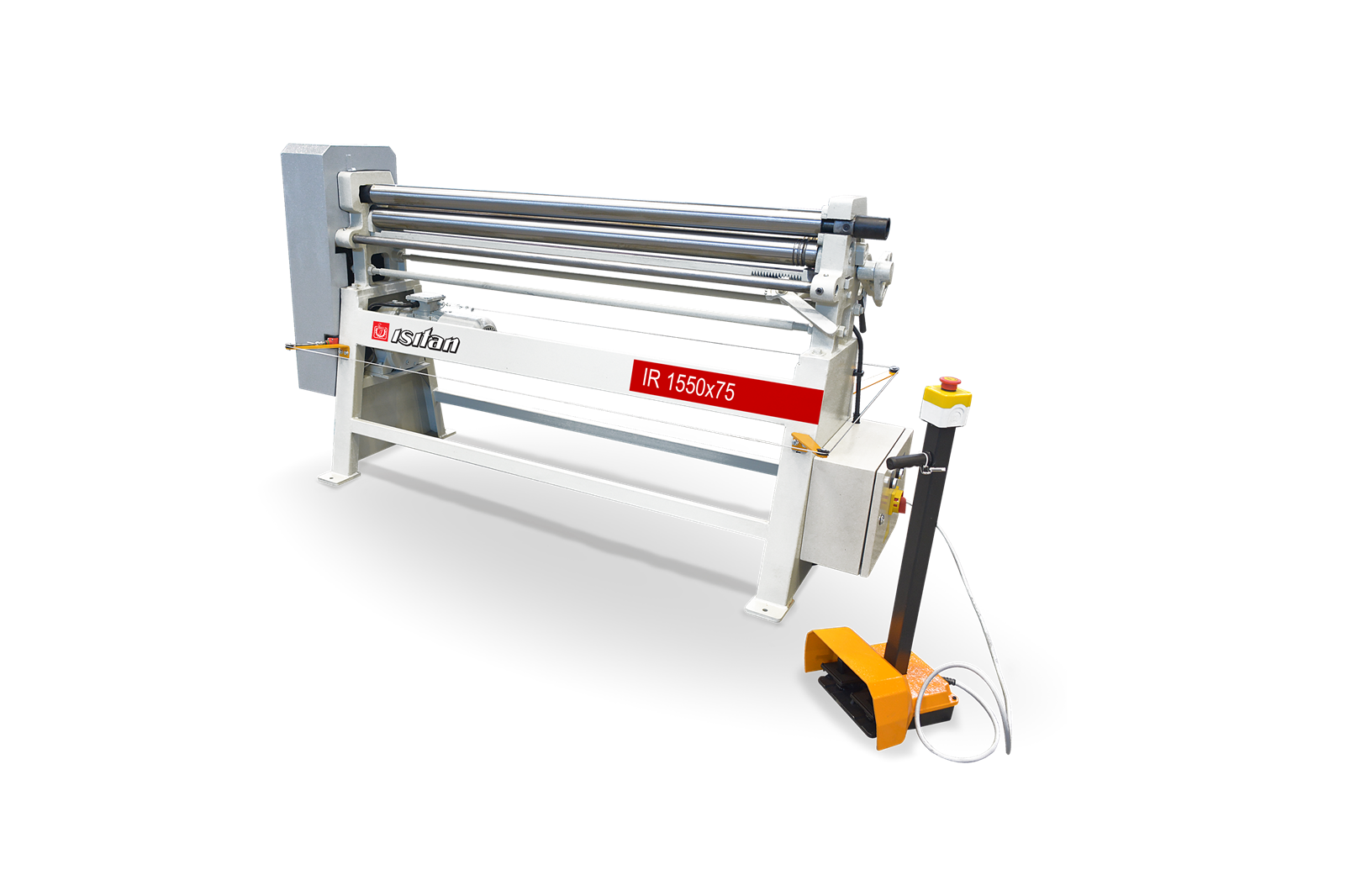

Isitan IR 2050 x 75 Motorized 3Rolls Plate Bending Machine (IR 2050 x 75)

Easy operation with mobile control panel with push buttons
Very suitable for light and medium plates, aluminum or stainless steel
Built according to EC Safety Directives and has CE Mark
Manual Drop-End for easy removal of finished ferrule
Hot rolled SAE 1050 (CK 45) Steel Rolls
Main motor with Brake System
Precision Bending with Brake Motor
SAE 1050 Quality Certificated Steel Rolls with high tensile strength
Cast Iron Main Frames
Wire grooves at the end of the rolls
Top and bottom rolls powered by a single Gearbox and gear system (IR)
Manual dropend
Precision Bending with Brake Motor on IR models

Induction hardened rolls (HRC58-60)
Digital Read-Out for Rear (back) Roll

General Technical Specifications
Plate Bending Roll Type	3	pcs.
Useful Length	2050	mm
Roll Diameters  (Ø)	75	mm
Bending Capacity Specifications and Power
Bending Capacity	1	mm
Min. Bending Diameter with Pre-bend (Top Roll x 5)	112,5	mm
Motor Power	1,5	Kw
Wire Grooves Dia.	4/6/10
Machine Dimensions
Length	2610	mm
Width	700	mm
Height	1160	mm
Weight	590	kg

• All technical specifications are subject to change without notice.

• Plate bending capacities are given for 260 N/mm2 plate yielding strength.
