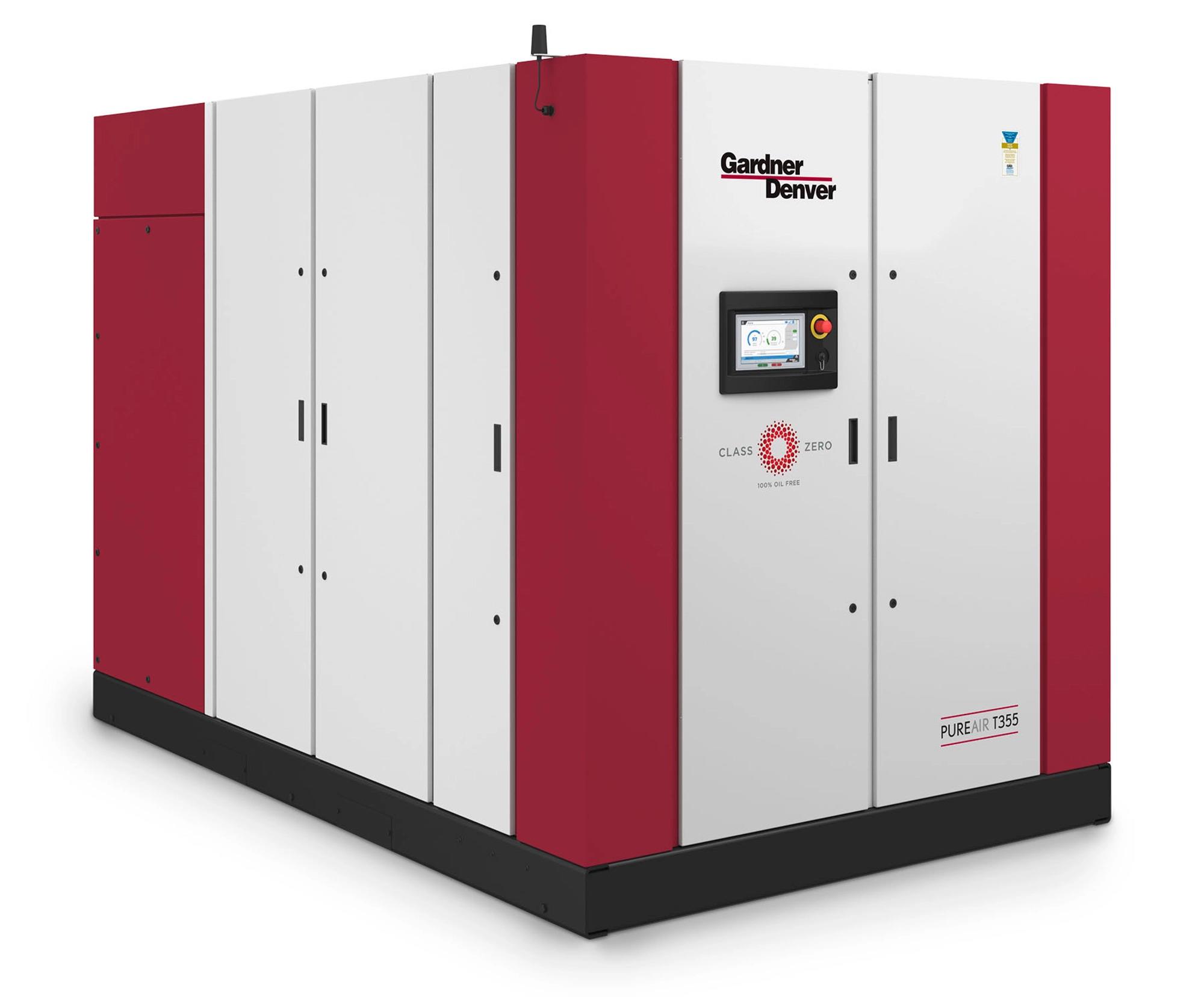

Gardner Denver T110 PureAir Series Oil-Free Screw Air Compressor 185-355kW (250-450 hp)​ (Gardner Denver T110)

The PureAir Series T & TVS 185-355 kW oil-free screw air compressors is a continuation in our long heritage of compressed air products. Utilizing state-of-the-art design and simulation software, combined with decades of experience in oil-free compression, Gardner Denver continues to deliver on our promise to offer the most efficient and reliable oil-free compressors available.​

Class 0: 100% oil-free air

RotorArmor™ airend coating

Stainless steel 2nd stage airend rotors

Stainless steel discharge air piping

TEFC cooling fan

Quiet enclosure

GD Governor™ Controller

Operates up to 131°F

Compact footprint

Optional energy recovery

Embrace the pinnacle of air compression with Gardner Denver's PureAir T TVS series—where pure air production meets unparalleled efficiency. Our compressors deliver 100% oil-free air, guaranteeing the safety and quality of your end products. With RotorArmor™ coated airends and stainless steel components, these machines not only offer industry-leading efficiency but also promise exceptional longevity and resilience to harsh environments. The series' space-efficient design, coupled with advanced controls, quiet operation, and optional energy recovery, makes it a superior choice for businesses looking to enhance performance while prioritizing environmental sustainability.

• Pure Air Production: Eliminates the risk of oil contamination in your air supply, ensuring the Class 0 100% oil-free air and the safety and quality of your end products.
• Optimized Efficiency: The RotorArmor™ coating on airend rotors and housing is designed to enhance efficiency, contributing to industry-leading performance in air compression
• Longevity with Stainless Steel Components: Utilizes stainless steel for 2nd stage airend rotors and discharge air piping, offering increased resistance to corrosion and extending the airend's service life.
• Environmental Protection with TEFC Fan: The Totally Enclosed Fan-Cooled (TEFC) design keeps out dirt and water, ensuring optimal cooling performance and longevity.
• Reduced Noise Operation: A quiet enclosure design significantly lowers sound levels, contributing to a more comfortable workplace.
• Advanced Control with GD Governor™: The precision control and monitoring provided by the GD Governor™ Controller offer operational confidence and peace of mind.
• High-Temperature Resilience: Capable of operating in harsh environments with temperatures up to 131°F, ensuring reliability under extreme conditions.
• Space-Efficient Design: A compact footprint reduces floor space requirements, making it ideal for facilities with limited area.
• Optional Energy Recovery: Offers an energy recovery option to supply hot water, harnessing waste heat for other processes and enhancing overall energy efficiency

The Next Generation of High-Efficiency  Oil-Free Compressors Has Arrived!

Introducing the PureAir Series Oil-Free Compressors  by Gardner Denver

Founded in 1859, Gardner Denver has been meeting the demand for compressed air equipment for more than 160 years. Ingrained in our DNA is the desire to push the limits of technology by designing and manufacturing the most advanced, reliable and energy-efficient products available in the market place today. Today’s Gardner Denver compressors run quieter, are more efficient and last longer than ever before. The new PureAir T/TVS 90355 kW Series of oil-free compressors is a continuation in our long heritage of compressed air products. Utilizing state-of-the-art design and simulation software, combined with decades of experience in oil-free compression, Gardner Denver has once again delivered on our promise to offer the most efficient and reliable oil-free compressors available.



The PureAir T/TVS Series compressors are designed with reliability at their core. They will take the punishment of 24/7 operation under extreme conditions.

The outstanding features that make the PureAir Series the compressor you’ll want to have in your plant:

■ Class 0: 100% Oil Free—Zero Risk of Contamination

■ RotorArmor™ airend rotor and housing coating – improves efficiency and extends airend longevity

■ Stainless steel 2nd stage airend rotors – extends airend longevity

■ Stainless steel discharge air piping (1st and 2nd stage) – improves corrosion resistance

■ TEFC cooling fan – prevents dirt and water ingress

■ Quiet enclosure – reduces sound levels

■ GD Governor™ controller – precision control and monitoring provides peace of mind

■ Up to 131°F operation – built for harsh environments

■ Compact footprint – reduces floor space requirement

■ Optional energy recovery available to supply hot water for other processes

Standard Features

1    99.5% efficient 3 micron heavy-duty air filter element increases efficiency

2    Robust poppet-style non-return valve increases reliability

3    Long life oil filter reduces waste

4    Flexible cooler connections eliminate failures

5    Condensate separator with reliable timed drain

6    Pre-cooler reduces fatigue from temperature spikes

7    Pressure & temperature sensors remote-mounted to reduce vibration-induced failures

8    Best-in-class airend design provides exceptional reliability and performance. Rotors coated with GD RotorArmor™

PureAir T90–160  Fixed Speed, Air-Cooled Model



Available Options, PureAir Series Fixed Speed

■ Outdoor installation, NEMA 4

■ Low ambient to -10°F (-12°C)

■ High ambient to +131°F (+55°C) except 160 & 355 kW

■ Soft start

■ Engineered custom design for special requirements

■ 90/110/132/160/185/220/260/300/355 kW sizes

■ 110, 125, 155 psig max working pressure

■ Air-cooled and water-cooled

PureAir T185–355  Fixed Speed, Air-Cooled Model Outdoor Model Option

Standard Features

1    99.5% efficient 3 micron heavy-duty air filter element increases efficiency

2    Integrated drive for variable flow output

3     Wide turndown range

4     Long life oil filter reduces waste

5    Flexible cooler connections eliminate failures

6    Condensate separator with reliable timed drain

7    Pre-cooler reduces fatigue from temperature spikes

8    Pressure & temperature sensors remote-mounted to reduce vibration-induced failures

9    Best-in-class airend design provides exceptional reliability and performance. Rotors coated with GD RotorArmor™

PureAir TVS90–160  Variable Speed, Air-Cooled Model



Available Options, PureAir Series Variable Speed

■ Remote sensing kit

■ Dry contacts

■ No loss drain

■ 90/110/132/160/200/250/315/355 kW sizes

■ Air-cooled and water-cooled

PureAir TVS200–355  Variable Speed, Water-Cooled Model

Unmatched Efficiency

PureAir delivers up to 14% higher efficiency than the leading competitor. Over the course of just five years, the PureAir can save $50,000 or more in energy cost in a typical application.

Reduce the Cost of Ownership



Minimize Your  Energy Consumption The largest cost component of a compressor during its lifetime is the power required to operate it. Perfect Response to Your Individual Air Demand Variable speed compressors from Gardner Denver can efficiently and reliably handle varying air demands. The right variable speed compressor in the right application delivers significant energy savings while providing a stable air supply at constant pressure.





GD Governor™ Touchscreen Controller Features

■ User-friendly navigation with state-of-the-art graphics and design

■ Machine status available on a 10 inch, full-color touchscreen display

■ Detailed schematics at your fingertips

■ Advanced machine monitoring & diagnostics

■ Data logging and iConn remote monitoring connection

■ Sequencing of up to 4 compressors

■ Web server to allow access to the GD Governor™ from your desktop

■ Available with optional energy monitoring

Not All Airend Coatings Are the Same

■ Dry screw airend housings and rotors are coated to:– Prevent corrosion– Maximize efficiency– Provide optimum protection against rotor wear

■ Not all coatings are the same! GD RotorArmor™ creates both a chemical and mechanical bond to the rotor and housing to ensure maximum efficiency and protection under extreme conditions

■ Other manufacturers use a two-part process with a soft second layer PTFE-graphite coating which ensures good sealing on day one, but rapidly wears, reducing performance by 10% or more

■ PureAir: Guaranteed maximum efficiency throughout the compressor life

■ Both the fixed and variable speed airends have these standard features:

– Stainless steel 2nd stage rotor offers maximum corrosion protection

– GD RotorArmor™ is a high-performance rotor and housing coating designed to improve airend performance and extend airend life

– Motor-driven oil pump provides lubrication prior to airend rotation and maintains oil pressure until the airend comes to a complete stop ensuring full lubrication whenever the airend is rotating

– Motor driven closed-loop cooling provides optimum airend efficiency and performance by circulating water/glycol through the airend jackets. Water-in-jacket cooling provides 3% better efficiency than oil-in-jacket cooling

Peace-of-Mind Protection  & Smarter Performance

Fitted with the GD Governor™ touch screen controller, PureAir models provide the ability to monitor the installation's operational parameters. This is accomplished through a multilingual and user-friendly control system, which is essential for protecting your investment and lowering running costs. The controller in turn allows connection to iConn—the real-time monitoring service providing in-depth and accurate information about the system. This proactive, smart technology provides total peace-of-mind, ensuring production planning is protected by precise statistics and insight generated by the controller. This data keeps users informed about performance and highlights any cause for concern before a problem arises.

The Gardner Denver iConn platform mitigates risk and allows you to continuously monitor your compressed air equipment.

Keeping the System Healthy

Total System Protection

Since 1859, Gardner Denver has been supporting the compressed air industry with high-quality, long-lasting compressor and air treatment solutions. Carrying on that legacy, our robust line of parts, lubricants  and downstream accessories ensure your system stays healthy. The focus on total system protection by Gardner Denver not only includes OEM parts and fluid solutions, but a commitment to the longevity of  your equipment through our industry-leading warranty programs.

Protect your investment.

MODEL				T110
COOLING METHOD				Air			Water
DRIVE MOTOR			HP	150			150
			KW	110			110
NOMINAL PRESSURE			PSIG	100	125	150	100	125	150
			BARG	6.9	8.6	10.3	6.9	8.6	10.3
FAD*		50 HZ	ACFM	749	715	645	756	721	653
			M³/MİN	21.2	20.2	18.3	21.4	20.4	18.5
		60 HZ	ACFM	742	708	643	750	716	651
			M³/MİN	21.0	20.0	18.2	21.2	20.3	18.4
NOISE LEVEL**			DB(A)	78			75
WEIGHT		50 HZ	LBS	8051			7760
			KG	3652			3520
		60 HZ	LBS	8662			8371
			KG	3929			3797
DIMENSIONS L x W x H			IN. (MM)	107 × 72 × 87  (2712 × 1825 × 2200)

* Data measured and stated in accordance with ISO1217 4th Edition Annex C and E at the following conditions: Air Intake Pressure: 1 bar a/14.5 psi, Air Intake Temperature: 20°C/68°F, Humidity: 0% (dry) **Measured in free field conditions in accordance with the ISO 2151, tolerance ±3 dB(A)



Experience Peace of Mind with our Warranty

The engineering philosophy of Gardner Denver ensures long-lasting, reliable equipment. Our simple, but bold warranty programs demonstrate our belief in the quality found in Gardner Denver compressors.

Our standard warranty ensures that you have peace of mind when it comes to your system's operation. Contact your local, authorized Gardner Denver distributor for more details on the available warranty program.

Sales & Service Distributors Across America

An Extensive Network

By leveraging the extensive network of Gardner Denver factory-trained authorized local distributors, your sales, service, and technical support needs can be handled quickly and easily.
