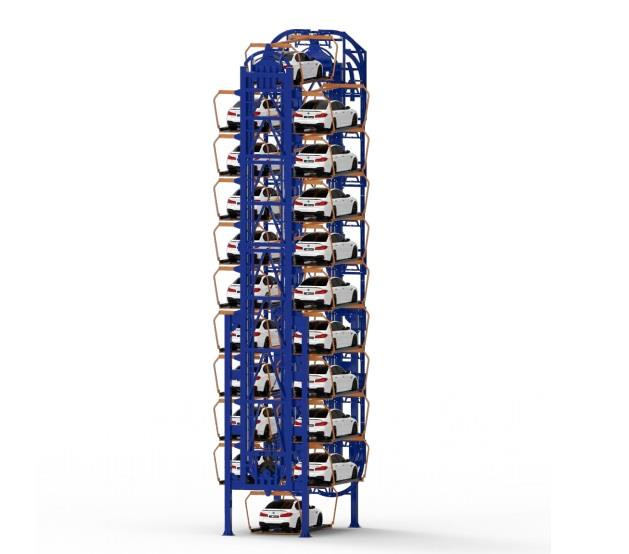

Eounice PCX-11 Rotary Parking System – Introduction and Working (Eounice PCX-11)

• Single power and simple control – easy to operate with LCD panel or smart card.
• Space-saving design – requires a very small footprint compared to traditional parking.
• Reliable and safe – controlled by automated systems with safety locks.
• Flexible application – can be installed in small plots, old neighborhoods, or narrow spaces where regular parking isn’t possible.

A Rotary Parking System is one of the most efficient vertical loop mechanical parking solutions designed to maximize space usage in crowded cities. By using vertical circulation, this system can store multiple vehicles in a compact area, making it ideal for places where land is limited. Many property developers and businesses prefer rotary systems because of their reliability, safety, and land-saving benefits.

Just like the Tower Parking Garage concept, the rotary system focuses on vertical movement to increase parking density without requiring additional ground space. Both systems are part of modern smart parking solutions that address the growing demand for vehicle storage in urban environments.

Rotary parking systems are especially suitable for areas where land is scarce or irregular in shape. They are often installed in old residential communities that lack proper parking, as well as urban villages where vehicles are growing in number but land remains limited. Industrial parks and commercial zones also use these systems to save valuable ground space. Even in narrow city plots where traditional parking garages cannot be built, a rotary system can provide an efficient way to increase parking capacity without requiring large construction areas.

The working principle of a rotary parking system is based on a vertical loop mechanism. A reduction motor drives the transmission system, while a parking bracket is fixed at equal intervals on the chain, which acts as the traction component. As the chain moves in a continuous loop, the brackets carry the vehicles upward and downward in a cycle. When a driver parks or retrieves a car, the system rotates until the designated parking space aligns with the entry or exit point, ensuring fast and reliable operation with minimal human effort.

For more insights on other smart parking methods, check out this guide on Types of Mechanical Parking Systems.

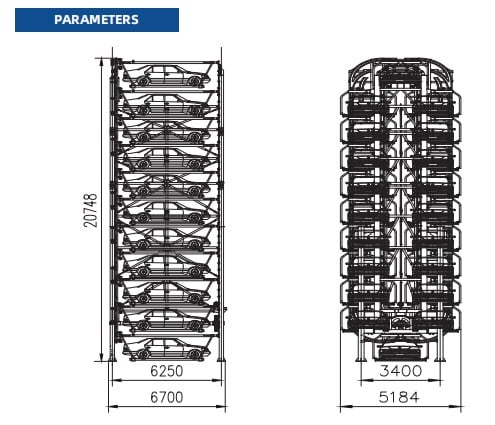

Model	PCX-11
Parking quantity	20
Car size	530019501500/1900mm 2000kg
Parking layers	11
Speed	8m/min
Operation way	LCD display, manual/automatic/card swipe operation
Power	380V Three phase AC
Drive way	Motor + Chain
Parkway	Forward enter the garage, Reverse out of the garage
